Vauxhall Astra Clutch Replacement: A Comprehensive Guide

The clutch is a vital component in any manual transmission vehicle, allowing you to change gears smoothly and efficiently. When it starts to show signs of wear, it can lead to a host of driving problems, from difficulty shifting to complete loss of power. If you're a Vauxhall Astra owner experiencing any of these issues, understanding the clutch replacement process is crucial.

Common Signs of a Failing Clutch

Recognising the symptoms of a worn clutch can save you from more extensive damage and inconvenience. Here are some of the most common indicators:

• Slipping Clutch: This is perhaps the most tell-tale sign. You might notice the engine revving higher than usual without a corresponding increase in speed, especially when accelerating or going uphill. It can feel like the car is losing power.
• Difficulty Shifting Gears: If you find it hard to engage gears, or if the gearstick feels stiff or reluctant to move, your clutch might be the culprit.
• Strange Noises: A worn clutch can produce a variety of noises, such as grinding, rattling, or whining, particularly when the clutch pedal is pressed or released.
• Burning Smell: A strong, acrid burning smell, often likened to burning rubber or toast, can indicate that the clutch is overheating due to excessive friction.
• Juddering or Vibrations: If you feel vibrations or juddering through the clutch pedal or the car when you start from a standstill or change gears, it's a sign of uneven wear.
• Clutch Pedal Issues: A clutch pedal that feels spongy, sticks to the floor, or is unusually high or low when engaging can also point to clutch problems.

How Much Does a Clutch Kit Replacement Cost for a Vauxhall Astra?

The cost of replacing a clutch kit for a Vauxhall Astra can vary depending on several factors, including the specific model, the age of the vehicle, the garage you choose, and whether you opt for genuine manufacturer parts or aftermarket equivalents. However, to give you a general idea, here's a breakdown of what you might expect:

Fixter, a leading online car maintenance service, offers a convenient and often more affordable alternative to traditional dealerships. They highlight that their customers can save up to 30% compared to dealership prices. While specific figures aren't provided here, you can get an instant online quote from Fixter, which includes free vehicle collection and delivery. This transparency in pricing and the potential for significant savings make them a popular choice.

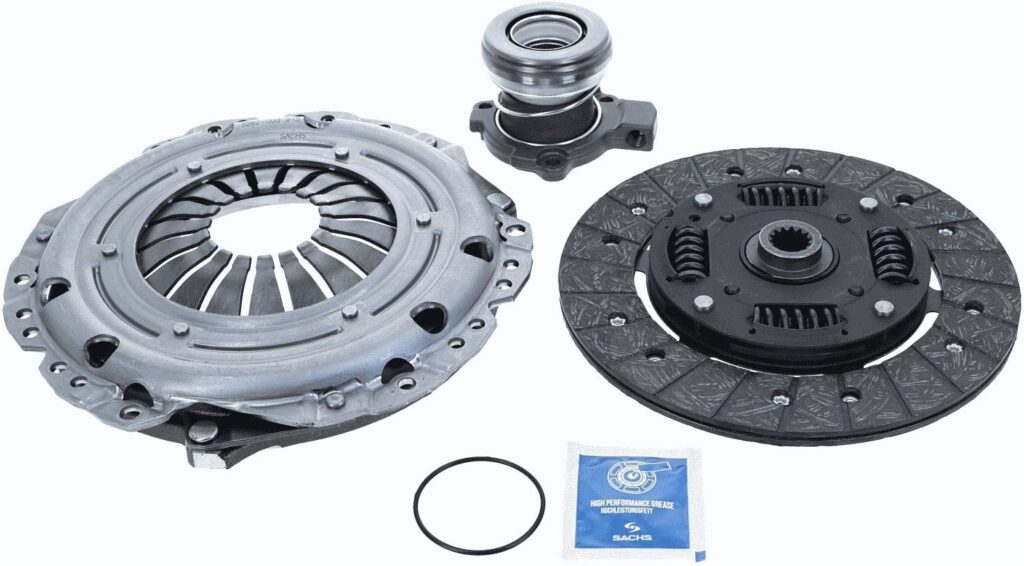

A typical clutch replacement involves not just the clutch plate but also the pressure plate and release bearing. In many cases, it's also recommended to replace the dual-mass flywheel (DMF) at the same time, especially if it shows signs of wear. The flywheel is a more expensive component, so its inclusion will increase the overall cost.

Factors influencing clutch replacement cost:

Vauxhall Astra 1.7L CDTI Clutch and Flywheel Replacement: A Detailed Procedure

The following step-by-step guide, based on a REPXPERT procedure by Alistair Mason, details the process of replacing the clutch and flywheel on a Vauxhall Astra 1.7L CDTI that had covered over 91,000 miles and was exhibiting clutch slipping. This is a complex procedure best left to experienced mechanics, but understanding the steps can be very informative.

Preparation and Initial Disassembly

1. Vehicle Positioning: Place the vehicle on a ramp.
2. Steering Column: Locate and remove the steering column-to-steering rack pinch bolt in the driver's footwell. Disconnect the steering column from the rack.
3. Bonnet Area: Open the bonnet. Disconnect the battery terminals and remove the battery. Remove the Engine Control Unit (ECU) and its wiring loom from the battery carrier. This provides better access to the top of the gearbox.

Accessing the Gearbox

1. Hydraulic Clutch Pipe: Clamp the flexible part of the hydraulic clutch pipe and detach it from the concentric slave cylinder (CSC) by releasing the retaining clip.
2. Gear Cables: Remove the gear cables from the linkage by levering them off and secure them in the bulkhead area.
3. Radiator Support: Secure the coolant radiator using two cable ties, fixing them to the slam panel. This prevents the radiator from moving when the front subframe is lowered.
4. ABS Wiring: Unclip the ABS wiring loom from the ABS unit to provide slack when the subframe is lowered. Remove the engine wiring loom bracket from the top of the bell housing, along with the small bracket near the CSC. Then, remove the top bell housing bolts.

Underside Preparations and Driveshaft Removal

1. Undertray and Wheel: Raise the vehicle lift. Remove the engine undertray. Lower the lift to waist height. Remove the nearside front (N/S/F) wheel and the wheel arch liner.
2. Suspension Components: Detach the N/S/F anti-roll bar link from the suspension strut. Unclip the ABS wiring loom from the front subframe on both sides and disconnect the multiplug at the N/S/F corner.
3. Gearbox Oil: Place an oil drainer under the gearbox and drain the gearbox oil.
4. Mountings: While the oil drains, remove the exhaust mounting, subframe supports from the rear, the rear gearbox mounting, and the bolts for the front gearbox mounting. The mounting stays attached to the subframe.
5. Ball Joint and Driveshaft: Refit and torque the gearbox oil drain plug. Detach the N/S/F bottom ball joint pinch bolt. Remove the bottom arm from the hub assembly and pull the hub assembly out, drawing the driveshaft out of the gearbox. This may require some leverage due to a retaining snap ring. Secure the driveshaft near the bulkhead.

Gearbox Removal

1. Engine Support: Support the engine using an engine brace or a transmission jack. Unscrew the front subframe bolts. Lower the front of the subframe to create enough clearance for gearbox removal.
2. Top Gearbox Mounting: With the engine supported, remove the top gearbox mounting from the engine bay.
3. Gearbox Extraction: Lower the engine and gearbox slightly. Support the gearbox with a transmission jack and unscrew the remaining bell housing bolts, noting their positions. Carefully ease the gearbox away from the engine.

Clutch and Flywheel Replacement

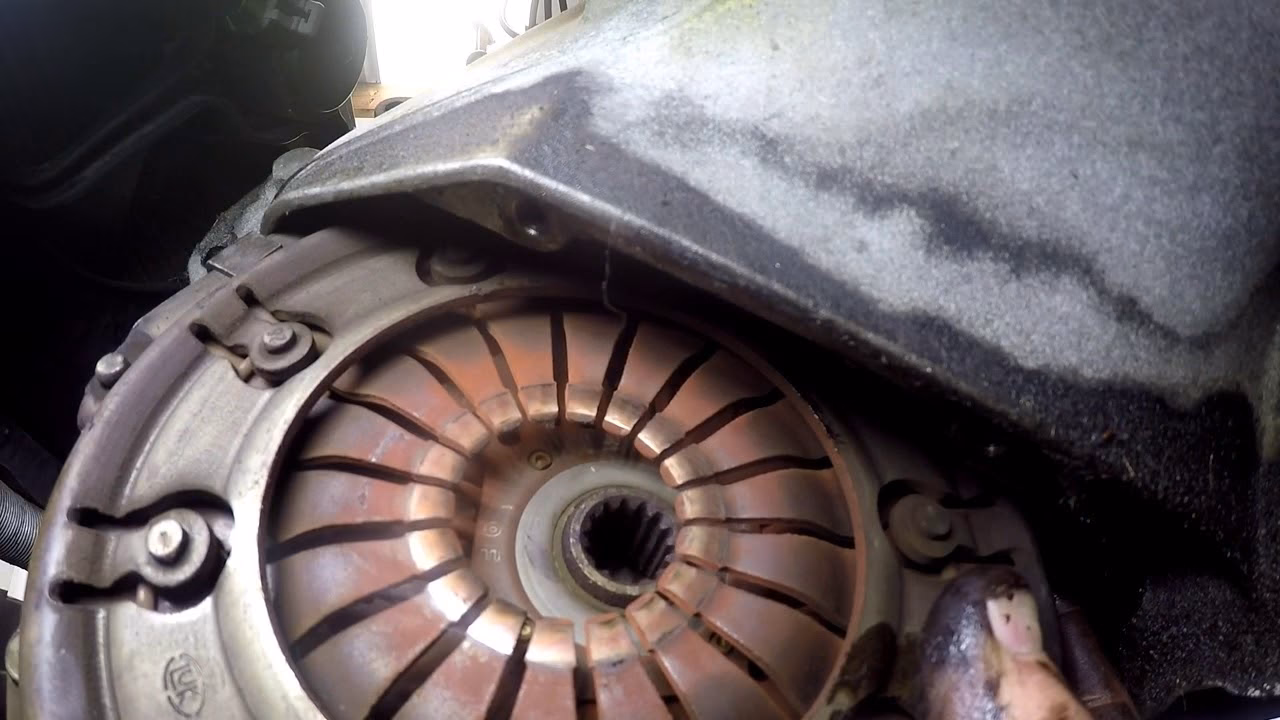

1. Clutch Removal: Remove the clutch assembly from the flywheel by undoing the six bolts. Ease the clutch assembly off the dual-mass flywheel (DMF).
2. Engine Bay Check: Check for any oil or coolant leaks from the engine that could contaminate the new components. Clean the engine area with brake and clutch dust cleaner.
3. New Flywheel Installation: Compare the new flywheel's dimensions and ring gear teeth with the old one. Mount the new DMF, ensuring alignment dowels are correctly positioned. Secure it with new flywheel bolts, tightening them evenly and sequentially before torquing to the manufacturer's specification.
4. CSC Removal: Remove the CSC from the gearbox bell housing. Release the small spring retaining clip on the black plastic connector and ease it away. Remove the black plastic bush that positions the CSC pipe. Unbolt the three retaining bolts from the CSC and detach it from the input shaft and gearbox.
5. Input Shaft Seal Check: Inspect the gearbox input shaft oil seal for leaks. Rectify any leaks and clean the bell housing.
6. New CSC Installation: Mount the new CSC squarely and tighten and torque its bolts. Refit the black plastic location bush onto the pipe and position it in the bell housing.
7. Connector Seal: Crucially, remove the small rubber "top hat" seal from the old CSC pipe connector (if present) and discard it, as the new CSC pipe comes with a new seal. Apply a light smear of brake fluid and ease the connector into position until the spring clip engages.
8. Input Shaft Greasing: Lightly smear high melting point grease on the gearbox input shaft.

Fitting the New Clutch and Reassembly

1. Clutch Plate Alignment: Place the new clutch plate onto the input shaft, moving it back and forth to distribute grease and check spline fitment. Remove the clutch plate and wipe off excess grease. Ensure the clutch plate is fitted the correct way, with "Gearbox Side" or "Getriebe Seite" facing the gearbox. Use a clutch alignment tool to centre the clutch plate.
2. New Clutch Installation: Mount the new clutch to the DMF. Install the clutch bolts, tightening and torquing them evenly and sequentially.
3. Clutch Fluid Flush: Before reinstalling the gearbox, flush the old clutch fluid. Drain it into a waste container and refill the reservoir with new, clean clutch fluid. Clamp the hose once new fluid flows cleanly through the system.
4. Gearbox Reinstallation: Ensure gearbox alignment dowels and the spacer plate are correctly positioned in the engine block. Lift the gearbox into position over the subframe, supporting it with the transmission jack and aligning it with the engine. Secure it with an accessible bell housing bolt.
5. Final Reassembly: Reassemble all components in the reverse order of removal. Refill the gearbox with the correct grade and quantity of oil, torquing all bolts to the manufacturer's specification.
6. Clutch Bleeding: Bleed the clutch system. "Gravity bleeding" can be effective, but vacuum or two-man manual bleeding are also reliable methods.
7. Electrical Reset and Test Drive: Reset all electrical consumers as the battery was disconnected. Carry out a comprehensive road test to confirm the repair is successful.

Frequently Asked Questions (FAQs)

Q1: How long does a clutch replacement typically take?
A: For a Vauxhall Astra, a clutch replacement can usually take between 3 to 6 hours, depending on the complexity and the mechanic's experience. This labour time does not include diagnostic or preparation steps.

Q2: Can I drive with a slipping clutch?
A: It is not recommended to drive with a slipping clutch. Continued driving can cause further damage to the clutch components, flywheel, and potentially the gearbox, leading to much higher repair costs.

Q3: Do I really need to replace the flywheel when replacing the clutch?
A: While it's possible to only replace the clutch, it's highly recommended to replace the flywheel (especially a dual-mass flywheel) if it shows signs of wear, such as scoring, heat spots, or excessive play. Replacing both ensures optimal performance and longevity of the new clutch system.

Q4: What is a concentric slave cylinder (CSC)?
A: The CSC is an integrated hydraulic clutch release bearing. It's located around the gearbox input shaft and pushes on the clutch pressure plate fingers. Because it's often difficult to access, it's standard practice to replace it whenever the clutch is renewed.

Q5: Are aftermarket clutch parts reliable?
A: Many reputable aftermarket brands offer high-quality clutch components that are as reliable as OEM parts. However, it's wise to research brands and choose those with good reviews and warranties. Services like Fixter often partner with garages that use quality aftermarket parts.

Q6: Should I use a specialist or a general mechanic for my Astra clutch replacement?
A: While a competent general mechanic can perform a clutch replacement, a specialist or a garage with a good understanding of Vauxhall vehicles may have more experience and efficiency with your specific model. Online platforms like Fixter help ensure you're connected with vetted local garages.

Q7: How can I extend the life of my new clutch?
A: To maximise the lifespan of your new clutch, avoid resting your foot on the clutch pedal while driving, avoid unnecessary 'riding' the clutch (holding the car on the clutch on hills), change gears smoothly without excessive revving, and avoid towing heavy loads if your vehicle isn't equipped for it.

Conclusion

A failing clutch on your Vauxhall Astra is a significant issue that requires prompt attention. Understanding the symptoms, potential costs, and the intricate replacement process can empower you to make informed decisions about your vehicle's maintenance. Whether you choose a main dealer, an independent garage, or an online service like Fixter, ensuring the job is done correctly with quality parts is paramount to getting your Astra back on the road safely and reliably.
