The clutch master cylinder is a small but mighty component within your vehicle's manual transmission system, playing an absolutely critical role in your ability to change gears smoothly and safely. Often overlooked, this hydraulic device is the linchpin that connects your clutch pedal to the rest of the clutch mechanism. Without a properly functioning clutch master cylinder, your car might become undrivable, leaving you stranded and facing potentially expensive repairs. Understanding its purpose, how it operates, and the signs of a failing unit is essential for any driver of a manual vehicle.
What Exactly is a Clutch Master Cylinder?

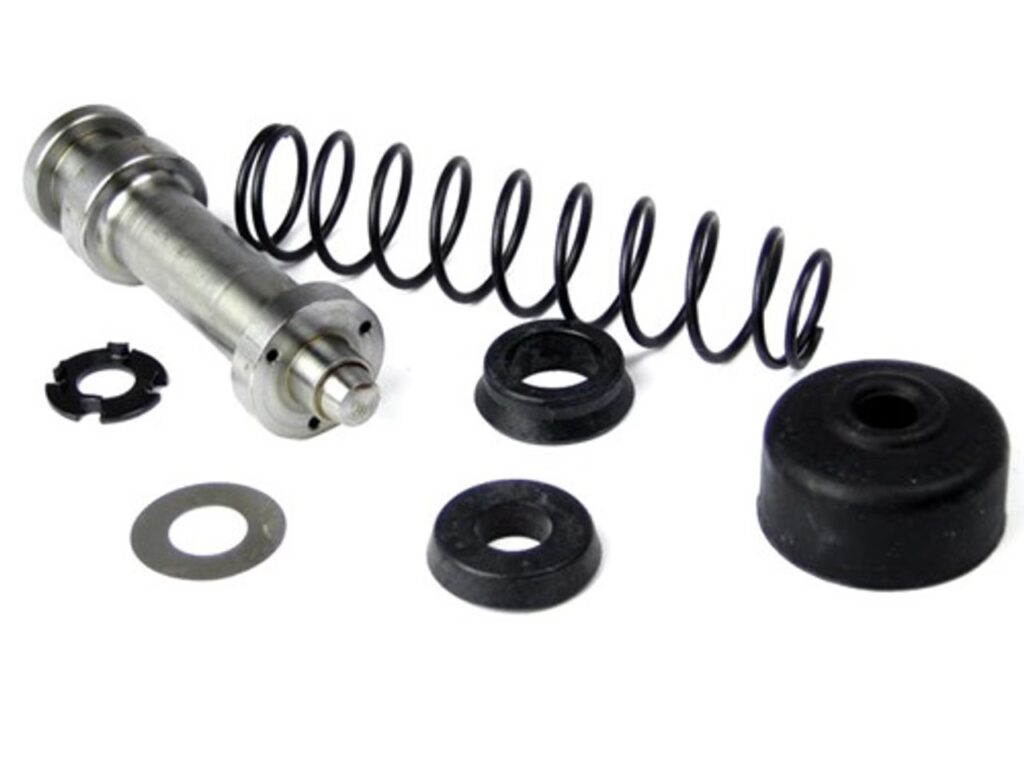

At its core, the clutch master cylinder is a hydraulic pump. In a manual transmission vehicle, when you depress the clutch pedal, you're not directly engaging or disengaging the clutch itself. Instead, you're activating the clutch master cylinder. This cylinder contains a reservoir of hydraulic fluid (typically brake fluid) and a piston. As the clutch pedal is pressed, the piston moves within the cylinder, forcing the hydraulic fluid through a pipe (the clutch line) to another component called the slave cylinder.
This hydraulic pressure is the key. The slave cylinder, located near the transmission, receives the pressurized fluid from the master cylinder. This pressure then acts upon the slave cylinder's piston, which in turn pushes against a release fork. The release fork is what actually disengages the clutch from the engine's flywheel, allowing you to shift gears. When you release the clutch pedal, the pressure is released, and a spring or diaphragm within the master cylinder returns the piston to its original position, allowing fluid to flow back and re-engage the clutch.
The Importance of a Functioning Clutch System
The entire clutch system, with the master cylinder at its head, is fundamental for the operation of a manual gearbox. It allows for the seamless transfer of power from the engine to the wheels, but crucially, it also allows for the interruption of that power flow. This interruption is what enables you to:
- Start from a standstill: By engaging the clutch gradually, you can smoothly transfer power to the drive wheels without stalling the engine.
- Change gears: Disengaging the clutch momentarily breaks the connection between the engine and gearbox, allowing you to select a different gear without grinding or damaging the transmission.
- Stop the vehicle: With the clutch disengaged, the engine can continue to run even when the wheels are stationary.
A faulty clutch master cylinder directly compromises these essential functions, impacting not only your driving experience but also your safety and the safety of others on the road. A sudden loss of clutch function while driving can be incredibly dangerous.
Common Symptoms of a Failing Clutch Master Cylinder
Recognising the signs of a failing clutch master cylinder is crucial for timely repair. Ignoring these symptoms can lead to more significant damage and a higher repair bill. Here are some common indicators:
| Symptom | Explanation |
|---|---|
| Difficulty Changing Gears | If the master cylinder is leaking fluid or the internal seals are worn, it may not generate enough hydraulic pressure. This means the clutch may not fully disengage, making it hard to shift into gear or causing a grinding sensation. |
| Clutch Pedal Feels 'Spongy' or Lighter | This often indicates air in the hydraulic system. Air is compressible, unlike hydraulic fluid. When you press the pedal, you're compressing the air rather than transmitting full hydraulic force, resulting in a soft or spongy pedal feel. |
| Clutch Pedal Stays Down or Doesn't Return Properly | A worn-out master cylinder, particularly issues with the internal seals, can cause the pedal to feel sluggish or, in severe cases, stick to the floor. This prevents the clutch from re-engaging correctly. |
| Clutch Fluid Leaks | You might notice a puddle of fluid under the dashboard or near the clutch pedal assembly. The hydraulic fluid is typically clear or amber and has a distinctive smell. |
| Complete Loss of Clutch Function | In the worst-case scenario, a catastrophic failure of the master cylinder means no hydraulic pressure is transmitted, rendering the clutch inoperable. You won't be able to disengage the clutch at all, making it impossible to change gears and effectively immobilising the vehicle. |
Why is it So Important?
The clutch master cylinder is the initial point of contact for your pedal input, translating your mechanical effort into hydraulic force. Its importance cannot be overstated:
- Safety: A malfunctioning clutch can lead to unexpected loss of power or an inability to shift gears when needed, particularly in critical situations like overtaking or navigating traffic.
- Preventing Transmission Damage: If the clutch doesn't disengage properly, attempting to force a gear change can cause severe damage to the gearbox synchromesh rings and other internal components, leading to very expensive repairs.
- Smooth Driving Experience: A properly functioning clutch master cylinder ensures that gear changes are smooth and effortless, contributing to a more comfortable and enjoyable driving experience.
- Vehicle Reliability: Like any component, wear and tear can lead to failure. Replacing a worn master cylinder proactively can prevent more significant issues and keep your vehicle on the road.
Replacing Your Clutch Master Cylinder
If you suspect your clutch master cylinder is failing, it's essential to have it inspected and replaced by a qualified mechanic. The process typically involves:
- Diagnosis: A mechanic will check for leaks, test the hydraulic pressure, and assess the pedal feel to confirm the issue.
- Fluid Replacement: The old hydraulic fluid will be drained, and the system flushed.
- Replacement of the Master Cylinder: The old unit is removed and a new one, specifically designed for your vehicle's make and model, is installed.
- Bleeding the System: After installation, the clutch hydraulic system must be 'bled' to remove any air that may have entered during the process. This is a critical step to ensure proper hydraulic pressure is maintained.
When sourcing a replacement, it's vital to use parts from reputable manufacturers. Companies like GSF Car Parts offer a wide range of clutch master cylinders for various makes and models, ensuring quality and reliability. You can easily find the right part by entering your vehicle's registration number or searching by make and model. Many suppliers also offer complementary parts such as clutch kits, slave cylinders, and clutch fluid, allowing for a comprehensive repair.
Frequently Asked Questions
Q1: Can I drive with a faulty clutch master cylinder?
It is not recommended. Driving with a failing clutch master cylinder can be dangerous due to unpredictable clutch behaviour and can also lead to further damage to your transmission.
Q2: How often should a clutch master cylinder be replaced?
Clutch master cylinders are generally designed to last the lifetime of the vehicle, but they can fail due to wear and tear, leaks, or contamination of the hydraulic fluid. There isn't a fixed replacement interval; it depends on the vehicle and driving conditions. Regular inspection during servicing is advisable.
Q3: What kind of fluid does a clutch master cylinder use?
Most clutch master cylinders use the same hydraulic fluid as the brake system, typically DOT 3 or DOT 4 brake fluid. Always check your vehicle's manual for the specific type recommended.
Q4: Is clutch master cylinder replacement an expensive job?
The cost can vary depending on the vehicle and labour rates. The part itself is usually moderately priced, but the labour involved in replacement and bleeding the system can add to the overall cost. It's generally less expensive than major transmission repairs.
Q5: What is the difference between a clutch master cylinder and a slave cylinder?
The master cylinder is activated by the clutch pedal and creates hydraulic pressure. The slave cylinder receives this pressure and uses it to mechanically disengage the clutch. They work in tandem to operate the clutch system.
Conclusion
The clutch master cylinder is an indispensable component for any vehicle equipped with a manual transmission. Its role in converting pedal pressure into hydraulic force is fundamental to the operation of the clutch, enabling smooth gear changes and safe driving. By understanding the symptoms of a failing unit and seeking timely repairs, you can ensure the longevity of your transmission and maintain a safe, reliable driving experience. Always choose quality replacement parts and professional service to keep your vehicle in optimal condition.
