In the dynamic automotive landscape of the 1980s, manufacturers grappled with the dual pressures of enhancing fuel efficiency and meeting ever-tightening emissions standards. This era saw a flurry of technological innovation, with companies exploring diverse avenues to achieve these crucial objectives. While some marques, like Mercedes-Benz, opted for the robust power of turbocharged diesel engines, General Motors (GM) embarked on a more multifaceted journey. This involved producing more compact vehicles, such as the immensely popular Chevette, and experimenting with advanced engine technologies. However, not all of GM's ventures proved successful; the Cadillac V8-6-4 engine, an ambitious attempt at cylinder deactivation, famously faltered due to the limitations of contemporary computing power.
Beyond vehicle size and engine management, fuel injection systems also became a focal point for development. Chevrolet, for instance, introduced its Cross-Fire Injection system in the 1982-1984 Corvettes, a complex yet innovative approach to fuel delivery. Simultaneously, both GMC and Chevrolet developed and implemented a specific type of electronic fuel injection known as Throttle Body Injection, or TBI. Unlike the performance-driven focus seen in Chevrolet's sports models, TBI engines were predominantly integrated into larger, more practical vehicles. These included substantial full-sized sedans and multi-purpose passenger vehicles, often referred to as 'people movers', where durability and consistent fuel delivery were paramount.
Understanding Throttle Body Injection (TBI)

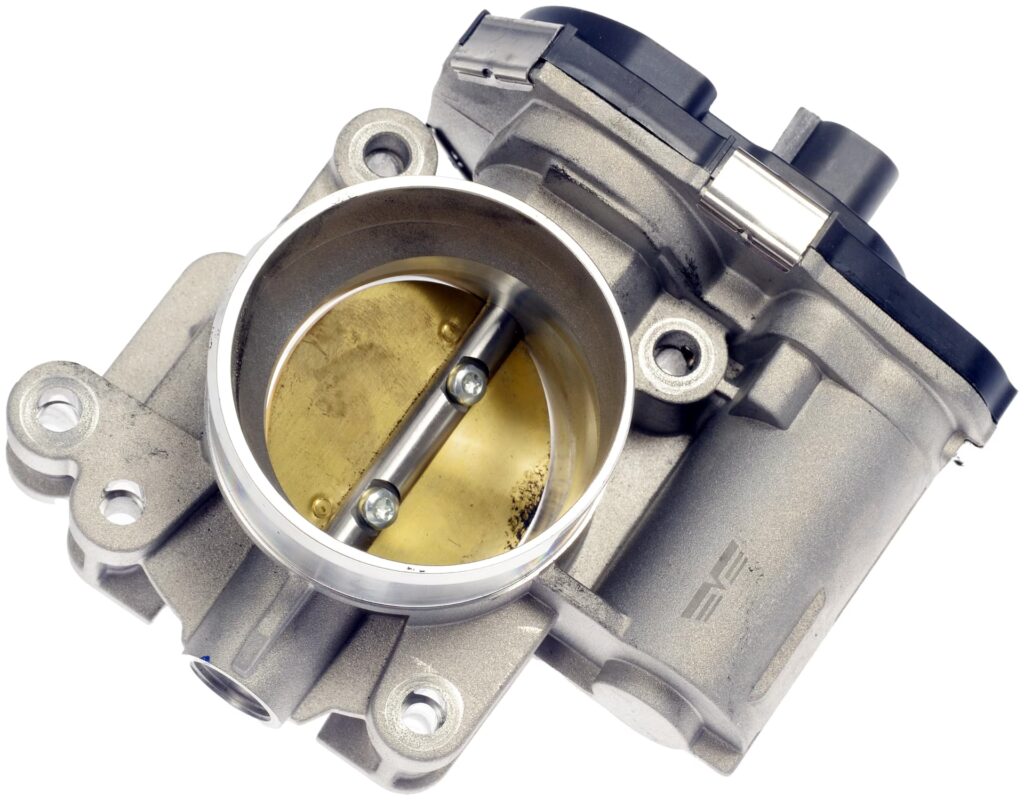

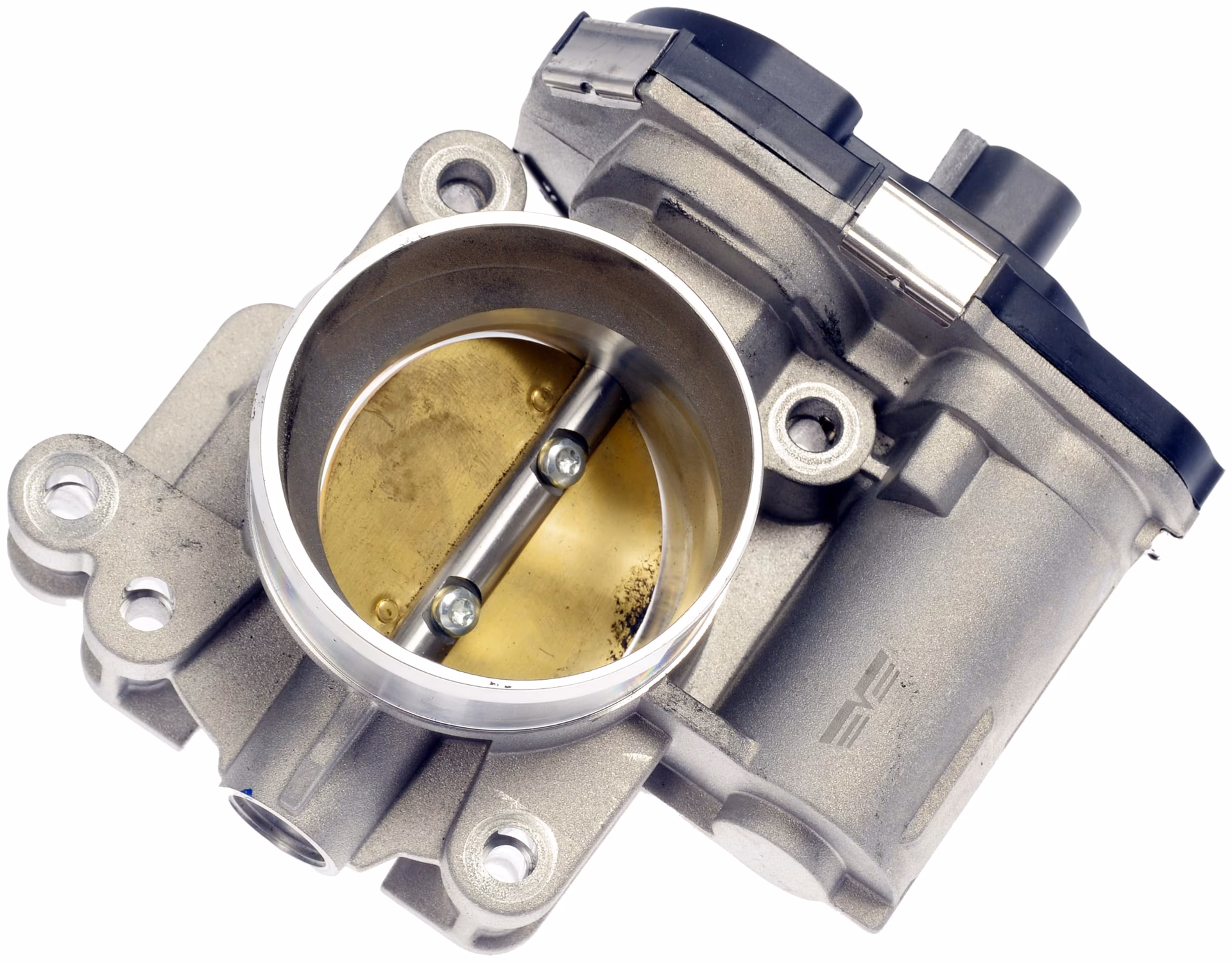

Throttle Body Injection is a type of fuel injection system that essentially replaces the traditional carburettor. In a TBI system, one or two fuel injectors are mounted within a throttle body, which is typically located at the intake manifold, much like a carburettor. When the driver presses the accelerator pedal, the throttle plate inside the throttle body opens, allowing more air into the engine. The engine's computer, or Electronic Control Unit (ECU), monitors various sensor inputs – such as engine speed, throttle position, and air temperature – to determine the precise amount of fuel that needs to be injected by the TBI unit. This fuel is then sprayed into the intake manifold, where it mixes with the incoming air before being drawn into the engine cylinders for combustion. This system represented a significant step up from carburettors, offering improved fuel atomisation, more precise fuel control, and generally better emissions and fuel economy.
GMC's Adoption of TBI
GMC, a division of General Motors renowned for its trucks and SUVs, utilised TBI technology in several of its models during the 1980s and into the early 1990s. The primary reason for its adoption in GMC vehicles was its suitability for larger displacement engines and its robustness, making it a reliable choice for the workhorse vehicles that formed the core of GMC's lineup. These engines were designed for dependability and consistent performance, rather than outright speed. TBI offered a more controlled and efficient fuel delivery compared to the carburettors it replaced, contributing to improved drivability and compliance with the era's stricter environmental regulations.
Key GMC Models Featuring TBI
While specific model years and engine options can vary, TBI was a common feature in many popular GMC vehicles of the period. These often included:
- GMC Sierra/C/K Series Pickups: Many of these robust pickup trucks, the backbone of GMC's commercial and personal vehicle offerings, were equipped with TBI engines, particularly those with V6 and V8 configurations. The simplicity and reliability of TBI made it a practical choice for these heavy-duty applications.
- GMC Jimmy/S-15 Jimmy: GMC's sport utility vehicles also benefited from TBI. The Jimmy, a more compact SUV, and its larger counterparts often featured TBI systems, providing a balance of performance and economy for everyday driving and recreational use.
- GMC Safari/Vandura: These full-sized vans, designed for carrying passengers and cargo, were prime candidates for TBI. The system's ability to handle varied load conditions and provide consistent fuel delivery was crucial for these versatile vehicles.
The application of TBI in these vehicles underscored GM's strategy of using this technology where it offered a practical advantage in terms of cost, reliability, and emissions control for larger, less performance-oriented applications.
Advantages of TBI for GMC
The choice of TBI by GMC for its larger vehicles was driven by several key advantages:
- Improved Fuel Economy: Compared to traditional carburettors, TBI offered more precise control over fuel delivery, leading to more efficient combustion and consequently, better miles per gallon. This was a significant factor given the fuel price volatility and regulatory pressures of the 1980s.
- Reduced Emissions: The ability of the ECU to fine-tune the air-fuel mixture resulted in cleaner exhaust emissions, helping GMC meet increasingly stringent government standards.
- Enhanced Drivability: TBI systems provided smoother acceleration and a more consistent idle compared to carburetted engines, improving the overall driving experience. Cold starts were also generally improved.
- Reliability and Simplicity: While more advanced than carburettors, TBI was relatively simpler and more robust than some of the more complex multi-point injection systems that were emerging. This made it a reliable choice for trucks and SUVs that were often subjected to demanding conditions.
- Cost-Effectiveness: For the applications GMC intended, TBI offered a good balance of performance improvement and cost. It was a more affordable upgrade from carburettors than full multi-point injection systems at the time.
Limitations and Evolution
Despite its advantages, TBI was not without its limitations. The single or dual-injector setup meant that fuel distribution into the intake manifold was not as precise as in later multi-point fuel injection (MPFI) systems, where each cylinder has its own dedicated injector. This could lead to slightly less optimal fuel-air mixture distribution among cylinders, potentially impacting peak performance and efficiency compared to MPFI. As engine technology continued to advance and emissions regulations became even more demanding, GM, like other manufacturers, gradually transitioned to more sophisticated Multi-Point Fuel Injection (MPFI) systems. MPFI offered superior fuel atomisation and delivery accuracy, leading to further gains in performance, fuel economy, and emissions control.
| Feature | Throttle Body Injection (TBI) | Multi-Point Fuel Injection (MPFI) |
|---|---|---|
| Injector Location | In the throttle body, spraying fuel into the intake manifold | At the intake port of each cylinder, spraying fuel directly into each port |
| Fuel Delivery Precision | Moderate; single or dual injectors spray into the manifold | High; individual injectors for each cylinder provide precise control |
| Atomisation | Good | Excellent |
| Emissions Control | Good | Excellent |
| Performance Potential | Moderate | Higher |
| Complexity | Relatively simple | More complex |
| Cost | Lower | Higher |
| Typical Applications | Larger engines, trucks, sedans (1980s-early 1990s) | Performance cars, modern vehicles |
The Legacy of TBI in GMC Vehicles
The Throttle Body Injection system played a crucial role in GMC's product strategy during a pivotal period of automotive development. It provided a reliable, cost-effective, and compliant solution for the brand's core offerings, allowing them to meet the challenges of the 1980s. While TBI has largely been superseded by more advanced technologies, its implementation in GMC vehicles demonstrates GM's adaptability and commitment to technological progress. The engines equipped with TBI were known for their durability and straightforward maintenance, making them popular choices for those who valued practicality and longevity in their vehicles.
Frequently Asked Questions
Did all GMC vehicles have TBI in the 1980s?
No, not all GMC vehicles featured TBI. While it was common in many larger trucks, SUVs, and vans, GM also employed other fuel injection technologies and even continued to use carburettors on some lower-end or specific engine options during the 1980s. The specific system depended on the model, engine size, and intended market.
Is TBI considered a type of carburettor?
No, TBI is a type of electronic fuel injection (EFI). While it replaces the carburettor in terms of function and often occupies a similar physical space, it operates on entirely different principles, using electronically controlled injectors rather than a mechanical carburettor system to mix fuel and air.
When did GMC stop using TBI?
GMC, along with the rest of the automotive industry, gradually phased out TBI in favour of Multi-Point Fuel Injection (MPFI) and later Direct Injection (DI) systems. While TBI was prevalent in the 1980s and early 1990s, most new GMC models by the mid-to-late 1990s had transitioned to MPFI. The exact transition year varied by model and engine.
What are the main benefits of TBI over carburettors?
The main benefits include improved fuel economy, reduced emissions, better cold-start performance, smoother acceleration, and more consistent idling. The electronic control allowed for a more precise air-fuel mixture under various operating conditions.
In conclusion, GMC certainly did utilise Throttle Body Injection engines, particularly in its range of trucks, SUVs, and vans during the 1980s and early 1990s. This technology represented a significant advancement over carburettors, offering improved efficiency, lower emissions, and better drivability, perfectly suiting the needs of GMC's robust and practical vehicle lineup.
