Oil Tank Installation: A Comprehensive Guide

Installing a new oil tank is a significant undertaking for any household relying on heating oil. Whether you're replacing an old, corroded tank or setting up a heating system for the first time, understanding the process is crucial for ensuring safety, efficiency, and compliance with regulations. This guide will walk you through the typical steps involved in an oil tank installation, from initial considerations to the final handover.

Understanding Your Needs and Regulations

Before any physical work begins, it's essential to assess your specific requirements and be aware of the relevant regulations in your area. This includes determining the appropriate tank size based on your property's heating demand and storage needs. You'll also need to consider the tank material – common options include steel and plastic (polyethylene). Each has its pros and cons regarding durability, cost, and environmental impact. Furthermore, local building codes and environmental agencies often have strict rules regarding tank placement, bunding (secondary containment), and ventilation. It's highly recommended to consult with your chosen installer and local authorities to ensure full compliance.

Site Preparation and Foundation

The foundation upon which the oil tank rests is paramount to its stability and longevity. A robust and level base is required to prevent the tank from settling unevenly, which could lead to structural damage and leaks. Common foundation types include:

Concrete Slabs

A poured concrete slab is a popular and highly durable option. It provides a solid, level surface that can withstand the weight of a full tank and the elements. The slab should be at least 100mm thick and reinforced with rebar for added strength. The dimensions should be sufficient to accommodate the tank with adequate clearance around it.

Concrete Pavers or Blocks

For smaller tanks or in situations where a full concrete slab isn't feasible, pre-cast concrete paving slabs or concrete blocks can be used. These should be laid on a compacted hardcore base (a layer of crushed stone and aggregate) to ensure stability and drainage. The pavers or blocks must be laid perfectly level and securely to create a stable platform.

Purpose-Built Tank Stands

Some installations may utilise purpose-built steel or plastic tank stands. These are designed to elevate the tank, which can be beneficial for gravity-fed systems or to improve ventilation. Again, these stands must be installed on a firm, level base, typically a concrete slab or compacted hardcore.

During site preparation, it's also important to consider the proximity of the tank to buildings, boundaries, and any potential ignition sources. Regulations often dictate minimum distances for safety reasons. Clearing the area of vegetation and ensuring good access for the installation team and future maintenance is also a key part of this stage.

Tank Placement and Securing

Once the foundation is prepared, the new oil tank is carefully positioned. This usually involves lifting the tank into place using appropriate lifting equipment, especially for larger steel tanks. Plastic tanks are generally lighter and easier to manoeuvre.

It's crucial that the tank is placed precisely on the prepared base and is perfectly level. Once in position, the tank must be securely fastened to prevent it from being moved by wind, ground movement, or accidental impact. This is typically achieved using straps, brackets, or anchoring systems that are bolted to the foundation. The method of securing will depend on the type of tank and the foundation used.

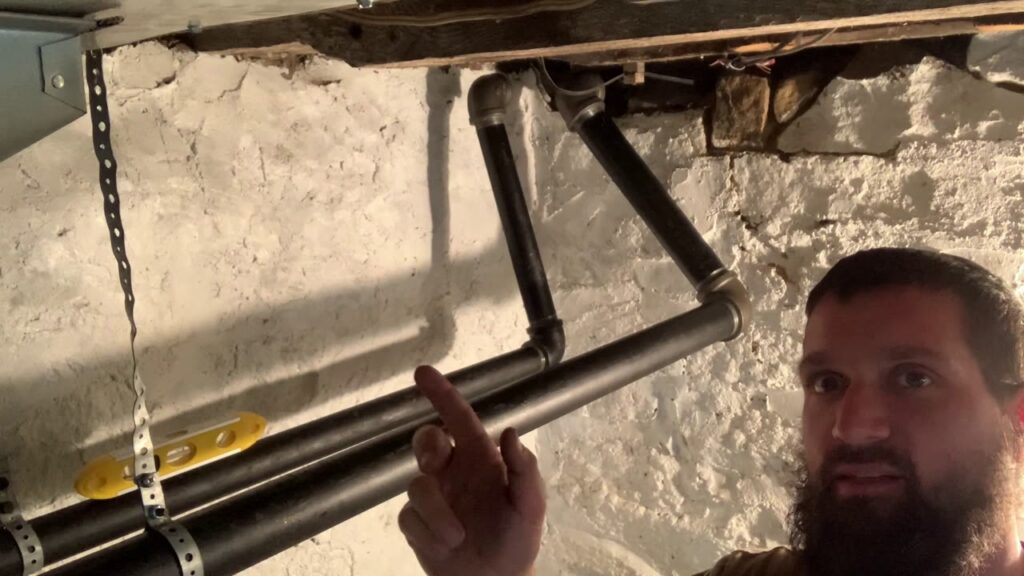

Pipework and Connections

The heart of the oil tank system lies in its pipework, which connects the tank to the boiler or heating appliance. This involves several critical components:

Oil Lines

These are the pipes that carry the heating oil from the tank to the boiler. They are typically made of copper or plastic designed for oil use. The pipes should be installed with a slight downward slope towards the tank to allow any air to escape and prevent sediment build-up. Proper pipe sizing is essential for efficient fuel flow.

Fire Valve

A fire valve, also known as a safety shut-off valve, is a mandatory safety device. It is installed on the oil line, typically within 2 metres of the tank (or as per local regulations), and is designed to automatically shut off the oil supply in the event of a fire. This prevents fuel from feeding the flames.

Filter

An oil filter is installed in the pipework to remove any impurities or sediment from the heating oil before it reaches the boiler. This protects the boiler's components, such as the pump and nozzle, from damage and ensures efficient combustion. Filters should be easily accessible for regular replacement.

Vent Pipe

The vent pipe allows air to enter the tank as oil is drawn out, preventing a vacuum from forming, and also allows vapours to escape safely. The vent should be positioned to direct any potential fumes away from windows and occupied areas and should be fitted with a cap to prevent water ingress.

Bunding (Secondary Containment)

For environmental protection and regulatory compliance, many installations require secondary containment, often referred to as bunding. This involves either a bunded tank (a tank within a tank) or a bunded area around a single-skinned tank. The bund must be capable of holding at least 110% of the volume of the largest tank within it, or 25% of the total volume of all tanks, whichever is greater. This is to contain any spills or leaks, preventing them from reaching the environment.

Commissioning and Testing

Once all the physical connections are made, the system is commissioned and thoroughly tested. This involves:

• Filling the Tank: The tank is carefully filled with heating oil by a registered fuel supplier.
• Checking for Leaks: All connections, pipework, and the tank itself are meticulously inspected for any signs of leaks. This might involve visual checks and sometimes pressure testing.
• System Purge: The oil line is purged of any air to ensure a consistent supply to the boiler.
• Boiler Firing: The boiler is fired up, and the system is checked for correct operation, including oil pressure, burner function, and flue emissions.
• Final Inspection: A final inspection is carried out to ensure everything is in order, compliant with regulations, and safe to operate.

Post-Installation and Maintenance

After the installation is complete, you'll receive documentation outlining the work carried out, including any guarantees or warranties. Regular maintenance is vital to ensure the continued safe and efficient operation of your oil tank system. This typically includes:

• Annual Servicing: Have your boiler and oil tank system serviced annually by a qualified engineer.
• Filter Changes: Replace the oil filter regularly as recommended by the manufacturer.
• Visual Inspections: Periodically check the tank for any signs of corrosion, damage, or leaks. Look for any staining around the base.
• Bund Checks: Ensure the bunded area is clear of debris and water.

Frequently Asked Questions

Q1: How long does an oil tank installation typically take?

The duration can vary depending on the complexity of the installation, the type of tank, and site conditions, but a standard installation typically takes between one and two days.

Q2: What are the main types of oil tanks?

The two primary types are steel tanks and plastic (polyethylene) tanks. Steel tanks are often more durable but are susceptible to corrosion. Plastic tanks are corrosion-resistant and lighter but can be more prone to UV degradation over time.

Q3: Is bunding always required?

In many regions, bunding is a legal requirement for all oil storage tanks to prevent environmental pollution. The specific regulations can vary, so it's essential to check with your local authorities.

Q4: Can I install an oil tank myself?

It is strongly advised against installing an oil tank yourself unless you have the necessary qualifications and understanding of the regulations. Improper installation can lead to serious safety hazards, environmental damage, and void warranties. Always use a qualified and registered installer.

Q5: What is the lifespan of an oil tank?

The lifespan of an oil tank can vary significantly depending on the material, quality of installation, and maintenance. However, a well-maintained plastic tank can last 20-30 years or more, while a properly protected steel tank can also offer a similar lifespan.

In conclusion, a successful oil tank installation involves careful planning, adherence to regulations, and precise execution of each stage. By understanding these steps and working with qualified professionals, you can ensure a safe, reliable, and environmentally sound heating oil system for your home.
