Oil Pan Gasket: Your Engine's Crucial Seal

The heart of your vehicle's engine relies on a constant supply of clean, lubricating oil to keep its many moving parts functioning smoothly. This oil is stored in the oil pan, a reservoir located at the very bottom of the engine. However, this crucial component isn't a simple metal bowl; it needs a reliable seal to prevent that life-giving oil from escaping. This is where the oil pan gasket comes into play. Often overlooked until a problem arises, this seemingly simple rubber or composite seal plays a vital role in protecting your engine from catastrophic failure. Understanding what it is, why it fails, and how to address issues is key to maintaining your vehicle's health.

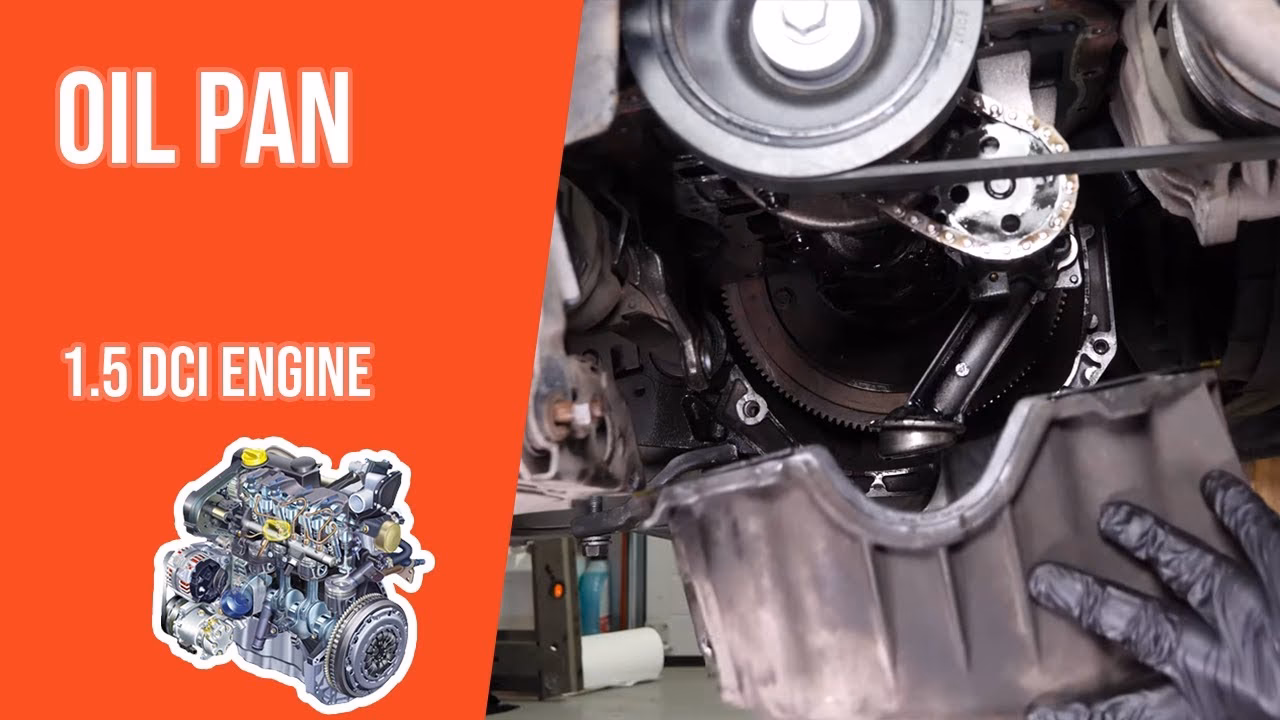

What Exactly is an Oil Pan Gasket?

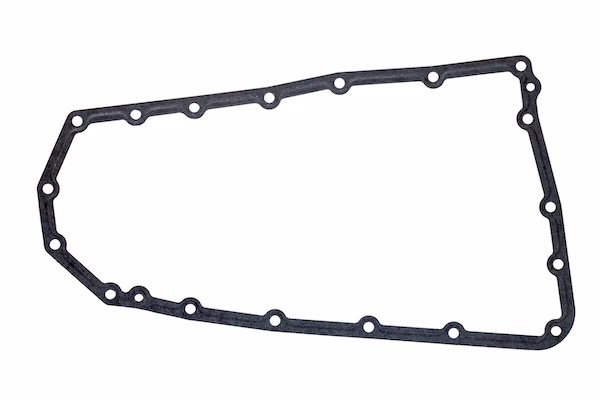

At its core, the oil pan gasket is a sealant that sits between the engine block and the oil pan itself. Its primary function is to create a watertight and oil-tight barrier, preventing any lubricant from leaking out of the engine's sump. Think of it as the moat around your engine's oil reservoir. It needs to be robust enough to withstand the constant presence of oil, temperature fluctuations, and the vibrations inherent in an operating engine. Most oil pan gaskets are made from materials like cork, neoprene, or a combination of rubber and composite materials, designed for durability and flexibility. Some modern vehicles may use RTV (Room Temperature Vulcanizing) silicone sealant directly from the factory in place of a traditional gasket.

Why Do Oil Pan Gaskets Fail?

Like many components in a vehicle, oil pan gaskets are subject to wear and tear over time. Several factors can contribute to their eventual failure:

• Age and Degradation: Rubber and composite materials naturally degrade over time. Exposure to heat, oil, and constant pressure can cause the gasket to harden, crack, or lose its sealing properties.
• Vibration: The continuous vibrations from the engine can stress the gasket, leading to a breakdown of the seal, especially around bolt holes.
• Improper Installation: If an oil pan gasket isn't installed correctly – perhaps with uneven tightening of the bolts or on a dirty surface – it can lead to premature leaks.
• Over-tightening Bolts: Overtightening the bolts that secure the oil pan can crush the gasket, compromising its sealing ability and potentially causing it to tear.
• Physical Damage: Bumps or impacts from road debris can damage the oil pan or the gasket directly, leading to leaks.

The Consequences of a Leaking Oil Pan Gasket

A leaking oil pan gasket is not a problem to be ignored. The consequences can range from inconvenient to catastrophic:

• Low Oil Levels: The most immediate effect is a gradual loss of engine oil. You might notice oil spots on your driveway or garage floor.
• Engine Warning Light: Modern vehicles often have oil pressure sensors. A significant drop in oil level can trigger the oil warning light on your dashboard, a critical alert that should never be disregarded.
• Increased Oil Consumption: As oil leaks out, you'll need to top it up more frequently, leading to increased running costs.
• Internal Engine Damage: This is the most severe consequence. If the oil level drops too low, the engine's moving parts will not receive adequate lubrication. This leads to increased friction, overheating, and ultimately, severe wear and tear. Components like pistons, crankshafts, and camshafts can seize, leading to a complete engine failure, a repair that can cost thousands of pounds.
• Environmental Hazard: Leaking oil is also an environmental concern, contaminating soil and water.

Diagnosing an Oil Pan Gasket Leak

Recognising the signs of a leaking oil pan gasket is crucial for timely intervention:

• Visible Oil Stains: The most obvious sign is finding puddles of oil under your car, typically originating from the lower rear or front of the engine.
• Low Oil Level: Regularly checking your engine oil level and noticing it dropping faster than expected is a strong indicator.
• Oil Warning Light: As mentioned, the oil pressure or low oil level warning light on your dashboard is a critical signal.
• Smell of Burning Oil: If oil leaks onto hot engine components, it can produce a burning smell.
• Whining Noise: In some cases, a very low oil level can cause the oil pump to make a whining noise as it struggles to draw oil.

Repairing a Leaking Oil Pan Gasket: Options and Considerations

Repairing a leaking oil pan gasket typically involves replacing the gasket. However, the complexity and cost can vary significantly depending on the vehicle and the accessibility of the oil pan.

The Traditional Replacement Process

The standard procedure for replacing an oil pan gasket involves:

1. Draining the Engine Oil: The old oil is drained from the sump.

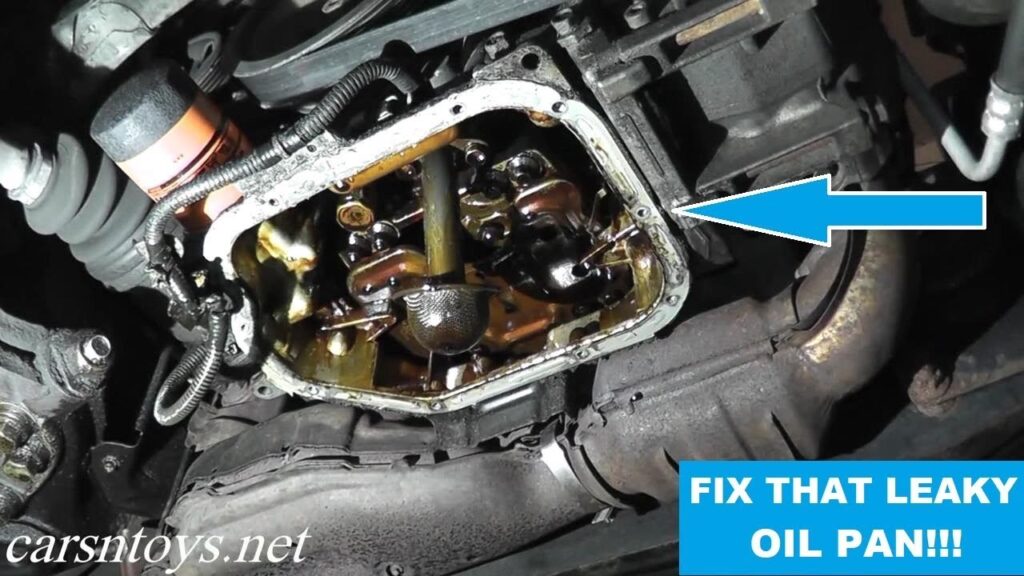

2. Removing the Oil Pan: The bolts holding the oil pan to the engine block are removed. In many vehicles, the oil pan can be dropped downwards. However, in some cases, due to the vehicle's design (e.g., exhaust systems, crossmembers, or steering components), the oil pan may be difficult to remove without lifting the engine or even separating it from the transmission. This significantly increases labour time and cost.
3. Cleaning the Surfaces: Both the engine block mating surface and the oil pan mating surface must be thoroughly cleaned of old gasket material, oil residue, and dirt. This is a critical step for a proper seal.
4. Installing the New Gasket: A new gasket (or RTV sealant if specified by the manufacturer) is applied. If it's a multi-piece gasket, end seals also need to be correctly positioned.
5. Reinstalling the Oil Pan: The oil pan is refitted, and the bolts are tightened to the manufacturer's specified torque in a specific sequence to ensure even pressure.
6. Refilling with Oil: Fresh engine oil of the correct grade and quantity is added.

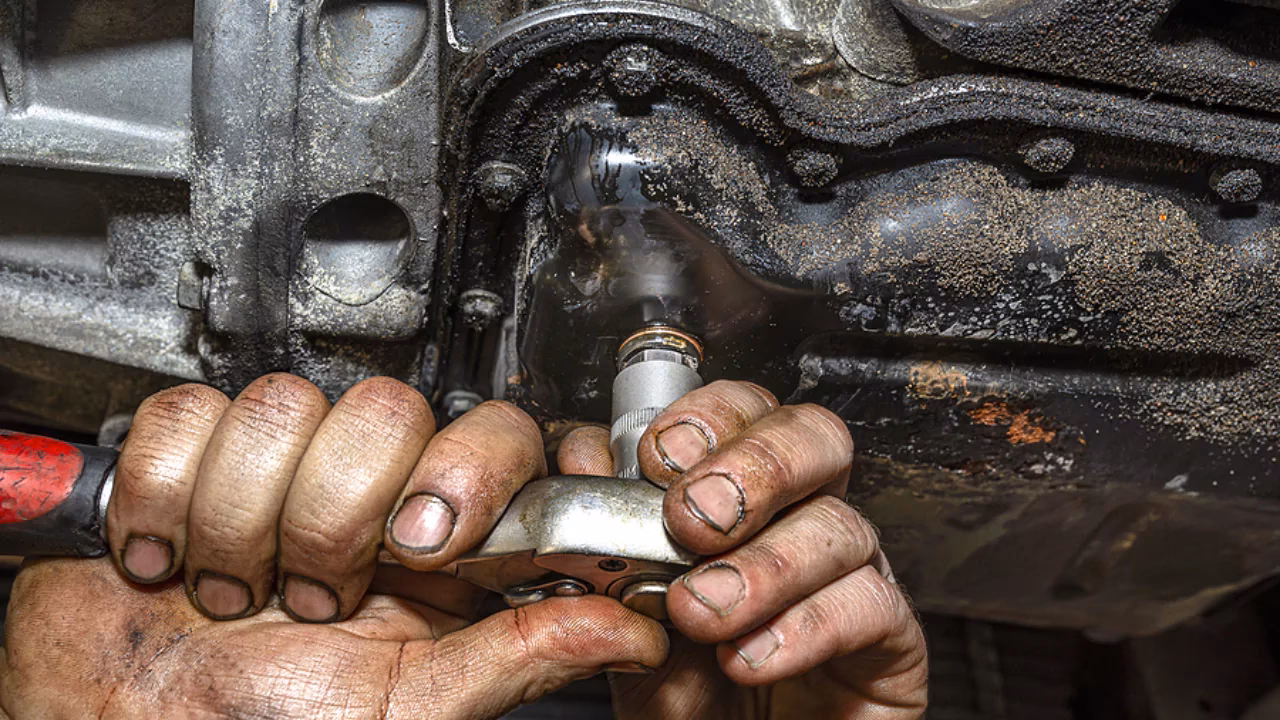

Can You Seal a Leaking Gasket Without Removing the Pan? (RTV Sealant)

In certain situations, it might be possible to temporarily seal a minor leak without a full gasket replacement, particularly if the original gasket was made of neoprene or a composite material, or if the pan was originally sealed with RTV. This involves using a high-temperature, oil-resistant RTV sealant.

When RTV might work:

• For minor leaks on older engines with neoprene or composite gaskets.
• If the original seal was made with RTV (but new RTV won't stick to old RTV).

Preparation is Key:

If attempting an RTV repair, meticulous preparation is essential:

• Drain the engine oil.
• Thoroughly clean the exterior of the oil pan, especially around the leak.
• Carefully inject aerosol brake cleaner into the breach of the leaking gasket. Allow it to drip out via the drain plug. The aim is to clean and dry the gasket material internally.
• Let the cleaner evaporate completely. Compressed air can speed this up.
• Apply a high-quality, fast-curing RTV sealant (like Permatex The Right Stuff) directly into the breach and onto the cleaned exterior surface of the gasket and surrounding oil pan.
• Allow the RTV to cure fully according to the product's instructions before refilling with oil.

When RTV will NOT work:

• Silicone Gaskets: RTV will not adhere to existing silicone.
• Existing RTV Seals: New RTV will not bond to old RTV. The original RTV must be completely removed.

Important Note: While an RTV patch might offer a temporary fix, it is generally not a permanent solution. A full gasket replacement is the recommended and most reliable method for long-term leak prevention.

Using Oil Stop-Leak Products

Products marketed as 'stop leak' or 'leak sealer' are designed to swell rubber and neoprene components within the engine, including gaskets, to seal minor leaks. However, these come with significant caveats:

• Limited Effectiveness: They are generally only effective on minor leaks caused by slightly hardened or shrunk gaskets.
• Affects All Gaskets: These products affect all rubber and neoprene seals throughout the engine, not just the oil pan gasket. If other seals are already on the verge of failing, the stop-leak product could exacerbate their condition.
• Risk of New Leaks: Overuse or using a product not suited to your engine's gasket materials can cause excessive swelling, leading to new leaks in other areas or even damaging the oil pan gasket further.
• Neoprene-Only Gaskets: These products are most likely to have any effect on engines that exclusively use neoprene gaskets, which are rare. Most modern gaskets are silicone or composite.

If you choose to use a stop-leak product, follow the manufacturer's instructions precisely. More is not better, and it should be considered a last resort before professional repair.

Oil Health and Gasket Replacement Cost

The condition of your engine oil can indirectly influence the cost of an oil pan gasket replacement. If the oil has been neglected, it can become sludgy and contaminated. This can make the cleaning process more difficult and time-consuming when the oil pan is removed, potentially increasing labour costs. Furthermore, neglected oil can contribute to increased engine wear, which might reveal other issues that should be addressed concurrently during the repair, adding to the overall expense.

A Word on DIY vs. Professional Repair

While the temptation to save money by performing this repair yourself is understandable, especially with DIY-friendly RTV solutions, it's crucial to consider the potential pitfalls. As illustrated by the Pep Boys anecdote, accessibility can be a major issue. If the oil pan is difficult to reach, attempting the repair without the proper equipment or experience can lead to more damage or an incomplete job. A professional mechanic has the tools, knowledge, and often a lift to properly diagnose and execute the repair, ensuring all surfaces are clean, bolts are torqued correctly, and the job is done right the first time. This can save you significant hassle and potential future expenses.

Table: Common Oil Pan Gasket Materials

Frequently Asked Questions (FAQ)

Q1: How often should I check my oil pan gasket?

A: While there isn't a specific mileage interval for checking the gasket itself, it's good practice to visually inspect the underside of your engine for any signs of oil leaks whenever you check your engine oil level or have your vehicle on a ramp.

Q2: Can I drive my car with a leaking oil pan gasket?

A: It is strongly advised against driving your car with a significant oil leak from the oil pan gasket. Continue driving will lead to a loss of essential engine oil, potentially causing severe internal engine damage.

Q3: What is the average cost to replace an oil pan gasket in the UK?

A: The cost can vary widely depending on the vehicle make and model, and the labour involved. Generally, you can expect to pay anywhere from £150 to £500 or more for the parts and labour. More complex jobs requiring engine lifting could significantly increase this figure.

Q4: Will using a thicker oil stop an oil pan gasket leak?

A: Using a thicker oil will not fix a leaking gasket. While it might slightly reduce the rate of leakage in some very minor cases, it does not repair the compromised seal and can potentially cause other issues within the engine by not providing adequate flow at lower temperatures.

Q5: My mechanic said I need a new oil pan along with the gasket. Why?

A: Sometimes, the oil pan itself can become warped, cracked, or corroded, especially after hitting road debris. If the oil pan's mating surface is damaged, a new gasket alone will not be able to create a proper seal, necessitating the replacement of the oil pan as well.

In conclusion, the oil pan gasket is a small but mighty component that demands attention. Regular checks and prompt attention to any signs of leakage are crucial for preventing costly engine repairs and ensuring your vehicle remains reliable on the road.
