Navigating the world of domestic oil heating systems can sometimes feel like deciphering a cryptic code, especially when it comes to the heart of the operation: the fuel pump. For many homeowners, the question of whether a fuel pump designed for a two-pipe system will function correctly on a single-pipe setup, particularly with a plug installed, is a common concern. This article aims to demystify this query, delving into the operational differences between these systems and providing practical insights for those looking to optimise their oil burner's performance.
Understanding Oil Burner Fuel Pump Systems
At its core, an oil burner fuel pump's job is to draw heating oil from the storage tank and deliver it under pressure to the burner nozzle. The system through which it achieves this can vary, with the most common configurations being single-pipe (one-pipe) and two-pipe systems. Each has its own advantages and is suited to different installation scenarios.
The Single-Pipe (One-Pipe) System
In a single-pipe system, a single fuel line runs from the oil tank to the pump, and then another single line runs from the pump to the burner. The pump draws oil, filters it, and pressurises it for combustion. Any air that enters the system is typically vented back to the tank through the same line, or sometimes a separate small vent line. This is generally the simpler and more common setup, often used when the oil tank is at the same level or higher than the oil burner.
Key Characteristics of a Single-Pipe System:
- One supply line from tank to pump.
- One delivery line from pump to burner.
- Air is usually vented back to the tank.
- Simpler installation and fewer components.
The Two-Pipe System

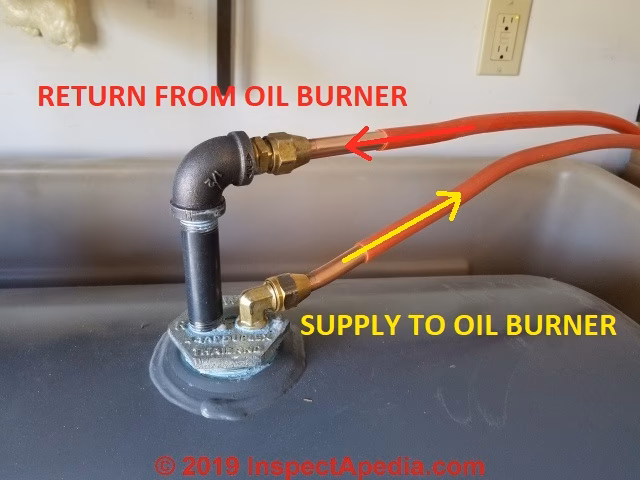

A two-pipe system, on the other hand, utilises two separate lines: one supply line from the tank to the pump, and a return line from the pump back to the tank. In this configuration, the pump draws oil through the supply line and circulates it. A portion of this oil is then sent to the burner under pressure, while the remainder is returned to the tank via the return line. This setup is particularly beneficial when the oil tank is located below the level of the oil burner, as it helps to prevent air from entering the system and causing intermittent operation. The circulating oil also helps to prime the pump and keep it free of air.
Key Characteristics of a Two-Pipe System:
- One supply line from tank to pump.
- One return line from pump back to tank.
- Oil is circulated, with excess returned to the tank.
- More robust for situations where the tank is below the burner.
- Helps prevent air in the system.
Can a 2-Pipe Pump Work on a 1-Pipe System?
This is where the technicalities come into play. Many oil burner fuel pumps, like the Beckett Clean Cut PF 10322 mentioned, are designed with internal configurations that can be adapted for both single-pipe and two-pipe operation. The primary difference lies in how the pump handles the return flow and internal pressure management.
In a two-pipe system, the pump is set up to have both a suction port (inlet from the tank) and a pressure port (outlet to the burner), along with a return port. When converting to a single-pipe system, the goal is to effectively bypass or neutralise the return line functionality.
The Role of the Plug
The crucial element in adapting a two-pipe pump for single-pipe use is the installation of a plug. This plug is typically inserted into the return port of the pump. By blocking the return port, you prevent oil from being circulated back to the tank. The pump then operates in a manner more akin to a single-pipe setup, drawing oil and delivering it directly to the burner.
The question posed about a Beckett Clean Cut PF 10322 with 'valve on delay' is pertinent. Some pumps have internal valves or features that manage the flow and pressure, including delaying the engagement of the valve. When converting to a single-pipe system, it is often necessary to disable or reconfigure these features, as they might have been optimised for the two-pipe's return flow. Disabling the 'valve on delay' when converting to a single-pipe system is a common and necessary step for proper operation.
Where Does the Plug Go?
For pumps designed for dual-pipe configurations, there will usually be three ports: suction (inlet), pressure (outlet), and return. The plug needs to be inserted into the return port. This port is typically identifiable by its connection to the line that would normally go back to the oil tank in a two-pipe setup. The bottom two fittings are often the suction and pressure ports. The third fitting, often on the side or top of the pump housing, is usually the return port. Consulting the pump's specific manual is the most reliable way to identify the correct port for plugging.
Reconfiguring the Control System
Beyond physically modifying the pump, it's essential to consider the control system. As noted in the user's query regarding the Honeywell R72F4U control, adjustments may be needed. Features like 'valve on delay' are often tied to the two-pipe system's operation. When switching to a single-pipe system, disabling this feature is crucial to ensure the burner ignites promptly and operates efficiently without unnecessary delays or potential air purging cycles designed for the two-pipe setup.
Troubleshooting Common Issues
When converting or operating these systems, several issues can arise:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air in the pump/line | Leaky fittings, improper plug installation, faulty pump seal, running the tank dry. | Tighten fittings, ensure plug is secure, check pump for damage, keep tank adequately filled. Use a bleeder valve for priming. |
| Weak flame or no heat | Clogged filter, incorrect pressure, faulty nozzle, partially blocked fuel line. | Replace oil filter, check and adjust pump pressure, replace nozzle, inspect fuel lines for obstructions. |
| Intermittent burner operation | Air in the system (common in single-pipe with low tank), faulty pump. | Ensure a proper single-pipe setup or convert to two-pipe if the tank is significantly lower than the burner. Replace pump if necessary. |
| Pump noisy | Cavitation (air entering the pump), worn pump components. | Check for air leaks, ensure correct line configuration, consider pump replacement if wear is suspected. |
When to Consider a Two-Pipe System
The primary driver for choosing or converting to a two-pipe system is the relative position of the oil tank and the burner. If your oil tank is situated lower than your oil burner, a single-pipe system is prone to drawing air into the fuel lines. This can lead to:
- Frequent air purging: You'll constantly need to bleed air from the pump and lines.
- Intermittent operation: The burner may shut off unexpectedly as air pockets disrupt fuel flow.
- Reduced efficiency: The burner may not receive a consistent fuel supply, leading to poor combustion and less heat output.
In such scenarios, a two-pipe system is highly recommended. The return line ensures continuous circulation of oil, effectively purging any air and maintaining a consistent prime on the pump. This makes the system much more reliable and less maintenance-intensive when the tank is below the burner.
Important Considerations for Your Beckett AFII
For those with a Beckett AFII oil burner experiencing air-in-the-pump issues when the tank is low, the manual's advice to switch to a two-pipe system is sound. The process involves:
- Identifying the ports: Locate the suction, pressure, and return ports on your Beckett pump.
- Plugging the return port: Insert a suitable plug into the designated return port. This is critical to prevent the oil from simply recirculating back to the tank without going to the burner.
- Running the return line: Connect a new line from the now-plugged return port (which will effectively become an outlet for the excess flow that would have returned) back to the oil tank. This line essentially acts as a bypass for any oil that the pump might otherwise try to push back.
- Adjusting controls: Ensure any control settings related to a two-pipe system are correctly configured for the new setup.
It's vital to use the correct type of plug and ensure a secure, leak-free connection. The reconfigured return line should also be routed safely and securely back to the tank.
Frequently Asked Questions
Q1: Will plugging the return port on my 2-pipe pump damage it when used in a 1-pipe system?
Generally, no, provided the pump is designed to be convertible. The plug simply prevents oil from entering the return line. However, it is crucial to ensure that the system is correctly configured and that the pump is not starved of oil, which could cause damage.
Q2: Do I need a special type of plug?
A plug designed for the specific thread size and type of the return port is necessary. It should create a secure, leak-proof seal. Often, these are brass or steel plugs.
Q3: What happens if I don't disable the 'valve on delay' on my control?
If the 'valve on delay' is intended to manage flow in a two-pipe system, leaving it enabled in a single-pipe conversion could lead to improper ignition timing, delayed burner startup, or potentially air purging cycles that are not needed, affecting efficiency and operation.
Q4: My tank is lower than the burner. Should I always use a 2-pipe system?
Yes, when the tank is significantly lower, a two-pipe system is strongly recommended to prevent air ingress and ensure reliable operation. If you are currently on a single-pipe system and experiencing air issues, converting to a two-pipe setup is the most effective solution.
Q5: How do I know if my pump is convertible?
Check the manufacturer's specifications or the pump's manual. Many modern Beckett pumps, for instance, are designed with this flexibility. If unsure, consult a qualified HVAC technician.
Conclusion
In summary, a fuel pump designed for a two-pipe oil burner system can indeed work on a single-pipe setup, provided the return port is correctly plugged and any associated control system features are adjusted accordingly. The key is to understand the internal workings of the pump and the system's requirements. For situations where the oil tank is located below the burner, a two-pipe system offers superior reliability by preventing air from entering the fuel lines. By correctly implementing the plug and potentially reconfiguring the return line, or by adopting a full two-pipe system when necessary, homeowners can ensure their oil heating system operates efficiently and dependably.
