Oil Cooler Seal Replacement Guide

Understanding Your Vehicle's Oil Cooler and Seal Replacement

Modern vehicles, designed for efficiency and longevity, often incorporate sophisticated systems to manage engine temperatures. One such component, crucial for maintaining optimal engine oil viscosity and preventing overheating, is the oil cooler. While its primary function is to dissipate heat from the engine oil, the oil cooler itself, and more specifically its seals, can become a source of concern for many car owners. This article will delve into the typical location of an oil cooler, the common reasons for its seals to fail, and a comprehensive, step-by-step guide to replacing these seals, ensuring your engine runs smoothly and efficiently.

Where is the Oil Cooler Located?

The exact location of an oil cooler can vary significantly depending on the make, model, and engine of your vehicle. However, in many modern cars, particularly those with a focus on performance or under-bonnet space constraints, you'll find an integrated oil cooler system. A very common setup involves an oil-to-water oil cooler. This type of cooler uses the engine's coolant to regulate the oil temperature.

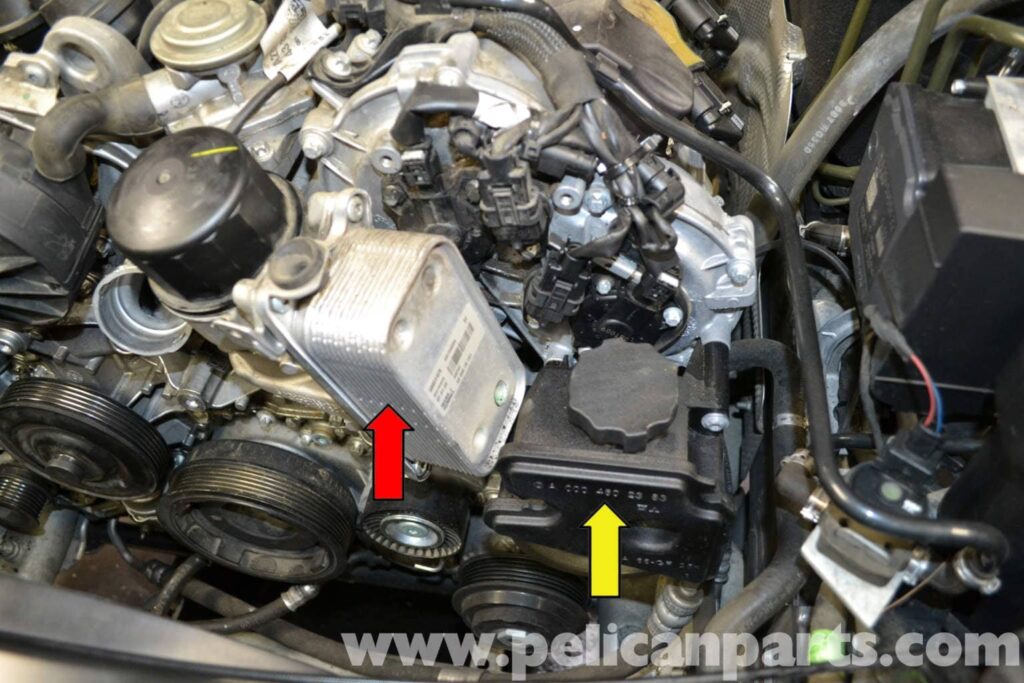

In this prevalent design, the oil cooler is typically attached directly to the oil filter housing. This arrangement is not only space-efficient but also allows for a direct and effective heat exchange between the coolant and the engine oil. To confirm the precise location on your vehicle, consulting your car's owner's manual or a reliable repair manual specific to your make and model is highly recommended. Visual inspection of the oil filter housing area might also reveal a unit with coolant lines connected to it.

Why Do Oil Cooler Seals Fail?

The seals within an oil cooler, particularly those in oil-to-water configurations, are subjected to a constant cycle of heating and cooling, as well as exposure to both engine oil and coolant. Over time, the rubber or composite materials used in these seals can degrade due to:

• Heat Degradation: Prolonged exposure to high engine temperatures can cause the rubber to harden, become brittle, and lose its elasticity.
• Chemical Attack: Engine oil and coolant, especially if not maintained or flushed regularly, can contain additives that, over time, can degrade the seal material.
• Age and Wear: Like any rubber component, seals have a finite lifespan. Natural aging processes can lead to cracking and reduced sealing capabilities.

When these seals fail, they can manifest as leaks, which can be oil leaks, coolant leaks, or a mixture of both. A common symptom is the presence of oil in the coolant reservoir or coolant in the engine oil, which can be detrimental to engine health if left unaddressed.

The Importance of Replacing Oil Cooler Seals

Ignoring a leaking oil cooler seal can lead to several serious problems:

• Engine Overheating: If coolant leaks into the oil system, it can compromise the lubrication properties of the engine oil, leading to increased friction and potential overheating.
• Coolant Contamination: Oil entering the cooling system can form sludge, block passages, and reduce the cooling system's efficiency, potentially causing the engine to overheat.
• Reduced Engine Performance: Improper lubrication and temperature control will inevitably lead to a decline in engine performance and potentially costly damage.
• Environmental Concerns: Leaking fluids are not only a hazard to your vehicle but also to the environment.

Therefore, timely replacement of these seals is a crucial aspect of preventative maintenance.

DIY Guide: Replacing the Oil Cooler Seal

This guide outlines the general procedure for replacing an oil cooler seal, typically found attached to the oil filter housing. Remember to always refer to your vehicle's specific repair manual for precise torque values and any model-specific instructions.

Tools and Parts Required:

• T30 Torx socket (or appropriate Torx bit for your vehicle)
• Torque wrench
• Socket set and ratchet
• Drain pans (one for coolant, one for oil)
• Pliers
• New oil cooler seal(s)
• Fresh engine coolant (correct type for your vehicle)
• Shop rags or paper towels
• Gloves and eye protection

Step-by-Step Procedure:

Step 1: Prepare the Vehicle and Drain Coolant

Safety first! Ensure the engine is cool before beginning. You will need to drain the engine coolant because it circulates through the oil cooler. Place a suitable drain pan beneath the radiator drain plug (usually located at the bottom of the radiator). Open the drain plug and allow the coolant to drain completely. Dispose of the old coolant responsibly. Close the drain plug once empty.

Step 2: Locate and Access the Oil Filter Housing

Identify the oil filter housing. As mentioned, it's often attached to the engine block and will have coolant lines connected to it. You may need to remove other components, such as engine covers or air intake parts, to gain clear access to the housing.

Step 3: Remove the Oil Filter Housing

The oil filter housing is typically secured by several bolts. Use the appropriate socket and ratchet to remove these bolts. Be prepared for some residual oil and coolant to spill out, so have your drain pans ready.

Step 4: Separate the Oil Cooler from the Housing

Once the housing is removed, you'll see the oil cooler assembly attached to it. It might be a separate unit that bolts onto the housing, or it might be integrated. Carefully inspect how it's attached. You will likely need to remove the Torx bolts (often T30) that secure the oil cooler to the housing.

Step 5: Replace the Oil Cooler Seal

With the oil cooler separated, you can now access the old, degraded seal. Carefully remove the old seal. Clean both surfaces – the mating surface on the oil cooler and the surface on the housing – meticulously. Any debris or old gasket material left behind will compromise the new seal's effectiveness. Apply a thin film of clean engine oil or coolant to the new seal to aid in installation and seating.

Hot tip: Thoroughly cleaning both surfaces is paramount for a leak-free seal. Ensure no oil or coolant residue remains.

Step 6: Reassemble the Oil Cooler and Housing

Carefully place the new seal onto the oil cooler or housing as designed. Re-attach the oil cooler to the housing, ensuring it's correctly aligned. Tighten the Torx bolts to the manufacturer's specified torque using your torque wrench. Then, re-mount the oil filter housing back onto the engine block. Tighten the housing bolts evenly and to the specified torque.

Step 7: Refill the Cooling System

With the new seal in place and everything reassembled, it's time to refill the cooling system. Refer to your vehicle's manual for the correct type and quantity of coolant. Slowly fill the system, allowing air to escape. Once filled, start the engine and let it run until it reaches operating temperature. Monitor the coolant level and top it up as necessary. Bleeding the cooling system might be required to remove any trapped air.

Step 8: Final Checks

After refilling and running the engine, thoroughly inspect the oil cooler area for any signs of leaks (both oil and coolant). Check the coolant reservoir level again after the engine has cooled down. It's also a good practice to perform an oil and filter change concurrently, as this is a complementary modification that ensures your engine is running with fresh lubricants and filters.

Complementary Modifications and Best Practices

When undertaking an oil cooler seal replacement, it's an opportune moment to perform an oil and filter change. This ensures your engine benefits from fresh, clean oil, maximizing its performance and longevity. Regularly checking your coolant and oil levels, and adhering to recommended service intervals for coolant flushes, will significantly extend the life of your oil cooler seals and prevent premature failure.

Frequently Asked Questions (FAQs)

Q1: Can I drive with a leaking oil cooler seal?

While you might be able to drive for a short period, it's strongly advised against it. Leaks can lead to a loss of coolant or oil, potentially causing severe engine damage due to overheating or lack of lubrication. It's best to address the leak as soon as possible.

Q2: How often should I replace the oil cooler seal?

There isn't a fixed interval for replacing oil cooler seals, as their lifespan depends on driving conditions, maintenance history, and the quality of the original seals. However, it's common for them to require replacement between 60,000 and 100,000 miles, or when signs of leaks appear.

Q3: What is the difference between an oil-to-water and an oil-to-air oil cooler?

An oil-to-water oil cooler uses the engine's coolant to dissipate heat from the oil. An oil-to-air oil cooler uses ambient air flowing over a radiator-like finned structure to cool the oil, typically found in high-performance or heavy-duty applications.

Q4: My mechanic mentioned an oil cooler gasket. Is that the same as a seal?

Yes, the terms 'seal' and 'gasket' are often used interchangeably in this context. Both refer to the component that prevents leaks between the oil cooler and the oil filter housing.

Q5: What are the signs of a failing oil cooler seal?

Common signs include oil in the coolant reservoir, coolant in the oil (often appearing as a milky or frothy substance on the oil cap or dipstick), external oil or coolant leaks around the oil filter housing, and a potential drop in oil pressure or an increase in oil temperature.

Conclusion

The oil cooler plays a vital role in maintaining your engine's optimal operating temperature. While the seals can degrade over time, understanding their location and the procedure for replacement empowers you to tackle this common maintenance task. By following these steps carefully and using the correct parts and tools, you can ensure your engine remains protected from the detrimental effects of leaks and overheating, contributing to a longer and healthier life for your vehicle.
