A brake caliper piston that refuses to retract can quickly transform a minor inconvenience into a significant safety hazard. As a critical component of your vehicle's braking system, a seized piston prevents the brake pads from disengaging properly from the rotor, leading to a host of problems including reduced stopping power, premature brake pad wear, and potential damage to other braking components. Addressing this issue promptly is paramount for maintaining vehicle safety and performance.
In this detailed guide, we'll walk you through identifying the symptoms of a defective brake caliper piston, understanding the common causes of its failure, and providing a step-by-step approach to resolve the problem. Whether it's due to persistent corrosion, a worn-out piston seal, or other issues, we'll equip you with the knowledge to tackle this common motoring challenge effectively.
Identifying the Symptoms of a Failing Brake Caliper Piston
Recognising the early warning signs of a faulty brake piston is crucial for timely intervention. Ignoring these indicators can lead to more severe and costly repairs, not to mention a compromised safety on the road. Here are the key symptoms to look out for:
1. A Persistent Dragging Sensation
One of the most immediate and noticeable signs of a stuck brake piston is a dragging or pulling sensation in your vehicle. This occurs because the caliper piston isn't retracting as it should, keeping the brake pads in constant contact with the brake rotor. You might feel the car pulling to one side, typically the side with the affected caliper, or a general feeling of resistance, as if you're driving with the handbrake slightly engaged. This constant friction not only reduces fuel efficiency but also generates excessive heat.
2. Spongy or Mushy Brake Pedal
A brake pedal that feels unusually spongy or mushy, or one that requires more effort than usual to engage the brakes, can indicate an issue with the caliper piston. While this symptom can also point to air in the brake lines, a piston that isn't moving freely can affect the hydraulic pressure within the system, leading to a less responsive pedal feel.
3. An Unpleasant Burning Smell
If you detect a distinct burning smell, particularly after driving or applying the brakes heavily, it's a strong indicator of overheating brake components. A seized caliper piston causes the brake pads to continuously rub against the rotor, generating immense heat. This heat can cause the brake pad material to scorch, emitting a characteristic acrid smell. You might notice this more acutely after descending a steep hill or after a period of heavy braking.
4. Uneven Brake Pad Wear
Visually inspecting your brake pads can also reveal a problem. If one side of your vehicle's brake pads (or even one pad on a single caliper) is significantly more worn than the other, it's a clear sign that the caliper piston isn't retracting properly. The constant contact on one side leads to accelerated wear, which can eventually compromise braking effectiveness and potentially damage the brake rotor.
5. Visible Fluid Leaks
While less common with a stuck piston, a severely damaged piston seal or a corroded caliper bore can lead to brake fluid leaks. If you notice fluid around the caliper area or a drop in your brake fluid reservoir level, it warrants immediate investigation. Brake fluid is vital for the hydraulic system, and any loss will impair braking performance.
Unravelling the Causes of Brake Caliper Piston Failure
Understanding why brake caliper pistons fail can help in both prevention and diagnosis. Many factors, often related to environmental exposure and general wear and tear, contribute to these issues:
1. Corrosion
Corrosion is arguably the most common culprit behind a seized brake caliper piston. Over time, moisture, road salt, and general grime can infiltrate the brake caliper, especially if the protective dust boot is damaged. This leads to rust forming on the piston itself or inside the caliper bore. As rust builds up, it creates friction, preventing the piston from moving freely and eventually causing it to seize.
2. Worn-Out or Damaged Piston Seal
The piston seal within the brake caliper serves two critical functions: it prevents brake fluid from leaking out and stops contaminants (like dirt and moisture) from getting in. If this seal becomes brittle, cracked, or damaged due to age, heat, or exposure, it compromises both functions. A damaged seal allows moisture and debris to enter the caliper, leading to corrosion and piston seizure, or it can cause fluid leaks that reduce hydraulic pressure.
3. Damaged or Degraded Brake Hose
A less obvious cause of piston retraction issues can be a damaged or degraded brake hose. Internally, a brake hose can collapse or swell, creating a one-way valve effect. This means that while brake fluid can be forced through to apply the brakes, it struggles to return to the master cylinder when the pedal is released. This restriction in fluid flow keeps pressure on the caliper, preventing the piston from retracting fully.
4. Overheating or Abuse of the Braking System
Constant heavy braking, such as driving aggressively, frequent stop-and-go traffic, or prolonged descent down steep inclines, can lead to excessive heat buildup in the braking system. While modern brakes are designed to withstand high temperatures, extreme or prolonged overheating can cause brake fluid to boil (creating air bubbles), seals to degrade prematurely, and even the caliper components to warp or expand, affecting piston movement.
5. Contaminated Brake Fluid
Brake fluid is hygroscopic, meaning it absorbs moisture over time. Old, contaminated brake fluid with a high water content can lead to internal corrosion within the brake lines and caliper, contributing to piston failure. Regular brake fluid flushes are essential to prevent this.
Essential Tools for the Job
Before you begin any work on your braking system, ensuring you have the correct tools is crucial. This not only makes the job easier but also safer. Here's what you'll typically need:
- Jack and Jack Stands: Absolutely essential for safely lifting your vehicle and securing it. Never work under a vehicle supported only by a jack.
- Lug Wrench: To remove the wheel nuts holding your wheel in place.
- Brake Cleaner: An indispensable aerosol spray for cleaning brake dust, grease, and grime from brake components.
- Socket Set and Ratchet: For loosening and tightening the various bolts that secure the brake caliper and its mounting bracket.

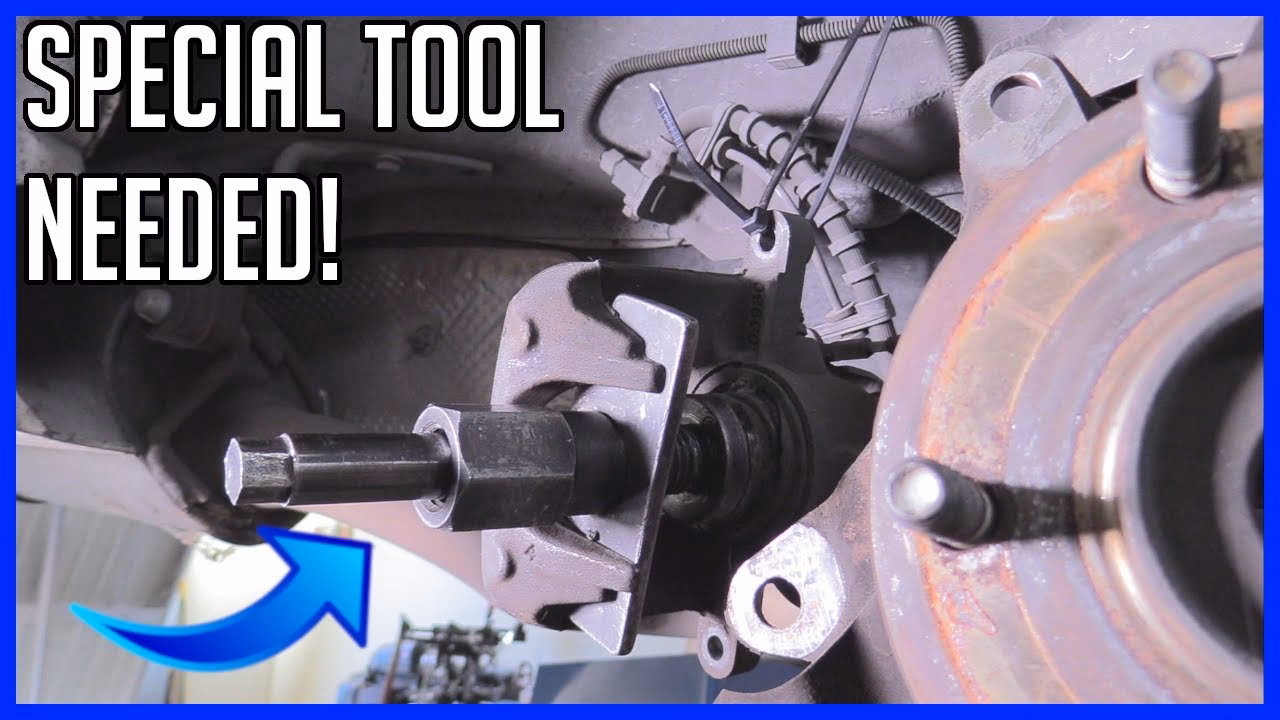

- C-Clamp or Brake Piston Compression Tool: A C-clamp can work for simpler calipers, but a dedicated brake piston compression tool (especially for screw-in pistons on rear calipers) is far more effective and safer for pushing the piston back into its housing.
- Brake Fluid: To top up the reservoir and replace any fluid lost during the bleeding process. Ensure you use the correct DOT rating for your vehicle.
- Brake Bleeding Kit: Essential for removing air from the brake lines after any component replacement or opening of the hydraulic system. This typically includes a hose and a collection bottle.
- Wire Brush and Fine-Grit Sandpaper: For cleaning corrosion from the piston and caliper bore if necessary.
- New Piston Seal and/or Piston (if needed): Have these ready if your diagnosis suggests replacement.
- Safety Glasses and Gloves: Always protect your eyes and hands when working with brake fluid and automotive components.
The Repair Process: A Detailed Walkthrough
Fixing a brake caliper piston that won't retract requires a systematic approach. Remember, safety first is paramount throughout this process.
Step 1: Preparation and Safety
Park your vehicle on a flat, level surface and engage the handbrake. Loosen the wheel nuts slightly on the wheel you'll be working on. Jack up the vehicle and secure it firmly on jack stands. Remove the wheel completely. Place a drain pan or old rags underneath the caliper to catch any brake fluid that might spill.
Step 2: Accessing and Removing the Brake Caliper
Locate the two bolts (guide pin bolts) that hold the brake caliper to its mounting bracket. These are usually at the rear of the caliper. Using your socket set, carefully loosen and remove these bolts. Once the bolts are out, gently slide the caliper off the brake rotor. You may need to wiggle it slightly to free it. Do not let the caliper hang by the brake hose, as this can damage the hose. Support it with a piece of wire or place it on a suitable surface.
Step 3: Initial Assessment and Attempted Piston Retraction
With the caliper removed, visually inspect the piston, dust boot, and brake pads. Look for obvious signs of corrosion, tears in the dust boot, or uneven pad wear. Before proceeding with more invasive steps, try to retract the piston using your C-clamp or piston compression tool. Place an old brake pad or a small piece of wood against the piston to protect it, then apply steady, even pressure. If the piston moves smoothly back into the caliper, the problem might have been minor, or you might have simply needed to push it back for new pads. However, if it resists or only moves partially, further action is required.
Step 4: Addressing a Stubborn Piston – Deeper Dive
If the piston remains stubborn, it's time to investigate and rectify the underlying cause.
Using a Brake Bleeder Kit (If Air or Contaminated Fluid is Suspected)
Sometimes, air trapped in the lines or old, sludgy brake fluid can impede piston movement. A brake bleeding kit allows you to release pressure and flush out old fluid. Locate the bleeder valve on the caliper (a small nipple-like fitting). Attach the hose from your bleeding kit to the bleeder valve. With a spanner on the bleeder valve, have an assistant gently press the brake pedal. While they hold the pedal down, open the bleeder valve slightly to allow fluid and air to escape into the collection bottle. Close the valve before your assistant releases the pedal. Repeat this process until clean, air-free fluid flows out. Keep a close eye on the brake fluid reservoir level and top it up as needed to prevent air from entering the system.
Replacing the Piston Seal
If the dust boot is torn or the piston seal is suspected to be faulty, replacement is necessary. Carefully remove the old piston from the caliper. You might need to use compressed air (with extreme caution and safety goggles!) to gently push the piston out, or a piston removal tool. Once the piston is out, carefully pry out the old internal piston seal from its groove in the caliper bore using a pick tool. Thoroughly clean the caliper bore with brake cleaner and a wire brush to remove any dirt or corrosion. Lubricate the new seal with fresh brake fluid and carefully install it into its groove. Lightly lubricate the new piston (or the cleaned old piston) with brake fluid and gently push it back into the caliper bore. Ensure it slides smoothly and squarely.
Cleaning Corrosion from the Brake Caliper Piston
If the piston or caliper bore shows signs of light corrosion, cleaning can often resolve the issue. After removing the piston (as described above), use a fine wire brush or fine-grit sandpaper (around 400-600 grit) to carefully remove the rust from the piston's surface. Work in a circular motion, ensuring you don't create deep scratches or alter the piston's dimensions. For the caliper bore, use a suitable bore brush (often found in gun cleaning kits) or a small wire brush with brake cleaner to scrub away internal corrosion. After cleaning, thoroughly wash all components with brake cleaner and allow them to dry completely. Re-lubricate with fresh brake fluid before reassembling.
Replacing the Brake Caliper Piston (When All Else Fails)
If corrosion is severe, the piston is pitted, or the above steps haven't resolved the issue, a full piston replacement is warranted. After removing the old piston and cleaning the caliper bore, lightly coat the new piston with fresh brake fluid. Carefully slide the new piston into the caliper bore, ensuring it's square and doesn't get cocked. Use a piston installation tool or a flat-bottomed socket to gently push the piston fully into the caliper bore. Ensure the new internal seal is correctly seated before installing the piston. Always replace the dust boot when installing a new piston.
Step 5: Reassembly and Post-Repair Checks
Once the piston is repaired or replaced, reassemble the brake pads and fit the caliper back onto its mounting bracket. Tighten the guide pin bolts to the manufacturer's specified torque settings. Reinstall the wheel and lower the vehicle. Before driving, it is absolutely essential to thoroughly bleed the entire braking system to remove any air introduced during the repair. Once bled, pump the brake pedal several times until it feels firm. Check the brake fluid reservoir and top it up to the MAX line. Take the vehicle for a cautious test drive in a safe area, checking for proper braking function and any unusual noises or pulling. Listen for any grinding or squealing that might indicate an issue.
Symptoms & Potential Causes: A Quick Reference
To help you quickly diagnose your brake issues, here's a comparative table:
| Symptom | Primary Cause | Immediate Action |
|---|---|---|
| Dragging Sensation / Pulling | Seized piston, restricted fluid flow | Inspect caliper, check for corrosion/damage |
| Spongy/Mushy Brake Pedal | Air in lines, fluid issues, piston not retracting | Bleed brakes, check fluid level, inspect caliper |
| Burning Smell | Constant friction, overheating brake pads | Immediately cease driving, inspect caliper & pads |
| Uneven Brake Pad Wear | Piston not retracting evenly | Inspect and service/replace caliper/piston |
| Visible Fluid Leaks | Damaged piston seal, cracked hose | Replace seal/hose, check fluid level |
Frequently Asked Questions (FAQs)
Can a Stuck Brake Caliper Piston Cause the Brake Lights to Stay On?
Yes, a stuck brake caliper piston can indeed be one of the reasons your brake lights remain illuminated. When the piston is jammed, the brake pads stay in constant contact with the rotor, generating excessive friction and heat. This sustained pressure and heat can trigger the brake light switch, making it think the brakes are still being applied, even when they're not. Resolving the issue involves inspecting and repairing the brake caliper or piston to restore proper brake function and prevent the lights from staying on unnecessarily.
How often should brake calipers be inspected?
It's generally recommended to inspect your brake calipers and the entire braking system at least once a year, or every 12,000 miles, whichever comes first. This inspection should be part of your routine vehicle service. If you live in an area with harsh winters or heavy road salt use, more frequent checks might be advisable.
Is it safe to drive with a stuck brake caliper?
Absolutely not. Driving with a stuck brake caliper is extremely dangerous. It compromises your vehicle's ability to stop effectively, can lead to uneven braking (pulling to one side), and can cause rapid, severe damage to your brake pads, rotors, and even wheel bearings due to excessive heat. If you suspect a stuck caliper, you should avoid driving the vehicle and address the issue immediately.
What's the difference between cleaning and replacing a piston?
Cleaning a piston is suitable for minor issues, typically when there's light surface corrosion or a bit of grime impeding movement, and the piston itself is otherwise in good condition with no pitting or deep scratches. Replacing a piston is necessary when the original piston is severely corroded, pitted, bent, or if the bore of the caliper is significantly damaged beyond what cleaning can fix. Piston replacement often goes hand-in-hand with replacing the internal seals and dust boot.
Can I just replace one caliper piston?
While technically possible, it is highly recommended to service or replace brake components in pairs across an axle (i.e., both front calipers or both rear calipers). This ensures balanced braking performance, as a new or freshly serviced caliper will function differently from an old, potentially worn one on the opposite side. Uneven braking can lead to instability and reduced stopping power.
Conclusion
Addressing a brake caliper piston that won't retract is a critical maintenance task that directly impacts your vehicle's safety and performance. By following the easy procedures outlined in this article, you can accurately identify the signs of a damaged brake caliper piston and efficiently work towards resolving the issue.
To recap the key concepts we've covered:
- Symptoms of a faulty piston include uneven brake pad wear, a dragging sensation, a spongy pedal, and a burning smell.
- Common reasons for brake caliper piston failure range from age and corrosion to a worn piston seal, damaged brake hoses, or system overheating.
- To fix a jammed caliper piston, you'll need essential tools such as a jack, socket set, brake cleaner, a piston compression tool, and a brake bleeding kit.
- The remedies for a stuck caliper piston involve a methodical approach: using a brake bleeder kit, swapping out the piston seal, meticulously cleaning corrosion, and, if necessary, a full piston replacement.
Remember, your safety on the road is paramount. If you don't feel confident performing these duties yourself, or if you encounter unexpected difficulties, it's always recommended to take your car to a qualified professional technician. With a bit of knowledge and effort, you can maintain your brakes in top condition, ensuring a safer and smoother journey for years to come.
