Many homeowners who rely on oil for heating their properties can find themselves a little perplexed by the readings on their oil tank gauges, particularly when it comes to understanding what a 'zero' reading signifies. This isn't as straightforward as a fuel gauge in your car, and a bit of knowledge can save you from an unwelcome cold snap. This article aims to demystify the process and explain precisely how your oil tank level is monitored, focusing on the common Watchman system.
What Does 'Zero' on an Oil Tank Actually Mean?
When your oil tank gauge, such as the popular Watchman system, indicates 'zero,' it doesn't necessarily mean the tank is completely empty. Instead, it signifies that the oil level has dropped below a specific point within the tank, calibrated to ensure you have a usable reserve. This crucial point is dictated by the length of the calibrating tube, which is positioned above the oil outlet pipe.
The calibrating tube's purpose is to act as a buffer. The oil needs to be submerged to this level for the outlet pump to draw it effectively. Therefore, when the oil level falls below the end of this tube, the gauge registers 'zero.' The key takeaway here is that there is still some oil remaining in the tank at this point, providing a vital safety net.
The Role of the Calibrating Tube
The calibrating tube, often referred to as a dip tube or suction pipe extension, is a critical component in determining your 'zero' reading. It's typically positioned approximately 10% of the way up the tank, or at least three inches (75mm), from the outlet pipe. This placement is deliberate. It ensures that the oil pump, which draws fuel from the lowest point of the tank, does not suck air when the oil level gets low.
The length of this tube directly influences how much reserve oil you have when the gauge shows 'zero.' A shorter tube means more oil will be left in the tank when the 'zero' reading is achieved, offering a larger buffer. Conversely, a longer tube will result in a smaller reserve. The installation and calibration of this tube are therefore essential for accurate monitoring and to prevent your heating system from running dry unexpectedly.
How the Watchman Gauge Works

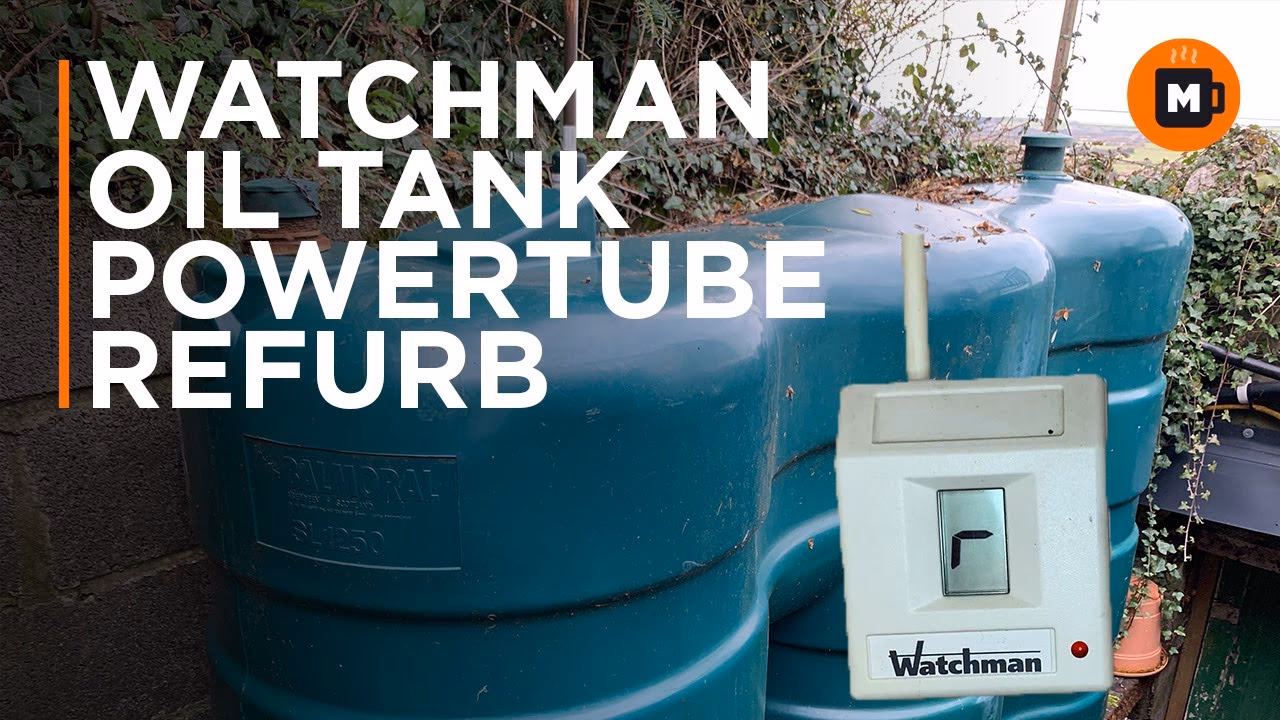

The Watchman gauge, a widely used system for monitoring oil tank levels, operates on a simple yet effective principle. It typically consists of a transmitter unit that is fitted to the top of your oil tank and a receiver unit, often a handheld device or a display unit that can be placed inside your home. The transmitter contains a float mechanism that rises and falls with the oil level.
As the oil level changes, the float moves a corresponding sensor within the transmitter. This sensor relays the information to the receiver. The receiver then translates this data into a clear, understandable reading, often displayed as a percentage of the tank's capacity, or in litres/gallons. When the oil level drops below the pre-set calibrating tube level, the transmitter signals this to the receiver, which then displays the 'zero' or equivalent low-level warning.
Factors Affecting Your Oil Level Reading
Several factors can influence the accuracy of your oil tank reading:
- Tank Shape and Size: Oil tanks come in various shapes and sizes (cylindrical, rectangular). The gauge's calibration must account for the specific dimensions of your tank to provide an accurate volume reading.
- Temperature Fluctuations: Like most liquids, heating oil expands when it's warm and contracts when it's cold. While modern gauges are designed to account for this, extreme temperature swings can cause minor variations in the apparent level.
- Installation Accuracy: The correct installation of the float mechanism and the calibrating tube is paramount. If the tube is not set at the appropriate height, or if the float is sticking, the readings will be inaccurate.
- Debris in the Tank: Over time, sediment can accumulate at the bottom of an oil tank. If this debris is significant, it could potentially interfere with the float mechanism or the pump's intake, although it's unlikely to directly affect the 'zero' calibration point set by the tube.
- Gauge Malfunction: While generally reliable, any electronic or mechanical device can fail. If you suspect your gauge is not working correctly, it's best to have it checked by a professional.
When Should You Refill Your Tank?
It's wise to schedule a refill before your gauge hits 'zero.' Most experts recommend ordering more oil when your tank is around 20-25% full. This provides a substantial buffer and reduces the risk of running out during periods of high demand or unexpected delays in delivery. Running your tank completely dry can sometimes lead to air being drawn into the heating system, which may require a system bleed by a qualified engineer to restore functionality.
Consider these general guidelines for refilling:
| Gauge Reading | Recommended Action |
|---|---|
| 50% - 75% | Monitor the level, consider ordering soon if consumption is high. |
| 25% - 50% | Schedule a delivery. |
| 10% - 25% | Order delivery immediately to avoid running low. |
| 0% (or below the calibrating tube) | Critical low. Risk of system shutdown. Arrange emergency delivery if possible, but aim to avoid this situation. |
Troubleshooting Common Gauge Issues
If you notice your gauge is consistently showing incorrect readings or is not responding:
- Check the Receiver: Ensure the receiver is properly paired with the transmitter and has fresh batteries if it's a battery-powered unit.
- Inspect the Transmitter: If accessible and safe to do so, check that the float mechanism inside the tank transmitter isn't obstructed or damaged. This is often best left to a professional.
- Obstruction: Ensure nothing is physically blocking the float from moving freely within the tank.
- Professional Inspection: For persistent issues, contact a qualified heating engineer or oil tank specialist. They can diagnose problems with the transmitter, receiver, or internal tank components.
Frequently Asked Questions (FAQs)
Q1: What happens if my oil tank runs completely empty?
If your oil tank runs completely dry, your boiler will stop firing. Air can be drawn into the heating system's pipework, which will prevent the boiler from restarting. You will likely need a professional engineer to 'bleed' the system to remove the air before it can operate again.
Q2: Can I adjust the calibrating tube myself?
While the concept is simple, adjusting the calibrating tube is typically part of the initial installation or maintenance performed by a qualified professional. Tampering with it without proper knowledge could lead to inaccurate readings or system issues.
Q3: How often should my oil tank gauge be checked?
It's good practice to visually check the reading on your receiver unit at least once a week, especially during colder months. Regular servicing of your boiler and heating system by a professional will also include checks on the oil supply and tank.
Q4: Does the 'zero' reading mean there's absolutely no oil left?
No, as explained, the 'zero' reading on a Watchman gauge (or similar systems) indicates that the oil level has fallen below the calibrated height of the dip tube, which is positioned above the outlet. There is still a reserve amount of oil in the tank at this point.
Q5: My gauge says 10%, but the oil delivery driver said the tank is nearly empty. Why?
This discrepancy could be due to several reasons: inaccurate calibration of your gauge, a fault with the gauge itself, or the delivery driver's visual estimation being different. It's always best to rely on your gauge's reading as the primary indicator, but if there's a significant and consistent difference, it warrants investigation by a professional.
Understanding your oil tank gauge is crucial for maintaining a consistent and comfortable home environment. By knowing what the 'zero' reading signifies and the importance of the calibrating tube, you can better manage your oil supply and avoid the inconvenience of running out.
