Mastering Your Fan Clutch: Overcoming Overheating Woes

When your engine starts to run hotter than usual, especially during slow traffic or when towing a caravan, the fan clutch often becomes the prime suspect. This unassuming component plays a crucial role in maintaining your engine's optimal operating temperature, preventing severe damage from overheating. Understanding how it works and how to address its issues is paramount for any car owner. It's not about 'lowering the fan clutch's temperature' directly, but rather ensuring it engages efficiently and effectively when it needs to, reacting to the heat it experiences from your radiator.

What is a Viscous Fan Clutch and How Does It Work?

A viscous fan clutch is a clever device designed to control the speed of your engine's cooling fan based on the temperature of the air passing through the radiator. Unlike a direct-drive fan, which spins at engine speed constantly, a viscous clutch allows the fan to spin slower when cooling demand is low, saving power and reducing noise. When the engine heats up, the clutch engages, speeding up the fan to pull more air through the radiator.

At its core, the viscous fan clutch operates using a special silicone oil. Inside the clutch housing, there are two sets of plates: one connected to the drive shaft from the engine (usually via the water pump pulley), and the other connected to the fan blade assembly. The magic happens with a small, temperature-sensitive valve, often a bimetallic strip or coil spring, located at the front of the clutch. When cold, this valve restricts the flow of silicone oil between the chambers within the clutch, allowing the fan to freewheel at a lower speed.

As the air temperature behind the radiator rises (indicating the engine is getting hot), the bimetallic strip reacts, opening the valve. This allows more silicone oil to flow into the working chamber between the drive and driven plates. The increased viscosity of the oil then creates a stronger hydraulic link, causing the fan blades to spin faster, pulling more air through the radiator and thus increasing cooling efficiency. When the engine cools down, the valve closes, and the oil returns to a reservoir, disengaging the clutch and slowing the fan once more. This dynamic engagement is why they are often called 'viscous' fans.

Why Your Fan Clutch Matters for Engine Temperature

The fan clutch is not just a secondary cooling component; it's vital, particularly in situations where natural airflow through the radiator isn't sufficient. This includes:

• Low Speed Driving/Idling: When your vehicle is stationary or moving slowly, there isn't enough natural airflow to cool the radiator effectively. The fan clutch must engage to draw air through.
• Heavy Loads/Towing: Pulling a heavy load, like a caravan or trailer, puts significant strain on the engine, generating more heat. The fan clutch ensures the fan provides the necessary additional cooling.
• High Ambient Temperatures: On hot summer days, the cooling system works harder, and a properly functioning fan clutch is essential to manage the increased heat load.
• Air Conditioning Use: Running the A/C adds a considerable heat load to the cooling system, requiring the fan to work harder.

Crucially, the fan clutch responds to the temperature of the air *after* it has passed through the radiator. If your radiator is receiving water at 190°F (approx. 88°C) at the top and it cools to 140°F (approx. 60°C) at the bottom, the fan clutch in the middle is reacting to air that's likely somewhere in between, perhaps averaging around 165°F (approx. 74°C), depending on its exact position and the efficiency of the radiator. Ambient temperature alone tells you little about the air temperature the fan clutch is experiencing.

Signs of a Failing Fan Clutch

A failing fan clutch can manifest in several ways, often leading to engine overheating. Here are the most common symptoms:

• Engine Overheating: This is the most obvious sign, especially at low speeds, idling, or when towing. If your temperature gauge rises significantly in these conditions but drops when you pick up speed (where natural airflow helps), a faulty fan clutch is a strong candidate.
• Excessive Fan Noise: If the fan roars loudly even when the engine is cold or at cruising speeds, the clutch may be stuck in an engaged position. This wastes power and reduces fuel economy.
• Lack of Fan Noise/Engagement: Conversely, if you never hear the fan engage, even when the engine is hot, the clutch may be completely disengaged or seized.
• Poor Fuel Economy: A clutch that is constantly engaged (roaring) will put an unnecessary load on the engine, leading to increased fuel consumption.
• Reduced A/C Performance: If the fan isn't pulling enough air through the condenser (which sits in front of the radiator), your air conditioning system will struggle to cool the cabin effectively.
• Fan Wobble/Play: Grab the fan blade and try to wobble it back and forth. Excessive play or grinding noises from the clutch bearing indicate wear and a need for replacement.

Diagnosing a Faulty Fan Clutch

Diagnosing a fan clutch isn't always straightforward, but a few simple tests can help:

1. Cold Engine Test: With the engine completely cold (preferably after sitting overnight), try to spin the fan blades by hand. There should be some resistance, but you should be able to spin it a few times easily. If it spins freely with no resistance, the clutch is likely faulty. If it's completely locked up and won't spin at all, it's also faulty (stuck engaged).
2. Hot Engine Test: Bring the engine up to operating temperature. The fan should be roaring, pulling a significant amount of air. Turn off the engine and immediately try to spin the fan again. It should be much harder to spin than when cold, offering significant resistance, possibly spinning less than one full revolution. If it spins easily, the clutch isn't engaging properly.
3. Newspaper Test (Use with Extreme Caution!): With the engine hot and running, you can carefully try to stop the fan with a rolled-up newspaper. If the clutch is working correctly, it should be impossible to stop the fan. If you can stop it easily, the clutch is weak. WARNING: This test is dangerous and should only be performed by experienced individuals with extreme caution. Ensure no loose clothing, hair, or tools are near moving parts. It's generally safer to rely on the spin tests.

The "Non-Rebuildable" Reality: Repairing vs. Replacing

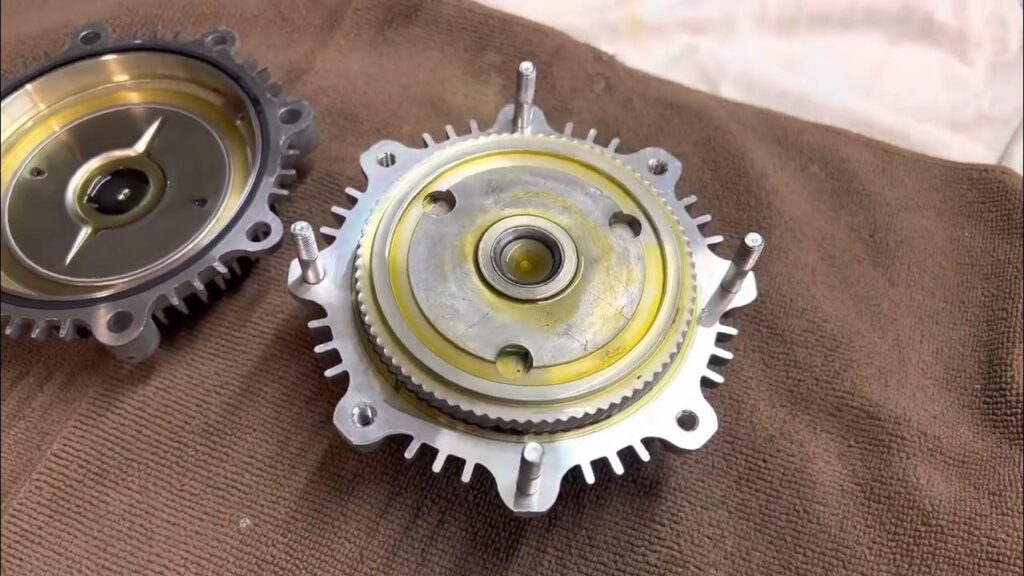

While some older or specific fan clutch designs allow for rebuilding or refilling with silicone oil, many modern fan clutches, particularly those on models like the ZD30, are classified as "non-rebuildable." This means they are designed as sealed units, and attempting to repair them is often impractical, if not impossible, for the average mechanic.

The internal components, particularly the silicone fluid, are precisely calibrated. Opening the unit risks contamination, improper refilling, and ultimately, unreliable performance. As one experienced mechanic noted, getting more silicon into the two hubs while the unit is vertical and still attached to the vehicle is incredibly difficult, often requiring the removal of the water pump as well, adding significant complexity and cost.

For many vehicles, especially those where the fan complete joins to the pump and comes pre-assembled, replacement is the only viable and reliable solution. While the initial cost of a new unit might seem higher than attempting a repair, it often saves time, prevents further issues, and ensures your cooling system functions as intended. Always check your workshop manual for specific guidance on your vehicle's fan clutch type.

Optimising Fan Clutch Performance (Addressing Your Query)

You can't "lower the temperature of your fan clutch" in the sense of making it run cooler, because it needs to get hot to engage. Instead, the goal is to ensure it *engages effectively* and that the cooling system as a whole is working optimally. Here's how to ensure your fan clutch performs its best:

• Ensure Proper Radiator Function: A clean radiator free of debris (leaves, bugs, etc.) allows for maximum airflow. Blockages reduce the amount of cool air reaching the fan clutch, potentially delaying its engagement or making it less effective.
• Check Thermostat Operation: A faulty thermostat that doesn't open fully will send hotter water into the radiator, increasing the load on the entire cooling system, including the fan clutch.
• Maintain Coolant Levels and Quality: Proper coolant levels and a healthy coolant mixture (antifreeze/water) are fundamental for efficient heat transfer.
• Consider Heavy-Duty Fan Clutches: If you frequently tow or operate your vehicle in demanding conditions, a heavy-duty fan clutch might be a worthwhile upgrade. These are designed to engage more aggressively and provide greater cooling capacity.
• Address Engine Hot Spots: If your engine is running consistently hotter than its normal operating temperature (e.g., above 190°F / 88°C even when the thermostat is fully open), this extra heat will be transferred to the radiator and then to the fan clutch. Diagnose and fix the root cause of the engine's excessive heat first.
• Modifications (Use Caution): While not universally recommended or detailed here, some enthusiasts explore modifications to make their viscous clutches engage earlier or more aggressively. This usually involves altering the bimetallic spring's tension or even converting to an electric fan setup. Such modifications should only be attempted by experienced individuals, as incorrect alterations can lead to overcooling, reduced fuel economy, or premature wear.

General Steps for Fan Clutch Replacement

Replacing a fan clutch typically involves these general steps, though specific procedures vary by vehicle model:

1. Safety First: Ensure the engine is cool. Disconnect the negative battery terminal. Wear appropriate safety gear (gloves, eye protection).
2. Access: You may need to remove the radiator shroud or other components to gain clear access to the fan clutch.
3. Belt Removal: Loosen the tensioner and remove the serpentine belt that drives the fan pulley.
4. Fan Blade Removal: The fan blades are usually attached to the fan clutch with several small bolts (e.g., four 10mm bolts). Remove these bolts and carefully detach the fan blades.
5. Fan Clutch Removal: The fan clutch itself is typically threaded onto the water pump shaft or bolted to a pulley assembly. This often requires a special fan clutch wrench and a holding tool to prevent the pulley from spinning while you loosen the large nut. Note the direction of thread (some are reverse-threaded).
6. Installation: Install the new fan clutch in reverse order. Ensure the large nut is tightened to the manufacturer's specified torque. Reattach the fan blades, re-install the serpentine belt and tension it correctly.
7. Final Checks: Reconnect the battery. Start the engine and check for proper fan operation, listen for unusual noises, and monitor the engine temperature. Bleed the cooling system if necessary.

Troubleshooting Common Cooling Issues Involving the Fan Clutch

If you've identified your fan clutch as a potential culprit, consider these broader troubleshooting steps:

• Check for Leaks: Ensure there are no coolant leaks from hoses, radiator, or water pump. Low coolant levels severely impact cooling.
• Radiator Condition: Inspect the radiator for bent fins, blockages, or internal clogs. A partially blocked radiator will not dissipate heat efficiently.
• Water Pump: Ensure the water pump is functioning correctly and circulating coolant throughout the system.
• Thermostat: Test the thermostat to ensure it opens at the correct temperature. A stuck-closed thermostat can cause rapid overheating.
• Electric Cooling Fans: If your vehicle also has electric cooling fans (often for A/C condenser or supplementary cooling), ensure they are working.

Fan Clutch Characteristics: Good vs. Bad

Frequently Asked Questions (FAQs)

Q1: Can I drive with a faulty fan clutch?

A1: It's not recommended. A faulty fan clutch can lead to engine overheating, which can cause severe and costly damage like a blown head gasket, warped cylinder heads, or even engine seizure. Address the issue as soon as possible.

Q2: How long do fan clutches typically last?

A2: Fan clutches typically last between 100,000 and 150,000 miles, but their lifespan can vary depending on driving conditions, vehicle use (e.g., frequent towing), and maintenance. Signs of wear can appear earlier.

Q3: Is it possible to refill a fan clutch with silicone fluid?

A3: While some older designs or specific aftermarket kits allow for refilling, many modern fan clutches are sealed units and are considered "non-rebuildable." Attempting to refill them can be difficult, messy, and may not provide a reliable, long-term fix. It's often more practical and reliable to replace the entire unit.

Q4: Why is the air temperature behind the radiator more important than ambient temperature for the fan clutch?

A4: The fan clutch's bimetallic spring or coil reacts to the heat of the air that has *already passed through the radiator*. This air is significantly hotter than the ambient air, as it has absorbed heat from the engine coolant. Therefore, the temperature of this radiator-heated air is the direct indicator of the engine's cooling demand that the clutch responds to.

Q5: Can an electric fan replace a viscous fan clutch?

A5: Yes, an electric fan conversion is a common modification. It offers advantages like more precise computer control, potentially better fuel economy (as it only runs when needed), and consistent airflow regardless of engine RPM. However, it requires significant wiring, a temperature sensor, and proper sizing to ensure adequate cooling, especially for heavy-duty applications. It's a more complex upgrade than simply replacing the viscous clutch.

Q6: Will a noisy fan clutch always cause overheating?

A6: Not always. A noisy fan clutch usually indicates it's stuck in the engaged position. While this won't cause overheating (it might even overcool slightly), it will lead to reduced fuel economy, increased engine noise, and potentially premature wear on the water pump bearing due to the constant load.

Conclusion

The fan clutch, though often overlooked, is a critical component in your vehicle's cooling system. Understanding its function, recognising the signs of failure, and knowing when to replace it are essential for preventing overheating and ensuring the longevity of your engine. While you can't manually "lower its temperature" to fix an issue, you can ensure it receives the correct thermal signals and responds effectively by maintaining the overall health of your cooling system. When in doubt, a professional diagnosis and replacement of a faulty unit are often the most reliable solutions to keep your engine running cool and efficiently on British roads.
