BMW E34 Gearbox Oil Change: Your DIY Guide

Maintaining your BMW E34 to its peak performance is a rewarding endeavour, and one often overlooked aspect is the regular servicing of its gearbox. Far from being a daunting task, changing your gearbox oil is a straightforward procedure that can significantly extend the life and improve the performance of your beloved BMW. This isn't just about replacing old fluid with new; it's an opportunity to cleanse the gearbox of the microscopic metal fragments that inevitably accumulate over time, safeguarding its intricate internal components. These fragments, a natural byproduct of gears meshing and bearings operating, are typically collected by a small magnet on the drain plug. By performing this routine maintenance, you ensure your gearbox continues to offer the precise, smooth shifts you expect from a BMW, preventing potential issues down the line.

Why Gearbox Oil Matters: More Than Just Lubrication

Your car's gearbox oil plays a critical role, far beyond simply lubricating moving parts. It acts as a coolant, dissipating the immense heat generated by friction within the transmission. It also cleans, carrying away contaminants and metal particles to the drain plug's magnet, preventing them from causing further wear. Over time, this oil degrades due to heat, shear, and contamination, losing its viscosity and protective properties. Old, contaminated oil can lead to increased friction, premature wear of gears and bearings, and ultimately, a shortened gearbox lifespan. Changing the oil not only provides fresh lubrication but also physically removes the harmful metallic debris that has been circulating, ensuring a healthier, more efficient transmission. This proactive approach can prevent costly repairs and maintain the characteristic driving dynamics of your E34.

Tools, Skills, and Parts: What You'll Need

One of the most appealing aspects of this maintenance task is its accessibility. It's considered a very easy job, requiring no specialised BMW diagnostic tools or advanced mechanical skills. If you're comfortable working under your car and can follow instructions, you're more than capable of tackling this. However, preparation is key. Gathering all necessary items beforehand will ensure a smooth and efficient process.

Required Tools:

While no esoteric tools are needed, having the right ones readily available will make the job much easier and safer. A torque wrench is highly recommended to ensure plugs are tightened to the correct specifications, preventing leaks or damage.

Required Spare Parts:

The following parts are generally required. Note that BMW internal numbers provided are specifically for a BMW 535i E34 -89, and specifications may vary slightly for other models or years within the E34 range. Always confirm compatibility with your specific vehicle via your VIN.

Preparation is Key: Warming Up and Lifting Your E34

Before you begin, a crucial preparatory step is to warm up the gearbox oil. Drive your E34 for approximately 10-15 minutes. This warms the oil, making it less viscous and allowing it to drain more completely. Cold, thick oil will not drain as efficiently, leaving more contaminants behind. Once the oil is warm, raise your car safely using a lift, sturdy jack stands, or ramps. It is absolutely paramount that the vehicle is level when you are about to fill the gearbox with new oil. If the car is tilted, you will end up with an incorrect oil level, either underfilling or overfilling, both of which can lead to gearbox issues. Ensure the car is stable and secure before proceeding underneath.

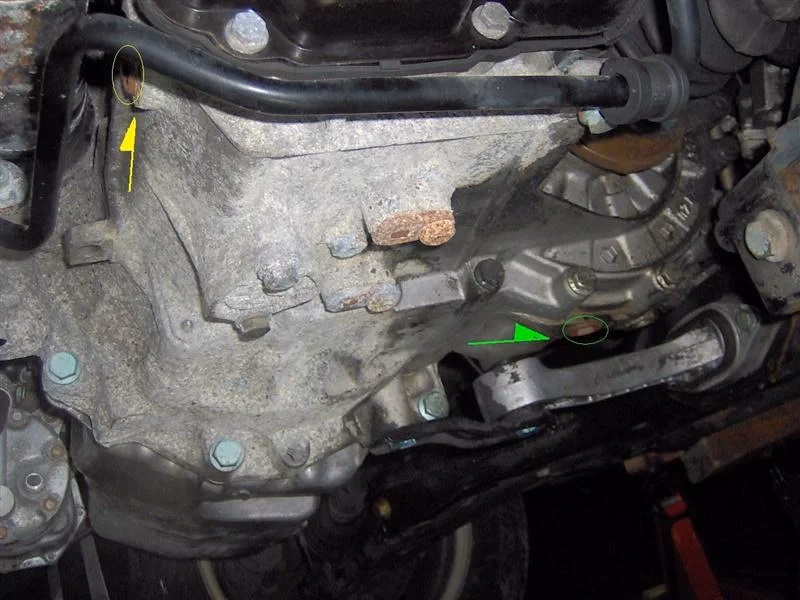

The Crucial First Step: Removing the Fill Plug

This is arguably the most important piece of advice for any DIY gearbox oil change: always remove the fill plug first! Many experienced mechanics have learned this lesson the hard way. Imagine you drain all the old oil from your gearbox, only to discover that the fill plug is seized, stripped, or otherwise impossible to remove. You're left with a completely empty gearbox, and your car is immobile until you can resolve the issue. If you attempt to remove the fill plug first and encounter a problem, you haven't drained any oil, meaning you can simply postpone the job, drive your car, and address the fill plug issue at a later time. This simple precaution saves you from being stranded and facing a much larger headache. Once you've successfully loosened and removed the fill plug, you can proceed with confidence.

Draining the Old Oil and Cleaning the Magnet

With the fill plug removed, you can now proceed to drain the old oil. Locate the drain plug at the bottom of the gearbox. Place a suitably sized drain pan directly beneath it. Carefully unscrew the drain plug using your 17 mm box-end wrench or 19 mm socket. Be prepared for the oil to gush out once the plug is fully removed. Allow ample time for all the old oil to drain completely. This may take several minutes, as the warm oil flows relatively freely. While the oil is draining, inspect the drain plug. Most BMW gearbox drain plugs are equipped with a magnet designed to collect metallic particles, which are a natural byproduct of gearbox wear. You will likely find a sludge-like accumulation of fine metal fragments on this magnet. It is crucial to thoroughly clean this magnet, removing all collected debris. You can use a clean rag and some brake cleaner to ensure it's spotless. Alternatively, if you opted to purchase a new drain plug, you can simply use the fresh one. The choice is yours, but the vital point is to ensure all metal fragments are removed and the magnet is fully functional for its next service interval. Once the oil has completely drained and the magnet is clean, reinstall the drain plug and tighten it to the correct torque specification of 50 Nm (37 ft-lb) using your torque wrench. Do not overtighten, as this can strip the threads, but ensure it's snug to prevent leaks.

Choosing the Right Gearbox Oil for Your E34

Selecting the correct gearbox oil is paramount for the longevity and smooth operation of your E34's transmission. For many E34 models, particularly those fitted with the Getrag 260/6 gearbox (common in models like the 535i), the factory-recommended fluid was Castrol TQ Dexron III. This is a mineral-based automatic transmission fluid (ATF), despite being used in manual gearboxes. It's important to note that while Castrol TQ Dexron III was the original recommendation, the product names have evolved over time. Around 2005, 'Castrol TQ Dexron III' was rebranded as 'Castrol TQ DIII'. Then, in spring 2011, it changed name again to 'Castrol Transmax Dex III Multivehicle'. Despite these name changes, it remains essentially the same product fulfilling the Dexron III specification.

While Castrol is often cited, any reputable brand of gearbox oil that explicitly meets the Dexron III specification will be suitable. It's crucial to check the product label to ensure it complies with this standard. Another popular alternative, particularly among enthusiasts looking for enhanced performance or extended service intervals, is Castrol Transmax Z. The primary difference between Castrol TQ Dexron III (or its modern equivalents) and Castrol Transmax Z lies in their base oil. Dexron III is mineral-based, offering excellent performance for standard intervals. Castrol Transmax Z, on the other hand, is a synthetic-based fluid. Synthetic oils typically offer superior thermal stability, better shear resistance, and improved performance across a wider temperature range, making them more suitable for longer change intervals or more demanding driving conditions. Both are excellent choices, but the synthetic option generally provides a higher level of protection and potentially greater longevity between changes.

Refilling Your Gearbox: Precision is Key

With the drain plug securely reinstalled and torqued, it's time to introduce the fresh oil to your gearbox. For the Getrag 260/6, the oil capacity is approximately 1.25 litres. You'll typically need two 1-litre bottles of your chosen Dexron III compliant oil. Many oil bottles, especially those designed for DIY use, come with a convenient filler hose attached, which simplifies the process. If yours doesn't, a separate funnel with a long, flexible hose or a dedicated oil pump will be indispensable, as the filler hole can be in an awkward position.

Begin slowly adding the new gearbox oil through the filler hole. This is where having the car perfectly level is critical. Continue to add oil until it begins to overflow from the filler hole. The correct amount of gearbox oil is precisely when the level is flush with the bottom edge of the filler hole opening. This indicates that the gearbox is filled to its maximum capacity. Take your time, allowing the oil to settle and ensuring no air pockets are trapped. Once you are certain that no more oil can be added and it's visibly overflowing or at the correct level, you can proceed to reinstall the fill plug. Tighten the fill plug to the same torque specification as the drain plug: 50 Nm (37 ft-lb). Double-check both plugs to ensure they are securely fastened and not leaking.

Tightening Torques: Ensuring Security and Longevity

Proper tightening of both the drain and fill plugs is not merely a suggestion; it's a critical step that ensures the integrity of your gearbox and prevents fluid leaks. Overtightening can strip the delicate threads in the gearbox casing, leading to expensive repairs. Undertightening, conversely, can result in oil leaks, which not only create a mess but can also lead to insufficient lubrication and potential gearbox damage. For the manual transmission drain and fill plugs on your BMW E34, the specified torque is:

• Manual Transmission Drain and Fill Plug: 50 Nm (Newton-metres) or 37 ft-lb (foot-pounds)

Using a torque wrench set to this precise value provides peace of mind that the plugs are secure without risking damage to the gearbox housing. Always ensure your torque wrench is calibrated and used correctly.

Gearbox Applications and Oil Capacity for the BMW E34 Range

The BMW E34 series was equipped with a variety of manual gearboxes depending on the engine and specific model variant. Understanding which gearbox your car has and its corresponding oil capacity is vital for correct maintenance. While the procedure remains largely the same, the exact oil capacity can differ slightly. Below is a general guide for common E34 models and their associated gearboxes and capacities. Always consult your vehicle's owner's manual or a specific service manual for your exact model year to confirm.

Post-Service Checks and What to Expect

Once you've completed the oil change, lower your E34 safely off the lift or jack stands. It's a good practice to take your car for a short test drive to ensure everything is working correctly. Pay attention to the feel of the gear changes – they should feel smoother and more precise. After the test drive, park the car on a level surface and perform a quick visual inspection under the car for any signs of leaks around the drain and fill plugs. If you used new sealing washers on the plugs, this significantly reduces the chance of leaks. If any minor weeping is observed, a slight additional turn on the plug (within torque specifications) might resolve it. This simple check ensures that your hard work has been successful and your gearbox is ready for many more miles of smooth operation.

Common Questions About BMW E34 Gearbox Oil Changes

Q1: How often should I change my BMW E34's gearbox oil?

A: Unlike engine oil, gearbox oil doesn't have a universally fixed service interval from BMW, as many manual gearboxes are often considered "filled for life" by the manufacturer. However, this often applies to the typical lifespan of the first owner, not the true mechanical life of the gearbox. For optimal longevity and performance, especially on older vehicles like the E34, it's highly recommended to change the manual gearbox oil every 60,000 to 100,000 miles, or every 5-7 years, whichever comes first. If your car is used for spirited driving, track days, or in very hot climates, consider more frequent changes. The small investment in fresh oil can save significant money on future gearbox repairs.

Q2: Can I use any Dexron III ATF, or does it have to be Castrol?

A: While Castrol was the OEM supplier and is a trusted brand, you are not strictly limited to Castrol. Any brand of automatic transmission fluid (ATF) that explicitly states it meets the Dexron III specification will be suitable for your E34's manual gearbox (if it requires Dexron III, like the Getrag 260/6). The key is to ensure it meets the correct specification, as different ATFs have varying properties. Always check the fluid's label for Dexron III compliance to ensure compatibility and proper performance.

Q3: What's the difference between mineral and synthetic gearbox oil? Should I upgrade to synthetic?

A: The primary difference lies in their base stock. Mineral oils are derived from crude oil, while synthetic oils are engineered in a laboratory. Synthetic oils generally offer superior performance characteristics, including better thermal stability (they perform better at high temperatures), improved cold-weather flow, enhanced resistance to oxidation and breakdown, and often better lubrication properties under extreme pressure. This typically translates to longer drain intervals and potentially better protection for your gearbox, especially if you drive hard or want maximum longevity. Upgrading to a synthetic Dexron III compliant fluid, like Castrol Transmax Z, is generally a good idea for an E34, as it can provide added protection and smoother shifts.

Q4: My gearbox feels clunky after the oil change. What could be wrong?

A: If your gearbox feels clunky or exhibits rough shifts immediately after an oil change, several factors could be at play. Firstly, ensure you've used the correct type and amount of oil. Underfilling or overfilling can lead to issues. Secondly, allow the new oil some time to circulate and properly coat all internal components; sometimes, it takes a few miles for the gearbox to adapt. Thirdly, re-check for any leaks around the drain and fill plugs. Lastly, if the issue persists, it might indicate an underlying problem with the gearbox that the oil change has simply highlighted, rather than caused. In such cases, professional diagnosis would be advisable.

Q5: Is it normal to see metal fragments on the drain plug magnet?

A: Yes, it is entirely normal and expected to see a small amount of fine, metallic paste or sludge on the gearbox drain plug magnet. This is a natural byproduct of the normal wear and tear of gears, bearings, and synchronisers within the gearbox. The magnet's purpose is precisely to collect these ferrous particles, preventing them from circulating within the oil and causing further abrasive wear. If you find large chunks or excessive amounts of metal shavings, however, that could indicate a more serious internal issue requiring professional inspection.

Q6: Can changing the gearbox oil fix a slipping clutch or grinding gears?

A: While changing the gearbox oil can significantly improve shift quality and reduce general wear, it typically cannot fix a slipping clutch, as that is a separate component issue. It might, in some cases, slightly alleviate minor grinding issues if they are caused by poor lubrication or degraded oil. However, persistent grinding usually points to worn synchronisers or other internal gearbox damage that an oil change alone cannot rectify. It's a preventative measure and a maintenance item, not a repair for significant mechanical failures.

By following this comprehensive guide, you can confidently perform a gearbox oil change on your BMW E34, ensuring its transmission remains in excellent condition for many more years of driving enjoyment. This simple yet effective maintenance task is a testament to the enduring engineering of the E34 and the care you put into preserving it.
