Nissan X-Trail Brake Caliper Replacement Guide

Understanding Your Nissan X-Trail's Brake Caliper

The brake caliper is a crucial component of your Nissan X-Trail's braking system. It houses the brake pads and, when you apply the brakes, it clamps down on the brake disc, slowing your vehicle. Over time, or due to wear and tear, a brake caliper can fail, leading to compromised braking performance and potential safety hazards. This guide will walk you through the process of replacing a brake caliper on a Nissan X-Trail, specifically the T32 model, providing you with the necessary information to tackle this important maintenance task.

Replacing a brake caliper is a job that requires a certain level of mechanical aptitude and the correct tools. If you're not comfortable working on your car's braking system, it's always best to consult a qualified mechanic. However, for those who are confident and equipped, this guide aims to provide a clear and concise walkthrough.

Symptoms of a Failing Brake Caliper

Before diving into the replacement process, it's important to recognise the signs that your Nissan X-Trail's brake caliper might be failing. Common symptoms include:

• Pulling to one side when braking: This often indicates that one caliper is not applying the same pressure as the other.
• Squealing or grinding noises: While these can also be symptoms of worn brake pads, a sticking caliper can exacerbate these sounds.
• Brake pedal feels spongy or sinks to the floor: This could be a sign of a leak in the caliper or brake line.
• Overheating brakes: A caliper that doesn't release properly can cause the brake disc to overheat.
• Warning lights on the dashboard: Your X-Trail may illuminate a brake warning light if it detects a problem with the system.

Tools and Materials You'll Need

To successfully replace the brake caliper on your Nissan X-Trail, you will require a specific set of tools and materials:

Step-by-Step Replacement Process

1. Preparation and Safety

Before you begin, ensure your Nissan X-Trail is parked on a level surface. Engage the parking brake and place wheel chocks behind the wheels that will remain on the ground. Loosen the lug nuts on the wheel you'll be working on. Then, using a jack, lift the vehicle and securely place jack stands under the designated jacking points. Once the vehicle is safely supported, remove the lug nuts and the wheel.

2. Accessing the Brake Caliper

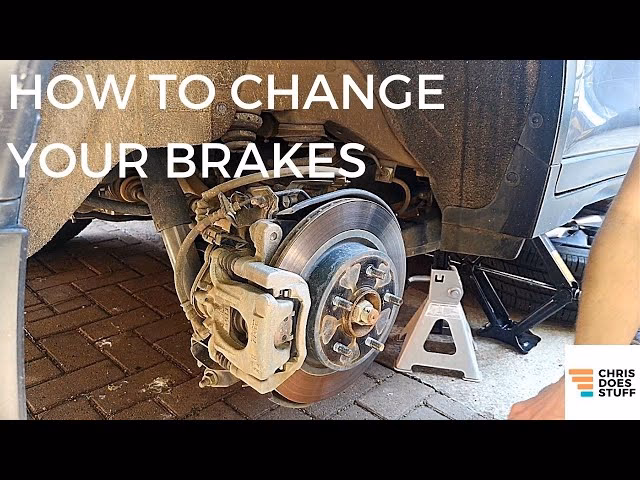

With the wheel removed, you'll have a clear view of the brake caliper, brake pads, and brake disc. The caliper is typically held in place by a couple of bolts, often referred to as caliper bracket bolts or slider pins. These might be covered by small dust caps.

3. Removing the Old Caliper

You'll need to remove the bolts that secure the caliper. For the Nissan X-Trail T32, you might find a 17mm combination spanner useful for the caliper mounting bolts and potentially a 14mm drive socket for the caliper bracket bolts. Loosen and remove these bolts. Once the bolts are out, you should be able to pivot the caliper upwards or remove it completely, depending on its design. If it's difficult to remove, a gentle tap with a rubber mallet might help. Be careful not to let the caliper hang by the brake hose, as this can damage the hose.

Important: Use a piece of wire or a bungee cord to suspend the caliper from the suspension or chassis to take the weight off the brake hose.

4. Compressing the Caliper Piston

This is a critical step. You need to retract the caliper piston to make space for the new, thicker brake pads. The provided information mentions using a brake caliper wind back tool. This tool is specifically designed for this purpose. Insert the tool into the caliper body and twist it clockwise to push the piston back into the caliper housing. Alternatively, if you don't have a wind-back tool and the piston isn't seized, you might be able to use a large C-clamp to carefully push the piston back. Ensure you have a container ready to catch any brake fluid that may be expelled from the master cylinder reservoir as you compress the piston. It's also a good idea to check the brake fluid level in the reservoir and remove some fluid if it's near the 'max' line to prevent overflow.

Tip: After applying the spray (presumably a lubricant or cleaner), wait a few minutes before attempting to compress the piston. This allows the spray to work.

5. Installing New Brake Pads (If applicable)

If you're replacing the brake pads as well, now is the time to do it. Remove the old pads from the caliper bracket. Clean the caliper bracket and any contact points with a wire brush and brake cleaner spray. Lubricate the pad backing plates with a thin layer of high-temperature brake grease where they contact the caliper bracket and the caliper piston. Install the new brake pads, ensuring they are seated correctly.

6. Installing the New Brake Caliper

Position the new brake caliper over the brake pads and brake disc. Align the bolt holes on the caliper with the corresponding holes on the caliper bracket. Reinstall the caliper mounting bolts. You will need to tighten these bolts to a specific torque setting. For the Nissan X-Trail T32, the information provided indicates a torque of 34 Nm. Use your torque wrench to ensure the bolts are tightened to this specification. This is crucial for the proper functioning and safety of your braking system.

7. Reassembly and Bleeding

Once the caliper is securely bolted in place and tightened to the correct torque, you can reinstall the wheel. Hand-tighten the lug nuts. Lower the vehicle carefully off the jack stands. Now, tighten the lug nuts in a star pattern to the manufacturer's recommended torque specification (typically around 100-120 Nm for an X-Trail, but always check your owner's manual).

After reassembling everything, it's essential to bleed the brake system. This process removes any air that may have entered the brake lines during the caliper replacement. Bleeding the brakes ensures that the brake pedal feels firm and responsive. You'll typically need a helper for this. With the engine running, have your helper pump the brake pedal several times and hold it down. Open the bleed nipple on the caliper you worked on, allowing brake fluid and any air to escape into a container. Close the bleed nipple before your helper releases the pedal. Repeat this process until no more air bubbles are visible in the fluid. Top up the brake fluid reservoir to the correct level.

8. Final Checks

Once the brake system has been bled and the fluid level is correct, pump the brake pedal several times until it feels firm. Check for any leaks around the caliper, brake lines, and bleed nipple. Take your Nissan X-Trail for a slow test drive in a safe area, gently applying the brakes. Listen for any unusual noises and check that the car brakes evenly and without pulling to one side. Gradually increase your speed and braking intensity as you become confident in the braking system's performance. It's advisable to bed in new brake pads and calipers according to the pad manufacturer's instructions for optimal performance and longevity.

Frequently Asked Questions (FAQs)

Q1: How long does it take to replace a brake caliper?

A1: For an experienced DIYer, replacing a brake caliper can take anywhere from 1 to 2 hours per caliper. If it's your first time, it might take longer. Remember to factor in time for jacking, reassembly, and potentially bleeding the brakes.

Q2: Can I drive with a faulty brake caliper?

A2: It is strongly advised not to drive your Nissan X-Trail with a faulty brake caliper. Compromised braking performance is a serious safety risk, and a failing caliper can lead to further damage to other brake components.

Q3: Do I need to replace both front calipers at the same time?

A3: While not always strictly necessary, it is generally recommended to replace brake calipers in pairs (both front or both rear) to ensure even braking performance. If one caliper is failing, the other on the same axle may be close to failing as well.

Q4: What happens if I don't tighten the caliper bolts to the correct torque?

A4: Not tightening the caliper bolts to the specified torque can lead to loose components, which can cause noise, vibration, and, in severe cases, caliper failure or detachment, posing a significant safety hazard.

Q5: Should I replace the brake fluid after replacing a caliper?

A5: It's good practice to check and potentially top up or even flush and replace the brake fluid when working on the brake system, especially if the fluid is old or contaminated. Ensure you use the correct type of brake fluid specified for your Nissan X-Trail.

Replacing a brake caliper on your Nissan X-Trail T32 is a manageable task with the right preparation and tools. Always prioritise safety, follow the steps carefully, and don't hesitate to seek professional help if you encounter any difficulties.
