Rewinding Brake Calipers: A DIY Guide

Performing maintenance on your vehicle can seem daunting, especially when it involves complex systems like your braking system. However, with the right knowledge and a bit of patience, many tasks that might seem intimidating can be tackled right in your own driveway. One such task, particularly relevant for modern vehicles equipped with electronic parking brakes (EPB), is the process of rewinding or retracting the brake caliper piston. This is often a necessary step when replacing worn brake pads. If you've recently replaced your brake pads and found yourself wondering how to properly reset the caliper mechanism, you're in the right place. This guide will walk you through the process, offering clarity and practical advice, even if you don't have specialised tools.

Understanding the Electronic Parking Brake (EPB) System

Before we dive into the 'how-to,' it's crucial to understand what an electronic parking brake system is and why it differs from traditional manual handbrakes. Unlike older systems that use cables to apply the rear brakes, EPB systems utilise electric motors integrated directly into the brake caliper. These motors, controlled by a switch on your dashboard, precisely move a screw mechanism that pushes the caliper piston against the brake pads, applying the parking brake. When you need to replace the brake pads, this electric motor needs to be retracted to create enough space for the new, thicker pads to be fitted. This is where the 'rewinding' comes in.

Why Rewind the Caliper Piston?

The primary reason for rewinding the caliper piston is to accommodate the new brake pads. New pads are thicker than worn ones, and without retracting the piston, you simply won't be able to fit them into the caliper housing. Attempting to force them will likely damage the new pads, the caliper, or both. Furthermore, if the EPB motor isn't correctly reset, the parking brake may not function as intended, or warning lights could illuminate on your dashboard. A proper rewind ensures the system is ready to accept the new pads and will function safely and effectively after the replacement.

Essential Tools and Preparation

While the process can be done without specialised diagnostic tools, having a few basic items will make the job smoother:

• Jack and Axle Stands: For safely lifting and supporting the vehicle. Safety first! Never work under a car supported only by a jack.
• Socket Set and Wrenches: To remove the wheel and caliper bolts.
• C-Clamp or Piston Spreader Tool: Although the provided method uses an alternative, a C-clamp is a common tool for manually pushing pistons back on non-EPB systems. For EPB, we'll use a different approach.
• Jumper Wires with Spade Connectors: This is the key to manually operating the EPB motor without a diagnostic tool. You'll need two wires, each with a spade connector on one end.
• 12V Battery: A standard car battery or a suitable power source.
• Wire Strippers/Cutters: To prepare the jumper wires if needed.
• Gloves and Safety Glasses: To protect yourself.
• Brake Cleaner and Rag: For cleaning components.

Step-by-Step Guide to Rewinding EPB Calipers

This guide is based on a method that avoids the need for expensive diagnostic equipment by directly engaging the EPB motor. Always refer to your vehicle's specific service manual for exact procedures, as variations exist between manufacturers.

Step 1: Preparation and Wheel Removal

Begin by safely jacking up the rear of your vehicle and supporting it securely on axle stands. Once the car is stable, remove the rear wheel on the side you'll be working on. Crucially, for vehicles with an electronic parking brake, it's often recommended to leave the electronic handbrake in the 'on' position during the initial stages. This helps maintain the system's default state.

Step 2: Disconnecting the EPB Motor

Locate the electrical connector plugged into the brake caliper. This is where the EPB motor receives its power. Carefully disconnect this connector. You might need to slide back a red plastic cover and press a tab or clip underneath to release it. Once disconnected, you'll see two electrical prongs or terminals on the caliper itself. Take your prepared jumper wires, each fitted with a spade connector, and firmly attach one spade connector to each of these prongs.

Step 3: Manually Retracting the EPB Motor

Now, you'll use your 12V battery to power the EPB motor. Connect the free ends of your two jumper wires to the corresponding terminals on the battery. If the motor doesn't immediately start retracting, don't worry. Simply reverse the polarity by swapping which wire goes to which battery terminal. You should hear the motor begin to whir or hum. Continue applying power for approximately 15 seconds, or until you notice a change in the motor's sound. This usually indicates that the piston has been fully retracted. It's important not to over-run the motor, as this could potentially cause damage.

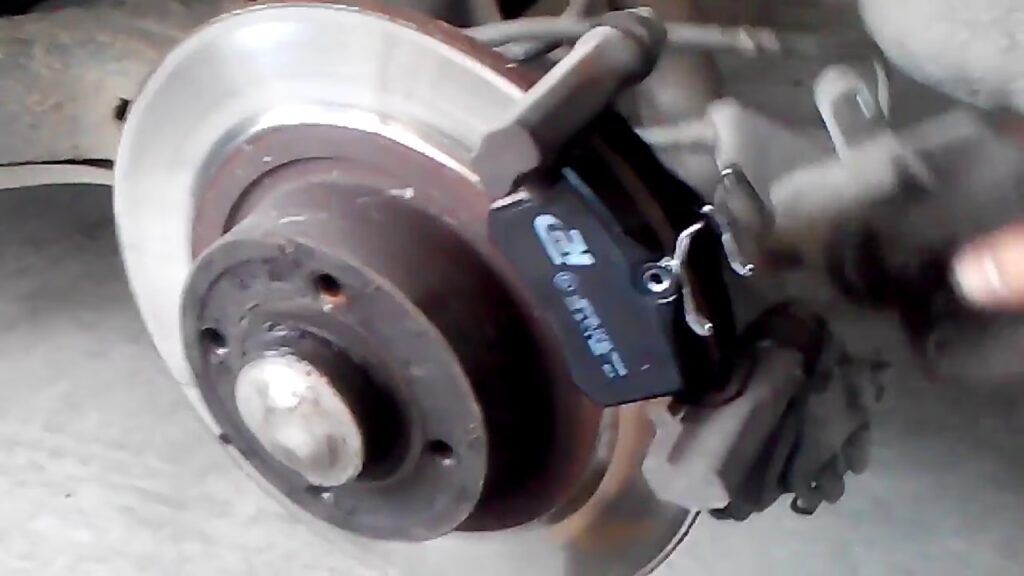

Step 4: Replacing the Brake Pads

With the piston retracted, you can now proceed with replacing the brake pads. Unbolt the caliper from its mounting bracket. You may need to remove a caliper bracket bolt or two to pivot the caliper away from the disc. Once the caliper is open, you can remove the old pads and insert the new ones. Ensure they are seated correctly. Re-bolt the caliper, ensuring all bolts are tightened to the manufacturer's specified torque. If you had to open the bleeder screw (though often not necessary for just pad replacement if done carefully), you will need to bleed the brakes afterwards. After reassembly, firmly depress the brake pedal several times. This action pushes the caliper piston outwards until it is firmly against the new pads. You should feel the pedal become firm. Verify that the disc can still spin freely when the brake pedal is not depressed.

Step 5: Resetting the EPB System

This is the final and crucial step to ensure the EPB functions correctly. You will use your jumper wires and battery again, but this time with the opposite polarity to the sequence used for retraction. Connect the wires to the battery terminals. The EPB motor should now extend, tightening the caliper against the pads and effectively engaging the parking brake. The motor will stop automatically when it reaches its fully extended position. This action effectively resets the EPB to its 'on' state. Once the motor has stopped, disconnect the jumper wires from the battery and then from the caliper. Reconnect the electrical connector to the caliper. For many, after performing the job this way – starting with the handbrake engaged and ending with the EPB motor manually engaged – the system resets itself without the need for further adjustments or diagnostic tools. The handbrake should now work flawlessly.

Troubleshooting and Important Considerations

Warning Lights: If a brake warning light or EPB warning light remains illuminated after the procedure, it may indicate an issue that requires a diagnostic tool to clear or a problem with the system itself. Consult your vehicle's manual or a professional mechanic.

Torque Wrench: While not strictly necessary for the EPB rewind, using a torque wrench to tighten caliper bolts and mounting brackets is highly recommended for safety and proper function.

Variations: Different vehicle models may have slightly different procedures. Always check your specific vehicle's repair manual. Some systems might require a diagnostic tool to enter a 'service mode' before retracting the piston.

Brake Fluid: Be mindful of the brake fluid level in the reservoir. As you push the piston back, the fluid level will rise. Ensure it does not overflow. You may need to remove a small amount of fluid if it gets too high.

Frequently Asked Questions

Q1: Can I use a C-clamp to rewind an EPB caliper?

A1: Generally, no. C-clamps are designed to push pistons straight back in non-EPB systems. EPB caliper pistons are often threaded and require the motor to retract them correctly. Using a C-clamp could damage the internal mechanism.

Q2: Do I need to bleed the brakes after rewinding the caliper?

A2: Typically, if you only replace the pads and don't open the bleeder screw, bleeding the brakes is not necessary. However, if the bleeder screw was opened, or if the brake pedal feels spongy, then bleeding is required.

Q3: What happens if I reverse the polarity at the wrong time?

A3: Reversing polarity when the piston is already fully retracted or extended could potentially damage the EPB motor or its internal gears. It's important to follow the steps carefully and only reverse polarity if the motor doesn't initially move in the expected direction during retraction.

Q4: My EPB warning light is still on. What should I do?

A4: If the warning light persists, it's best to have the system checked by a qualified mechanic. They can use diagnostic tools to read error codes and identify the specific issue, which might range from a faulty sensor to a problem with the EPB module itself.

Q5: Is it safe to perform this maintenance myself?

A5: If you are comfortable with basic car maintenance and follow safety precautions diligently, this procedure can be a safe DIY task. However, if you have any doubts about your ability or the system's complexity, it's always safer to entrust the job to a professional mechanic.

Conclusion

Replacing brake pads on a vehicle with an electronic parking brake requires a specific procedure to retract the caliper piston. By using simple jumper wires and a 12V battery, you can effectively rewind the EPB motor without specialised diagnostic equipment. Remember to prioritise safety, work methodically, and refer to your vehicle's service manual for any model-specific variations. Mastering this task can save you money on garage fees and give you a greater sense of accomplishment in maintaining your vehicle.
