Brake Caliper Movement: A Practical Guide

Understanding how to move a brake caliper is a fundamental skill for any car owner or budding mechanic. Whether you're performing routine maintenance, replacing worn brake pads, or diagnosing an issue, knowing the correct procedure ensures safety and efficiency. This comprehensive guide will walk you through the process, explaining the 'why' behind each step and offering practical advice.

Why Move a Brake Caliper?

The primary reasons for moving a brake caliper revolve around replacing or inspecting the brake pads. Brake pads are wear items, and as they diminish, the caliper needs to retract to accommodate new, thicker pads. Additionally, a sticking caliper can lead to uneven braking, increased fuel consumption, and premature wear on brake discs and pads. Therefore, being able to safely and effectively move the caliper is crucial for maintaining your vehicle's braking system.

Understanding the Brake Caliper Components

Before we dive into the movement itself, let's briefly touch upon the key components involved:

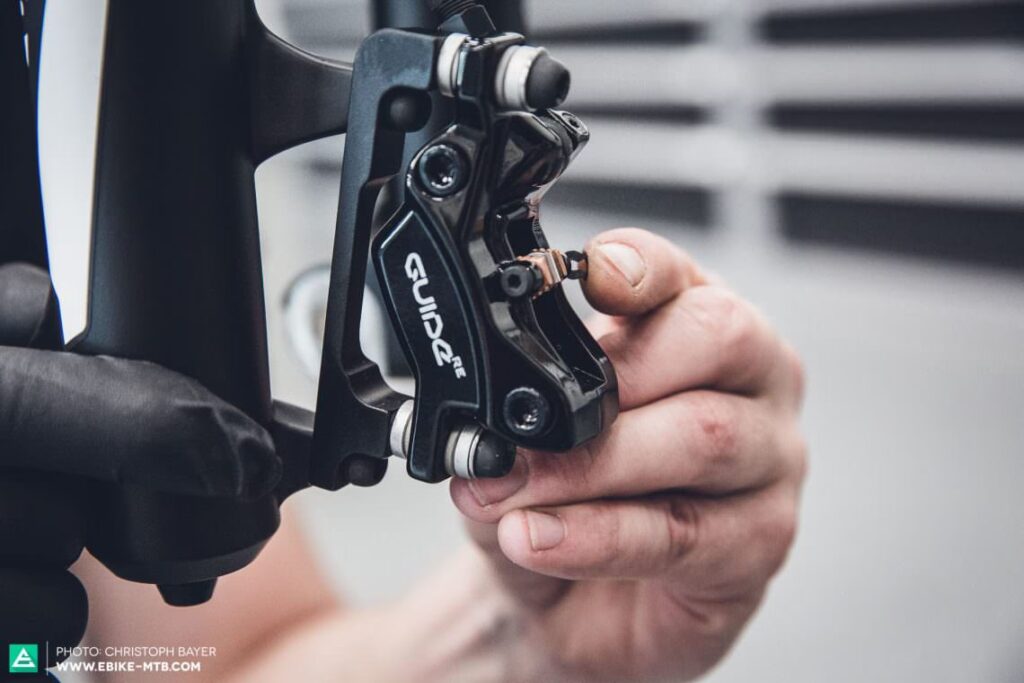

• Brake Caliper: The housing that contains the brake pistons and brake pads. It straddles the brake disc.
• Brake Pistons: Hydraulic cylinders that are pushed by brake fluid pressure. They press the brake pads against the brake disc.
• Brake Pads: Friction material that, when pressed against the disc, slows the vehicle.
• Brake Fluid: The hydraulic fluid that transmits pressure from the master cylinder to the caliper pistons.
• Brake Disc (Rotor): The rotating metal disc that the pads clamp onto.

Methods for Moving a Brake Caliper

There are generally two main scenarios when you need to move a brake caliper: retracting the pistons to fit new pads, and in some cases, releasing the caliper from its mounting to allow for inspection or replacement of the entire unit.

Retracting the Brake Pistons

This is the most common reason for moving a caliper. When brake pads wear down, the pistons extend further out of the caliper bore. To fit new, thicker pads, these pistons must be pushed back into their bores.

Tools You'll Need:

• C-clamp or Brake Caliper Piston Retraction Tool: Essential for applying pressure.
• Old Brake Pad (or a dedicated pad spacer): To protect the piston face.
• Brake Fluid Reservoir Cap Wrench (optional but recommended): To loosen the reservoir cap.
• Gloves and Eye Protection: Safety first!
• Rags: For cleaning up any spills.

Step-by-Step Guide to Retracting Pistons:

1. Prepare the Area: Park your vehicle on a level surface and engage the parking brake. Loosen the lug nuts on the wheel you'll be working on. Raise the vehicle using a jack and secure it with a jack stand. Remove the wheel.
2. Access the Caliper: Locate the brake caliper. You'll typically need to remove the caliper mounting bolts, which often have rubber dust covers.
3. Open the Brake Fluid Reservoir: Locate the brake fluid reservoir under the bonnet. Unscrew the cap. This allows the fluid displaced by the retracting pistons to flow back into the reservoir, preventing pressure buildup. Be cautious not to overfill if the fluid level is already near the maximum.
4. Position the Old Pad: Place an old brake pad (or a pad spacer) against the caliper piston(s) you intend to retract. This protects the piston face from damage by the C-clamp or retraction tool.
5. Apply Pressure:
   • Using a C-clamp: Position the C-clamp so that the screw end presses against the old brake pad, and the fixed end rests against the back of the caliper body. Slowly and steadily tighten the C-clamp. You should feel resistance as the piston begins to retract.
   • Using a Caliper Piston Retraction Tool: These specialised tools often have a screw mechanism that pushes a plate against the piston. Follow the tool's specific instructions.
6. Monitor Fluid Level: Keep an eye on the brake fluid reservoir. If it gets too full, you may need to carefully siphon some fluid out using a clean syringe or turkey baster.
7. Retract Fully: Continue applying pressure until the piston is fully retracted into the caliper bore, or until it's far enough back to accommodate the new brake pads.
8. Repeat for Other Pistons (if applicable): Some calipers have multiple pistons. Repeat the process for each piston that needs retracting. Note that one piston might move faster than the other; continue until they are both sufficiently retracted.
9. Clean and Inspect: While the caliper is accessible, it's a good time to clean it and inspect the rubber seals for any damage.
10. Install New Pads and Reassemble: Once the pistons are retracted, install the new brake pads according to your vehicle's service manual. Reinstall the caliper and tighten the mounting bolts to the manufacturer's specified torque.
11. Close Reservoir and Test: Replace the brake fluid reservoir cap. Pump the brake pedal several times until it feels firm. This re-seats the pistons against the new pads. Check for any leaks.
12. Reinstall Wheel and Lower Vehicle: Reinstall the wheel, tighten the lug nuts in a star pattern, and lower the vehicle.

Removing the Caliper from its Mount

In some instances, you might need to remove the entire caliper from its mounting bracket to replace the caliper itself, or to gain better access for other brake work.

Tools You'll Need:

• Socket set or wrenches
• Brake cleaner
• Wire brush
• Brake caliper hanger or sturdy wire
• Gloves and eye protection

Step-by-Step Guide to Caliper Removal:

1. Follow Steps 1-3 from Retracting Pistons: Prepare the area, access the caliper, and open the brake fluid reservoir.
2. Remove Caliper Bolts: Locate the caliper mounting bolts. These are often larger than the brake line bolts and secure the caliper to the mounting bracket. Remove these bolts.
3. Detach the Caliper: The caliper should now be free from the mounting bracket. Do not let the caliper hang by the brake line, as this can damage the line. Use a brake caliper hanger or a piece of sturdy wire to suspend the caliper from the suspension components.
4. Inspect Brake Line: Check the brake line for any signs of wear or damage.
5. Proceed with Further Work: At this point, you can replace the caliper, perform other brake maintenance, or reinstall the caliper after servicing.
6. Reassembly: When reinstalling, ensure the caliper slides smoothly onto its bracket. Tighten the caliper mounting bolts to the manufacturer's specified torque.

Common Issues and Troubleshooting

Sticking Pistons

If a piston is difficult to retract, it could be due to corrosion, dirt build-up, or damage to the piston seal. Sometimes, gentle persuasion with a rubber mallet (after applying pressure with a tool) can help, but if it remains stuck, the caliper may need rebuilding or replacement.

Leaking Brake Fluid

Any sign of brake fluid leaks around the caliper or pistons indicates a problem with the seals. This is a serious safety issue and requires immediate attention. The caliper will likely need to be replaced.

Uneven Pad Wear

This often points to a caliper that isn't retracting properly on one side, causing the pad to drag. Again, this suggests a sticking piston or a problem with the caliper's sliding mechanism.

Important Considerations and Tips

• Always work on a cool brake system.
• Never reuse old brake fluid. If you're opening the system, consider a brake fluid flush.
• Torque specifications are vital. Overtightening or undertightening bolts can be dangerous.
• If you are unsure at any stage, consult a professional mechanic. Your safety is paramount.
• Consider replacing brake hardware (like the clips and pins that hold the pads) when replacing pads, as these can also wear out and affect performance.

Frequently Asked Questions

Q1: Can I just push the pistons back with my hands?

A1: No, not usually. Brake pistons are typically very stiff and require significant force to retract. Using a C-clamp or a dedicated tool is necessary.

Q2: What happens if I don't open the brake fluid reservoir?

A2: Attempting to retract the pistons without opening the reservoir can build up excessive pressure in the brake system, potentially damaging components like the master cylinder or causing brake fluid to spray out forcefully.

Q3: How do I know if my caliper is bad?

A3: Signs of a bad caliper include uneven brake pad wear, a pulling sensation when braking, squealing or grinding noises, and visible leaks of brake fluid.

Q4: Do I need to bleed the brakes after retracting the pistons?

A4: Generally, no. Retracting the pistons simply pushes fluid back into the reservoir. Bleeding is only necessary if the brake lines have been disconnected or if air has entered the system.

Q5: Can I use a screwdriver to push the pistons back?

A5: While it might seem like a quick fix, using a screwdriver is strongly discouraged. It can easily damage the piston face or the caliper seals, leading to leaks and costly repairs.

Mastering the art of moving a brake caliper is an empowering step in vehicle maintenance. By following these guidelines, you can confidently tackle brake pad replacements and ensure your vehicle's braking system remains in optimal condition. Remember, when in doubt, always seek professional assistance.
