Mastering Your Mixer: Oil & Safety Essentials

Maintaining your concrete mixer isn't just about keeping it clean; it's fundamentally about ensuring its mechanical health and, more critically, your safety. Two often-overlooked yet vital aspects of mixer care are the correct oil level and adherence to stringent pre-operation safety instructions. While manufacturers like Belle provide guidance, specifics can sometimes lead to confusion, particularly regarding the precise oil level check and the mixer's orientation during this process. This article aims to demystify these points, providing clear, actionable advice to keep your mixer running optimally and safely.

Understanding the intricacies of your mixer's lubrication system is paramount for its longevity. The gearbox, often a sealed unit, relies on the correct volume and type of oil to reduce friction, dissipate heat, and protect its internal components from wear and tear. An incorrect oil level can lead to premature failure, expensive repairs, and significant downtime.

Deciphering the Mixer Oil Level: The Belle Conundrum

The core of the user's query revolves around a common point of confusion: where exactly should the oil level register, and in what position should the mixer be when checked? The instruction 'oil should be level with the filler plug' is standard for many gearboxes, but the ambiguity regarding the mixer's 'discharge' or 'mix' position is where clarity is needed.

For the vast majority of concrete mixers, including Belle models, the oil level check pertains to the gearbox, not the mixing drum itself. The gearbox is typically mounted in a fixed position relative to the main chassis of the mixer. Therefore, the orientation of the *drum* (whether it's tilted for mixing or discharging) is generally irrelevant to checking the gearbox oil level. What *is* crucial, however, is that the mixer itself is standing on level ground.

Checking the Oil Level: A Step-by-Step Guide

1. Position the Mixer: Ensure the concrete mixer is positioned on a flat, level surface. This is the single most important factor for an accurate reading. If the mixer is tilted, even slightly, the oil level inside the gearbox will not accurately reflect the true volume relative to the filler plug opening.
2. Locate the Filler Plug: On most Belle mixers, the oil filler plug is also designed to serve as the level indicator. It's typically located on the side of the gearbox casing.
3. Remove the Plug: Carefully unscrew and remove the filler plug.
4. Check the Level: If the oil is at the correct level, it should be just visible, or begin to seep out, from the filler plug hole. If no oil is visible, or if you can insert a finger or dipstick significantly without touching oil, the level is too low.
5. Top Up if Necessary: If the level is low, slowly add the manufacturer-recommended type and grade of gear oil until it just reaches the bottom edge of the filler plug opening and begins to trickle out.
6. Replace the Plug: Once the correct level is achieved, securely replace the filler plug, ensuring it's tightened to prevent leaks.

It's important to reiterate: the 'discharge' or 'mix' position refers to the orientation of the drum. The gearbox, which houses the oil, remains in a fixed position relative to the ground. Therefore, ensure the entire mixer chassis is level, and the drum's tilt is not a factor for this check.

Why Correct Oil Level is Crucial for Your Mixer

The importance of maintaining the correct oil level cannot be overstated. Here's why it's so critical:

• Optimal Lubrication: Oil reduces friction between moving parts, preventing wear and tear on gears and bearings. Too little oil leads to increased friction, heat, and rapid component degradation.
• Heat Dissipation: Oil absorbs and dissipates heat generated by friction within the gearbox. Insufficient oil means less heat transfer, leading to overheating and potential damage to seals and components.
• Corrosion Protection: The oil also protects internal metal components from rust and corrosion.
• Seal Integrity: While low oil is detrimental, overfilling can also cause issues. Excess oil can create internal pressure, potentially blowing out seals and leading to leaks, which then exacerbates the low oil problem.
• Efficiency: A properly lubricated gearbox operates more smoothly and efficiently, requiring less power and reducing strain on the motor.

Always refer to your specific Belle mixer's manual for the exact type and viscosity of oil required. Using the wrong type of oil can be as damaging as having an incorrect level.

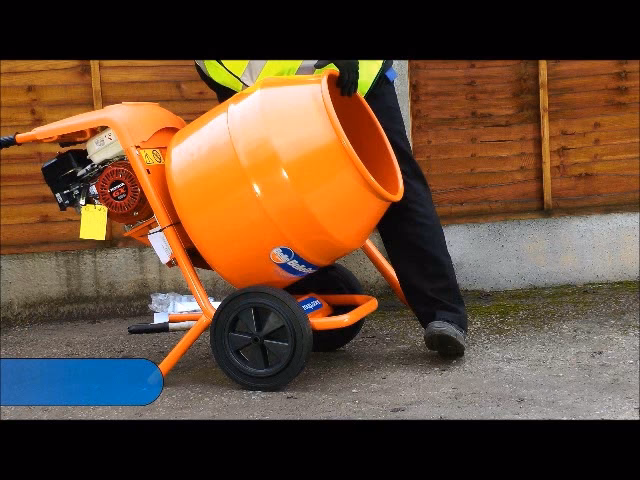

Before You Start: Essential Mixer Safety Instructions

Operating a concrete mixer, like any piece of heavy machinery, carries inherent risks. Adhering to strict safety protocols before, during, and after operation is not merely a suggestion; it's a critical requirement to prevent accidents, injuries, and damage to the equipment. The following outlines key safety instructions that must be followed every time you use your mixer.

1. Personal Protective Equipment (PPE)

Your first line of defence against potential hazards is appropriate PPE. Never operate a mixer without:

• Safety Glasses or Goggles: To protect your eyes from splashing concrete, dust, and flying debris.
• Gloves: Heavy-duty work gloves protect your hands from abrasions, chemical burns from cement, and vibration.
• Steel-Toe Boots: To protect your feet from dropped materials or the mixer itself.
• Hearing Protection: Mixers can be loud. Earplugs or earmuffs prevent long-term hearing damage.
• Dust Mask/Respirator: Especially when handling dry cement, to prevent inhalation of harmful particles.

2. Work Area Safety

The environment in which you operate your mixer is just as important as the machine itself.

• Level and Stable Ground: Always place the mixer on a firm, level, and stable surface. An unstable mixer can tip over, causing injury or damage.
• Clear Area: Ensure the area around the mixer is clear of obstructions, debris, and unnecessary personnel. You need ample space to move around the mixer safely.
• Good Lighting: If working indoors or at night, ensure the area is well-lit.
• Ventilation: If operating a petrol-powered mixer indoors, ensure adequate ventilation to prevent carbon monoxide poisoning. Electric mixers also benefit from good airflow to prevent motor overheating.
• Keep Children and Pets Away: Establish a strict perimeter to keep unauthorised individuals, especially children and pets, away from the operating mixer.

3. Machine Inspection (Pre-Operation Checks)

Before switching on your mixer, conduct a thorough visual inspection:

• Power Source: For electric mixers, inspect the power cable, plug, and any extension leads for cuts, fraying, or damage. Ensure the power supply matches the mixer's requirements and that it's connected to a Residual Current Device (RCD) for added electrical safety. For petrol mixers, check fuel levels and ensure no leaks.
• Guards and Covers: Verify that all safety guards, covers, and shields are securely in place and undamaged. Never operate a mixer with missing or damaged guards.
• Drum and Blades: Check the mixing drum for any foreign objects or excessive hardened concrete from previous use. Ensure the mixing blades are intact and securely fastened.
• Wheels and Chassis: Inspect the wheels for damage and ensure the chassis is stable.
• Controls: Test all controls (on/off switch, tilting mechanism) to ensure they operate smoothly and correctly.
• Oil Level: Re-check the oil level as detailed above.

4. Operating Your Mixer Safely

Once the pre-operation checks are complete, proceed with caution:

• Start Safely: Ensure the drum is empty before starting the motor.
• Load Correctly: Add materials in the correct sequence (typically water first, then cement, aggregate). Avoid overfilling the drum, as this can strain the motor and lead to inefficient mixing or spillage.
• Maintain Clearances: Keep hands, tools, and clothing clear of the rotating drum and moving parts.
• Never Reach In: Never attempt to clear blockages or scrape the drum while the mixer is operating. Always turn off and disconnect the power source (or switch off the engine) before performing any adjustments or maintenance.
• Stable Discharge: Ensure the wheelbarrow or receptacle for discharging concrete is stable and positioned correctly to prevent spills.

5. Post-Operation Care

Safety extends to how you shut down and store your mixer:

• Clean Thoroughly: Clean the drum and blades immediately after use to prevent concrete from hardening. This prevents buildup, which can affect future mixing efficiency and damage the mixer. Use water and aggregate or gravel to scour the drum.
• Power Down Safely: Turn off the mixer, disconnect it from the power supply (or switch off the engine), and secure any power cables.
• Storage: Store the mixer in a dry, secure location, away from extreme weather conditions.

Comparative Table: Oil Level Issues & Their Symptoms

Frequently Asked Questions (FAQs)

How often should I check my mixer's oil?

It's generally recommended to check the oil level before each major project or at least once a month if used frequently. If the mixer is stored for extended periods, check it before its first use after storage. Refer to your Belle manual for specific maintenance schedules.

What type of oil should I use for my Belle mixer?

Always consult your specific Belle mixer's user manual. Typically, small concrete mixers use a specific grade of gear oil, often an EP (Extreme Pressure) oil, such as an SAE 80W-90 or similar, designed for enclosed gearboxes. Using the wrong type can lead to poor lubrication and damage.

Can I operate the mixer if a guard is missing or damaged?

Absolutely not. Operating a mixer with missing or damaged guards is extremely dangerous and can lead to severe injury. Guards are there to protect you from moving parts. Replace or repair any damaged guards before operating the machine.

What should I do if my mixer makes unusual noises?

If you hear grinding, squealing, or knocking noises, immediately stop the mixer, disconnect the power (or turn off the engine), and investigate. Check oil levels, look for loose components, or signs of wear. Do not operate the mixer until the cause of the noise has been identified and rectified by a competent person.

How do I clean my mixer safely after use?

After discharging the concrete, add water to the drum and, optionally, a small amount of gravel or aggregate. Run the mixer for a few minutes to scour the inside of the drum. Tilt the drum to discharge the dirty water and debris. For stubborn hardened concrete, you may need a hammer and chisel (with the mixer off and unplugged!) but be careful not to damage the drum. Never use harsh chemicals that could damage the paint or components. Always wear appropriate PPE during cleaning.

By diligently adhering to these maintenance and safety guidelines, you can significantly extend the operational life of your Belle concrete mixer, ensure its reliable performance, and, most importantly, protect yourself and those around you from potential hazards. Proper care isn't just about the machine; it's about fostering a culture of safety on your worksite.
