Fuel Injection: The Engine's Vital Pulse

The Heartbeat of Your Engine: Understanding Synchronized Fuel Injection

In the complex symphony of a modern internal combustion engine, the fuel injection system plays a role as vital as the heartbeat. It's responsible for delivering the precise amount of fuel, at the exact right moment, to ensure efficient combustion. While we often hear about direct injection or common rail systems, the underlying principle of synchronized fuel injection is what truly orchestrates the engine's performance, economy, and environmental footprint. This article delves into why this synchronisation is so crucial, exploring the technology behind it and its profound impact on your vehicle.

What is Synchronized Fuel Injection?

At its core, synchronized fuel injection means that each injector delivers fuel into the combustion chamber in perfect harmony with the engine's cycle and the position of the pistons. This isn't just about injecting fuel; it's about injecting the right amount of fuel, at the right time, and with the right spray pattern. This precise timing ensures that the fuel mixes optimally with the incoming air, leading to a more complete and efficient burn.

The Importance of Timing and Quantity

Imagine trying to conduct an orchestra where each musician plays whenever they feel like it. The result would be chaos. Similarly, in an engine, if fuel is injected too early or too late, or if the quantity is incorrect, combustion will be inefficient. This leads to:

• Reduced Power: Incomplete combustion means less energy is extracted from the fuel.
• Poor Fuel Economy: The engine has to work harder and consume more fuel to achieve the desired performance.
• Increased Emissions: Unburnt or partially burnt fuel results in higher levels of pollutants like NOx, CO, and unburnt hydrocarbons (HC).
• Rough Running: Inconsistent combustion can lead to vibrations and a generally less smooth driving experience.

Evolution of Fuel Injection Systems

The journey from rudimentary carburettors to sophisticated common rail systems highlights the continuous drive for better fuel delivery. Let's look at some key stages:

Advanced Injector Design: The Key to Precision

The injector itself is a marvel of engineering. Modern injectors, especially in common rail diesel and GDI petrol engines, are designed for extreme precision and durability. Research into injector design, as highlighted in various studies, focuses on several critical aspects:

1. Spray Atomisation and Pattern

The goal is to break the fuel into the finest possible droplets, creating a wide spray pattern that mixes thoroughly with the air. Studies on advanced fuel injector designs propose methods to improve air-fuel mixing by spreading fuel more effectively and creating swirl action without altering the air intake manifold. For instance, a novel injector design converts the plunger's linear motion into rotational motion, spreading fuel throughout the combustion chamber. This improved mixing can lead to significant reductions in emissions like NOx, CO, and HC.

2. Injection Pressure

Higher injection pressures, particularly in diesel engines, force fuel through smaller nozzle holes at greater velocity, resulting in finer atomisation and better penetration into the combustion chamber. Research has investigated the impact of varying injection pressures on engine performance and emissions, finding optimal pressure levels for different fuels and engine configurations. For example, one study explored different injector opening pressures for alcohol-fuelled diesel engines, identifying a pressure that yielded higher brake thermal efficiency and matched diesel fuel performance.

3. Injector Response Time and Dynamics

The speed at which an injector can open and close, and the consistency of this operation, are vital. For gasoline direct injection (GDI) engines, the needle motion during opening and closing phases significantly affects the amount of fuel injected, especially at lower injection times. Non-linearities caused by needle bounces during these transients can compromise mixture quality. Mathematical models are developed to predict injected mass diagrams, accounting for these complex needle motions to ensure accurate fuel delivery even during very short injection events. This is particularly important for advanced combustion strategies like "double fuel" combustion, which require precise control of small fuel quantities.

4. Durability and Pollutant Impact

Fuel injectors are subjected to immense pressure, heat, and potentially abrasive fuel contaminants. Pollutants in the fuel, such as amorphous solids, can significantly degrade injector performance. They can cause reduced operating parameters, leading to uneven fuel distribution, poor atomisation, and ultimately, adverse effects on engine operation. Understanding and mitigating the impact of fuel pollutants on injector function is crucial for maintaining engine reliability and performance.

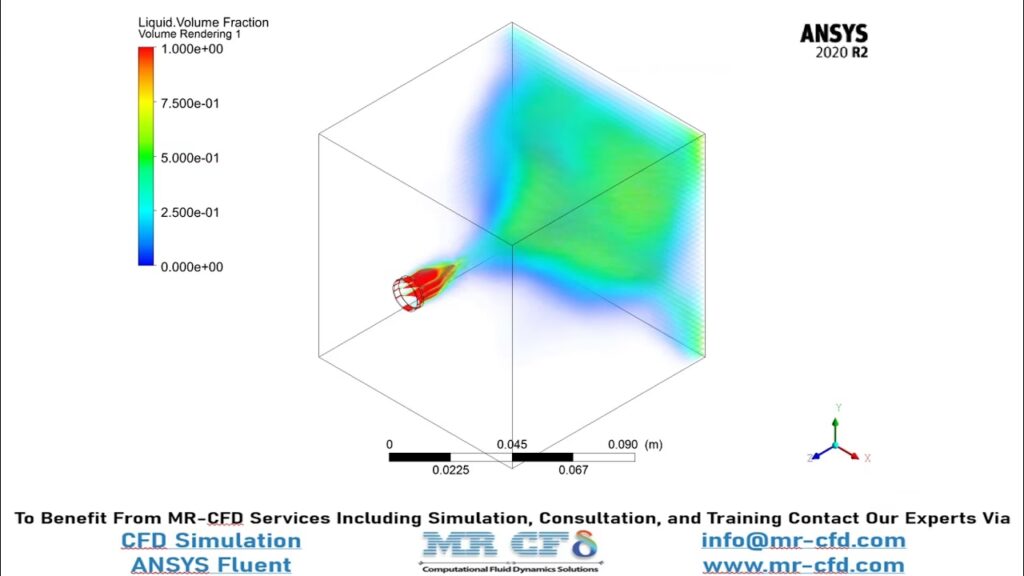

Computational Fluid Dynamics (CFD) in Injector Design

Computational Fluid Dynamics (CFD) plays a pivotal role in the design and optimisation of modern fuel injection systems. It allows engineers to simulate and analyse complex phenomena within the injector and the combustion chamber, such as:

• Fuel flow characteristics inside the injector.
• Spray formation, atomisation, and droplet behaviour.
• Air-fuel mixing processes within the cylinder.
• Combustion behaviour and emission formation.

By using CFD, researchers can virtually test different nozzle geometries, injection pressures, and timings to predict their impact on performance and emissions. This iterative design process, often combined with experimental validation, leads to more efficient and cleaner combustion systems. For example, CFD is used to study injector technologies and the effect of spray characteristics on optimising GDI combustion systems, focusing on enhancing volumetric efficiency, fuel-air homogeneity, and reducing wall wetting.

Impact on Emissions and Fuel Efficiency

The direct consequence of well-synchronized and precisely controlled fuel injection is a significant improvement in both fuel economy and environmental impact. By ensuring optimal air-fuel ratios and complete combustion, modern injection systems dramatically reduce harmful emissions:

• Reduced NOx: Precise control over injection timing and spray patterns can lower combustion temperatures, a key factor in NOx formation.
• Lower CO and HC: Efficient mixing and complete combustion minimise the production of carbon monoxide and unburnt hydrocarbons.
• Improved Fuel Utilisation: Less fuel is wasted due to incomplete combustion, leading to better miles per gallon.

Numerical research has shown that advanced injector designs can achieve notable emission reductions. For instance, one study reported improvements in fuel/air mixing leading to an 8.44% reduction in NOx, 8.69% in CO, and 8.56% in HC compared to a conventional injector.

Frequently Asked Questions

Q1: How does a dirty fuel injector affect my car?

Dirty injectors can disrupt the spray pattern and reduce the fuel flow, leading to poor combustion, reduced power, increased fuel consumption, and higher emissions. You might notice rough idling, hesitation during acceleration, or a decrease in overall performance.

Q2: Is common rail injection better than older systems?

Yes, common rail systems offer superior control over injection pressure and timing, allowing for multiple injections per combustion cycle. This results in significantly better fuel efficiency, lower emissions, and smoother engine operation compared to older mechanical injection systems.

Q3: Can I improve my engine's fuel injection?

Regular maintenance is key. Using high-quality fuel and occasionally using a reputable fuel injector cleaner can help maintain injector performance. For significant issues, professional diagnosis and cleaning or replacement of injectors may be necessary.

Q4: Why is synchronisation so important for GDI engines?

In GDI engines, fuel is injected directly into the cylinder at very high pressures. Precise timing and atomisation are critical for creating the correct air-fuel mixture under these conditions, ensuring efficient combustion and minimising issues like surface wetting and knocking.

Conclusion

Synchronized fuel injection is not merely a component; it's the intelligent heart of your engine. The continuous advancements in injector design, driven by a deep understanding of fluid dynamics and combustion chemistry, are directly responsible for the leaps in performance, fuel economy, and environmental responsibility we see in modern vehicles. By ensuring that every drop of fuel is delivered with precision, these systems allow your engine to perform at its peak, delivering power efficiently and cleanly, mile after mile. Understanding the importance of this synchronisation underscores the sophisticated engineering that powers our daily lives.
