Case 1845C: Engine & Troubleshooting Guide

The Case 1845C skid steer loader is a workhorse in many industries, known for its robust performance and versatility. At its heart lies a reliable engine designed to tackle demanding tasks. Understanding the specifics of this engine, along with common troubleshooting procedures, is crucial for maintaining optimal performance and longevity. This guide provides an in-depth look at the Case 1845C's power plant and common issues you might encounter.

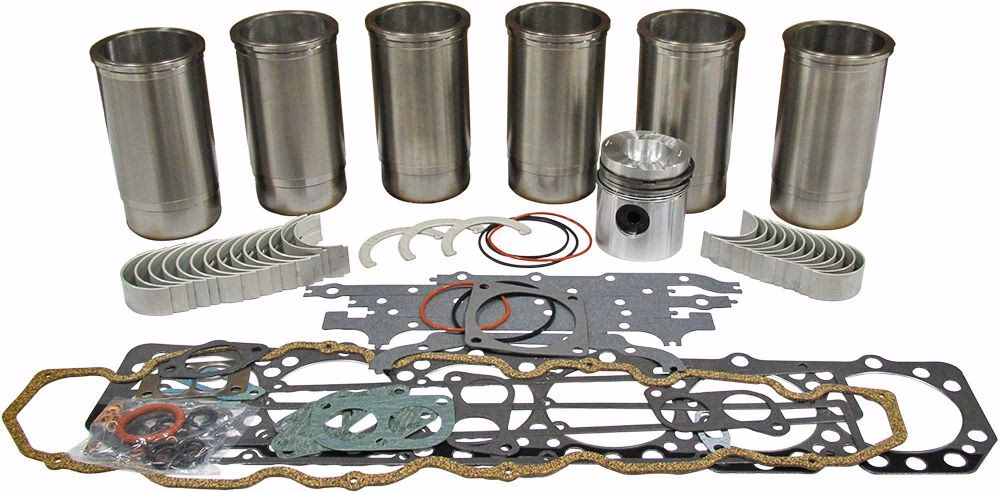

Case 1845C Engine Specifications

The Case 1845C is powered by a Case 4-390 engine. This is a 239 cubic inch (3.9 litre) four-cylinder, direct injection, naturally aspirated, liquid-cooled diesel engine. It's rated to produce 60 horsepower (45 kW) at 2200 revolutions per minute (rpm). This engine is renowned for its durability and straightforward design, making it a popular choice for this class of machinery.

Beyond the engine, the 1845C is equipped with a hydrostatic transmission, a radial-lift boom, 80HT continuous roller chains, and typically runs on 12x16.5 standard tires. The hydraulic system is driven by a gear pump with a fluid flow rate of 16 gallons per minute (60.5 litres per minute) and operates at a pressure of 2300 psi (159 bar). Its rated operating capacity is 1750 lbs (795 kg), with a tipping load of 3545 lbs (1608 kg). The lifting force of the boom is 3450 lbs (1568 kg), and the bucket breakout force stands at 4690 lbs (2130 kg).

Engine Troubleshooting: Common Problems and Solutions

Like any piece of heavy machinery, the Case 1845C's engine can experience issues. Here’s a breakdown of common problems and how to address them:

Engine Difficult to Start or Doesn't Start

Several factors can contribute to a no-start or difficult-start condition:

• Air in the fuel system: This is a common culprit. The solution involves bleeding the air from the fuel system.
• Clogged fuel filter element: A blocked filter restricts fuel flow. Replacing the filter element is the necessary step.
• Dirty or damaged injection nozzles: Worn or clogged injectors can prevent proper fuel atomisation. Replacing the fuel injection nozzles will resolve this.
• Dirt or water in the fuel system: Contaminated fuel can cause starting issues. Drain the water and flush any dirt from the system.
• Incorrect valve clearance: Valves that are not set to the correct clearance can affect compression and starting. The valve clearance needs to be adjusted.
• Faulty fuel injection pump: A malfunctioning injection pump will not deliver fuel correctly. The pump may need to be rebuilt or replaced.

Diesel Starts but Stalls Immediately

If the engine starts but quickly shuts down, consider these possibilities:

• Dirty air cleaner: Restricted airflow can cause the engine to stall. Clean or replace the air cleaner element.
• Clogged fuel filter element: Similar to starting issues, a clogged filter can starve the engine of fuel. Replace the filter element.
• Poor fuel injection pump tightness: Leaks around the fuel pump can indicate a loose fitting or seal. Look for any fuel leaks and tighten the pump connections promptly.
• Dirty or defective injectors: Injectors that are not functioning correctly can lead to stalling. Replace or clean the fuel injectors.
• Faulty fuel injection pump: An internal issue with the pump can cause immediate stalling. Rebuild or change the fuel pump.

Engine Stalls After Running

An engine that runs for a while and then stalls might have these underlying problems:

• Engine is cold: In some cases, insufficient warm-up time can lead to stalling. Ensure the engine is adequately warmed up.
• Dirty fuel filter: Even if it allowed starting, a partially clogged filter can worsen as the engine runs. Replace the filter element.
• Air in fuel tank: Air entering the fuel system during operation can cause stalling. Bleed the fuel tank and system.
• Faulty fuel injection nozzles: Worn nozzles can cause issues during operation. If necessary, replace with a new nozzle.
• Improper fuel injection timing: Incorrect timing can lead to poor performance and stalling. Adjust the pump timing as required.

Engine Stalls at Idle

If the engine cuts out when not under load:

• Incorrect adjustment of low idle speed: The idle speed may be set too low. Adjust the idle speed to the manufacturer's specifications.
• Fuel injection pump malfunctioning: Internal wear or damage to the pump can affect idle stability. Install a new pump or have it rebuilt.
• Dirty or defective injectors: Injectors that aren't spraying fuel correctly at low RPMs can cause stalling. Change or clean fuel injectors.
• Incorrect valve clearance: As with starting issues, incorrect valve clearance can impact idle quality. Adjust valve clearance.

Lack of Engine Power

A significant drop in power can be attributed to:

• Clogged air cleaner: A blocked air filter severely restricts the air supply needed for combustion. Clean or replace the element.
• Clogged injection nozzle: Similar to air filters, clogged nozzles prevent proper fuel delivery. Clean or change the injection nozzles.
• Incorrect fuel injection pressure: The fuel system pressure needs to be within the correct range for optimal power. Correct the pressure settings.
• Incorrect valve clearance: Improperly set valves can lead to loss of compression and power. Adjust to proper valve clearance.
• Incorrectly adjusted low idle speed: While this usually affects idle, it can sometimes impact overall power delivery. Correct the settings.
• Restricted fuel lines or hoses: Kinks or blockages in fuel lines impede fuel flow. Clean fuel lines and hoses.
• Defective cylinder head gasket: A blown head gasket can cause loss of compression. Replace the gasket as required.
• Leaking or defective piston rings: Worn piston rings allow combustion gases to escape, reducing power. Change piston rings.

Engine is Overheated

Overheating can cause severe engine damage. Check for:

• Insufficient coolant: The most common cause. Top up coolant fluid and meticulously check the entire system for leaks.
• Low engine oil level: Oil also plays a role in cooling. Check the oil level and add if necessary.
• Clogged radiator core or leaking radiator cap: A blocked radiator cannot dissipate heat effectively, and a faulty cap can lead to pressure loss and boiling. Clean the radiator or install a new cap.
• Fan belt slipping or worn: The fan is crucial for airflow through the radiator. A slipping or worn belt means the fan isn't spinning fast enough. Belt change is required.
• Engine is overloaded: Pushing the machine beyond its capabilities can lead to overheating. Load reducing is recommended.

Oil Pressure Too Low

Low oil pressure is critical and can lead to rapid engine wear:

• Low engine oil level: Insufficient oil means the pump can't circulate it effectively. Need to add oil.
• Dirty oil filter: A clogged filter restricts oil flow. Change or service the engine oil filter.
• Incorrect engine oil: Using oil with the wrong viscosity can lead to low pressure, especially when hot. Fill up with the proper oil viscosity.
• Excessive crankshaft bearing oil clearance: Worn bearings create larger gaps for oil to escape, reducing pressure. Install new bearings.
• Oil pump malfunction: The oil pump itself may be failing. Remove and inspect the oil pump.

Abnormal Engine Knocking or Noise

Unusual noises often indicate serious internal problems:

• Low engine oil level: Lack of lubrication can cause metal-on-metal contact. Need to add engine oil.
• Engine is cold: Cold engines can sometimes produce more noise until they reach operating temperature. Warm up the engine.
• Improper setting of fuel injection pump timing: Incorrect timing can cause detonation or knocking. Use the correct fuel injection pump timing adjustment.
• Incorrectly set low idle speed: As mentioned, improper idle settings can sometimes cause rough running. Normalize low idle speed.
• Dirty or defective injectors: Poor fuel spray patterns can lead to combustion noise. Replace fuel injectors.
• Connecting rod is misaligned or defective: A bent or damaged connecting rod will cause significant knocking. Need to replace or align the connecting rod.
• Broken or worn pistons: Piston slap or damage can create knocking sounds. Have pistons replaced.

Drive System Troubleshooting

The drive system is vital for the loader's movement. Here are common issues:

Drive System Won't Operate in Either Direction

• Insufficient hydraulic fluid: The hydrostatic transmission relies on hydraulic power. Fill the system to the proper hydraulic fluid level.
• Worn drive chain: A damaged or stretched drive chain can prevent power transfer. Check the drive chain and change faulty components.
• Input drive shaft failure: If the shaft connecting the transmission to the drive motors is damaged, the system won't work. Replace or service the drive shaft.
• Relief valve is damaged or worn: A faulty relief valve can bypass hydraulic fluid, preventing drive. Rebuild or install a new relief valve.
• Plugged suction line or hydraulic filter: Blockages in the hydraulic system's intake will starve the pump. Clean the suction line or replace the hydraulic filter.
• Foot or hand controls are faulty: Malfunctioning control linkages or electrical components can disable the drive. Replace or repair.
• Drive motor or pump is defective: The core components of the hydrostatic drive might be worn out. Check and repair if required.

Reduced Power to Drive System

• Clogged hydraulic oil filter: Similar to suction lines, a dirty filter restricts flow. Replace or clean the hydraulic filter.
• Open or damaged relief valve: A relief valve that is stuck open will cause a constant loss of hydraulic pressure. Change or close the relief valve.
• Defective or worn transmission parts: Internal wear within the transmission can lead to a loss of drive power. Inspect and change defective parts.
• Input drive shaft failure: A damaged shaft can slip or break, reducing power transfer. Replace the drive shaft.
• Air in the hydraulic system: Air pockets in the hydraulic fluid can cause spongy or reduced drive performance. Air bleeding is required.

Drive System Overheats

An overheating drive system indicates a problem with fluid circulation or component efficiency:

• Hydraulic oil is insufficient: Low fluid levels lead to increased friction and heat. Checking hydraulic oil level and add if necessary.
• Clogged hydraulic fluid filter: A blocked filter restricts flow, causing the pump to work harder and generate heat. Replace or clean the hydraulic filter.
• Stuck relief valve: A relief valve that is stuck in a partially open position can cause continuous fluid bypass and heat generation. Repair or replace the relief valve.
• Hydraulic motor or drive pump is worn: Worn internal components in the motors or pump will cause inefficiency and heat. Replace or repair faulty components.
• Oil cooler is clogged: If the oil cooler's fins are blocked with debris, it cannot dissipate heat effectively. Cooling fins need to be cleaned.
• Overloaded drive system: Consistently operating the machine at its maximum capacity or beyond can cause the drive system to overheat. Reduce loading.

Drive System is Noisy

Unusual noises from the drive system often point to mechanical or hydraulic issues:

• Oil viscosity is too heavy: Using oil that is too thick for the operating temperature can cause cavitation and noise. Drain and refill with the correct oil.
• Hydraulic system is leaking air: Air entering the hydraulic system can cause cavitation and a distinct whining or knocking noise. Air bleeding is required.
• Hydraulic motor or drive pump is worn: Internal wear in these components can create abnormal noises. Check and repair if required.
• Mechanical components of drive system are defective or worn: Worn gears, bearings, or drive shafts can all contribute to noise. Check the drive system and change faulty parts.

Hydraulics Troubleshooting

The hydraulic system powers the loader's functions. Issues here can halt productivity.

Hydraulic System Overheated

Overheating can stem from several sources:

• Hydraulic pressure incorrectly adjusted: Pressure set too high can cause components to work harder and generate excess heat. Adjust pressure correctly.
• Misadjusted or defective main relief valve: A relief valve that is not functioning correctly can cause continuous fluid bypass. Adjust the valve or replace if necessary.
• Hydraulic fluid contamination: Dirty fluid can cause increased wear and friction. Change hydraulic fluid.
• Lack of hydraulic oil: Low fluid levels mean the pump may be cavitating or not operating efficiently. Add oil to the hydraulic system.
• Hydraulic pump is worn: A worn pump may not be able to maintain correct pressure and can generate heat. Repair or replace pump if necessary.

Boom Fails to Lift or Drop

If the main lifting mechanism isn't working:

• Lift controls are damaged: Issues with the control levers or valves can prevent boom operation. Repair or change.
• Damaged hydraulic oil pump: A weak or damaged pump won't supply enough flow or pressure. Repair or install a new hydraulic pump.
• Damaged hydraulic control valve: The valve body or spools may be worn or stuck. Repair or replace the hydraulic control valve.
• Hydraulic cylinder is defective: Leaks within the cylinder or damaged seals will prevent proper operation. Replace or repair the boom cylinder.
• Low hydraulic fluid level: As with drive issues, insufficient fluid impacts all hydraulic functions. Add fluid as required.

Bucket Fails to Tilt

If the bucket isn't responding to tilt commands:

• Bucket tilt controls are defective: Similar to lift controls, issues with tilt controls can be the cause. Inspect and repair if necessary.
• Defective hydraulic pump: Again, pump issues affect all functions. Repair or replace pump if necessary.
• Faulty hydraulic control valve: The valve responsible for tilt might be malfunctioning. Change or repair the hydraulic control valve.
• Defective bucket cylinder: The cylinder actuating the bucket tilt may have internal leaks or be damaged. Repair or replace the cylinder.
• Low hydraulic fluid level: Ensures there is adequate fluid for all systems. Fill the system to the proper hydraulic fluid level.

Boom or Bucket Moves Slowly

Slow movement can be frustrating and indicate underlying problems:

• Hydraulic pump is worn: A pump that has lost its efficiency will provide less flow at a given speed. Check pump performance and change it if necessary.
• Hydraulic cylinder oil leakage: Internal leaks past piston seals in the cylinder will reduce speed. Replace cylinder piston seals.
• Low hydraulic fluid level: Again, insufficient fluid reduces overall system performance. Checking hydraulic fluid level and add if necessary.
• Worn or unadjusted hydraulic control valve: Valves that are not sealing properly or are out of adjustment can restrict flow. Adjust correctly or repair.
• Low hydraulic pressure: If the system pressure is not reaching the required level, all functions will be slow. Adjust pressure as required.

Lift Arm or Bucket is Jerky

Erratic movement often points to air or contamination:

• Air in the hydraulic system: Air pockets cause inconsistent fluid delivery, leading to jerky movements. Bleed hydraulic system.
• Plugged hydraulic oil filter: A dirty filter can cause inconsistent flow. Service or replace the hydraulic filter.
• Hydraulic oil is contaminated: Debris in the oil can cause valves to stick or cylinders to not move smoothly. Fill up with fresh hydraulic oil.
• Scratched cylinder rod or tube: Damage to the cylinder's internal surfaces can cause binding and jerky motion. Replace damaged component.

Hydraulic Pump Makes Excessive Noise

Pump noise is often a warning sign:

• Hydraulic system leaking or not enough oil: Low oil levels or leaks can cause the pump to cavitate, creating noise. Add hydraulic oil or correct system leaks.
• Plugged hydraulic filter: Restricted flow forces the pump to work harder. Clean or replace the filter.
• Clogged suction line: Similar to a clogged filter, this starves the pump. Clean the suction line as required.
• Pump sucks air: Air ingress into the pump is a primary cause of cavitation noise. Bleed air.
• Faulty pump parts: Internal wear or damage to the pump components themselves will cause noise. Rebuild or install a new pump.

Electrical Troubleshooting

While primarily a mechanical machine, electrical systems are vital for starting and operation.

Battery Cannot Be Charged

If your battery isn't holding a charge:

• Wiring connections are loose or corroded: Poor connections prevent proper current flow. Clean or tighten connections.
• Battery terminal connectors are defective: Damaged or corroded terminals can impede charging. Install new terminal connectors.
• Worn-out battery: Batteries have a finite lifespan. Use a new battery.
• Defective or loose belt: The alternator, driven by the engine belt, charges the battery. A slipping or broken belt means no charging. Install a new belt or adjust belt tension.

Starter Cranks Slow

A slow crank indicates a power delivery issue:

• Low battery voltage: The battery simply doesn't have enough power. Recharge the battery.
• Battery does not hold charge: The battery may be failing and unable to maintain its charge. Battery needs service or replacement.
• Bad battery terminals or disconnected wiring: Corroded terminals or loose wires increase resistance. Connect wires correctly or change terminals.

Starter Motor Won't Turn

If the starter motor is completely unresponsive:

• Battery is low or faulty: The most common reason. Charge or change the battery.
• Wire harness is disconnected or incorrectly connected: The electrical circuit to the starter may be broken. Check wire harness and connect as required.
• Low battery capacity: Even if it shows voltage, a weak battery may not have the cranking amps needed. Battery needs to be recharged.
• Starter motor is damaged: The starter motor itself may have failed. Starter should be changed.

Getting Parts and Service

When you need specific parts for your Case 1845C, reaching out to a knowledgeable dealer is key. As one customer noted, "Dealt with Brandon G. Dude knows his parts and had what I needed. We received the part and due to the value I decided it was safer to use brand new. I paid for return shipping and received a credit back for the part. The whole process was smooth." This highlights the importance of good customer service and clear return policies when sourcing parts.

Regular maintenance and prompt attention to these troubleshooting points will ensure your Case 1845C skid steer loader continues to operate efficiently and reliably for years to come.
