When preparing for a caravan holiday, it's easy to get caught up in packing essentials, plotting routes, and dreaming of scenic campsites. However, one of the most critical aspects of safe caravanning, your braking system, often remains out of sight and out of mind. While modern caravans, especially new ones, are equipped with sophisticated electronic braking systems designed for ease of use and reliability, this very simplicity can foster a false sense of security. The assumption that 'if they worked last time, they'll be fine this time' can lead to overlooked issues that only surface during an emergency.
Electronic braking systems are indeed an excellent feature for new caravans. They offer superior control, often allowing for proportional braking that matches the tow vehicle's deceleration, leading to smoother, safer stops. Unlike older mechanical override brakes, electronic systems provide immediate and consistent braking force, which is particularly beneficial for heavier caravans. They are generally simpler to service in terms of routine checks, but this doesn't negate the need for diligent inspection. Regularly checking your caravan or camper trailer’s brakes is arguably the most important safety precaution you can undertake. These routine inspections ensure all components are functioning correctly, guaranteeing sufficient braking power to stop your vehicle safely and effectively, especially when it matters most.
The challenge lies in the various points of system failure that, if not regularly examined, can go unnoticed until a critical moment arises where every component must perform flawlessly to avert disaster. Below, we've outlined five essential checks you can perform on your caravan's braking system to ensure it's in optimal working order for both regular towing and unexpected emergencies.
How To Check Caravan Brakes: Comprehensive Inspections
Before embarking on your next journey, dedicate some time to these fundamental brake system inspections. They are simple to perform and can significantly enhance your safety on the road.
1. Check The Caravan Emergency Brake
For trailers exceeding 2,000kg Gross Trailer Mass (GTM), an effective emergency braking system is a legal requirement under the Road Vehicle Standards. This mechanism is designed to automatically apply the caravan's brakes if it becomes separated from the tow vehicle. These systems are typically electrically powered and rely on a dedicated spare battery as a crucial component.
It is imperative to examine this battery before every trip. Most emergency braking systems feature a basic 'push-to-test' button or indicator light that will confirm if the battery is charged and ready for use, or if it requires recharging. If the battery is flat, its connection to the caravan’s electrical system will dictate the appropriate recharging method. Some systems are designed to recharge whenever the caravan is plugged into a 240-volt mains outlet. Others might recharge via an Anderson connection to the tow vehicle while driving. If you are ever in doubt about the correct procedure for your specific system, always consult your caravan’s manufacturer or a qualified auto electrician.
2. Check Caravan Brake Wiring
The wiring that supplies electricity to your caravan's electric brakes is highly susceptible to damage from road debris like stones, water ingress, and general wear and tear from continuous vibration and movement. It is surprisingly common to find at least one pair of wires damaged on several of the caravan’s wheels. These wires are often routed near the rear of the wheel hub, making them vulnerable. You’ll need to get down and inspect them closely, perhaps using a torch, to identify any fraying, cuts, or exposed copper.
While you're inspecting the wiring, pay close attention to the zip ties or other fasteners that secure the cables in place. These can also degrade or break, allowing the wires to sag and become more susceptible to damage. Ensure all connections are tight and free from corrosion. Any signs of wear or damage to the wiring should be addressed immediately by a qualified technician to prevent brake failure.
3. Check & Adjust Caravan Hand Brake
The handbrake on many caravans is a relatively simple mechanical device, but it requires regular checking and adjustment to remain effective. A common indicator that your handbrake needs attention is if you have to pull the lever past the three-quarters position before the brakes engage firmly. This usually signifies that the cable has stretched or the shoes require adjustment.
Adjusting the handbrake is often a straightforward process. It typically involves loosening locknuts and twisting an adjuster wheel, usually found near the cable's entry point into the brake assembly or at a central equaliser bar. Turn the adjuster clockwise a few times until the brakes are tightly applied, and the lever engages around the halfway point with firm resistance. If you're unsure about the procedure for your specific caravan, there are numerous instructional videos available on platforms like YouTube, or you can visit your local caravan mechanic, who can usually perform the adjustment in a matter of minutes.
4. Examine The Caravan Emergency Breakaway System’s Condition
Most caravans equipped with electronic brakes feature an emergency breakaway activation system. This crucial safety device typically consists of a small black box mounted on the A-frame, a pin housed within this box, a cable connected to the pin, and a shackle or carabiner for attachment to the tow vehicle. The system is designed so that if the caravan inadvertently detaches from the tow vehicle, the pin is pulled from the box, instantly engaging the caravan's brakes.
Before each trip, thoroughly check all components of this system for damage or wear. Pay particular attention to the breakaway cable itself, as it can often become pinched or frayed, especially during tight turns or when manoeuvring the caravan. Also, critically, ensure that the cable's connecting point on the tow vehicle is separate from the tow hitch. If the breakaway cable is hooked to the hitch itself, and the entire hitch assembly separates from the tow vehicle, the breakaway system will not activate, rendering it useless in a critical situation. It must be connected to a secure, independent point on the tow vehicle's chassis.
5. Inspect Caravan Brake Controller Operation
Your tow vehicle's cabin will house a control unit for the caravan's braking system. These units vary in design, from a simple button/dial configuration, such as the Redarc TowPro, to larger under-dash units like those in the Tekonsha range. Given the different operating principles of various brake controllers, it’s essential to consult the user manual for your specific model to ensure you understand its proper function and how to verify it.
When the caravan is connected and the tow vehicle's engine is running, the brake controller's display should ideally show no flashing lights or trouble warnings. A simple operational check involves testing the manual override function. While driving slowly away from your location (e.g., at walking pace in a safe, open area), engage the manual override. You should distinctly feel the caravan's brakes pulling the vehicle up, confirming the controller is sending a signal and the caravan brakes are responding correctly. This quick test provides crucial peace of mind before you hit the main roads.
Frequently Asked Questions About Caravan Brakes
Understanding the nuances of your caravan's braking system can prevent common issues and ensure smoother, safer journeys. Here are answers to some frequently asked questions.
When Reversing, How Do Caravan Brakes Work?
When you put your tow vehicle into reverse with the caravan attached, the caravan's brakes will initially engage. This is why you might feel a slight resistance or a 'clunk' from the caravan as you begin to reverse. However, as the vehicle continues to move the caravan backward, a clever mechanism within the caravan’s drum brakes comes into play. A lever inside the drum brakes is designed to disengage or 'override' the braking action when it detects reverse motion. As a result, the caravan brakes effectively stop working in reverse. This feature prevents the brakes from continually locking up when you're trying to manoeuvre backward. It also explains why backing your caravan onto levelling ramps can be challenging, as you have less control over stopping the caravan once it starts to roll backward too far. Some modern electronic braking systems offer a 'reverse mode' or sensitivity adjustment to mitigate this effect, providing a smoother reversing experience.
What Causes Squeaky Caravan Brakes?

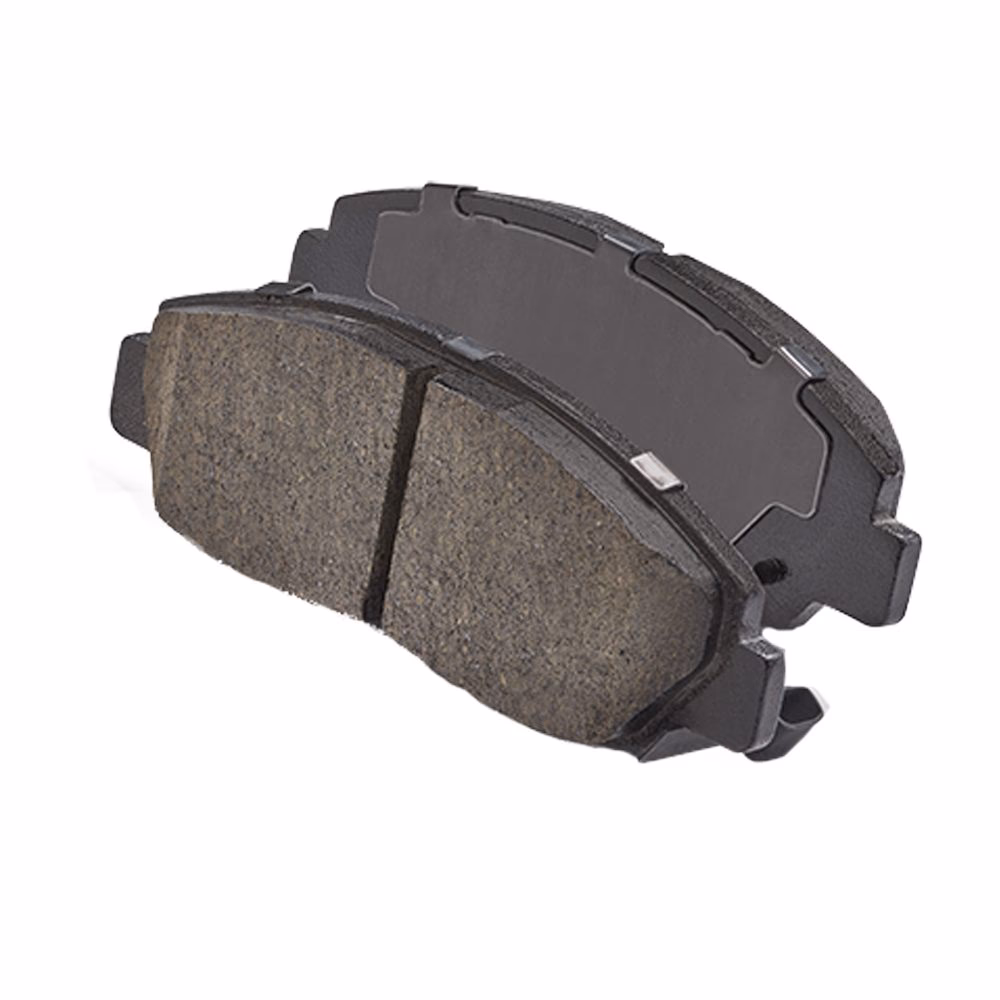

In most situations, squeaky caravan brakes indicate that the brake pads or shoes have become too thin, or they are contaminated. The high-pitched squeaking sound you hear typically results from metal-on-metal contact due to worn-down brake pads or shoes. This signifies that your brake pads have worn past their acceptable wear limit and are now rubbing against the brake drum or disc. This is a critical warning sign that requires immediate attention. Continuing to drive with worn brakes can lead to reduced braking performance, damage to the brake drums or discs, and ultimately, a dangerous situation. You should take your caravan to a qualified workshop as soon as possible to have the brake pads or shoes inspected and replaced. Other less severe causes of squeaking can include dust build-up, foreign objects, or glazed brake surfaces, but worn components are the most common and serious culprit.
How Do Caravan Electric Brakes Work?
Modern electronic trailer and caravan brakes operate using a combination of electromagnets and friction. When an electrical signal is sent from the tow vehicle (via the electric brake controller) to the caravan’s brake assembly, a small electromagnet, often referred to as the 'magnet' (component 5 in typical diagrams), is energised. This magnet is then drawn towards the inner face of the rotating brake drum. As the magnet adheres to the drum, it rotates slightly, actuating a lever mechanism. This lever, in turn, pushes the brake shoes outwards against the inner surface of the brake drum, creating friction and slowing the wheel. The strength of the electrical signal from the brake controller determines how strongly the magnet is pulled, and thus how much braking force is applied. This proportional control allows for smooth and effective braking, matching the deceleration of the tow vehicle.
Summary
Caravan brakes, typically employing drum braking technology within their brake drums, are a vital safety component that demands regular attention. The emergency breakaway system is a critical safety net, designed to automatically apply the caravan’s handbrake in the event of an accidental detachment. Meanwhile, the braking controllers, installed in the tow vehicle, provide the necessary control for smooth and proportional braking during normal operation.
Before embarking on any journey, no matter how short, it is paramount to ensure that all your brake controller and breakaway system components are in perfect working order. A few simple checks can make all the difference between a safe, enjoyable trip and a potentially dangerous situation. Prioritise these inspections, and you’ll be well on your way to confident and secure caravanning.
