Mastering Automotive Wire Repair: A UK Guide

A healthy electrical system is the very heartbeat of any modern vehicle. From starting the engine to powering the infotainment system, every function relies on an intricate network of wires. When these wires suffer damage, it can lead to frustrating intermittent faults, complete system failures, or even dangerous situations. Knowing how to properly repair automotive wire isn't just a useful skill; it's essential for maintaining your vehicle's reliability and ensuring your safety on the road. This guide will walk you through the correct methods, necessary tools, and crucial considerations for making robust, lasting automotive wire repairs, ensuring you avoid common pitfalls and keep your vehicle running smoothly.

Understanding Automotive Wiring: Why It's Different

Before diving into repair techniques, it's crucial to understand that automotive wiring isn't the same as household electrical wiring. Vehicle environments are harsh; wires are subjected to constant vibration, extreme temperature fluctuations, exposure to moisture, chemicals, and physical abrasion. This demands specific types of wire and repair methods designed to withstand such conditions. Using the wrong type of wire or a substandard repair technique can lead to premature failure, corrosion, and potentially serious electrical issues.

Common Causes of Automotive Wire Damage

Wires in your vehicle can suffer damage from a variety of sources. Identifying the cause can sometimes help prevent future issues:

• Abrasion: Wires rubbing against sharp edges, metal components, or even other wires can wear through their insulation, leading to short circuits.
• Heat Damage: Wires running too close to exhaust components, engines, or other heat sources can melt their insulation, exposing the conductors.
• Corrosion: Exposure to moisture, road salt, or battery acid can corrode wire conductors, increasing resistance and leading to poor connections.
• Vibration: Constant movement can cause wires to fatigue and break internally, often concealed by intact insulation.
• Rodent Damage: Pests like mice and rats often chew on wires, attracted by the soy-based insulation found in some modern vehicles.
• Improper Installation/Previous Repairs: Poorly routed wires, overtightened cable ties, or shoddy past repairs can weaken wires and lead to future problems.

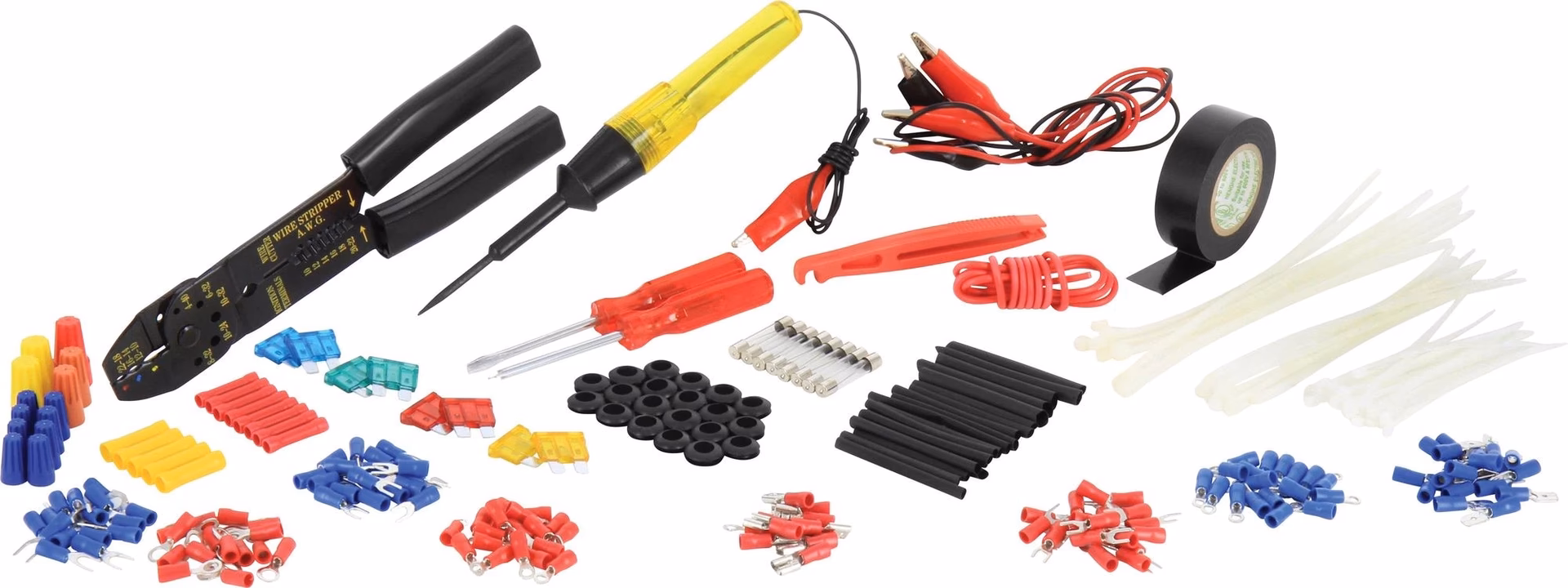

Essential Tools for a Professional Wire Repair

Having the right tools is half the battle when it comes to effective wire repair. Skimping on tools can lead to frustration and, more importantly, unreliable repairs:

• Wire Strippers: A good pair of precision wire strippers is non-negotiable. They allow you to remove insulation cleanly without nicking or damaging the copper strands.
• Crimping Tool: If you opt for crimped connections, a high-quality ratcheting crimping tool is essential. Cheap crimpers often result in loose, unreliable connections.
• Soldering Iron & Solder: For soldered connections, a temperature-controlled soldering iron (30-60 watts is usually sufficient for automotive work) and good quality rosin-core electrical solder are needed.
• Heat Gun: Crucial for properly shrinking heat shrink tubing, providing a weather-tight seal. A regular lighter or torch is not recommended as it can unevenly heat or burn the tubing and wire.
• Multimeter: An indispensable tool for testing continuity, voltage, and resistance. It helps diagnose problems and verify the integrity of your repair.
• Wire Cutters: Sharp cutters for clean cuts.
• Heat Shrink Tubing: Essential for insulating and sealing repairs. Always use adhesive-lined heat shrink for superior environmental protection.
• Electrical Tape: While useful for bundling, it should not be relied upon as the primary insulation for a repair.
• Various Connectors: Butt connectors (heat shrinkable, sealed), ring terminals, spade terminals, etc., depending on the type of connection required.

The Right Wire for the Job: Primary Wire

When replacing or extending automotive wiring, using the correct type of wire is paramount. For general car repairs, primary wire is your go-to choice. This type of wire is specifically designed for automotive applications and typically features:

• Stranded Copper Conductors: Unlike solid household wire, automotive wire uses multiple fine strands of copper. This makes it highly flexible and resistant to vibration, preventing fatigue breaks.
• PVC Insulation: Most primary wire comes with durable PVC (Polyvinyl Chloride) insulation, designed to withstand the varying temperatures and environmental conditions found in a vehicle. For areas exposed to higher heat or abrasion, GXL or TXL wire (thinner wall, cross-linked insulation) might be specified by manufacturers, but for general repairs, PVC primary wire is widely available and suitable.
• Appropriate Gauge: Wire gauge (thickness) is critical. Using wire that is too thin for the current it needs to carry can lead to overheating, voltage drop, and potential fire hazards. Always match the original wire's gauge or use a slightly thicker one if unsure. Common gauges for automotive work include 18 AWG (American Wire Gauge) for low-current signals, 14-16 AWG for general accessories, and thicker gauges like 10-12 AWG for higher-current applications like power windows or headlights.

You can find primary wire in various gauges and lengths at most automotive parts stores or hardware retailers. Always ensure you have enough length to complete your repair without tension.

Repair Methods: Soldering vs. Crimping

There are two primary methods for joining automotive wires: soldering and crimping. Both have their advantages and disadvantages, and the best choice often depends on the specific application, environment, and your skill level.

Method 1: Soldering for a Strong Electrical Connection

Soldering creates a strong, low-resistance electrical connection by melting a metallic alloy (solder) to bond the wire conductors together. It's often favoured for its excellent conductivity and permanent bond.

Pros of Soldering:

• Excellent electrical conductivity.
• Creates a very strong, low-resistance connection.
• Permanent bond that resists loosening.

Cons of Soldering:

• Can be brittle and prone to breaking under constant vibration if not properly supported and insulated.
• Requires skill and practice to do correctly.
• Heat from the soldering iron can damage surrounding insulation or components if not careful.
• A poorly insulated solder joint is highly susceptible to corrosion and environmental degradation.

Steps for a Proper Solder Repair:

1. Disconnect Power: ALWAYS disconnect the vehicle's battery before working on any electrical system to prevent short circuits or injury.
2. Prepare the Wires: Cut out the damaged section of wire cleanly. Strip about 1-2 cm (0.5-0.75 inches) of insulation from each end of the wires you intend to join. Twist the exposed strands of each wire gently to keep them tidy.
3. Prepare Heat Shrink: Slide a piece of adhesive-lined heat shrink tubing onto one of the wires BEFORE you make the connection. Ensure it's long enough to cover the entire soldered joint plus a bit extra on each side, and wide enough to shrink down snugly.
4. Join the Wires: There are a few ways to join them. A common method is to 'hook' the stripped ends together, then twist them tightly. Another is a 'lineman's splice' for maximum strength.
5. Solder the Joint: Heat the twisted wire joint with your soldering iron. Once the wires are hot enough to melt the solder, apply the solder to the joint, allowing it to wick into the strands. Do not apply solder directly to the iron. Use just enough solder to create a solid, shiny joint. Avoid 'cold' joints (dull, lumpy appearance) as these are weak and have high resistance.
6. Insulate the Joint: Allow the joint to cool completely. Slide the pre-positioned heat shrink tubing over the soldered joint, ensuring it covers all exposed wire and extends slightly over the original insulation on both sides.
7. Seal with Heat Gun: Using a heat gun, apply even heat to the heat shrink tubing. It will shrink down tightly, and if it's adhesive-lined, you'll see a small bead of adhesive squeeze out the ends, indicating a waterproof seal.
8. Secure and Test: Secure the repaired wire to prevent future stress from vibration. Reconnect the battery and test the circuit.

Method 2: Crimping for a Robust Mechanical Connection

Crimping involves mechanically deforming a metal connector around the wire to create a tight, gas-tight connection. While some automakers have historically expressed concerns about poorly executed crimps pulling apart, modern, high-quality, sealed crimp connectors and proper crimping tools can yield incredibly reliable and robust connections, often preferred in factory settings due to their speed and consistency.

Pros of Crimping:

• Quick and efficient for production.
• Creates a strong mechanical connection.
• No heat required, reducing risk of insulation damage.
• Less susceptible to vibration-induced fatigue than brittle solder joints (if done correctly).

Cons of Crimping:

• Requires the correct crimping tool and connector for a reliable bond.
• A poor crimp can result in high resistance or the wire pulling out.
• If not sealed (e.g., non-heat shrink butt connectors), the joint can be susceptible to corrosion and moisture ingress.

Steps for a Proper Crimp Repair:

1. Disconnect Power: As always, disconnect the vehicle's battery.
2. Prepare the Wires: Cut out the damaged section. Strip the insulation from each wire end to the length specified by the crimp connector manufacturer (usually 0.5-1 cm or 0.25-0.5 inches). Ensure no strands are frayed or bent.
3. Choose the Right Connector: Select a crimp connector (e.g., heat shrink butt connector) that matches the wire gauge. Connectors are typically colour-coded (e.g., red for 22-18 AWG, blue for 16-14 AWG, yellow for 12-10 AWG).
4. Insert and Crimp: Insert one stripped wire end fully into one side of the crimp connector. Place the connector into the appropriate slot on your ratcheting crimping tool. Squeeze the handles firmly until the ratchet releases, ensuring a complete crimp. The crimp should be tight and secure, and you should not be able to pull the wire out.
5. Repeat for Second Wire: Insert the second stripped wire end into the other side of the butt connector and crimp it securely.
6. Seal with Heat Gun (for heat shrink connectors): If using heat shrink butt connectors, apply even heat with a heat gun until the tubing shrinks tightly around the wire insulation and the adhesive seals at both ends. This creates a waterproof and insulated connection.
7. Secure and Test: Secure the repaired wire to prevent strain. Reconnect the battery and test the circuit.

Soldering vs. Crimping: A Comparison

Both methods have their place in automotive repair. Here's a quick comparison:

Crucial Considerations for a Lasting Repair

• Always Disconnect the Battery: This cannot be stressed enough. It prevents short circuits, potential damage to electronic modules, and personal injury.
• Match the Wire Gauge: Using a thinner wire than the original can lead to overheating and potential fire. When in doubt, go slightly thicker.
• Proper Insulation is Key: Exposed conductors will corrode rapidly, leading to high resistance and eventual failure. Always use adhesive-lined heat shrink tubing for maximum protection against moisture and contaminants. Electrical tape alone is rarely sufficient for a long-term, reliable repair in a vehicle.
• Relieve Strain: Ensure the repaired section of wire is not under tension or subject to excessive flexing. Use cable ties or wire clips to secure it, mimicking the original routing.
• Avoid Overlapping Repairs: If multiple wires in a bundle are damaged in the same spot, stagger your repair joints along the harness. This prevents a bulky section and maintains harness flexibility.
• Test Your Work: After the repair, use a multimeter to check for continuity and correct voltage where applicable. A simple continuity test confirms the circuit is complete.

Frequently Asked Questions About Automotive Wire Repair

Is soldering always better than crimping for car wires?

Not necessarily. While soldering provides an excellent electrical connection, it can be brittle under vibration. A properly executed crimp with a high-quality, sealed connector and a good crimping tool often provides a more robust and flexible mechanical connection, making it suitable for automotive environments. Many OEMs prefer crimped connections for their reliability and consistency.

Can I use household electrical wire for car repairs?

No, absolutely not. Household wire is typically solid core and designed for static installations, making it prone to breaking under the vibration and flexing common in vehicles. Automotive primary wire uses stranded copper conductors specifically designed for flexibility and durability in harsh automotive environments.

How do I know what wire gauge to use?

Always try to match the original wire's gauge. If you can't determine the original gauge, use a multimeter to measure the current draw of the circuit, or consult a wiring diagram. If in doubt, it's safer to use a slightly thicker wire (smaller AWG number) as it can carry more current without overheating.

How can I prevent future wire damage?

Proper routing is key. Ensure wires are secured, not rubbing against sharp edges, and away from extreme heat sources. Consider using split loom tubing or conduit for additional protection in high-risk areas. If rodents are an issue, consider repellents or keeping your vehicle's engine bay clean.

What is the most common mistake DIYers make when repairing automotive wires?

The most common mistake is inadequate insulation and protection of the repair joint. Simply twisting wires together and wrapping them in electrical tape will almost certainly lead to corrosion and failure. Always use proper heat shrink tubing (preferably adhesive-lined) to create a sealed, durable repair.

Do I need to disconnect the battery before working on car wiring?

Yes, always! Disconnecting the battery's negative terminal is the first and most crucial step before performing any electrical repair. This prevents accidental short circuits, sparks, potential fires, and damage to sensitive electronic components.

Conclusion

Repairing automotive wire effectively requires patience, the right tools, and an understanding of the unique demands of a vehicle's electrical system. Whether you choose to solder or crimp, the key to a lasting repair lies in meticulous preparation, proper execution, and, critically, robust insulation using adhesive-lined heat shrink tubing. By following these guidelines, you can confidently tackle wire repairs, restore your vehicle's electrical integrity, and ensure its continued reliability on the road. Remember, a professional-quality repair isn't just about getting the circuit working again; it's about ensuring it works safely and reliably for years to come.
