Tyre Changes on TPMS Wheels: A Guide

When it comes to maintaining your vehicle, changing tyres is a fundamental task. However, with the advent of modern automotive technology, this seemingly straightforward procedure has gained a layer of complexity, particularly for cars fitted with Tyre Pressure Monitoring Systems (TPMS). Drivers often wonder if their approach to tyre changes needs to adapt when TPMS is involved, and the simple answer is: absolutely. This comprehensive guide will delve into the intricacies of TPMS, explain why it’s crucial to handle these systems with care during tyre changes, and provide you with all the essential information to ensure your vehicle remains safe and compliant on the road.

Understanding Your Tyre Pressure Monitoring System (TPMS)

The Tyre Pressure Monitoring System (TPMS) is a vital safety feature designed to monitor the air pressure inside your vehicle’s tyres. Its primary purpose is to alert you when your tyre pressure falls below a safe level, helping to prevent accidents caused by underinflated tyres. Since November 2014, it has been a mandatory requirement for all new passenger vehicles sold in the UK and EU to be fitted with TPMS, underscoring its importance for road safety and environmental efficiency.

Why TPMS Matters

Beyond simply avoiding a flat tyre, correctly inflated tyres are fundamental to your vehicle’s overall performance and safety. Underinflated tyres can lead to:

• Increased Stopping Distances: Reduced grip on the road.
• Poor Handling: Compromised steering and stability, especially during cornering.
• Reduced Fuel Efficiency: Your engine has to work harder, burning more fuel.
• Premature Tyre Wear: Uneven wear patterns reduce the lifespan of your tyres.
• Increased Risk of Blowouts: Overheating due to excessive flexing of the tyre walls.

TPMS acts as an early warning system, giving you the chance to address pressure issues before they become dangerous or costly.

Types of TPMS

There are two main types of TPMS:

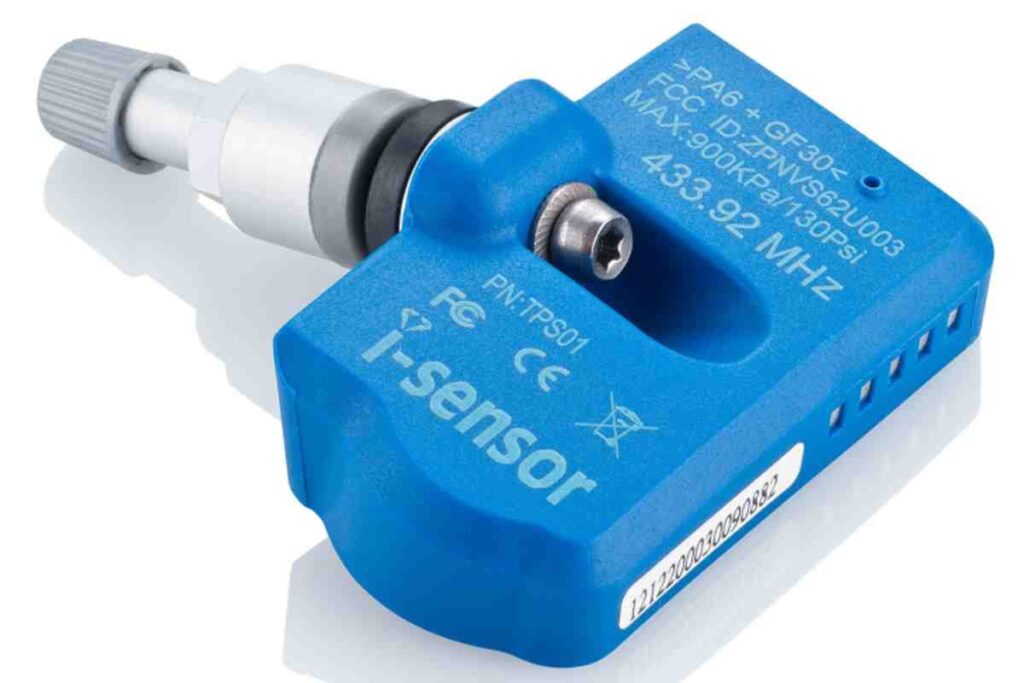

1. Direct TPMS: This system uses individual pressure sensors mounted inside each tyre, often integrated into the valve stem. These sensors directly measure the air pressure and temperature within each tyre and transmit this data wirelessly to the vehicle's onboard computer. This provides real-time, highly accurate readings and can often specify which tyre has the issue. The sensors are battery-powered, and their batteries typically last between 5 to 10 years.
2. Indirect TPMS: This system, as the name suggests, does not use physical pressure sensors within the tyres. Instead, it works in conjunction with your car's Anti-lock Braking System (ABS) and Electronic Stability Control (ESC) systems. It monitors the rotational speed of each wheel. If a tyre loses pressure, its rolling circumference decreases, causing it to rotate faster than the others. The indirect TPMS detects this difference in speed and alerts the driver. While less precise than direct TPMS, it is generally simpler and cheaper to implement.

The Tyre Change Process: Special Considerations for TPMS Wheels

Changing tyres on a vehicle equipped with TPMS requires a more delicate and informed approach than simply swapping rubber. The presence of sensitive sensors within the wheels means that specific precautions must be taken to prevent damage and ensure the system functions correctly post-fitting.

Careful Handling is Key

When tyres are removed and fitted, the TPMS sensors, particularly those in Direct TPMS systems, are vulnerable to damage. A professional tyre technician will use specialised equipment and techniques to carefully demount the old tyre and mount the new one, ensuring the sensor is not struck or bent. Incorrect handling can easily crack the sensor housing, damage the electronics, or break the valve stem, rendering the sensor inoperable.

TPMS Service Kits

It is highly recommended that a TPMS service kit be used every time a tyre is changed on a direct TPMS wheel. These kits typically contain a new valve stem, cap, nut, and rubber grommet. Over time, the rubber seals can degrade, and the metal components can corrode, leading to slow air leaks. Replacing these components ensures a proper seal and extends the life of the sensor itself. While it adds a small cost, it’s a crucial preventative measure against future leaks or sensor issues.

Recalibration and Relearning

Perhaps the most critical step after changing tyres on a TPMS-equipped vehicle is the recalibration/relearning procedure. After a tyre change, or even a tyre rotation, the vehicle's TPMS needs to be taught the new positions of the sensors or to re-establish baseline pressure readings.

• For Direct TPMS: This often involves a specific relearn procedure. Some vehicles can perform an auto-relearn by simply driving for a certain period at a specified speed. Others may require a manual reset using a diagnostic tool (OBD-II scanner) or a magnet placed near each sensor. Without proper relearning, the system may display incorrect readings or a persistent warning light.
• For Indirect TPMS: After adjusting tyre pressures or changing tyres, indirect systems typically require a manual reset via a button on the dashboard or through the infotainment system. This tells the system to establish new baseline wheel speeds.

Failure to perform the correct relearn procedure will result in the TPMS warning light remaining on, potentially masking genuine issues.

Potential Pitfalls and How to Avoid Them

While TPMS is a beneficial system, there are several issues that can arise during or after a tyre change if not handled correctly.

Sensor Damage

As mentioned, sensor damage is the most common problem. This typically occurs when the tyre bead is being broken or seated, and the machinery makes contact with the sensor. A skilled technician will always position the wheel on the machine to avoid the sensor. Always ensure your chosen garage has experience with TPMS.

Battery Life

Direct TPMS sensors are battery-powered. If your vehicle is approaching the 5-10 year mark, it's highly probable that the sensor batteries are nearing the end of their life. While changing tyres, it’s an opportune time to replace old sensors proactively, as the tyres are already off the rims. This avoids the need to pay for tyre removal and refitting again solely for sensor replacement in the near future.

Corrosion and Leaks

Over time, road salt, moisture, and general wear and tear can cause corrosion to the valve stem and sensor components. This can lead to slow air leaks. The use of a TPMS service kit helps mitigate this by replacing the perishable parts.

False Warnings

A TPMS warning light that illuminates despite correctly inflated tyres is usually a sign of a sensor malfunction, a damaged sensor, or an improperly executed relearn procedure. It’s crucial not to ignore these warnings but to have the system professionally diagnosed.

Maintaining Your TPMS Sensors: Extending Their Lifespan

Proactive maintenance of your TPMS sensors can save you hassle and money in the long run. Here are some tips:

• Always Use Valve Caps: Ensure your valve stems always have their caps on. These protect the valve core and the sensor from dirt, moisture, and damage.
• Regular Tyre Pressure Checks: While TPMS is there to warn you, regularly checking your tyre pressure manually with a reliable gauge helps you stay on top of your tyre health and can indicate slow leaks before the TPMS light illuminates.
• Professional Servicing: When you get new tyres fitted, always insist on a TPMS service kit being used. This small additional cost can prevent bigger issues.
• Consider Proactive Replacement: If your sensors are old (5+ years), consider replacing them when you next get new tyres. This is more cost-effective than replacing them individually when their batteries finally die.

Do All New Cars Have TPMS Valves?

Yes, since November 2014, all new passenger vehicles sold in the UK and European Union have been legally required to be fitted with a Tyre Pressure Monitoring System. This means if your car was manufactured and first registered after this date, it will almost certainly have a TPMS installed. This mandate was introduced to enhance road safety by reducing the number of accidents caused by underinflated tyres, and to improve fuel efficiency and reduce CO2 emissions. Therefore, when you buy a new car today, you can expect it to come equipped with either direct or indirect TPMS, and any tyre changes will need to account for this system.

DIY vs. Professional Tyre Changing with TPMS

Given the complexities involved, attempting a DIY tyre change on a vehicle with TPMS is strongly discouraged. Here’s why:

• Risk of Sensor Damage: Without the proper tools and training, it’s extremely easy to damage the delicate TPMS sensors during tyre removal or installation.
• Specialised Equipment: Professional tyre fitters use tyre changing machines designed to accommodate TPMS sensors and minimise the risk of damage.
• Recalibration: Performing the correct relearn procedure for TPMS often requires specific diagnostic tools or knowledge of the vehicle's specific process, which is usually beyond the scope of a home mechanic.
• Safety and Warranty: Improperly fitted tyres or a malfunctioning TPMS can compromise your safety and potentially void parts of your vehicle’s warranty.

Entrusting your tyre changes to a professional garage with experience in TPMS ensures that the work is done correctly, safely, and that your TPMS system remains fully functional.

Costs Associated with TPMS and Tyre Changes

When budgeting for new tyres on a TPMS-equipped vehicle, consider these potential costs:

• Standard Tyre Fitting: This is the cost of removing the old tyre and fitting the new one, including balancing.
• TPMS Service Kit: Typically a small additional charge per wheel (e.g., £5-£10), highly recommended to prevent future issues.
• TPMS Sensor Replacement: If a sensor needs replacing (due to damage or battery expiry), the cost can range from £30-£80 per sensor, plus fitting and relearning.
• Recalibration/Relearn Fee: Many garages include this in the overall fitting cost, but it's worth confirming. If a separate diagnostic tool is required, there might be a small additional charge.

While these additional costs might seem minor, they are a necessary investment in maintaining your vehicle's safety features and avoiding more expensive repairs down the line.

Comparative Table: Direct vs. Indirect TPMS

Frequently Asked Questions (FAQs)

Q: Can I ignore my TPMS warning light?

A: Absolutely not. A lit TPMS warning light indicates a potential safety issue with your tyre pressure. Ignoring it can lead to dangerous driving conditions, increased fuel consumption, premature tyre wear, and could even result in a failed MOT test if the light is on. You should check your tyre pressures immediately and, if the light persists after correction, have the system professionally inspected.

Q: Do I need new TPMS sensors every time I change tyres?

A: Not necessarily. While the actual sensor unit can last a long time, the internal battery of direct TPMS sensors typically has a lifespan of 5 to 10 years. It’s highly recommended to use a TPMS service kit (new valve stem, cap, nut, and seal) with every tyre change to ensure a proper seal and prevent leaks. If your sensors are old, replacing them proactively during a tyre change is often more cost-effective than waiting for the battery to die and having to pay for another tyre removal later.

Q: What happens if a TPMS sensor is damaged during a tyre change?

A: If a TPMS sensor is damaged during a tyre change, it will cease to function correctly. This will almost certainly trigger your TPMS warning light on the dashboard, and the system will be unable to monitor that tyre's pressure. The damaged sensor will need to be replaced, which involves removing the tyre again, fitting a new sensor, and performing a relearn procedure. This incurs additional costs and inconvenience, highlighting the importance of professional fitting.

Q: Can I drive without functional TPMS sensors?

A: Legally, if your car was first registered after November 2014 and came with TPMS, it must be functional for its MOT (Ministry of Transport) test. A non-functional TPMS system will result in a failed MOT. More importantly, driving without a functional TPMS is unsafe, as you lose a crucial warning system for dangerous tyre pressure issues. It's always best to ensure your TPMS is in full working order.

Q: How do I reset my TPMS light after a tyre change or pressure adjustment?

A: The reset procedure varies by vehicle and TPMS type. For direct TPMS, some cars have an auto-relearn feature that activates after driving for a certain distance at a specific speed. Others require a manual reset button (often found in the glovebox, under the steering wheel, or in the infotainment menu) or a diagnostic tool (OBD-II scanner) used by a professional. For indirect TPMS, it's typically a simple reset button on the dashboard or in the car's settings menu. Always consult your vehicle's owner's manual or a professional technician if you're unsure.

Conclusion

Changing tyres on vehicles equipped with a Tyre Pressure Monitoring System is no longer a simple task; it's a procedure that demands attention to detail, specialised tools, and professional expertise. Understanding whether your vehicle has Direct TPMS or Indirect TPMS is the first step towards ensuring proper maintenance. The safety benefits of TPMS are undeniable, contributing significantly to accident prevention, fuel efficiency, and tyre longevity. By opting for a professional tyre fitting service that is well-versed in handling TPMS, you safeguard your sensors, ensure accurate pressure monitoring, and ultimately, protect yourself and your passengers on the road. Don't compromise on this vital aspect of vehicle maintenance; invest in the correct care for your TPMS-fitted wheels and drive with confidence.
