Fixing a Drooping Engine Splash Guard

That unsightly piece of plastic or metal hanging from beneath your car, often scraping along the tarmac, is most likely your engine splash guard. Whether you call it a splash shield, a skid plate, or simply a belly pan, this component plays a crucial role in safeguarding your vehicle's underbelly. While rarely seen when functioning correctly, its presence becomes glaringly obvious and potentially problematic when it starts to droop. This guide will delve into the common reasons why your splash guard might be hanging and provide comprehensive solutions to get it back where it belongs, ensuring your engine remains protected.

Why is Your Engine Splash Guard Hanging?

Even if your daily commute is limited to well-paved roads, several factors can lead to your engine splash shield becoming dislodged or damaged. Understanding these common causes is the first step towards an effective repair.

1. Fastening Failure

The most frequent culprit behind a hanging splash guard is simply failed fastenings. These shields are typically secured to the vehicle's frame or other brackets using a combination of bolts and clips. Often made of plastic, these clips become brittle over time due to exposure to road salt, extreme temperatures, and general wear. They can also be damaged by scraping against kerbs, speed bumps, or other obstacles, eventually losing their ability to hold the shield firmly in place. Similarly, if the shield is bolted directly to the underside, especially with non-metallic bolts (plastic or nylon), these too can succumb to the constant vibration from the engine and road surface, flexing, and impacts from road debris, leading to their eventual failure.

2. Corrosion Concerns

While metal splash shields offer greater durability compared to their plastic counterparts, they are not immune to the elements. They are particularly susceptible to the corrosive effects of salt and moisture, especially in coastal regions or areas where roads are frequently gritted in winter. Rust can significantly weaken the fastening points of the shield, compromising its structural integrity. Over time, corrosion can cause the metal itself to become brittle and break away at one or more points, leading to the shield hanging down or even detaching completely.

3. Poor Installation After Servicing

It's highly improbable that a splash shield would be poorly installed during vehicle manufacture. However, subsequent mechanical work often necessitates the removal of the splash guard. For instance, many vehicles require the shield to be removed to access the sump plug for an oil change. If the shield is not re-secured correctly after such work, or if the fastenings are not tightened to the appropriate torque, the shield can quickly work its way loose. This highlights the importance of ensuring that any professional working on your vehicle correctly reinstalls all components.

4. Single Event Damage: The Unexpected Impact

A sudden, impactful event can instantly damage a splash shield. Misjudging the height of a kerb, driving over a protruding rock, or even a brief off-road excursion can result in severe damage. This could range from ripping the shield clean from its mountings to tearing a significant hole in the shield itself. While less likely if you stick to paved roads, for vehicles not designed for rough terrain, the chances of encountering an obstacle that causes this type of damage are considerably higher.

5. Long-Term Wear and Tear

The engine splash shield is designed to take a beating. Its primary purpose is to prevent debris, water, and dirt from reaching vulnerable moving parts of your engine, such as pulleys, fan belts, and throttle linkages, or from entering the air intake. As a result, the shield constantly bears the brunt of potentially damaging material hurled up from the road. This continuous bombardment, combined with normal vibrations and environmental exposure, inevitably leads to the material weakening over time. Eventually, it will succumb to this long-term punishment, breaking down and hanging, or even detaching entirely.

6. Excessive Vibration

If your vehicle is frequently driven over rough terrain, unpaved roads, or experiences constant harsh vibrations, there's an increased risk that the persistent shaking from the engine and external elements will gradually loosen the brackets and fastenings holding the splash shield in place. As the fastenings become loose, the shield itself will begin to shake more violently, exacerbating the problem until it eventually comes away from its mountings.

What Are Your Fixes for a Hanging Splash Guard?

The solutions for a hanging splash guard are generally limited to three options, largely dependent on the condition of the shield: refitting, repairing, or complete replacement.

Refitting an Undamaged Shield

If the splash shield is hanging primarily due to loosened fastenings, but the shield itself appears essentially undamaged apart from minor scratches, it can often be secured back in place. The crucial step here is to inspect all fastening points thoroughly. You may need to replace old, brittle clips or worn-out bolts with new ones. Ensuring that all new fastenings are correctly tightened, perhaps with the addition of locking washers to prevent future loosening from vibrations, can provide a lasting fix.

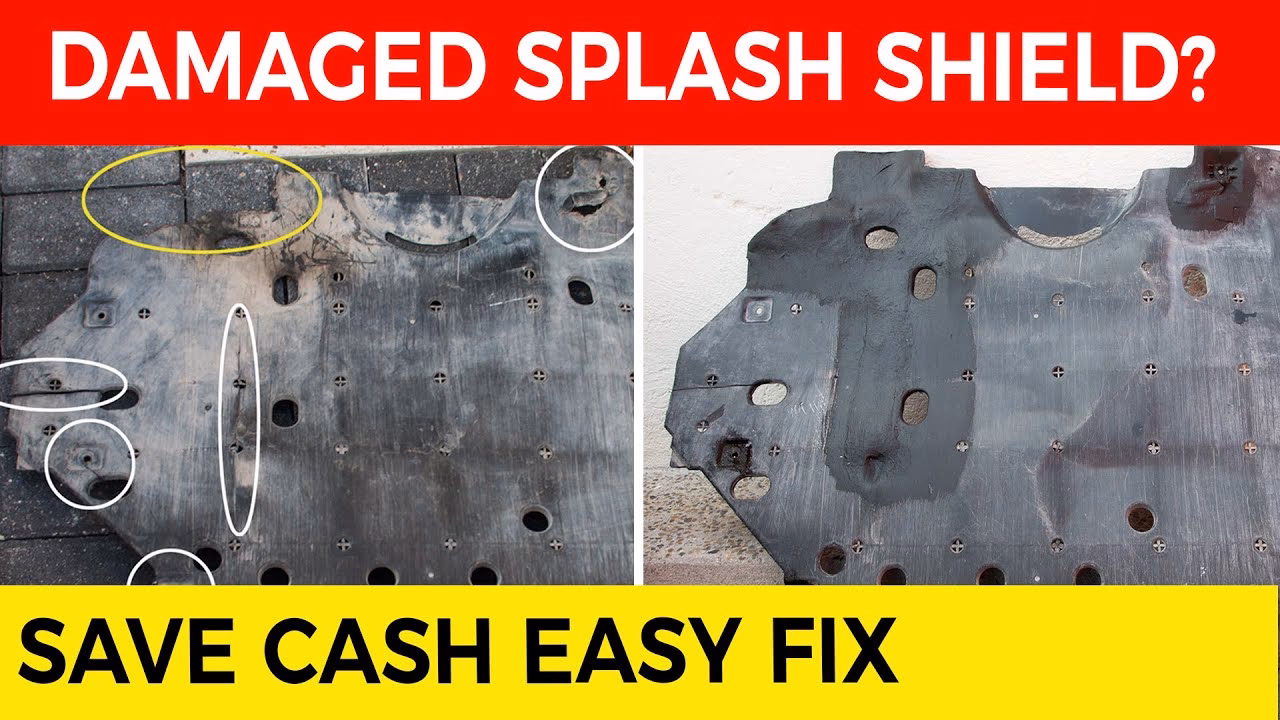

Repairing a Damaged Shield

Should the shield have been torn from its mountings or sustained a crack, but is otherwise in good overall condition, repair might be a viable option. For plastic shields, tears or cracks can often be sealed and reinforced using fibreglass repair kits, which can restore the integrity of the mounting points. For metal shields, minor tears or distortions can sometimes be repaired by welding or carefully straightening the bent sections. While this can save money, especially if you have the necessary tools and skills, it's important to assess if the shield's structural integrity has been too compromised to offer adequate long-term protection.

Replacing a Worn-Out or Severely Damaged Shield

When the splash shield is old, extensively worn, or has suffered significant long-term damage (e.g., multiple cracks, large holes, severe corrosion), repair may not be a cost-effective or practical solution. In such cases, full replacement is the recommended course of action. A severely compromised shield will not provide the necessary protection for your engine, even with a temporary fix. Replacement is generally straightforward if you have the correct part and basic tools. The cost of a new splash shield can vary significantly, ranging from around £25 to £250, depending on your vehicle's make and model, and whether you opt for a plastic or more robust metal alternative.

Is an Engine Splash Shield Truly Essential?

Many car owners might question the necessity of a splash shield, especially when it's causing problems. If your shield is hanging and you can't repair it immediately, temporarily removing it to complete a short journey won't cause immediate mechanical harm. However, this is not a long-term solution. Mechanically, the shield plays no direct part in your vehicle's performance or power output. Its value lies entirely in its protective function.

The splash shield performs a very useful, if not vital, role in safeguarding the engine from long-term harm. It acts as a barrier, preventing dust, dirt, moisture, small stones, and road debris from being hurled by the tyres directly onto sensitive engine components like belts, pulleys, electrical connectors, and sensors. Without this shield, these components are exposed to the elements, which can lead to premature wear, corrosion, and costly failures over time. Furthermore, the shield acts as a buffer against accidental impacts with road hazards like potholes, kerbs, or unexpected debris, which could otherwise make direct contact with the engine sump, transmission, or other crucial underbody parts, potentially saving you from a major repair bill. It also contributes to the vehicle's aerodynamics, aiding in fuel efficiency and reducing wind noise by managing airflow beneath the car.

Replacing Your Engine Splash Shield: A Step-by-Step Guide

Replacing a damaged or worn-out engine splash shield might seem daunting, but it's a relatively simple process that can save you considerable time and money compared to taking it to a garage. This guide will walk you through the process.

Understanding Engine Splash Shields

Before you begin, it's helpful to understand what an engine splash shield is and its variations.

Functions and Benefits

The primary function of an engine splash shield is to create a protective barrier between your engine and the road. It stops dirt, water, road salt, and debris from contaminating or damaging vital engine components. Beyond protection, a well-fitted splash shield contributes to your car's aerodynamics by smoothing the airflow underneath the vehicle, which can subtly improve fuel efficiency and reduce wind noise.

Types of Splash Shields

Engine splash shields are typically made from one of two main materials:

There are also custom splash shields available, often made from advanced materials like carbon fibre or Kevlar, designed to offer superior protection for specific high-performance or off-road vehicles.

Preparation is Key

Proper preparation ensures a smooth and safe replacement process.

Tools and Materials Needed

• Jack and jack stands (or car ramps)
• Socket wrench set (with various sizes)
• Screwdrivers (flathead and Philips)
• Pliers (for clips)
• New replacement splash shield
• Gloves
• Safety glasses
• Optional: Torque wrench (for correct tightening)

Safety Precautions

Working under a vehicle always carries risks. Prioritise your safety:

• Always wear gloves and safety glasses to protect against dirt, debris, and sharp edges.
• Ensure your vehicle is on a flat, stable surface before lifting.
• Never rely solely on a jack. Always use sturdy jack stands to support the vehicle's weight once lifted.
• Be cautious of hot engine components if the car has recently been running.
• Keep loose clothing, jewellery, and long hair tied back to prevent them from getting caught.

Removing the Old Splash Shield

With safety measures in place, you can now proceed to remove the damaged shield.

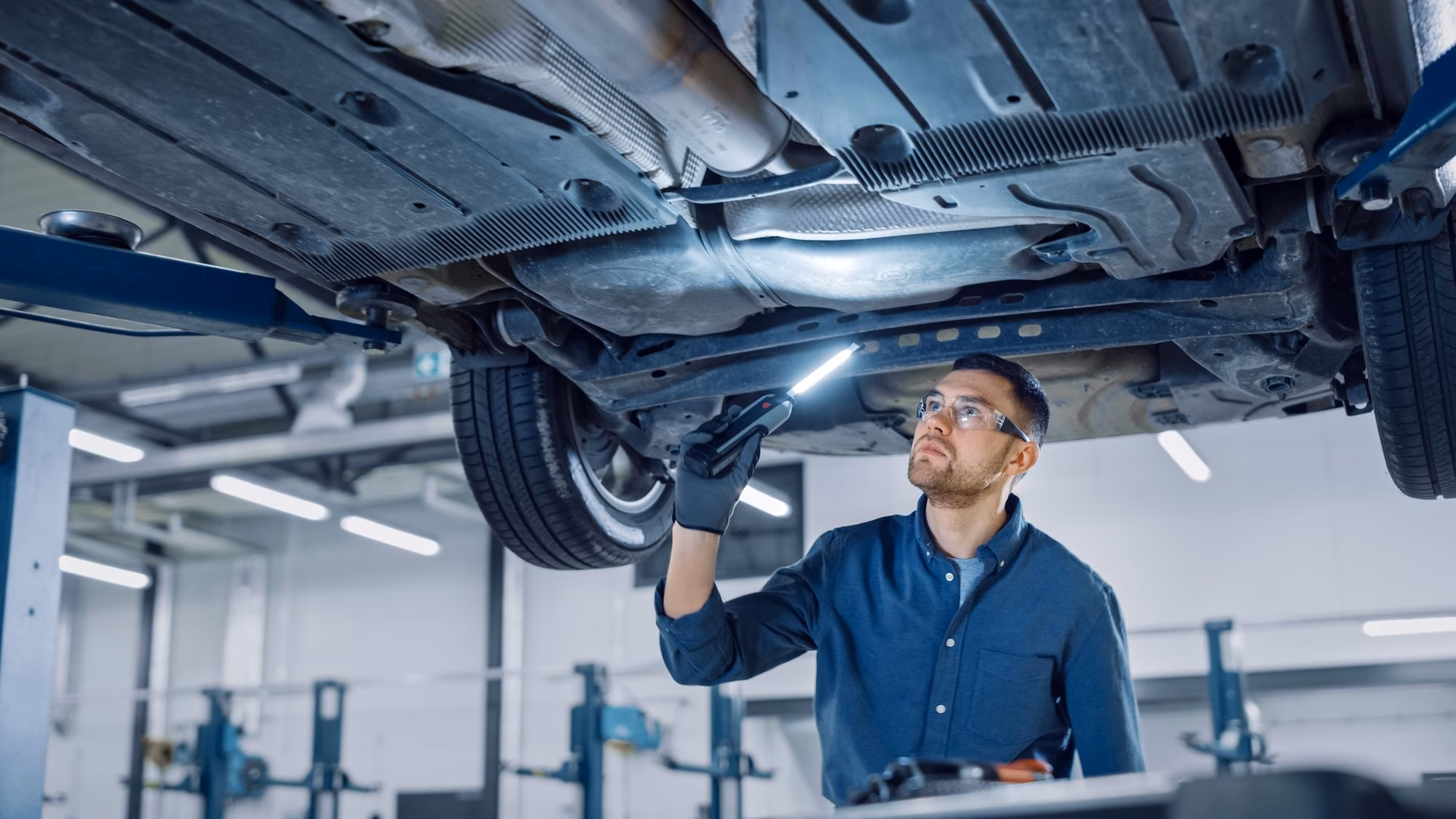

Accessing the Shield

First, you'll need to gain access to the underside of your vehicle. Use a jack to raise the front of your car, or drive it onto car ramps. Once lifted, secure the vehicle on jack stands. Locate the splash shield; it's the large plastic or metal panel situated directly beneath the engine bay.

Detaching the Shield

Carefully inspect how the shield is attached. It will typically be held in place by a combination of bolts, screws, and plastic clips. Using your socket wrench for bolts/screws and a flathead screwdriver or trim removal tool for plastic clips, systematically remove all the fastenings. Start from one end and work your way across, making a note of where each type of fastener goes if they differ. If the shield is stubborn, a gentle tap with a rubber mallet can help loosen it. Once all fasteners are removed, carefully lower the old splash shield and set it aside.

Installing the New Splash Shield

Now, it's time to fit the new shield.

Positioning the New Shield

Take your new splash shield and carefully manoeuvre it into position under the engine bay. Align the holes on the new shield with the corresponding mounting points on the vehicle's frame or subframe. Ensure that the shield sits flush against the underside and that all holes line up perfectly before you begin securing it.

Securing the Shield

Once the shield is correctly positioned, begin securing it. It's often best to start by loosely attaching a few fasteners in different corners or key positions to hold the shield in place. Then, work your way around, inserting and tightening all the bolts, screws, and clips. If you have a torque wrench, consult your vehicle's service manual for the correct torque specifications for each fastener to avoid over-tightening, which can damage the shield or the mounting points. Ensure every fastener is snug and secure, leaving no loose spots that could cause rattling or premature failure.

Post-Installation Checks

After the new splash shield is installed, performing a few checks will confirm a successful job.

Inspection for Proper Fit

• Visually inspect the entire perimeter of the new splash shield. Confirm there are no gaps between the shield and the vehicle's underbody.
• Check that all mounting points are securely fastened and that the shield does not wobble or move excessively when gently pushed.
• Ensure the shield isn't touching any other components like exhaust pipes or suspension parts, which could cause unwanted noise or wear.

Testing for Functionality

• If safe to do so, start the engine briefly and listen for any unusual rattles or vibrations originating from the newly installed shield.
• Consider a short, cautious test drive, paying attention to any new noises, especially when going over bumps.
• After your test drive, perform another quick visual inspection to ensure everything remains secure.

Frequently Asked Questions (FAQs)

What are the signs that replacing an engine splash shield is necessary for car maintenance?

Beyond the obvious visual sign of it hanging, you might notice excessive rattling or scraping noises coming from underneath your car, particularly when driving over uneven surfaces or at speed. These noises indicate the shield is loose or damaged. Additionally, while less direct, increased dirt or debris in the engine bay, or even unusual oil leaks (as the shield might be deflecting drips away from their usual path), could suggest a compromised shield. If you spot significant cracks, large tears, or extensive corrosion, it's definitely time for a replacement to ensure optimal engine protection.

Is rear suspension replacement necessary for protecting the engine splash shield?

No, a rear suspension replacement is not directly necessary for protecting the engine splash shield. The engine splash shield is located at the front, underneath the engine bay, and its integrity is primarily affected by impacts and conditions related to the front of the vehicle. However, a healthy suspension system overall (front and rear) contributes to a smoother ride and better vehicle control, which indirectly reduces the chances of severe impacts that could damage any underbody component, including the splash shield. A sturdy suspension helps absorb bumps and road debris more effectively, providing a generally safer environment for all undercarriage parts.

Conclusion

A hanging engine splash guard is more than just an aesthetic nuisance; it's a clear indicator that your engine's vital protection is compromised. Whether caused by failing fastenings, corrosion, poor reinstallation, or direct impact, addressing the issue promptly is crucial. While refitting or repairing might be options for minor damage, a complete replacement is often the most reliable solution for ensuring your vehicle's underbelly remains safeguarded against the harsh realities of the road. Don't underestimate the role of this often-overlooked component – a small investment in its repair or replacement can save you from far more significant and costly engine damage down the line.
