Car Charging System Explained

Your car's battery charging system is the lifeblood of its electrical operations. It's a critical component that ensures everything from your headlights to your engine management systems functions correctly. When the 'Service Battery Charging System' warning light illuminates on your dashboard, it's a clear signal that something is amiss. Ignoring this warning can lead to a complete breakdown, leaving you stranded. Understanding how this system works, what triggers the warning light, and how to address potential issues is crucial for any car owner seeking an optimal and reliable driving experience. This guide will delve into the intricacies of your car's charging system, offering insights and practical advice.

Understanding the Battery Charging System

At its core, a car's battery charging system is responsible for generating electrical power to run the vehicle's accessories and, crucially, to recharge the battery itself. The exact configuration can vary depending on the age of your vehicle. However, modern systems typically consist of four main components:

In essence, the alternator produces electricity, the ECU monitors and regulates this production, the battery stores it, and the wiring ensures it gets where it needs to go. This interconnectedness means a fault in one area can have a cascading effect on the entire system.

The 'Service Battery Charging System' Light Explained

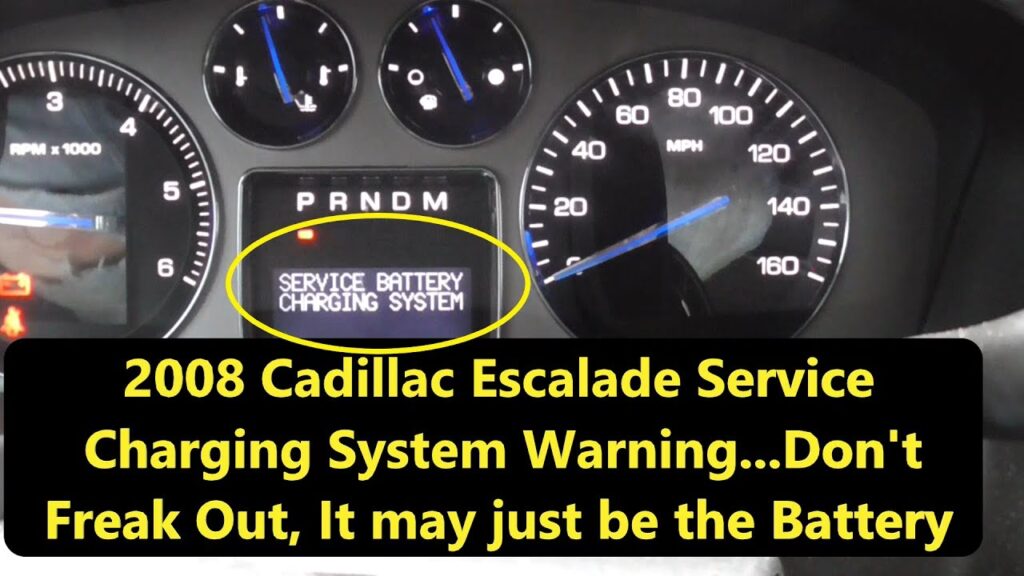

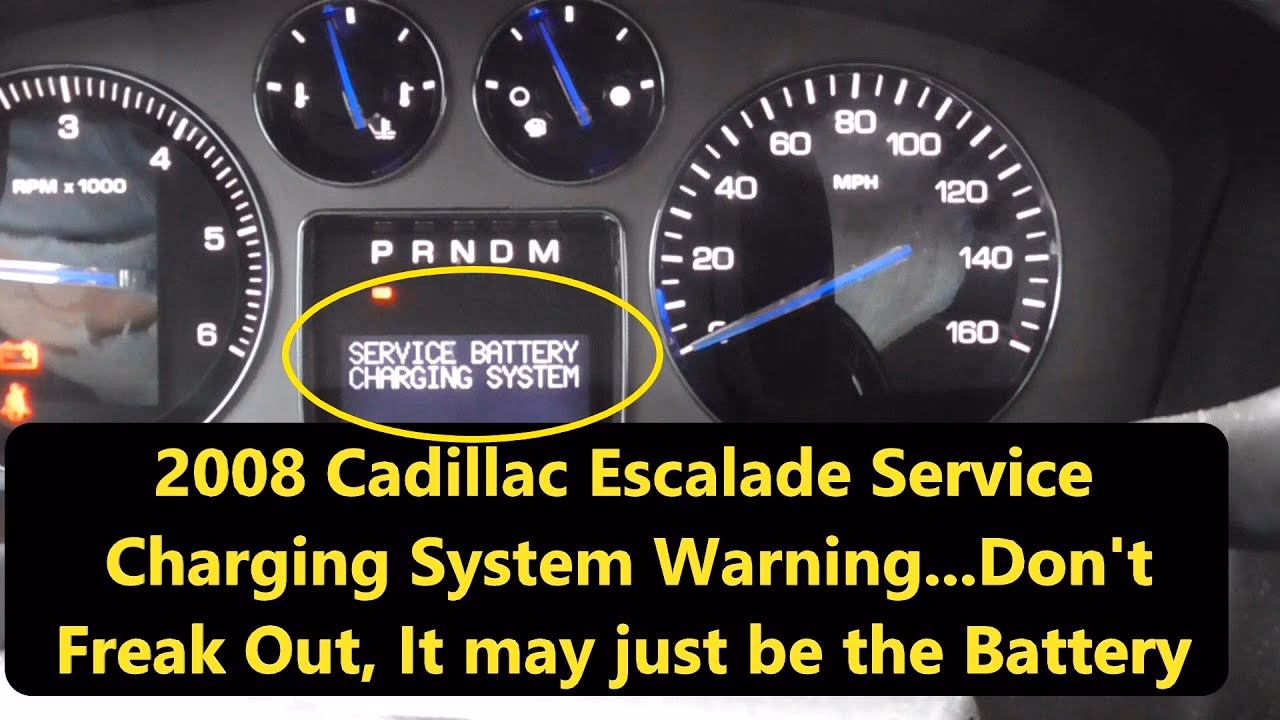

The 'Service Battery Charging System' light, often depicted as a battery symbol (sometimes labelled 'BAT' or 'ALT'), is a vital diagnostic indicator. When this light illuminates, it signifies a problem within the charging circuit. This typically occurs while you are driving, indicating that the system is not generating enough power to run the vehicle and charge the battery simultaneously. The car is then running solely on the stored energy within the battery. This is a critical situation because once the battery's charge is depleted, the engine will stall, and the vehicle will cease to function. You have a limited window to address the issue before this happens. Consulting your owner's manual can provide specific details for your vehicle model.

Common Causes for the Warning Light

Several issues can trigger the 'Service Battery Charging System' light. Identifying the root cause is the first step towards a resolution:

• Drive Belt Problems: The drive belt (often a serpentine belt) connects the engine's crankshaft to the alternator pulley. If this belt is worn, loose, or broken, it cannot spin the alternator effectively, leading to insufficient power generation. A slipping belt can also cause intermittent charging issues.
• Wiring Issues: Damage, corrosion, or loose connections within the wiring harness that connects the battery, alternator, and ECU can disrupt the flow of electricity and interfere with voltage regulation.
• Faulty Electrical Control Unit (ECU): If the car's computer responsible for managing the charging system malfunctions, it can lead to incorrect voltage regulation, triggering the warning light.
• Battery Deterioration: A worn-out or failing battery may no longer be able to hold a sufficient charge, even if the alternator is working correctly. This can also cause the charging system light to illuminate.
• Battery Terminal Issues: Corroded, loose, or dirty battery terminals create resistance, hindering the flow of current and preventing proper charging.
• Failed Alternator: This is one of the most common culprits. If the alternator itself is faulty, it cannot convert mechanical energy into electrical energy, leading to a breakdown in the charging process.

Is It Safe to Drive with the Light On?

Driving with the 'Service Battery Charging System' light illuminated is strongly discouraged. While the car might continue to run for a while on battery power alone, it's a race against time. As the battery's charge depletes, you risk the engine cutting out unexpectedly. This can be incredibly dangerous, especially at higher speeds or in heavy traffic, potentially causing accidents. The safest course of action is to minimize electrical usage (turn off the radio, air conditioning, and any non-essential accessories) and drive directly to a qualified mechanic or repair shop. Turning off the engine and restarting it may provide a temporary solution, but the underlying problem remains.

How to Check Your Charging System

While a professional diagnosis is often recommended, you can perform some basic checks yourself to get a better understanding of the problem. Here’s how:

Checking the Battery

1. Visual Inspection: Examine the battery for any signs of physical damage or leakage. Check the battery terminals for corrosion (a white or bluish powdery substance). If corrosion is present, disconnect the terminals (negative first, then positive) and clean them with a wire brush or a specialized terminal cleaner. Ensure the terminals are reconnected securely (positive first, then negative).
2. Hydrometer Check (if applicable): Some batteries have a built-in hydrometer. A green "eye" typically indicates a sufficient charge.
3. Voltage Test (with a Multimeter): A fully charged battery should read around 12.6 volts when the engine is off and there are no loads. You can use a multimeter to test the battery voltage at the terminals.
4. Load Test (with a Multimeter/Battery Tester): This is a more comprehensive test. With the engine off, set your multimeter to DC volts. Connect the positive lead to the positive battery post and the negative lead to the negative battery post. Then, connect a battery load tester and follow its instructions. A common test involves applying a load equivalent to half the battery's cold-cranking amps (CCA) for about 15 seconds. The voltage should remain above 9.6 volts at approximately 21 degrees Celsius. If it drops significantly lower, the battery may be failing.

Checking the Alternator

1. Engine Off: Ensure all electrical accessories are turned off. Put the car in neutral and engage the parking brake.
2. No-Load Test: With the engine running, use a multimeter to measure the voltage across the battery terminals. It should be between 13.0 and 15.0 volts.
3. Load Test: With the engine still running at around 2,000 RPM, turn on accessories like headlights and the blower fan. Measure the voltage again. It should remain within the 13.0 to 15.0-volt range, possibly dropping slightly but not significantly. If the voltage drops below 13.0 volts or the alternator doesn't produce sufficient output, the alternator may be faulty.
4. Amperage Test (if equipped with a clamp meter): Place the current probe around the alternator's B+ output lead while the engine is running at approximately 2,000 RPM. The output current should be higher than when the engine is idling.

Checking Other Components

Beyond the battery and alternator, inspect:

• Drive Belt: Check for cracks, fraying, or excessive looseness. A belt that is too loose will slip, and a worn belt may not transmit power efficiently.
• Wiring and Connections: Ensure all connections to the alternator, battery, and ECU are clean, tight, and free from corrosion. Check for any damaged insulation or loose connectors.
• Fuses and Relays: Consult your owner's manual to locate and inspect any fuses or relays associated with the charging system.

Frequently Asked Questions (FAQs)

How much does it cost to fix a charging system?

The cost of repairing a charging system can vary widely, typically ranging from £150 to £800 or more. This depends on the specific component that needs replacing (e.g., alternator, battery, belt), the make and model of your car, and your location. DIY repairs can significantly reduce costs by eliminating labour charges.

Can I jump-start a car with a bad alternator?

Yes, you can jump-start a car with a faulty alternator to get it running temporarily. However, it's crucial not to leave the jumper cables connected for longer than necessary, as this could potentially damage the electronics of either vehicle. Remember, the alternator is needed to keep the engine running once the jump-start cables are removed, so the car will likely stall again soon after.

Can AutoZone (or similar auto parts stores) check my charging system?

Many major auto parts retailers, like AutoZone in the US, offer free testing of batteries, alternators, and starter motors. It's advisable to check with your local store to confirm their services. This can be a quick and easy way to get a preliminary diagnosis.

Essential Charging System Maintenance

Preventative maintenance is key to ensuring your charging system remains in optimal condition:

• Reduce Corrosion: Regularly inspect and clean battery terminals and electrical connectors to prevent corrosion, which impedes electrical flow.
• Manage Electrical Load: Avoid running high-draw accessories (like powerful sound systems or interior lights) for extended periods with the engine off, as this can excessively drain the battery.
• Inspect the Drive Belt: Periodically check the condition and tension of your drive belt. Replace it if it shows signs of wear, cracking, or looseness to prevent premature alternator failure.
• Regular Battery Checks: Ensure your battery is properly secured and that its terminals are clean and tight. Consider having the battery tested annually, especially before winter.

Final Thoughts

The battery charging system is a cornerstone of your vehicle's electrical health. Understanding its components and recognizing the warning signs, such as the 'Service Battery Charging System' light, empowers you to address issues promptly. Whether you're performing basic checks yourself or seeking professional assistance, timely intervention can prevent more significant damage and costly repairs, ensuring your car remains reliable on the road.
