The Essential Guide to Car Body Pulling Benches

In the world of professional car body repair, restoring a vehicle to its original factory specifications after a significant collision is paramount. This isn't merely about fixing dents and scratches; it’s about correcting fundamental structural damage that can compromise a car's safety, handling, and overall longevity. At the heart of this complex process lies the pulling bench, a sophisticated piece of equipment indispensable for modern body shops across the UK and beyond.

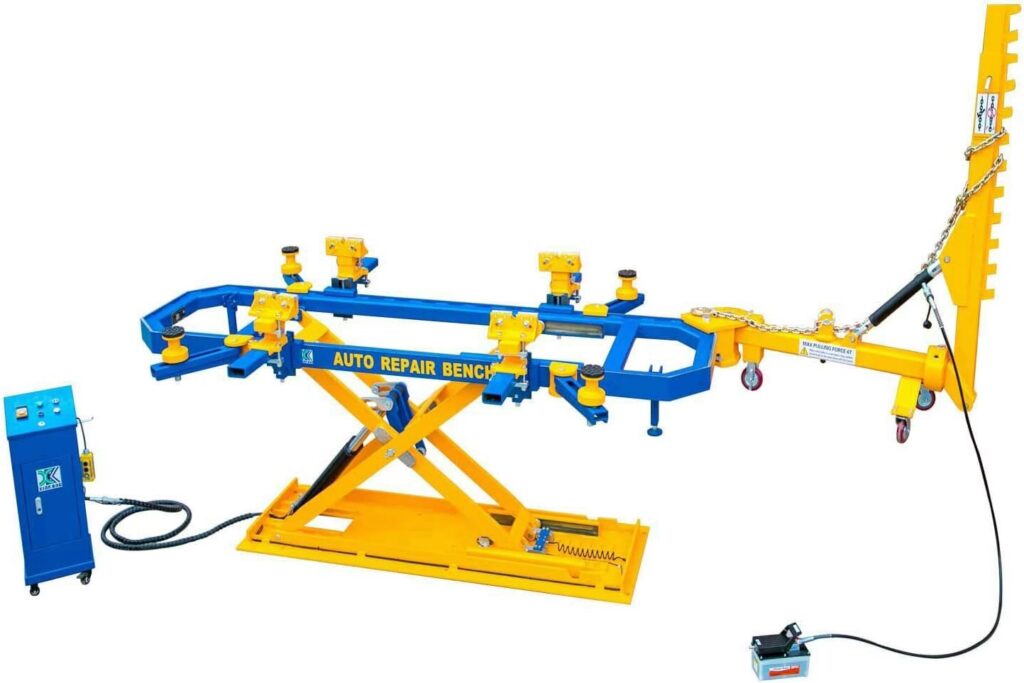

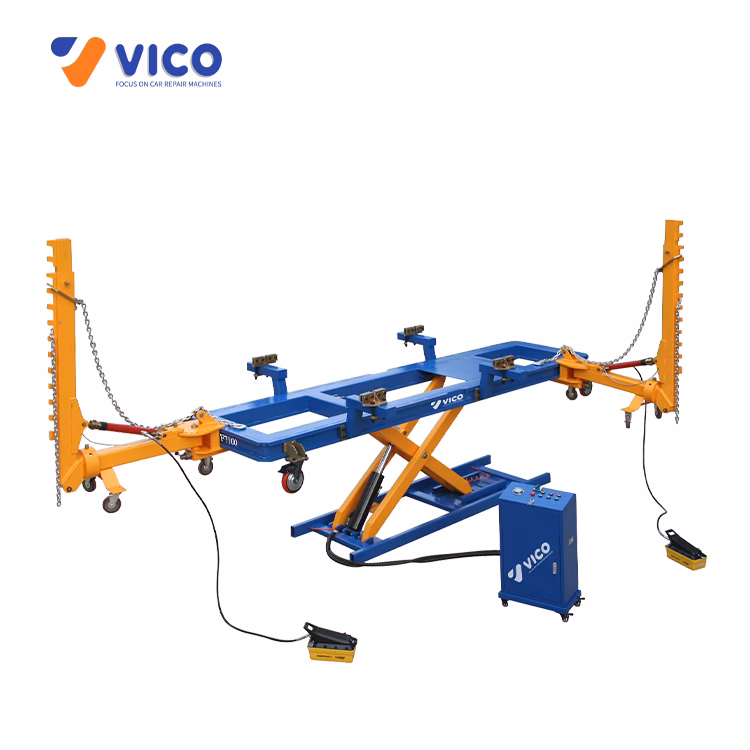

A pulling bench, often referred to as a frame machine or chassis straightener, is a heavy-duty apparatus designed to anchor a damaged vehicle and apply controlled, multi-directional force to pull and push compromised sections of the chassis or frame back into their precise, pre-accident dimensions. Unlike minor cosmetic repairs, structural damage requires immense precision to ensure that all measurements, alignment, and crumple zones function as intended by the manufacturer. Without a pulling bench, accurately repairing a severely bent or twisted vehicle frame would be virtually impossible, leading to unsafe driving conditions and potential further damage down the line.

How Pulling Benches Work: The Science of Restoration

The core principle behind a pulling bench is the application of controlled force to reverse the deformation caused by an impact. When a vehicle is involved in a collision, its rigid frame components can bend, twist, or collapse. A pulling bench works by:

1. Anchoring the Vehicle: The car is securely fastened to the heavy-duty bench using specialised clamps that grip the vehicle's pinch welds or other designated anchoring points. This rigid anchoring ensures that the pulling forces are applied only to the damaged areas, preventing the rest of the car from moving.
2. Attaching Pulling Towers/Arms: Hydraulic or pneumatic pulling towers, often capable of multiple axes of movement, are positioned strategically around the vehicle. Chains and clamps are then attached from these towers to the specific damaged sections of the car's frame.
3. Applying Controlled Force: Using hydraulic power, the towers exert precise pulling or pushing forces. Modern benches often feature remote controls for the operator to fine-tune the force and direction. Some advanced systems, like Car Bench International's 'OCTOPUS' system mentioned in the provided data, allow for pulling in virtually any direction and orientation, providing unparalleled flexibility for complex repairs.
4. Continuous Measurement and Verification: This is arguably the most critical step. As force is applied, technicians constantly measure the frame's dimensions using sophisticated electronic or mechanical measuring systems. These systems compare the real-time measurements against the vehicle manufacturer's specifications, ensuring that the frame is being returned to its exact original geometry. This iterative process of pulling and measuring continues until the frame is within specified tolerances.

The entire process demands a high level of skill, experience, and an in-depth understanding of vehicle architecture. It's a precise blend of art and science, aiming to restore the vehicle's inherent structural integrity.

Key Components and Features of a Modern Pulling Bench

While the basic function remains consistent, pulling benches come with a variety of features and configurations to suit different repair needs and workshop sizes. Key components typically include:

• The Bench Platform: This forms the base of the system. It can be a fixed, heavy-duty frame, a mobile platform on wheels, or integrated into a scissor lift. The size and strength of the platform determine the types of vehicles it can accommodate.
• Anchoring Systems: These are crucial for holding the vehicle firmly in place. Common types include universal clamps, pinch weld clamps, and dedicated jigging systems that align with specific vehicle models. Some systems, like Autorobot's, use patented fasteners for quick and secure mounting.
• Pulling Towers/Columns: These are the mechanisms that apply the force. They can be single-point pullers, or more advanced multi-directional systems. Hydraulic operation is standard, offering powerful and controlled pulling capabilities.
• Measuring Systems: From traditional tram gauges to advanced laser-guided or computerised 3D measuring systems, these tools provide the precision necessary to bring the vehicle back to factory specifications. They detect even minute deviations in the frame.
• Lifting Mechanisms: Many modern pulling benches are integrated with scissor lifts, allowing the vehicle to be raised to an ergonomic working height. This enhances accessibility for repairs, measuring, and even general service work underneath the vehicle. Examples include the 'Triton' Quick Pull Bench and various Celette and Autorobot models.

Types of Pulling Benches for Diverse Repair Needs

The market offers a range of pulling benches, each optimised for different types of damage, vehicle sizes, and workshop environments:

1. Drive-On Pulling Benches

These benches feature a ramp that allows vehicles to be easily driven onto the platform. They are often combined with scissor lifts for versatility. Drive-on benches are excellent for quick diagnostics, light to medium repairs, and can double as a general lift for other service work. They offer good accessibility around and under the vehicle. Examples include the Celette Rhone series.

2. Scissor Lift Integrated Benches

These benches are mounted directly on a double-effect electro-hydraulic scissor lift, allowing them to be raised, lowered, and sometimes even tilted. This configuration offers superb accessibility, both inside and outside the frame, and can be installed flush with the floor or placed on a lift plate. The 'Triton' Quick Pull Bench and Autorobot C2 are prime examples, functioning as both a lift and a robust repair bench.

3. Mobile Pulling Benches

Designed for flexibility and smaller footprints, mobile benches are often on wheels, allowing them to be moved around the workshop as needed. They are ideal for quick pulls, straightening small to medium-size damage, and for shops with limited space. The Autorobot Micro B and AA4C mobile benches fall into this category. They offer great versatility for different work bays.

4. Heavy-Duty and Commercial Vehicle Benches

For larger vehicles such as SUVs, vans, and light commercial vehicles, specialised extra-long and heavy-duty benches are required. These benches boast higher lifting capacities and extended lengths to accommodate longer wheelbases and heavier chassis. The Celette Griffon XL and Rhone XL, and Autorobot B5, B20, B30 models are designed for these demanding applications, often allowing for simultaneous repairs.

5. Dedicated Pulling Platforms

Some systems, like the Celette X-TRAC and X-ONE, are designed specifically as lifting and pulling platforms for light to medium or even 'smart' and quick cosmetic damage repairs. They prioritise fast loading and ease of use for less severe impacts.

The Car Body Repair Process on a Pulling Bench

The use of a pulling bench is a critical phase in comprehensive collision repair:

1. Damage Assessment: A thorough inspection, often involving laser measuring, identifies the extent and direction of frame deformation.
2. Vehicle Preparation: Non-essential components are removed to provide access to the damaged frame sections.
3. Anchoring: The vehicle is precisely positioned and secured to the bench using appropriate clamps or jigging systems.
4. Pulling Set-up: Pulling towers are positioned, and chains/clamps are attached to the deformed areas.
5. Controlled Pulling: Force is gradually applied, with continuous monitoring of measurements against factory specifications. This iterative process allows for precise alignment correction.
6. Heat Application (if necessary): In some cases, localised heat may be applied to specific areas of the frame to assist in the metal's movement and prevent cracking, though this is done with extreme caution.
7. Measurement and Verification: Once the frame is within tolerance, comprehensive final measurements are taken to confirm its integrity.
8. Disassembly and Reassembly: After the frame is straightened, the vehicle is removed from the bench, and the remaining bodywork, painting, and reassembly are completed.

Why are Pulling Benches Indispensable for Modern Body Shops?

The reliance on pulling benches in professional collision repair stems from several crucial benefits:

• Restoring Structural Integrity: The primary reason is to return the vehicle's unibody or frame to its original factory specifications, which is vital for maintaining the car's designed crashworthiness and overall safety.
• Ensuring Driving Dynamics: A misaligned frame can lead to issues with steering, suspension, tyre wear, and general handling. Pulling benches ensure that wheel alignment and tracking are correct.
• Precision and Accuracy: Modern pulling benches, especially when combined with advanced measuring systems, offer unparalleled accuracy, ensuring that repairs meet stringent manufacturer standards.
• Cost-Effectiveness: While an initial investment, a pulling bench allows for the repair of severely damaged vehicles that would otherwise be written off, saving insurance companies and vehicle owners significant costs.
• Efficiency: With proper training, technicians can efficiently straighten complex frame damage, reducing repair cycle times.

Comparative Overview of Pulling Bench Types

Frequently Asked Questions About Pulling Benches

Q1: Can any body shop fix frame damage?

No. Only body shops equipped with a pulling bench and staffed by certified technicians experienced in frame repair should undertake such work. It requires specialised equipment and expertise to ensure the vehicle's structural integrity and safety are fully restored.

Q2: How accurate is frame repair on a pulling bench?

With modern electronic measuring systems and skilled operators, frame repair on a pulling bench can achieve extremely high levels of accuracy, often within a millimetre or less of factory specifications. This precision is critical for vehicle safety and performance.

Q3: Is a repaired frame as safe as a new one?

If repaired correctly by a qualified shop using a pulling bench and proper techniques, a vehicle's frame can be restored to its pre-accident structural integrity and safety standards. However, severely damaged frames may be deemed irreparable and the vehicle written off by insurers.

Q4: What's the difference between a pulling bench and a frame machine?

The terms 'pulling bench' and 'frame machine' are often used interchangeably to refer to the same type of equipment. 'Frame machine' is perhaps a more generic term, while 'pulling bench' specifically highlights its primary function of pulling damaged sections back into place.

Q5: How long does a frame repair typically take?

The duration of a frame repair varies significantly depending on the extent of the damage, the vehicle's make and model, and the complexity of the repair. It can range from a few hours for minor distortions to several days for severe structural damage. The efficiency of the pulling bench and the technician's skill play a large role.

Conclusion

The pulling bench is far more than just a piece of machinery; it is the cornerstone of effective and safe collision repair. It represents the commitment of professional body shops to restoring not just the appearance, but the fundamental safety and performance of a damaged vehicle. For any car owner involved in a significant accident, understanding the role of this vital equipment can provide reassurance that their vehicle can be returned to its pre-accident condition, ready to navigate the UK's roads safely once more. Its ability to achieve precise, multi-directional pulling and accurate measurement makes it an indispensable tool in the modern automotive repair landscape.
