Heater Resistor: Your Car's Climate Control Explained

The humble heater resistor, often overlooked, plays a surprisingly crucial role in maintaining a comfortable cabin temperature within your vehicle. It's the unsung hero that allows you to dial in the perfect breeze, from a gentle whisper to a powerful gust, for both heating and cooling. When this component falters, it can leave you sweating in summer or shivering in winter, unable to adjust your car's climate control to your liking. This article delves into the function of a heater resistor, common causes of its failure, the tell-tale signs of a problem, and what you can do to ensure your car's climate control system remains in tip-top condition.

What Exactly is a Heater Resistor?

At its core, a heater resistor, also known as a blower motor resistor, is an electrical component that controls the speed of the fan in your car's heating, ventilation, and air conditioning (HVAC) system. Think of it as a traffic controller for the electricity flowing to the blower motor. By varying the amount of resistance, it dictates how much power the motor receives, and consequently, how fast the fan spins. Most vehicles offer several fan speed settings – typically low, medium, and high. The resistor achieves these different speeds by incorporating a series of resistors with varying values. When you select a lower fan speed, more resistance is introduced, slowing down the motor. Conversely, selecting a higher speed reduces the resistance, allowing more current to flow and the motor to spin faster.

The Mechanics Behind Fan Speed Control

The heater resistor is typically a small, finned metal component that is often located in the dashboard, near the blower motor itself. Its fins are designed to dissipate heat, as increased resistance naturally generates heat. The blower motor is responsible for drawing air through the cabin's air filter and then pushing it through the heater core (for heating) or evaporator core (for cooling), before distributing it through the vents. The resistor's job is to modulate the power supplied to this blower motor. Without it, the blower motor would likely only have one speed – its maximum. This would make it impossible to achieve the more subtle airflow adjustments needed for comfort.

Common Causes of Heater Resistor Failure

Like many automotive components, heater resistors are not immune to wear and tear. Several factors can contribute to their premature demise:

• Overheating due to Blocked Airflow: This is perhaps the most prevalent cause of failure. The resistor generates heat as it operates, and its design relies on adequate airflow to dissipate this heat. If the air intake for the HVAC system becomes blocked by debris such as leaves, dirt, or even rodent nests, the resistor cannot cool itself effectively. This prolonged exposure to excessive heat can cause the internal components of the resistor to break down and fail.
• Water Damage and Corrosion: Water ingress into the resistor assembly can lead to rust and corrosion. This can happen due to faulty seals around the HVAC unit, a leaking windshield, or even condensation. Once corrosion sets in, it can disrupt the electrical pathways within the resistor, leading to erratic operation or complete failure.
• Broken Seals: Beyond water damage, the seals around the resistor or its housing can degrade over time. If these seals fail, they can allow moisture and debris to enter, initiating the same problems as direct water damage.
• Electrical Surges: While less common, sudden electrical surges within the vehicle's electrical system can sometimes damage sensitive components like the heater resistor.
• Age and General Wear: Components within a car are subject to constant vibration and temperature fluctuations. Over many years, these environmental factors can simply cause the materials within the resistor to degrade, leading to a failure.
• Blower Motor Issues: Interestingly, a failing blower motor can also cause the resistor to fail. If the blower motor is struggling to turn (perhaps due to worn bearings or an obstruction), it draws more current than it should. This increased current flow through the resistor generates excessive heat, leading to its failure. This is why when diagnosing a blower motor issue, it's often recommended to check the resistor as well.

Symptoms of a Failing Heater Resistor

Recognising the signs of a faulty heater resistor can save you from enduring uncomfortable journeys. Here are the most common symptoms:

• Only the Highest Fan Speed Works: This is the classic symptom. When the resistor fails, it often does so in a way that bypasses all the lower speed settings, leaving only the direct connection to the highest speed functional. This happens because the highest speed setting usually bypasses the resistor entirely, receiving full battery voltage.
• Fan Only Works on Certain Speeds: Conversely, the fan might work on some speeds but not others, indicating a partial failure or a problem with specific resistor coils.
• Fan Doesn't Work at All: In some cases, a complete failure of the resistor can result in the blower motor not operating on any speed setting.
• Burning Smell: A burning smell emanating from the dashboard, particularly when the HVAC system is on, can indicate that the resistor is overheating due to excessive load or internal damage.
• Intermittent Fan Operation: The fan might work sporadically, cutting in and out without any clear pattern.

Diagnosing a Faulty Heater Resistor

Diagnosing a heater resistor issue typically involves a few key steps:

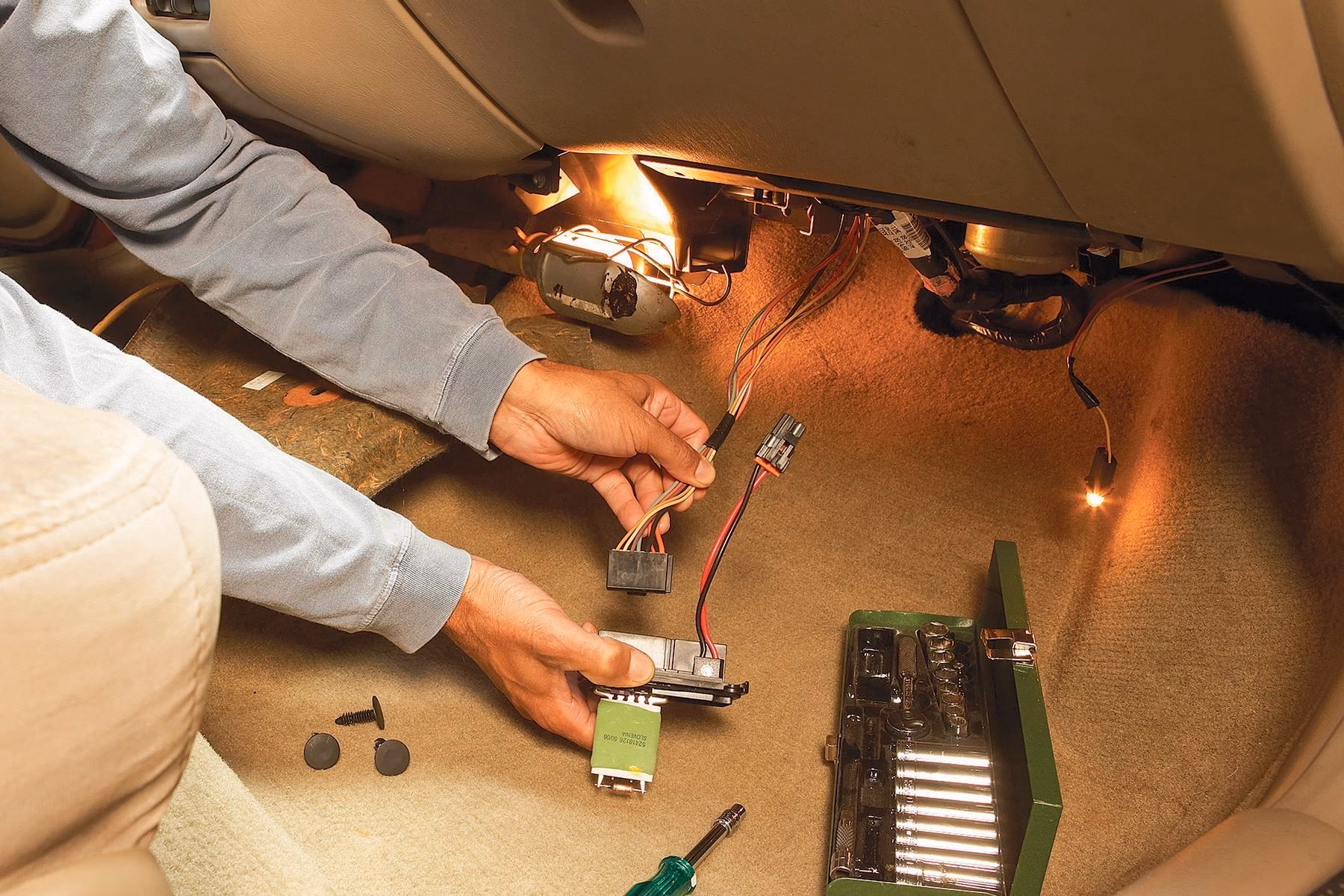

1. Visual Inspection: If you can access the resistor (often behind the glovebox or under the dashboard), a visual inspection for burn marks, melted plastic, or signs of corrosion is a good starting point.
2. Multimeter Testing: A mechanic or a knowledgeable DIYer can use a multimeter to test the resistance values of the resistor at each fan speed setting. Comparing these readings to the manufacturer's specifications will reveal if the resistor is within tolerance.
3. Checking the Blower Motor: As mentioned, it's crucial to ensure the blower motor itself is functioning correctly and not drawing excessive current, as this can lead to a false diagnosis of the resistor or cause a new resistor to fail.

Heater Resistor vs. Blower Motor Control Module (HVAC Climate Control Module)

It's worth noting that in many modern vehicles, the traditional resistor pack has been replaced by a more sophisticated electronic component called a blower motor control module, often referred to as a climate control module or HVAC module. These modules use more advanced electronics, such as transistors, to regulate the blower motor speed. While they offer more precise control and potentially better efficiency, they can also be more expensive to replace when they fail. The symptoms of failure can be similar, but the diagnostic approach may differ.

Frequently Asked Questions

Q1: Can I drive my car with a faulty heater resistor?

Yes, you can still drive your car. However, you will likely be unable to control the fan speed, meaning you might only have the highest fan speed available, or no fan at all. This can significantly impact comfort, especially in extreme weather conditions, and may also affect the defrosting and demisting capabilities of your vehicle.

Q2: How much does it cost to replace a heater resistor?

The cost can vary significantly depending on the make and model of your car and whether you opt for an original equipment manufacturer (OEM) part or an aftermarket one. Generally, the part itself can range from £20 to £80. Labour costs for replacement can add another £50 to £150, as access to the resistor can sometimes be tricky.

Q3: Is it difficult to replace a heater resistor myself?

For some vehicles, replacing a heater resistor is a relatively straightforward DIY job, often involving removing a glovebox or a small panel. However, in other cars, access can be more challenging, requiring the removal of dashboard components. If you're not comfortable with basic car mechanics, it's best to leave this to a professional.

Q4: What happens if I don't replace a faulty heater resistor?

The primary consequence is a lack of control over your cabin's airflow, leading to discomfort. In some cases, a severely damaged resistor could potentially overheat and pose a minor fire risk, although this is rare. More importantly, it can affect the efficiency of your defrosting and demisting systems, which are crucial for safe driving.

Preventative Measures

While not all resistor failures can be prevented, taking good care of your vehicle's HVAC system can help prolong its life:

• Regularly Replace Your Cabin Air Filter: A clean cabin air filter ensures good airflow to the HVAC system, preventing the resistor from overheating due to blockages.
• Keep Air Intakes Clear: Periodically check and clear any debris that may accumulate around the exterior air intake vents for your HVAC system.
• Address Water Leaks Promptly: If you notice any signs of water ingress into the cabin, have the source investigated and repaired immediately to prevent damage to electrical components.

Conclusion

The heater resistor is a small but mighty component that significantly impacts your driving comfort. Understanding its function, the common reasons for failure, and the symptoms to look out for empowers you to address issues promptly. Whether it's a simple fix or requires professional attention, ensuring your heater resistor is in good working order is key to maintaining a pleasant and safe driving environment, regardless of the weather outside. Pay attention to your car's climate control; it's often trying to tell you something!
