Your Car's Heater Fan: Comfort Demystified

When the British weather takes its inevitable turn for the worse, a functioning car heater becomes less of a luxury and more of an absolute necessity. But have you ever stopped to consider the mechanics behind that comforting blast of warm air, or the vital role it plays in keeping your windscreen clear of mist? At the heart of your car's climate control system lies the heater fan blower, a surprisingly sophisticated component that's crucial for both comfort and safety. Understanding how it operates can not only empower you to diagnose minor issues but also appreciate the engineering that goes into every drive.

This article will delve into the intricate workings of the car heater fan blower, exploring its components, its relationship with other parts of the heating, ventilation, and air conditioning (HVAC) system, and common problems you might encounter. We'll demystify the airflow, temperature regulation, and speed control, providing you with a comprehensive overview of this essential automotive system.

The Core Function: Moving Air

At its most fundamental level, the car heater fan blower's job is to move air. It draws air from either outside the vehicle (fresh air mode) or from inside the cabin (recirculation mode) and then forces it through the various components of the HVAC system before distributing it into the passenger compartment via the vents. Without this fan, the heater core, which generates the heat, would be largely ineffective at warming the cabin, and the air conditioning evaporator would struggle to cool it. It's the engine of your car's climate system, pushing the vital medium – air – to where it needs to go.

Components of the Car's HVAC System and the Blower's Role

To truly understand the blower fan, we must look at the entire ecosystem it operates within. The HVAC system is a complex network of components, each playing a critical role in regulating cabin temperature and air quality. Here’s a breakdown:

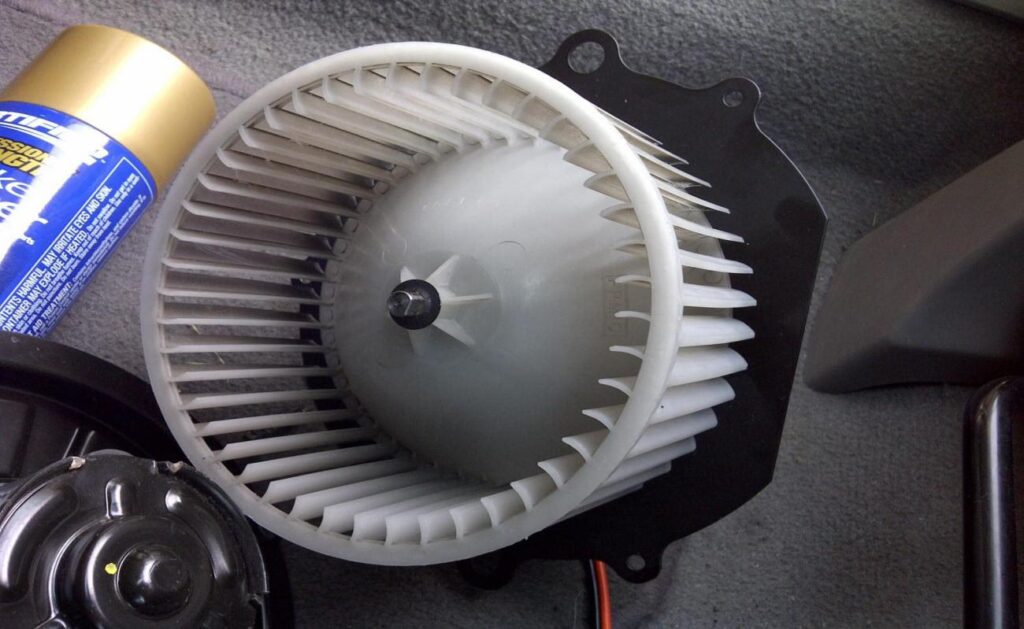

• Blower Motor and Fan (Impeller): This is the star of our show. The electric motor powers a fan, typically a centrifugal (squirrel cage) design, which is highly efficient at moving large volumes of air at low pressure.
• Heater Core: This small radiator-like component is usually located behind the dashboard. Hot engine coolant circulates through it, transferring heat to the air passing over its fins.
• Evaporator (for Air Conditioning): While not directly part of the heating process, the evaporator is in the same air path. It cools and dehumidifies air by absorbing heat from it. Air flows over the evaporator before it reaches the heater core (or vice-versa, depending on the system design and desired temperature).
• Ducting and Vents: A network of plastic channels directs the conditioned air to specific outlets around the cabin – windscreen, footwells, and fascia vents.
• Control Panel: This is your interface with the system, allowing you to select temperature, fan speed, airflow direction, and recirculation mode. It can be manual (cables and knobs) or automatic (electronic sensors and actuators).
• Blower Motor Resistor/Regulator: This crucial component controls the speed of the blower motor. In older systems, it’s a series of resistors. In modern vehicles, it's often a solid-state module using Pulse Width Modulation (PWM).
• Blend Door/Actuators: These are movable flaps within the air ducts that control the mix of hot air (from the heater core) and cold air (from the evaporator) to achieve the desired temperature. They are operated by cables or electric actuators.
• Cabin Air Filter: Positioned in the air intake path, this filter cleans the air before it enters the HVAC system, trapping dust, pollen, and other particulates.

The Heating Process: A Step-by-Step Guide

Let's trace the journey of air as it transforms from ambient temperature to a warm, comforting stream within your car:

1. Air Intake: The blower fan draws air from either outside the vehicle (through a grille usually at the base of the windscreen) or from inside the cabin (via a recirculation flap). This air first passes through the

   cabin air filter

   , which cleans it.

2. Blower Fan Activation: When you turn on your heater and select a fan speed, the blower motor receives power and spins the fan impeller. This creates a pressure differential, pulling air in and pushing it forcefully into the HVAC housing.
3. Passing Over the Evaporator: Even if you're not using the air conditioning, the air often passes over the evaporator first. In some systems, the AC might even run briefly to dehumidify the air, helping with demisting.
4. Temperature Control via Blend Door: The air then reaches the blend door. If you've selected heat, the blend door will direct air primarily over the heater core. If you've selected cold, it will bypass the heater core or mix air from both paths.
5. Heating at the Heater Core: As the air rushes over the hot fins of the heater core, it absorbs heat from the circulating engine coolant. This is where the air warms up significantly.
6. Distribution to Vents: Finally, the now heated (and potentially dehumidified) air is directed by other flap doors (mode doors) through the appropriate ducting to the selected vents – whether that's the windscreen for demisting, the dashboard vents for direct airflow, or the footwell vents for overall cabin warmth.

Controlling the Flow: Fan Speed Regulation

The ability to control the fan's speed is crucial for driver comfort and effective climate control. This is primarily managed by the blower motor resistor or a more modern solid-state regulator.

Traditional Blower Motor Resistor

In older vehicles, the blower motor resistor is a simple yet effective device. It contains a series of resistors (coils of wire) that create electrical resistance. When you select a lower fan speed on your control panel, the current is routed through one or more of these resistors. This increased resistance reduces the voltage reaching the blower motor, causing it to spin slower. As you increase the fan speed, fewer resistors are in the circuit, allowing more voltage to reach the motor and making it spin faster. The highest speed usually bypasses the resistor entirely, giving the motor full battery voltage. These resistors generate a lot of heat and are often located in the airflow path to help cool them. A common failure point is one or more resistors burning out, leading to some fan speeds no longer working, often with only the highest speed remaining operational.

Modern Blower Motor Regulators (PWM)

Contemporary vehicles predominantly use electronic blower motor regulators, often referred to as a final stage unit or a Pulse Width Modulation (PWM) module. Instead of using resistors to drop voltage, these modules rapidly switch the power to the blower motor on and off. The 'width' of the pulse (the proportion of time the power is on versus off) determines the effective voltage supplied to the motor. A narrow pulse means the motor is off for longer, resulting in a slower speed, while a wider pulse keeps it on for longer, increasing the speed. This method is far more energy-efficient, generates less waste heat, and allows for much smoother, infinitely variable fan speed control. When these fail, the fan might exhibit erratic behaviour or stop working entirely.

Here's a quick comparison:

Common Heater Fan Blower Issues and Troubleshooting

A failing blower fan can turn a pleasant drive into a rather uncomfortable one. Here are some common problems and their potential causes:

1. Fan Not Working at All

• Blown Fuse: The simplest explanation. Check your car's fuse box (refer to your owner's manual for the correct fuse).
• Faulty Blower Motor: The motor itself could have failed due to wear and tear, burnt out windings, or seized bearings.
• Failed Blower Motor Resistor/Regulator: If this component fails completely, no power or incorrect power might reach the motor.
• Wiring Issue: A broken wire or poor connection in the circuit supplying power to the motor or regulator.
• Faulty Control Panel: Less common, but the switches or electronics in the control panel could be at fault.

2. Fan Only Working on High Speed

This is a classic symptom of a failed

blower motor resistor

(or regulator if it's an older PWM unit that's failed in a specific way). When the resistors for the lower speeds burn out, only the direct connection for the highest speed remains operational.

3. Noisy Blower Fan

• Debris in the Fan Housing: Leaves, twigs, or even small animals can get into the fan housing and cause a rattling, scraping, or squealing noise as the fan blades hit them.
• Worn Bearings: The blower motor's bearings can wear out over time, leading to a squealing or grinding noise, especially at certain speeds.
• Unbalanced Fan Impeller: If the fan blades become damaged or caked with dirt, the impeller can become unbalanced, leading to vibration and noise.

4. Weak Airflow

• Clogged Cabin Air Filter: This is a very common cause. A filter choked with dirt and debris restricts airflow significantly. This is often an easy and inexpensive fix.
• Obstruction in Ducts: Less common, but something might be blocking the air ducts.
• Failing Blower Motor: The motor might be spinning slowly or struggling, not moving air effectively.

5. Burning Smell from Vents

• Overheating Blower Motor Resistor: If the resistor is failing or overloaded, it can get excessively hot and emit a burning plastic smell.
• Failing Blower Motor: A motor that's seizing or has shorted windings can also produce a burning odour.
• Debris: Organic matter or plastic bags caught on the heater core or blower motor can burn.

Maintenance Tips for a Happy Heater Fan

While the blower motor itself is generally a sealed unit designed for longevity, there are a few things you can do to prolong its life and ensure efficient operation of your car's heating system:

• Regular Cabin Air Filter Replacement: This is the single most important maintenance item. A clean filter ensures good airflow, reduces strain on the blower motor, and improves air quality. Check your owner's manual for recommended intervals, but typically every 12,000 to 15,000 miles or once a year is a good guide, more often if you drive in dusty environments.
• Keep Air Intakes Clear: Periodically check the air intake grilles (often at the base of the windscreen) for leaves, twigs, and other debris that could be drawn into the system.
• Address Noises Promptly: If you hear unusual noises from the fan, investigate them. Early intervention can prevent further damage.
• Avoid Running the Fan on Max Constantly: While modern systems are robust, continuous operation at maximum speed can put more strain on the motor and resistor/regulator over time.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car without a working heater fan?

A: Yes, you can technically drive without a working heater fan, as it doesn't affect the engine's operation. However, it's highly unadvisable, especially in colder weather. Without the fan, you won't be able to effectively demist your windscreen, which is a major safety hazard. You'll also lose the ability to heat or cool the cabin, making for a very uncomfortable journey.

Q2: Is it expensive to fix a faulty blower fan?

A: The cost varies significantly. Replacing a simple blower motor resistor can be relatively inexpensive (£20-£100 for the part, plus labour). A new blower motor itself might range from £50-£250, again plus labour. Labour costs depend on how accessible the component is; some require significant dashboard disassembly, making the job more expensive. Always get a quote from a qualified mechanic.

Q3: How often should I change my cabin air filter?

A: Most manufacturers recommend changing the cabin air filter every 12,000 to 15,000 miles or once a year, whichever comes first. If you drive in particularly dusty or polluted areas, or suffer from allergies, you might consider replacing it more frequently, perhaps every six months.

Q4: Why does my car's heater fan sometimes make a whistling sound?

A: A whistling sound can often indicate a small obstruction in the airflow path, such as a leaf caught in the fan impeller or within the ducts. It could also point to a minor imbalance in the fan or, less commonly, worn bearings just starting to show signs of wear. If the sound persists or worsens, it's worth investigating.

Q5: What's the difference between the blower motor and the heater core?

A: The

blower motor

is an electric motor that spins a fan (impeller) to move air. The

heater core

is a small radiator through which hot engine coolant flows. The blower motor pushes air over the hot heater core to warm it, and then distributes that warm air into the cabin. They are separate components with distinct functions but work together to provide heat.

Conclusion

The car heater fan blower, though often overlooked, is a critical component of your vehicle's comfort and safety systems. From drawing in air to precisely regulating its speed, it works in conjunction with various other parts to ensure you stay warm, cool, and have a clear view of the road ahead. Understanding its operation and common failure points can save you time and money, and empower you to better communicate with your mechanic. Regular maintenance, particularly changing the cabin air filter, is key to keeping this unsung hero performing optimally, ensuring your drives remain comfortable, no matter what the British weather throws your way.
