Your Car's Fuse Box Explained

Ever found yourself staring blankly at a tangle of wires and coloured plastic, wondering what on earth each tiny component does? If a particular electrical gizmo in your car has stopped working, from the humble cigarette lighter to the sophisticated infotainment system, the culprit is often a blown fuse. But how do you know which fuse to check? That's where a fuse box diagram comes into its own. Think of it as the electrical blueprint for your vehicle, a vital tool for any motorist who wants to keep their car's electrics in tip-top condition.

What Exactly is a Fuse Box Diagram?

At its core, a fuse box diagram is a visual representation or a schematic that details the location and function of every fuse and relay within your vehicle's electrical system. Modern cars are sophisticated machines, packed with a myriad of electrical components. These components require a steady and protected flow of electricity. Fuses act as sacrificial devices; they are designed to melt and break the circuit if an electrical overload or short circuit occurs. This prevents damage to more expensive and sensitive electronic components. Relays, on the other hand, are like electrically operated switches that use a low-power signal to control a high-power circuit, often used for things like headlights, starter motors, and electric windows.

The diagram will typically show you:

• The physical location of the fuse box(es) within your vehicle (often one in the engine bay and another inside the cabin).
• The layout of the fuses and relays within the box.
• The amperage rating (the maximum current a fuse can handle before blowing) for each fuse.
• The specific electrical circuit or component that each fuse or relay protects.

Without this diagram, identifying the correct fuse to check or replace can feel like searching for a needle in a haystack. Thankfully, with the right diagram, it becomes a straightforward process.

Why Are Fuse Box Diagrams So Important?

The importance of understanding and having access to your car's fuse box diagram cannot be overstated. Here are a few key reasons:

1. Troubleshooting Electrical Faults

When an electrical component fails, the first and easiest thing to check is the fuse. A blown fuse is often the cause of a non-functioning radio, a dead interior light, or a malfunctioning power window. The diagram allows you to quickly pinpoint the exact fuse responsible for that particular circuit. Instead of pulling out every fuse one by one, which is time-consuming and potentially confusing, you can isolate the problem efficiently. This saves you time, frustration, and potentially the cost of a mechanic's visit for a simple fix.

2. Correct Replacement

Fuses come in various amperage ratings, indicated by different colours and numerical values. Using a fuse with the wrong rating can be dangerous. A fuse with too low an amperage will blow unnecessarily, causing inconvenience. A fuse with too high an amperage, however, will not protect the circuit adequately. If an overload occurs, the wires in the circuit could overheat, melt, and even start a fire before the incorrectly rated fuse blows. The fuse box diagram will clearly state the correct amperage required for each fuse slot, ensuring you use the correct replacement.

3. Understanding Your Vehicle's Electrics

Beyond just fixing problems, a fuse box diagram can offer a deeper insight into how your car's electrical systems are designed. It helps you understand how different components are interconnected and protected. This knowledge can be empowering for car owners, fostering a better understanding and appreciation of their vehicle's complex engineering.

4. Preventative Maintenance

While not a direct preventative measure, knowing your fuse layout can help you be more aware of potential issues. If you're installing a new accessory that draws significant power, understanding the existing circuit and fuse can help you avoid overloading the system. You might even identify opportunities to add new circuits or upgrade existing ones if you're knowledgeable about the system's capacity.

Locating Your Fuse Box(es)

The first step in using a fuse box diagram is to find the fuse box itself. Most vehicles have at least two fuse boxes:

• Interior Fuse Box: This is typically located under the dashboard, on the driver's or passenger's side. Common locations include behind a small panel on the side of the dashboard, under the steering column, or in the glove compartment.

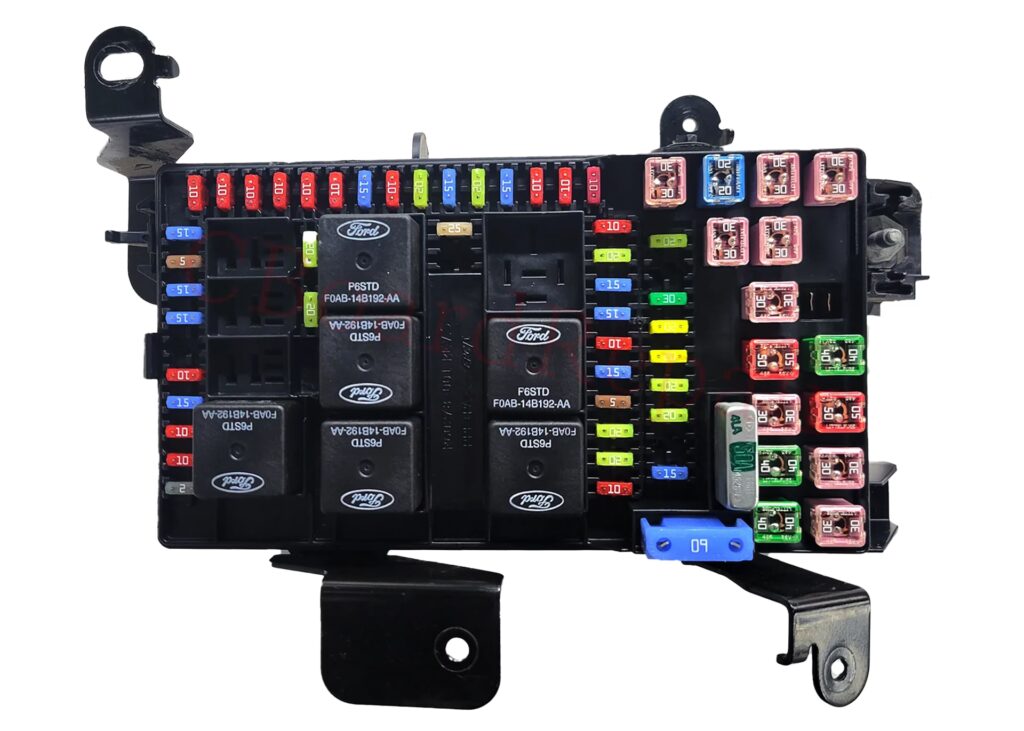

• Engine Bay Fuse Box: This is usually found in the engine compartment, often near the battery or along the firewall. It's typically housed in a black plastic box with a lid.

Consulting your vehicle's owner's manual is the most reliable way to determine the exact location(s) of your fuse box(es). Once found, the lid of the fuse box often has a simplified version of the diagram printed on it, but a more detailed diagram is usually found in the owner's manual or can be sourced online.

Reading and Understanding the Diagram

Fuse box diagrams can look a bit intimidating at first glance, but they follow a logical structure. Here's how to make sense of them:

Layout: The diagram will usually mirror the physical arrangement of the fuses and relays within the fuse box. You'll see rows and columns of symbols representing each component.

Symbols: Each symbol corresponds to a specific type of fuse or relay. Standard automotive fuses (like blade fuses) are often depicted as a rectangular block with a line through it, sometimes with a curved line indicating the filament. Relays are typically shown as a square with multiple pins and internal contacts.

Amperage Ratings: Next to each fuse symbol, you'll find its amperage rating (e.g., 10A, 15A, 20A). This is crucial for correct replacement. The colours of the fuses themselves also correspond to their amperage ratings (e.g., red for 10A, blue for 15A, yellow for 20A), which can be a helpful visual cue.

Circuit Identification: The diagram will also indicate which electrical circuit each fuse or relay controls. This might be written as text (e.g., "Radio," "Headlights," "Wiper Motor") or sometimes using abbreviations.

Common Fuse Types and Their Colours

It's useful to be familiar with the most common types of fuses found in vehicles:

Note: Colours can vary slightly between manufacturers and fuse types. Always check the amperage rating printed on the fuse itself.

How to Replace a Blown Fuse

Replacing a fuse is a relatively simple task, provided you have the correct diagram and a replacement fuse:

1. Identify the Blown Fuse: Use your fuse box diagram to locate the fuse controlling the faulty circuit. Visually inspect the fuse. A blown fuse will have a broken or melted wire filament inside. You can also use a fuse tester or continuity tester for a definitive check.
2. Turn Off the Ignition: Always ensure the vehicle's ignition is turned off before attempting to replace a fuse. This prevents accidental short circuits.
3. Remove the Fuse: Most fuse boxes come with a small plastic fuse puller tool. Use this to grip the fuse and pull it straight out. If you don't have a fuse puller, you can sometimes carefully use a pair of needle-nose pliers, but be gentle to avoid damaging the fuse holder.
4. Insert the New Fuse: Take a new fuse of the correct amperage and insert it firmly into the empty slot. Ensure it's seated properly.
5. Test the Circuit: Turn the ignition back on and test the electrical component that wasn't working. If the new fuse blows immediately, there might be a more serious electrical fault in the system that needs professional diagnosis.

Frequently Asked Questions (FAQs)

Q1: Can I use a fuse with a higher amperage rating if I can't find the correct one?

A: Absolutely not. Using a fuse with a higher amperage rating is dangerous. It will not protect the circuit from overloads, potentially leading to wire damage, melted insulation, or even a fire. Always replace a fuse with one of the exact same amperage rating specified in the diagram.

Q2: What if the new fuse blows immediately after I replace it?

A: This indicates a short circuit or a fault in the electrical system that is causing a continuous overload. The problem is likely not the fuse itself, but the wiring or the component it protects. You should stop replacing fuses and seek professional diagnostic help from a qualified mechanic.

Q3: Where can I find a fuse box diagram for my specific car?

A: The best places to look are:

• Your vehicle's owner's manual.
• The lid of the fuse box itself (often a simplified version).
• Online automotive forums and databases dedicated to your car's make and model.
• Specialist automotive websites that offer vehicle-specific information.

Q4: How do I know if a fuse is blown?

A: A blown fuse typically has a visible break in the metal filament inside. The filament will look melted or snapped. You can also test for continuity with a multimeter or fuse tester. If the filament is intact, the fuse is likely good.

Q5: Can I bypass a fuse?

A: Never bypass a fuse. Fuses are a critical safety feature designed to protect your vehicle's electrical system and occupants. Bypassing a fuse removes this protection and significantly increases the risk of fire or electrical damage.

Conclusion

Understanding your car's fuse box and how to use its diagram is an essential skill for any car owner. It empowers you to troubleshoot common electrical issues, perform simple repairs, and ensure the longevity and safety of your vehicle's electrical systems. So, next time a light goes out or a gadget stops working, don't despair. Consult your fuse box diagram, identify the culprit, and get your car back to its full functionality with confidence.
