Automotive Door Seals Explained

The humble car door seal, often referred to as edge trim with side seals, plays a crucial yet often overlooked role in the everyday functioning and comfort of your vehicle. These unassuming rubber components are the unsung heroes that prevent the ingress of water, dust, and unwanted noise, ensuring a dry and peaceful cabin. But how exactly do these seals achieve their vital task? Let's delve into the intricate workings of automotive door seals and understand the science behind their effectiveness.

The Primary Function: Keeping the Elements Out

At its core, the primary purpose of a car door seal is to create a watertight barrier. When you close your car door, bonnet, or boot, the seal compresses between the moving panel and the fixed bodywork. This compression forms a tight seal that prevents rain, snow, and even high-pressure car washes from seeping into the interior. Without these seals, your car's cabin would be a rather damp and unpleasant place to be, leading to potential issues like mould growth, electrical component damage, and unpleasant odours.

Beyond Water: A Multi-Functional Component

While water ingress prevention is paramount, automotive door seals offer several other significant benefits. They also act as a formidable barrier against dust, dirt, and road debris, contributing to a cleaner cabin. Furthermore, they play a vital role in noise reduction. The soft, compressible material absorbs vibrations and dampens the sound of wind rushing past the edges of doors and windows, leading to a quieter and more refined driving experience. Think of them as acoustic insulation for the edges of your vehicle.

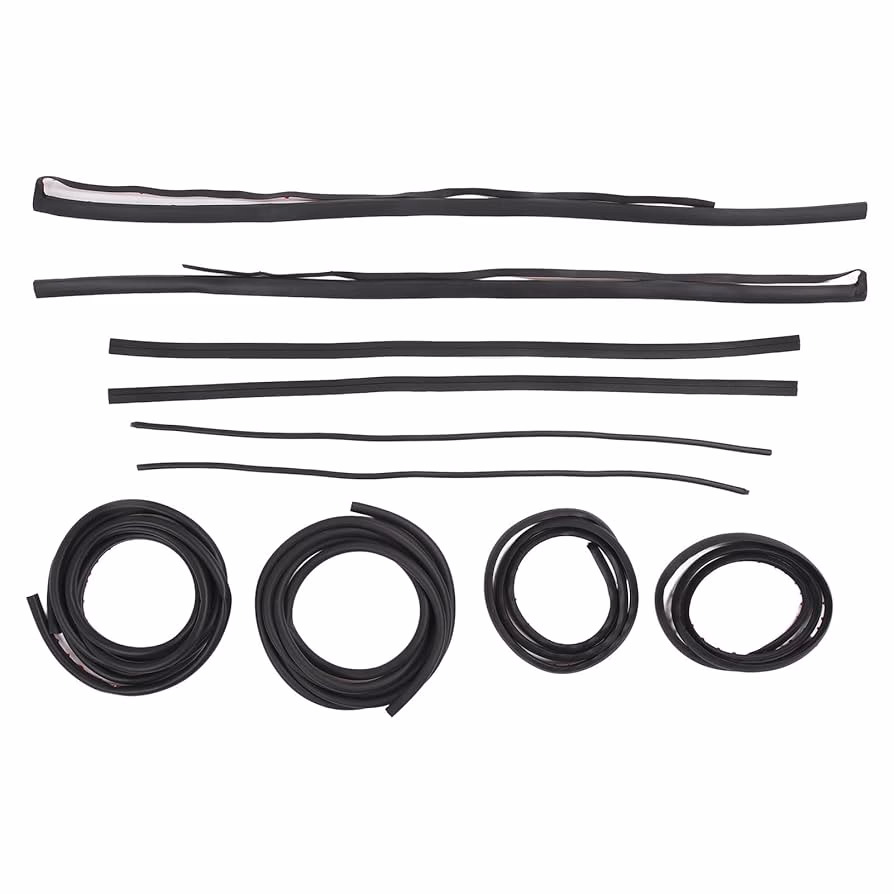

Construction and Materials: The Anatomy of a Seal

Automotive door seals are typically constructed from durable, weather-resistant rubber compounds. The design often incorporates a reinforcing spine, usually made of metal, which provides structural integrity and allows the seal to grip securely onto the edge of the panel. This spine is a critical element, enabling the trim to remain in place without the need for adhesives or mechanical fixings, making installation simpler and more reliable.

The key to the sealing action lies in the strategically placed sealing bulb, often made of a sponge-like cellular rubber. This bulb is positioned on the side of the trim so that when the door or lid is closed, it is compressed against the mating surface. The compressibility of the sponge rubber allows it to deform and fill any minor irregularities or gaps, creating that essential watertight and airtight seal. The location of this bulb means these seals can be effectively used on any application where a door or lid closes against a protruding panel edge, not just doors, but also bonnets and boots.

Types of Door Seals and Their Applications

Door seals come in various profiles and sizes to suit different applications and the specific gaps they need to seal. The thickness of the edge the seal will be fitted onto also dictates the type of seal required.

Common Seal Profiles:

• Edge Trim Seals: These are the most common type, designed to be pushed onto the edge of a panel. They often feature a U-shaped channel with a gripping finger or teeth that hold the seal in place.
• Bulb Seals: These seals have a distinct bulbous section that provides the primary compression for sealing. They are often used where a more substantial seal is required.
• Felt Seals: While less common for primary weather sealing, felt can be used in conjunction with rubber seals for additional dust exclusion and noise dampening.

Material Considerations:

The rubber compounds used for door seals are carefully selected for their resistance to environmental factors such as UV radiation, ozone, and extreme temperatures. This ensures their longevity and consistent performance throughout the vehicle's lifespan. The metal spine is typically made from steel or aluminium, chosen for its corrosion resistance and flexibility.

The Importance of Correct Compression: A Delicate Balance

Achieving an effective seal is not just about fitting the right part; it's also about ensuring the correct level of compression. When fitting a new door seal, it's recommended to aim for approximately 30% compression of the sealing bulb. This might sound counterintuitive, but over-compressing the seal can be detrimental.

Why 30% Compression is Key:

• Prevents Compression Set: If a seal is constantly compressed too much, it can lose its elasticity over time. This phenomenon, known as 'compression set', means the rubber will permanently deform and won't spring back to its original shape. A seal with compression set will no longer effectively seal, allowing water and air to enter.
• Maintains Flexibility: The 30% compression target allows the rubber to remain sufficiently flexible to adapt to minor movements of the door or bodywork, ensuring a consistent seal.
• Optimises Longevity: By avoiding excessive stress on the material, you maximise the lifespan of the door seal.

Installation and Maintenance: Ensuring a Lasting Seal

Proper installation is crucial for the long-term performance of your car door seals. Always ensure the mating edges of the car body and the door are clean and free from debris before fitting the seal. If the seal is difficult to push on, a small amount of silicone lubricant can be used sparingly on the edge of the panel, but avoid getting any on the sealing surface itself, as this can compromise the seal.

Common Installation Pitfalls to Avoid:

• Forcing the Seal: If the seal isn't sliding on easily, check for obstructions or ensure you have the correct profile for your vehicle.
• Overstretching: Avoid stretching the seal excessively as you install it, as this can lead to premature failure.
• Incorrect Alignment: Ensure the seal is fitted squarely and evenly around the entire edge.

Maintenance of door seals is relatively simple. Periodically clean them with mild soap and water to remove dirt and grime. You can also apply a rubber protectant or conditioner to help maintain their flexibility and prevent drying and cracking, especially in harsh climates. Inspect your seals regularly for any signs of wear, cracking, or damage, and replace them as needed to maintain their protective function.

Troubleshooting Common Door Seal Issues

If you notice water leaks, increased wind noise, or difficulty closing your doors, your door seals may be the culprit. Here are some common issues and their potential causes:

Frequently Asked Questions (FAQs)

Q1: How often should I replace my car door seals?
There's no fixed interval, but it's recommended to inspect them annually. Signs of wear, such as cracking, hardening, or poor sealing performance, indicate it's time for replacement.

Q2: Can I use any rubber trim as a door seal?
No, it's crucial to use seals specifically designed for automotive applications. These are made from materials that can withstand the harsh environmental conditions and dynamic stresses experienced by vehicles.

Q3: My door seal feels very stiff. What can I do?
If the seal is old and stiff, it may have lost its elasticity. Applying a rubber protectant can sometimes help, but if it's severely degraded, replacement is the best course of action.

Q4: Can I repair a small tear in my door seal?
For very minor tears, a strong, flexible adhesive designed for rubber might offer a temporary fix. However, for optimal performance and longevity, replacing the damaged section or the entire seal is usually recommended.

In conclusion, the seemingly simple car door seal is a sophisticated component vital for maintaining the comfort, integrity, and value of your vehicle. Understanding its construction, function, and the importance of correct installation and maintenance will help you ensure your car remains protected from the elements for years to come.
