Clock Spring Woes: Symptoms & Fixes

The Unsung Hero of Your Steering Wheel: Understanding the Clock Spring

Ever wondered how your steering wheel controls, like the horn and airbag, manage to stay connected no matter how much you turn the wheel? The answer lies in a small but crucial component known as the clock spring, also often referred to as a cable reel. This ingenious device acts as a sophisticated electrical connector, bridging the gap between the stationary wiring of your car's steering column and the rotating components housed within the steering wheel itself. Without a functioning clock spring, a significant portion of your steering wheel's electrical functionality would cease to operate, presenting not only an inconvenience but also a serious safety concern. This article will delve into the intricacies of the clock spring, its common failure points, the tell-tale symptoms of a faulty unit, and what you can expect regarding diagnosis and replacement.

Where is the Clock Spring Hiding?

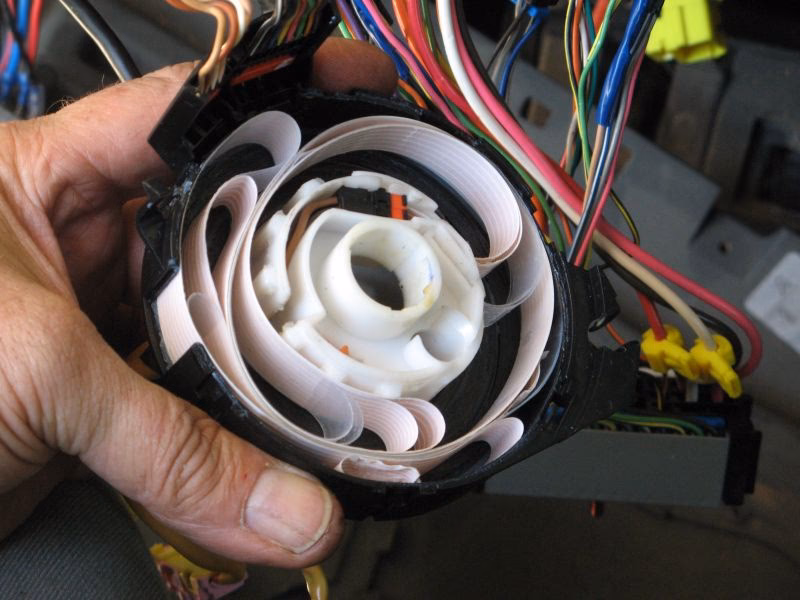

The clock spring is discreetly located within the steering column, directly behind the steering wheel. To gain access to this component, the steering wheel and the driver's airbag module must be carefully removed. Imagine a compact, housing unit containing a flat, multi-wire ribbon cable. This ribbon cable is designed to wind and unwind within its casing as you turn the steering wheel left or right, much like the spring in a traditional wind-up clock. One end of the cable connects to the main wiring harness of the steering column, while the other end plugs into the steering wheel's circuitry, ensuring a constant electrical connection.

What Does the Clock Spring Actually Do?

The primary function of the clock spring is to facilitate a stable electrical connection for all the components mounted on the steering wheel, regardless of its position or how many times it has been turned. This includes vital safety features such as the driver's airbag and the horn, as well as other convenience features like cruise control buttons, audio controls, and even paddle shifters in some vehicles. The ribbon cable within the clock spring is specifically engineered to withstand thousands of rotations without breaking or losing continuity. It's a testament to precision engineering, ensuring that the flow of electrical signals remains uninterrupted, even during vigorous steering.

When Things Go Wrong: Symptoms of a Bad Clock Spring

Over time and with continuous use, the delicate wires within the clock spring can become worn, stretched, or even break. This degradation can lead to a variety of issues, often manifesting as intermittent or complete failure of the steering wheel's electrical functions. Here are the most common symptoms that indicate a problem with your car's clock spring:

• Horn Malfunction: This is perhaps the most frequently reported symptom. Your horn might stop working altogether, or it may only work when the steering wheel is turned to a specific position, or it might sound erratically as you turn.
• Airbag Warning Light: The illuminated airbag warning light on your dashboard is a critical indicator. Since the clock spring is integral to the airbag system's deployment circuit, a fault here will trigger this safety warning. This is a serious issue that requires immediate attention.
• Other Steering Wheel Controls Failing: Beyond the horn and airbag, other buttons on your steering wheel may also cease to function. This could include cruise control buttons, audio system controls, or paddle shifters. The failure might be sudden or gradual, affecting one or multiple controls.
• Intermittent Operation: You might notice that certain controls work one moment and then stop the next, especially when turning the steering wheel. This flickering functionality is a classic sign of a worn or damaged connection within the clock spring.

What Happens If a Clock Spring is Removed?

Removing a clock spring from a car essentially severs the electrical link between the steering column and the steering wheel. If a clock spring were to be intentionally removed and not replaced, the horn, airbag, and any other steering wheel-mounted electrical controls would cease to function. The airbag warning light would almost certainly illuminate due to the open circuit. While it's possible to test a removed clock spring for continuity using an ohmmeter, it's crucial to understand that a car driven without a functioning clock spring is unsafe. The potential failure of the airbag system in the event of a collision is a significant risk.

How Do Mechanics Diagnose a Faulty Clock Spring?

Diagnosing a faulty clock spring typically involves a systematic approach, combining electronic diagnostics with physical inspection. Mechanics will usually start by:

1. Scanning for Diagnostic Trouble Codes (DTCs): When the airbag warning light is illuminated, the car's onboard diagnostic system will likely have stored a fault code in the Supplemental Restraint System (SRS) module. A professional scan tool can retrieve these codes.
2. Consulting the Service Manual: The retrieved DTC will guide the mechanic to a specific diagnostic procedure outlined in the vehicle's factory service manual. This manual provides detailed steps for pinpointing the exact cause of the fault.
3. Testing for Continuity: If the horn or other controls are not working, the mechanic may perform continuity tests on the relevant circuits. If the clock spring is suspected, it can be removed and tested with an ohmmeter to check for breaks in the wires or short circuits between them.

Important Note: Given the involvement of the airbag system, it is highly recommended to entrust the diagnosis and repair of a suspected faulty clock spring to qualified professionals. Improper handling of the airbag system can lead to accidental deployment, causing injury.

The Cost of Replacing a Clock Spring

The cost to replace a clock spring can vary depending on the make and model of your vehicle, the quality of the replacement part, and the labour rates in your area. Generally:

• Part Cost: The clock spring itself can range from approximately £50 to £350, with aftermarket parts often being more affordable than genuine manufacturer parts.
• Labour Cost: Replacing a clock spring typically requires 1.5 to 2 hours of labour. While the task itself isn't overly complex mechanically, it demands a high degree of precision, especially when dealing with the airbag system.

Considering the safety-critical nature of the component, especially its connection to the airbag, it is prudent to have this work carried out by a reputable garage or dealership.

A Simplified Guide to Clock Spring Replacement (For Informational Purposes Only)

Disclaimer: This guide is for informational purposes only and should not be attempted without the necessary training, tools, and safety precautions, especially concerning the airbag system. If you are not a qualified mechanic, we strongly advise against performing this repair yourself.

Should you be involved in the process, here is a simplified overview:

1. Safety First: Ensure the vehicle has been stationary for at least 20-30 minutes to allow any residual electrical charge in the airbag system to dissipate.
2. Disconnect Battery: Always disconnect the negative battery terminal before beginning any work on the airbag system.
3. Remove Airbag Module: Carefully follow the manufacturer's procedure to remove the driver's airbag module from the steering wheel. This usually involves releasing retaining clips from behind the steering wheel.
4. Store Airbag Safely: Once removed, place the airbag module on a workbench or in a safe location with the airbag side facing upwards. Never place it face down.
5. Remove Steering Wheel: Disconnect the airbag wiring connector and any other electrical connectors attached to the steering wheel. Then, unbolt the steering wheel retaining nut and remove the steering wheel itself.
6. Access Clock Spring: The clock spring unit will now be visible. It is typically held in place by screws or clips.
7. Remove Old Clock Spring: Disconnect the electrical connectors going to the clock spring. Remove the retaining screws or clips and carefully lift the old clock spring unit out.
8. Install New Clock Spring: Ensure the new clock spring is in the neutral position (often indicated by markings on the unit). Align it correctly and secure it with its retaining screws or clips.
9. Reconnect and Reassemble: Reconnect all electrical connectors to the new clock spring. Reinstall the steering wheel, ensuring it is correctly aligned. Reinstall the airbag module, reconnecting its wiring.
10. Reconnect Battery: Reconnect the negative battery terminal.
11. Test Functionality: Start the engine and check if the airbag warning light has gone out. Test the horn and all other steering wheel controls to ensure they are functioning correctly.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car with a faulty clock spring?

A: While your car might still be drivable, it is strongly advised against it. A faulty clock spring means your driver's airbag may not deploy in an accident, significantly increasing the risk of serious injury. Additionally, critical controls like the horn may not work, which is also a safety hazard.

Q2: Is it possible to bypass the clock spring?

A: No, there is no safe or effective way to bypass the clock spring. It is an integral part of the vehicle's safety systems and steering wheel controls. Attempting to bypass it would compromise these systems and is extremely dangerous.

Q3: How long does a clock spring typically last?

A: The lifespan of a clock spring can vary greatly depending on the quality of the part, driving habits, and the overall quality of the steering column components. Some can last for many years and hundreds of thousands of miles, while others may fail much sooner, especially if subjected to excessive steering wheel movement or stress.

Q4: Does the airbag warning light always mean the clock spring is bad?

A: Not necessarily. The airbag warning light can be triggered by various faults within the airbag system, including faulty airbag sensors, seatbelt pre-tensioners, or issues with the airbag control module itself. However, a faulty clock spring is a very common cause, especially when accompanied by steering wheel control malfunctions.

Q5: Can I replace the clock spring myself?

A: While it is technically possible for a DIYer with good mechanical skills and the right tools, it is generally not recommended. The airbag system is a safety-critical component, and mishandling it can lead to serious injury or even death. If you are not experienced with airbag systems, it is best left to the professionals.

Conclusion

The clock spring, though a small component, plays a vital role in the functionality and safety of your vehicle's steering wheel. Recognizing the symptoms of a failing clock spring and addressing them promptly is crucial for maintaining the integrity of your airbag system and the convenience of your steering wheel controls. When in doubt, always consult a qualified mechanic to ensure the job is done safely and correctly.
