Understanding the various types of car charger sockets can be a bit of a labyrinth, especially with the rise of electric vehicles. What exactly does a car charger plug into? The answer isn't always straightforward, as it depends on whether you're talking about charging a small electronic device within your car or charging the car's main battery itself. This guide will clarify the distinctions, delve into the specifics of home EV charging solutions, and offer troubleshooting tips for common issues you might encounter.
For those looking to power their mobile phone or satellite navigation system, the familiar in-car auxiliary power outlet (often still referred to as a cigarette lighter socket) is the go-to. However, if you're an electric vehicle (EV) owner, like Chris, planning to charge your vehicle at home, the situation is entirely different, involving your domestic mains electricity supply. We'll address both scenarios to provide a comprehensive understanding.
Understanding Domestic Sockets for EV Charging
When it comes to charging an electric vehicle at home, particularly as an interim solution, many EV owners consider using a standard domestic 3-pin socket, often referred to as a 'granny charger' or Mode 2 charging cable. This cable typically comes with the vehicle and has a standard UK BS 1363 plug on one end and a Type 2 connector (or sometimes a Type 1 for older EVs) that plugs into the car's charging port on the other. It usually incorporates an In-Cable Control Box (ICCB) which manages the charging process and provides essential safety features.
The 13A Domestic Socket for EV Charging: Chris's Scenario
Chris's plan to use a 13A domestic socket for charging an i3 is a common temporary solution. The i3, like many EVs, can draw around 10-13 Amps when charging via a standard 3-pin plug. This is close to the maximum continuous current a standard 13A socket and its associated wiring are designed to handle. While permissible for occasional use, prolonged and continuous charging at this high load can introduce several considerations.
Chris's proposal to run a 2.5mm armoured cable from a house socket to a garage, via an outdoor socket with an RCD, is a thoughtful approach to safety and cable protection. A 2.5mm² cable is indeed suitable for a 13A continuous load over a distance of 20-30m, assuming it's properly installed and protected. However, the critical points of concern are the RCDs:
RCD Tripping Concerns: What to Expect
- Outdoor Socket Set RCD: The 13A RCD attached to the outdoor socket set is designed to trip if it detects an imbalance in current (a leak to earth), indicating a fault. EV charging, especially over long periods, can sometimes cause nuisance tripping on sensitive RCDs, even without a 'fault'. This can be due to small leakage currents that are within acceptable limits for the car's electronics but might aggregate with other household appliances or simply be at the threshold of the RCD's sensitivity. If the RCD is a 30mA trip current type, which is standard for personal protection, it is quite sensitive.
- Consumer Unit RCD: Chris's older 'fuse wire' consumer unit, now fitted with circuit breakers, likely has an RCD protecting multiple circuits. If the house socket chosen is on a circuit protected by this RCD, it could also trip. Older RCDs or those protecting circuits with many other appliances (especially older ones) can be more prone to nuisance tripping when a high, continuous load like an EV charger is introduced. The cumulative leakage currents from other devices on the same RCD-protected circuit can add up, pushing the total leakage current past the RCD's trip threshold.
It's vital to remember that domestic sockets are primarily designed for intermittent use by appliances, not for continuous, multi-hour, high-power draws like EV charging. While a 13A draw is within the socket's rating, sustained operation at or near this limit can generate heat, potentially leading to premature wear of the socket and plug, or in rare cases, overheating if the wiring or connections are not robust. The fact that the house socket might be a spur also adds a layer of concern; spurs are typically designed for single, low-power appliances, not high-demand continuous loads.
For these reasons, while technically feasible as a temporary measure, it's highly recommended to consult a qualified electrician for any long-term or regular EV charging solution. They can assess your existing electrical infrastructure, ensure proper cable sizing and protection, and advise on dedicated EV charging points. A dedicated circuit for EV charging is always the safest and most efficient option, eliminating concerns about shared loads and RCD tripping.
Comparison: Domestic Socket vs. Dedicated EV Charger
| Feature | Domestic 3-Pin Socket (Mode 2) | Dedicated EV Charger (Mode 3) |
|---|---|---|
| Typical Power Output | Up to 2.3 kW (10A max continuous) | 7 kW (single-phase), 22 kW (three-phase) |
| Charging Speed | Slow (10-15 miles range per hour) | Fast (25-35+ miles range per hour) |
| Connector Type (Car Side) | Primarily Type 2 (or Type 1) | Primarily Type 2 |
| Safety & Regulation | Basic RCD protection via ICCB, not ideal for continuous high loads. | Built-in advanced safety features, designed for continuous high loads, adheres to strict safety regulations. |
| Installation | Plug-and-play, but wiring integrity is crucial for safety. | Professional installation required, often includes grants. |
The Universal Auxiliary Power Outlet (Cigarette Lighter Socket)
Separate from EV charging, the most common 'car charger port' people refer to is the 12-volt auxiliary power outlet found in almost all vehicles. Historically, this port was indeed for an electric cigarette lighter. However, its function has evolved significantly. Today, it serves as a universal DC connector designed to supply electrical power to a variety of portable accessories.
These ports typically provide 12V DC power, and car chargers for devices like mobile phones, tablets, or GPS units plug directly into them. They are incredibly useful for long journeys where access to mains outlets is impossible. Modern cars often feature multiple auxiliary outlets, and some even come with dedicated USB ports that offer more efficient charging for smaller electronics.

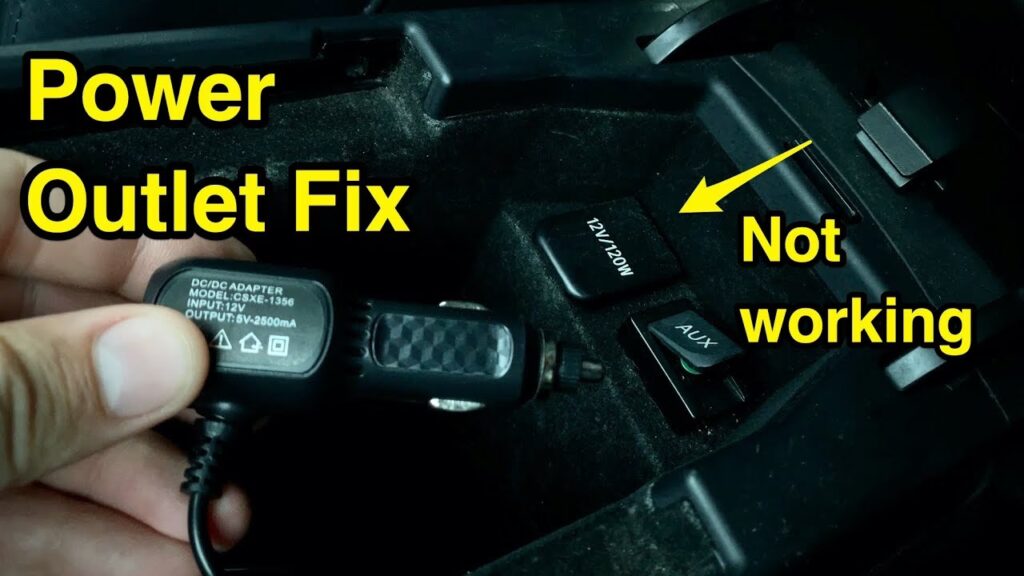

Why Isn't My Car Charger Port Working? Troubleshooting Tips
If your car's auxiliary power outlet isn't working, preventing your device charger from functioning, the most common culprit is a blown fuse. Cars have dedicated fuses for these outlets to protect the vehicle's electrical system from overloads or short circuits. Here’s how to approach troubleshooting:
1. Check the Fuse
- Locate the Fuse Box: Your car's owner's manual will show you the location of the fuse box(es). Common locations include under the bonnet, under the dashboard, or in the boot.
- Identify the Correct Fuse: The manual will also have a diagram indicating which fuse corresponds to the auxiliary power outlet (sometimes labelled 'Cigar', 'Aux Power', 'Accessory', or a similar abbreviation).
- Inspect the Fuse: Carefully pull out the fuse using a fuse puller (often found in the fuse box lid or tool kit) or small pliers. Hold it up to the light. If the metal wire inside is broken or discoloured, the fuse is blown and needs replacing.
- Test with a Multimeter: For a more definitive check, set a multimeter to continuity mode. Touch the probes to the two metal prongs of the fuse. If it beeps or shows a reading of 0 ohms, the fuse is good. If there's no reading or no beep, it's blown.
- Replace the Fuse: Always replace a blown fuse with one of the exact same amperage rating (e.g., 10A, 15A). Using a fuse with a higher rating can cause serious electrical damage or a fire.
2. Inspect the Charger Itself
Before assuming a car issue, ensure the charger you're using isn't faulty. Try plugging it into another vehicle's working auxiliary port, or test a different charger in your car's port. Often, the charger itself, particularly cheaper models, can fail.
3. Check the Port for Debris or Damage
Sometimes, dirt, dust, or small objects can accumulate inside the auxiliary power outlet, preventing a good connection. With the ignition off, carefully inspect the port and remove any obstructions. Ensure the central pin is not bent or corroded.
4. Vehicle Electrical System Issues
If the fuse is intact and the charger works elsewhere, there might be a deeper electrical issue within your car, such as a broken wire or a faulty relay. In such cases, it's best to consult a professional automotive electrician or mechanic.
Frequently Asked Questions
Q: Can I use an extension cord for EV charging with a 3-pin plug?
A: It is strongly advised against using a standard domestic extension cord for EV charging. Extension cords are not designed for the sustained high current drawn by an EV charger. They can overheat, leading to fire hazards or damage to your vehicle and home electrical system. If you absolutely must extend the reach temporarily, use a heavy-duty, outdoor-rated cable reel that is fully uncoiled to prevent overheating, but this should only ever be a short-term, supervised solution. A qualified electrician would advise against it.
Q: What is the difference between slow, fast, and rapid EV charging?
A: These terms refer to the charging speed and power output:
- Slow Charging (Mode 2): Typically uses a standard domestic 3-pin socket (2.3 kW). It's the slowest, taking 8-12+ hours for a full charge.
- Fast Charging (Mode 3): Uses a dedicated wallbox charger (7 kW single-phase or 22 kW three-phase) with a Type 2 connector. This is the most common home installation, providing a full charge in 3-5 hours for many EVs.
- Rapid Charging (Mode 4): Uses high-power DC chargers (50 kW to 350 kW+) found at public charging stations. These can charge an EV to 80% in 20-60 minutes, depending on the car and charger power. These use different connectors like CCS or CHAdeMO.
Q: Why is my car's 12V auxiliary port not working after I plugged in a new device?
A: It's highly likely the new device drew too much current, causing the dedicated fuse for that port to blow as a protective measure. Always check the fuse first and replace it with one of the correct amperage. Ensure any new devices you plug in are compatible with your car's 12V system and don't exceed its current rating.
Q: Is it safe to charge my EV with a 3-pin plug long-term?
A: While technically possible, it's not recommended as a long-term or primary charging solution. Standard domestic sockets and wiring are not designed for the continuous, high-power draw over many hours that EV charging requires. This can lead to overheating, increased risk of RCD tripping, or even fire. For regular charging, investing in a dedicated wallbox charger installed by a qualified electrician is the safest, most efficient, and most reliable option, often benefiting from government grants.
Conclusion
Whether you're looking to charge your phone on the motorway or power up your electric vehicle overnight, understanding the correct socket and its capabilities is paramount. While the trusty 12V auxiliary power outlet remains indispensable for portable electronics, EV charging demands a far more robust and dedicated solution. For any permanent EV charging setup, or if you have concerns about your existing electrical system's capacity to handle the load, always consult a qualified electrician. Prioritising safety and adhering to proper safety regulations will ensure your car and devices are always powered up reliably and without risk.
