Your Car's AC: A Deep Dive into Cabin Comfort

In the unpredictable climate of the UK, and indeed across the globe, a fully functional car air conditioning system is not merely a luxury but a crucial component for comfort, safety, and driver well-being. Far from being just a simple cooling device, modern automotive climate control is a sophisticated network of technologies designed to maintain optimal cabin temperature, manage humidity, and ensure clear visibility. This comprehensive guide will delve into the intricate workings and key components that make up your vehicle's advanced climate control system, ensuring you understand exactly what keeps your journeys perfectly temperate.

At its core, a car air conditioner operates on the principles of thermodynamics, specifically the refrigeration cycle. This cycle involves a refrigerant fluid changing between liquid and gas states to absorb and release heat. While the fundamental concept remains, the components and technologies employed have evolved significantly, offering greater efficiency, quieter operation, and broader applications across various vehicle types, from compact passenger cars to heavy-duty industrial machinery.

The HVAC Unit: Your Cabin's Climate Command Centre

The HVAC unit (Heating, Ventilation, and Air Conditioning) is effectively the indoor unit of your car's climate control system. It's the part that directly interacts with the cabin air, providing both heating and air conditioning functions. This integrated approach means that whether you need to warm up on a frosty morning or cool down on a sweltering afternoon, the HVAC unit is responsible for delivering the desired air quality and temperature.

Modern HVAC units are engineered with a focus on several key attributes:

• Compact Design: Despite their dual functionality, these units are designed to fit seamlessly into the dashboard area, often occupying minimal space.
• High Performance: They are capable of rapidly changing cabin temperature, ensuring comfort is achieved quickly.
• Durability: Built to withstand the rigours of automotive environments, including vibrations and temperature extremes.
• Lightweight: Contributing to overall vehicle efficiency, lighter components mean less fuel consumption.

The versatility of the HVAC unit extends far beyond just passenger cars. Its robust design and high performance make it widely developed for heavy-duty trucks, construction equipment vehicles, and other specialised machinery, where maintaining a comfortable and safe operator environment is paramount for productivity and well-being.

The Engine of Cool: Compressors Explained

The compressor is arguably the most critical component in any air conditioning system. Its primary role is to compress the refrigerant gas, increasing its pressure and temperature, which is a vital step in the heat exchange process. Historically, and still widely in use, are mechanical compressors, but the advent of electric vehicles has spurred the development of advanced electrical compressors.

Mechanical Compressors: A Legacy of Reliability

Sanden has been at the forefront of producing and constantly developing mechanical compressors for over 50 years. These compressors are renowned for their smooth, quiet operation and the highest level of efficiency achievable through mechanical means. Driven by the vehicle's engine via a belt, they are a tried-and-tested technology that has reliably served millions of vehicles worldwide.

Sanden mechanical compressor products cover a full range of applications, demonstrating their adaptability and robustness:

• Light vehicles (standard passenger cars)
• Heavy-duty trucks
• Construction equipment
• Agricultural equipment

Their widespread use underscores their proven performance and durability in demanding environments.

Electrical Compressors: The Future of Automotive AC

As the automotive industry shifts towards electrification, the need for compressors that operate independently of the internal combustion engine has grown exponentially. The electrical compressor represents a significant leap forward in this regard. These units are powered directly by the vehicle's electrical system, making them ideal for electric vehicles (EVs) and hybrid vehicles, as well as cars with start-stop systems where the engine frequently shuts off.

Key advantages of electrical compressors include:

• Robust and Reliable: Engineered for longevity and consistent performance.
• High Efficiency: Optimised to convert electrical energy into cooling power with minimal waste.
• Wide Operational Range: Capable of delivering consistent performance across various operating conditions.
• Low Weight: Contributes to overall vehicle efficiency and battery range in EVs.
• Low Noise and Vibration: Enhances cabin comfort, particularly noticeable in quiet electric vehicles.
• Very Compact Design: Allows for flexible integration into modern vehicle architectures.

The independence from the engine also means the AC system can operate at full capacity even when the vehicle is stationary or the engine is off, providing continuous comfort.

Comparing Compressor Technologies

Beyond Cooling: Advanced Heating Solutions for Modern Vehicles

While air conditioning often conjures images of cooling, modern climate control systems are equally adept at providing efficient heating. With the rapid growth of electric vehicles, the traditional method of using engine waste heat for cabin heating is no longer viable, leading to innovative alternative solutions.

Electric Coolant Heater: A New Source of Warmth

In the shift to vehicle electrification, there is a growing need for alternative heat sources. The electric coolant heater steps in to fill this void. Instead of relying on a combustion engine's waste heat, this component directly heats the coolant using electricity from the vehicle's battery. This heated coolant then circulates through the HVAC unit to warm the cabin.

Beyond cabin heating, electric coolant heaters also fulfil a new and critical demand: battery heating. Maintaining an optimal temperature for the EV battery is essential for its performance, longevity, and charging efficiency, especially in colder climates.

The Heat Pump System: Energy Saving in Electric Vehicles

Sanden's heat pump system is a particularly efficient solution for both heating and cooling in electric vehicles. Unlike traditional heaters that generate heat, a heat pump works by moving heat from one place to another. In cooling mode, it moves heat out of the cabin; in heating mode, it extracts heat from the outside air (even cold air contains thermal energy) and transfers it into the cabin.

This method of 'moving' heat rather than 'generating' it is significantly more energy-efficient, providing a high contribution to energy saving in electrical vehicles. This efficiency directly translates into extended driving range, a crucial factor for EV owners, by reducing the energy drain on the main battery for climate control.

The Efficiency Booster: The Expander

Often an unsung hero in the climate control system, the expander plays a vital role in maximising efficiency. The light and compact Sanden expander contributes to improving fuel consumption and reducing CO2 emissions up to 4% by waste heat recovery. After the refrigerant has passed through the condenser and cooled down, it needs to expand before entering the evaporator. Traditionally, this is done via an expansion valve, which simply drops the pressure. An expander, however, is a device that not only drops the pressure but also recovers some of the energy from the expanding refrigerant, converting it into useful work. This recovered energy can then be used to assist the compressor or power other auxiliary systems, thereby reducing the overall energy demand of the AC system and, consequently, improving the vehicle's fuel economy and lowering its carbon footprint.

The Complete Refrigerant Cycle: How It All Connects

To truly appreciate the sophistication of your car's climate control, it helps to understand the full refrigerant cycle where all these components work in harmony:

1. Compression: The compressor (mechanical or electrical) draws in low-pressure, low-temperature gaseous refrigerant from the evaporator and compresses it, turning it into a high-pressure, high-temperature gas.
2. Condensation: This hot, high-pressure gas then flows to the condenser, typically located at the front of the car, where it dissipates its heat to the cooler ambient air. As it cools, the refrigerant condenses back into a high-pressure liquid.
3. Expansion: The high-pressure liquid refrigerant then passes through an expansion device (either an expansion valve or, for enhanced efficiency, an expander). This device causes a sudden drop in pressure, which in turn causes the refrigerant to cool significantly and partially convert back into a gas.
4. Evaporation: Finally, the cold, low-pressure liquid-gas mixture enters the evaporator, located within the HVAC unit inside the cabin. As the cabin air blows across the evaporator's coils, the refrigerant absorbs heat from the air, causing it to evaporate fully back into a low-pressure gas. This process cools the air entering the cabin. The now gaseous refrigerant then returns to the compressor to begin the cycle anew.

This continuous cycle, facilitated by the precision engineering of each component, is what allows your vehicle to maintain a consistent and comfortable cabin environment, regardless of the external conditions.

Maintaining Your Car's Climate Control System

To ensure your car's AC system continues to perform optimally, regular maintenance is essential. While modern systems are incredibly durable, they are not entirely maintenance-free. Simple checks and professional servicing can prevent costly repairs and ensure consistent comfort.

• Regular Usage: Even in winter, run your AC system for 10-15 minutes once a week. This helps to circulate the refrigerant, lubricate seals, and prevent mildew build-up.
• Cabin Air Filter: Regularly check and replace your cabin air filter. A clogged filter can restrict airflow, reduce system efficiency, and introduce unpleasant odours.
• Odour Check: If you notice a musty smell, it could indicate bacterial growth in the evaporator. Professional cleaning and anti-bacterial treatments can resolve this.
• Performance Check: If the air isn't as cold as it used to be, or if the system seems to be working harder, it might indicate a low refrigerant level or a leak. This requires professional diagnosis and potentially a 're-gas'.

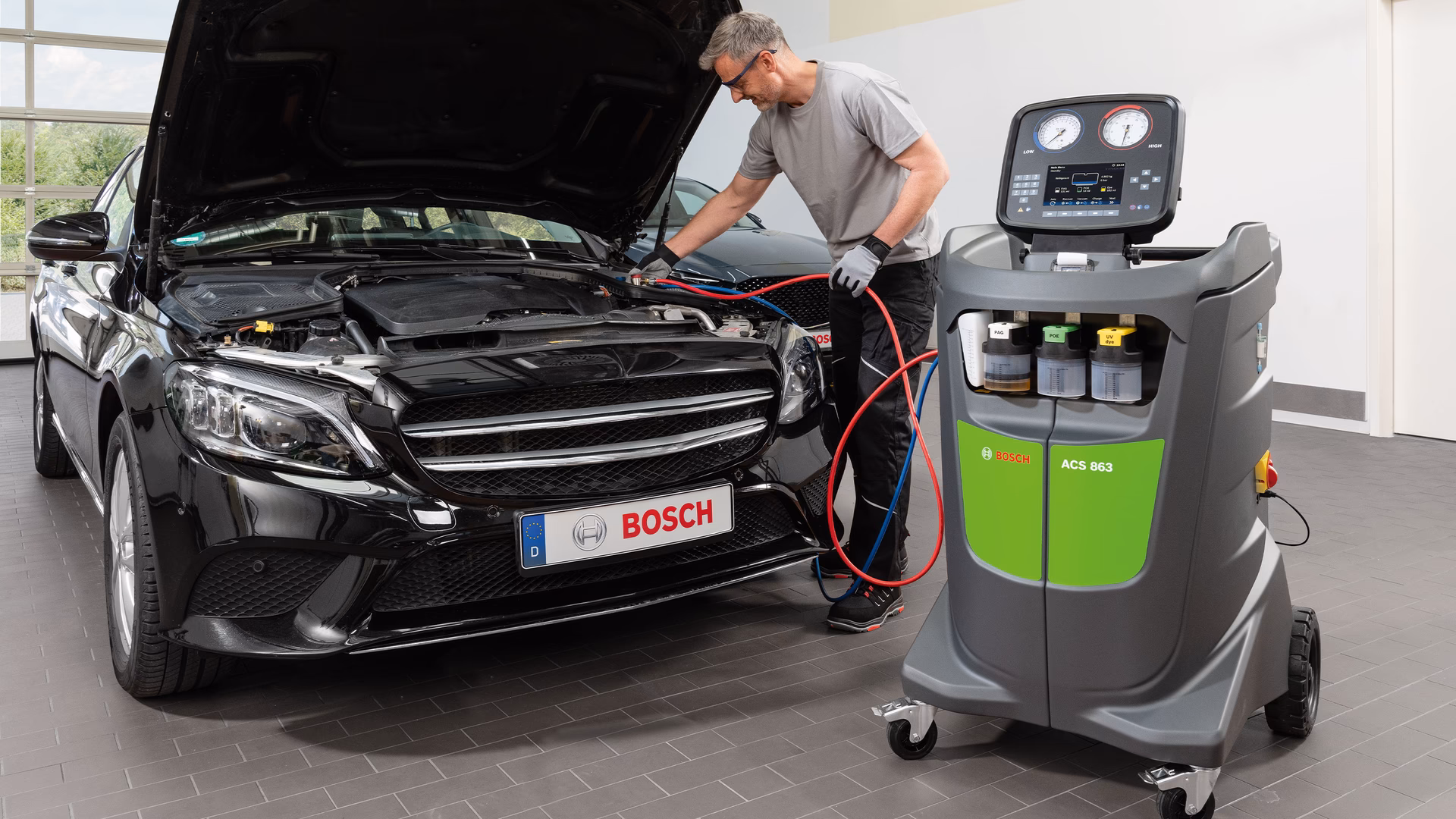

• Professional Servicing: It's advisable to have your AC system professionally checked every one to two years. Technicians can check refrigerant levels, inspect components for wear, and ensure everything is operating efficiently.

Frequently Asked Questions About Car Air Conditioners

How often should I service my car's AC system?

It's generally recommended to have your car's AC system checked every 1-2 years. While refrigerant doesn't 'wear out', small amounts can escape over time, and components can wear. Regular servicing helps maintain efficiency and prevent larger issues.

What are the signs of a failing AC system?

Common signs include reduced cooling performance, unusual noises (clanking, grinding, hissing) when the AC is on, a musty or unpleasant odour from the vents, or visible leaks under the car.

Can I convert my old AC system to a new refrigerant?

While technically possible, converting an older system designed for R134a refrigerant to the newer R1234yf (now standard in many new vehicles) is complex and often not recommended. It requires specific equipment, flushing of the old system, and replacement of certain components, making it quite costly.

Why is my car AC not blowing cold air?

This could be due to several reasons, including low refrigerant levels (often due to a leak), a faulty compressor, a clogged condenser, an electrical issue, or a problem with the expansion valve or evaporator. Professional diagnosis is usually required.

What's the difference between a heat pump and a conventional heater in a car?

A conventional heater in a petrol/diesel car uses the waste heat from the engine. An electric car's electric coolant heater generates heat using electricity. A heat pump, however, is much more efficient as it doesn't generate heat but rather moves existing heat from one place to another (e.g., from outside the car to the cabin), significantly reducing energy consumption, especially in EVs.

Are electric car AC systems different from petrol/diesel car AC systems?

Yes, significantly. While both aim to control cabin temperature, electric cars cannot rely on engine waste heat for heating, leading to the adoption of electric coolant heaters and highly efficient heat pump systems. They also predominantly use electrical compressors, which are quieter and more efficient than engine-driven mechanical compressors, further optimising battery range.

Conclusion

The car air conditioning system, far from being a simple 'cooler', is a testament to sophisticated engineering aimed at maximising comfort and efficiency. From the integrated functionality of the HVAC unit to the quiet power of the electrical compressor, and the energy-saving prowess of the heat pump system and waste heat recovery via the expander, each component plays a vital role. Understanding these elements not only deepens your appreciation for modern automotive technology but also empowers you to better maintain your vehicle, ensuring every journey is as comfortable and pleasant as possible, come rain or shine.
