The Inner Workings of Your Car's AC

Modern vehicles offer a sanctuary from the elements, and perhaps no feature contributes more to our comfort on a sweltering day than the air conditioning system. It's easy to take for granted, simply turning a dial and being met with a refreshing blast of cool air. However, the reality of how your auto air conditioning works is a sophisticated dance of physics and engineering, involving several key components working in harmony. Understanding this process not only demystifies the technology but also highlights the importance of regular maintenance to ensure it continues to function optimally.

The Fundamental Principle: Refrigeration Cycle

At its core, a car's air conditioning system operates on the same principles as a domestic refrigerator: the refrigeration cycle. This cycle relies on the physical properties of a special fluid, known as refrigerant, which can change between a liquid and a gas state. The magic happens during these phase changes. When the refrigerant evaporates (changes from liquid to gas), it absorbs heat from its surroundings. Conversely, when it condenses (changes from gas to liquid), it releases heat. Your car's AC system expertly manipulates these properties to extract heat from the cabin and expel it outside, thereby cooling the interior.

Key Components and Their Roles

To achieve this, several vital components are involved: * Compressor: Often described as the heart of the AC system, the compressor is a pump driven by the car's engine via a belt. Its primary job is to compress the refrigerant vapour, increasing its temperature and pressure. This is where the cycle truly begins. * Condenser: Located at the front of the vehicle, usually in front of the radiator, the condenser is a heat exchanger. The hot, high-pressure refrigerant vapour from the compressor flows into the condenser. As air flows over the condenser's fins (either from the car moving or from a fan), the refrigerant releases its heat to the outside environment, causing it to condense into a high-pressure liquid. * Receiver-Drier (or Accumulator): After leaving the condenser, the high-pressure liquid refrigerant passes through a receiver-drier or an accumulator. This component serves multiple purposes: it acts as a temporary storage tank for the refrigerant, it filters out impurities and moisture from the refrigerant (which can be detrimental to the system), and it helps to regulate the flow of refrigerant into the next stage. * Expansion Valve (or Orifice Tube): This is a crucial component that controls the flow of refrigerant into the evaporator. As the high-pressure liquid refrigerant passes through the expansion valve, its pressure and temperature drop significantly. This process prepares the refrigerant to absorb heat. * Evaporator: Situated inside the passenger cabin, typically behind the dashboard, the evaporator is another heat exchanger. The now cold, low-pressure liquid refrigerant flows into the evaporator. As the cabin's warm air is blown across the evaporator's fins by the blower motor, the refrigerant absorbs the heat from the air. This absorption causes the refrigerant to evaporate, turning back into a low-pressure vapour. The air, having lost its heat to the refrigerant, becomes cool and is then circulated into the cabin. * Blower Motor: This electric motor is responsible for pushing the cooled air through the vents and into the passenger compartment.

The Cycle in Action: A Step-by-Step Breakdown

Let's trace the journey of the refrigerant: 1. Low-Pressure Refrigerant Vapour: The cycle begins with a low-pressure refrigerant vapour in the evaporator. 2. Compressor: This vapour is drawn into the compressor, where it is compressed into a hot, high-pressure vapour. 3. Condenser: The hot vapour travels to the condenser. Here, it releases heat to the outside air and condenses into a high-pressure liquid. 4. Receiver-Drier: The high-pressure liquid refrigerant flows through the receiver-drier, where it is filtered and moisture is removed. 5. Expansion Valve: The refrigerant then passes through the expansion valve, where its pressure and temperature drop dramatically, turning it into a cold, low-pressure liquid. 6. Evaporator: This cold liquid enters the evaporator. As the cabin's warm air is blown over the evaporator's coils, the refrigerant absorbs the heat, causing it to evaporate back into a low-pressure vapour. 7. Return to Compressor: This cool vapour is then drawn back into the compressor, and the cycle repeats.

Why Regular AC Checks Are Essential

Given the complexity of the system and the constant work it performs, it's no surprise that auto air conditioning systems require regular attention. Here's why: * Refrigerant Levels: Over time, small leaks can develop in the system, leading to a gradual loss of refrigerant. Refrigerant is the lifeblood of your AC; without sufficient levels, it simply cannot cool effectively. An annual AC service can check and top up refrigerant levels. It's estimated that a system can lose around 15% of its refrigerant annually, even with minor leaks. * Component Wear and Tear: The compressor, belts, hoses, and seals are all subject to wear and tear from constant use and exposure to the elements. Regular inspections can identify worn components before they fail completely, potentially saving you from more extensive and costly repairs. * Contaminants and Moisture: As mentioned, the receiver-drier filters out moisture and contaminants. If this component becomes saturated or if other parts of the system fail, moisture can enter the system, freeze, and block refrigerant flow, or cause corrosion, leading to significant damage. * Performance Degradation: A poorly performing AC system not only reduces comfort but can also indicate underlying issues. Early detection of problems through routine checks ensures that your system operates at peak efficiency.

Common AC Problems and Their Symptoms

Several issues can arise with your car's AC system: * Weak Cooling: This is often the most noticeable symptom. It could be due to low refrigerant, a clogged evaporator, or a malfunctioning compressor. * Strange Noises: Grinding or squealing sounds might indicate a problem with the compressor clutch or bearings. * Musty Odours: These can be caused by mould or mildew growing in the evaporator core or cabin air filter, often exacerbated by moisture within the system. * AC Not Working at All: This could be due to a blown fuse, a faulty compressor clutch, a significant refrigerant leak, or a complete system failure.

What to Expect During an AC Service

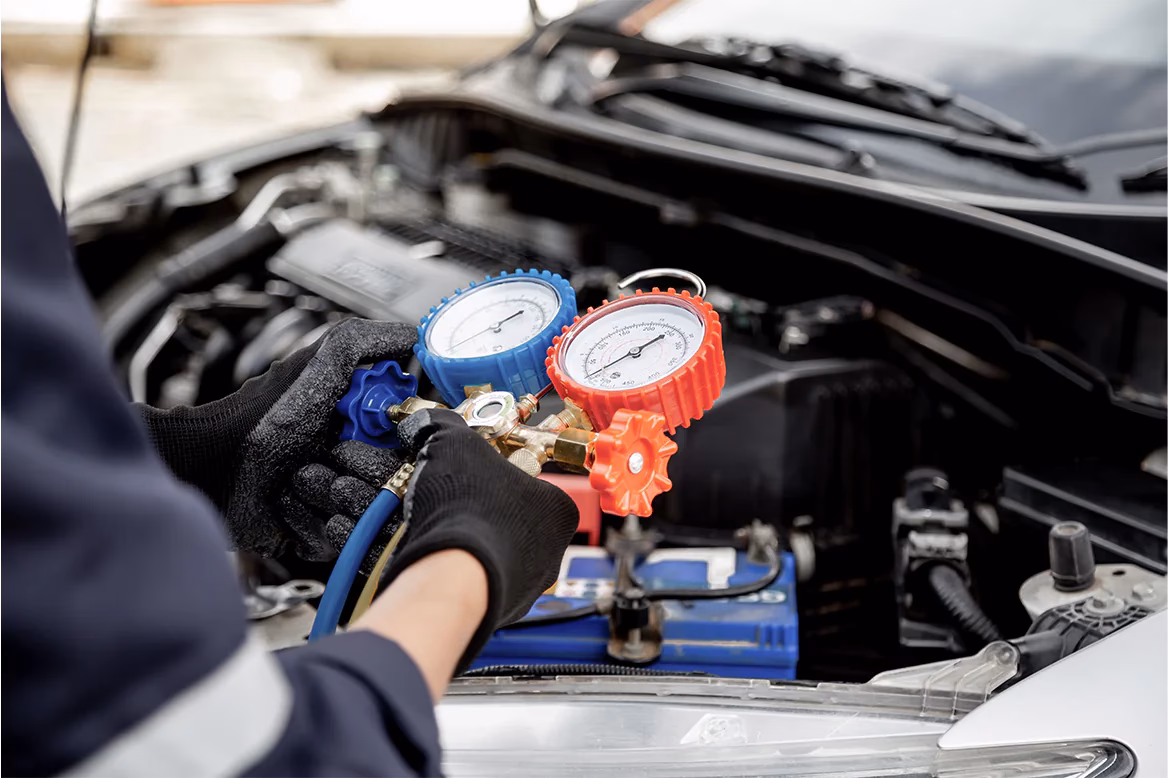

When you take your vehicle in for an AC service, a qualified technician will typically perform several checks: * System Pressure Test: Measuring the high and low-side pressures of the refrigerant to gauge the system's health. * Refrigerant Recharge: If levels are low, the system will be evacuated (any remaining refrigerant safely removed) and then recharged with the correct amount and type of refrigerant. * Leak Detection: Using specialized equipment to find any leaks in the system. * Component Inspection: Visually inspecting the compressor, condenser, belts, hoses, and electrical connections for signs of wear or damage. * Performance Check: Monitoring the system's output temperature to ensure it's cooling effectively.

Frequently Asked Questions

Q1: How often should I get my car's AC checked?A1: It's generally recommended to have your car's air conditioning system inspected annually, especially before the warmer months. This can be done as part of your regular vehicle maintenance schedule. Q2: Why is refrigerant so important?A2: Refrigerant is the substance that absorbs heat from the cabin and releases it outside. Without enough refrigerant, the AC system cannot perform its cooling function. It's a critical ingredient for the refrigeration cycle. Q3: Can I recharge my car's AC myself?A3: While DIY recharge kits are available, it's often best left to professionals. Overcharging or undercharging the system, or introducing air and moisture, can cause significant damage. Technicians have the proper equipment and knowledge to do it correctly. Q4: What's the difference between an AC recharge and an AC repair?A4: An AC recharge specifically refers to adding refrigerant to the system. An AC repair involves diagnosing and fixing the underlying problem that caused the refrigerant loss or system malfunction. Q5: My car's AC blows cold sometimes and not others. What could be the cause?A5: This intermittent cooling can be caused by a few things, including a failing compressor clutch, a clogged expansion valve, or a low refrigerant level that's just enough to cool intermittently. A professional diagnosis is needed. In conclusion, your car's air conditioning system is a complex yet essential part of your driving comfort. By understanding how it works and the importance of regular maintenance, you can ensure it keeps you cool and comfortable on even the hottest days. Don't wait for a breakdown; schedule a proactive AC check to keep your system in prime condition.
