When rust starts to creep into the sills of your cherished vehicle, a common question arises: can a car sill be welded? The straightforward answer is yes, sills can indeed be welded. However, the process is far from simple, especially in the United Kingdom where stringent MOT (Ministry of Transport) regulations govern vehicle roadworthiness. It's not just about patching a hole; it's about restoring the structural integrity of your car to meet specific safety standards.

The sills, often underestimated, play a vital role in your vehicle's safety and structural rigidity. They are integral to the car's monocoque chassis, providing crucial support, protecting against side impacts, and serving as primary jacking points. Neglecting sill rust or carrying out inadequate repairs can lead to serious safety implications and, most certainly, an MOT failure. This guide delves into the specifics of sill welding, focusing on the critical UK MOT requirements and best practices for a durable repair.

What Exactly is a Car Sill?

The sills, or rocker panels as they are sometimes known, are the structural beams running along the bottom edge of your car, between the front and rear wheel arches, directly beneath the doors. They are a fundamental part of the vehicle's body structure, connecting the front and rear chassis sections. Their primary functions include:

• Structural Rigidity: They contribute significantly to the overall stiffness and strength of the car's body, preventing flexing and twisting during driving.
• Crash Protection: In a side-impact collision, healthy sills absorb and distribute impact energy, helping to protect occupants.
• Mounting Points: They often house mounting points for jacking the vehicle, making their strength crucial for safe lifting.
• Support for Doors: They provide the lower support for the door openings, ensuring proper door alignment and operation.

Given these critical roles, any compromise to the sills' integrity, particularly from rust, must be addressed promptly and correctly.

Why Do Car Sills Rust?

Sills are particularly susceptible to rust for several reasons. Their location makes them vulnerable to constant exposure to harsh elements. Common causes include:

• Road Salt and Moisture: In the UK, winter roads are often treated with salt, which, combined with moisture, creates a highly corrosive environment. This salty water splashes up onto the sills, seeping into any chips or crevices.
• Stone Chips and Abrasions: Debris kicked up by tyres can chip away at the protective paint and underseal on the sills, exposing the bare metal to moisture and oxygen.
• Poor Drainage: Sills are often designed with internal cavities that can trap water if drain holes become blocked with dirt, leaves, or debris. This trapped moisture then accelerates internal corrosion.
• Condensation: Temperature fluctuations can lead to condensation forming inside the sill cavities, contributing to internal rust.
• Previous Poor Repairs: If a previous repair was not properly sealed or rust-treated, it can create new points for corrosion to take hold.

Rust often starts from the inside out, making it difficult to detect until significant damage has occurred and perforations become visible from the exterior.

When is Sill Welding Necessary?

Sill welding becomes necessary primarily when rust has caused perforations or significant weakening of the metal. This is most commonly identified during an MOT inspection. An MOT tester will examine the sills for:

• Perforation: Any hole larger than 25mm within 30cm of a prescribed area, or any hole that significantly compromises the structure.
• Excessive Corrosion: Even without a hole, severe rust that significantly weakens the structural integrity will lead to a failure.
• Inadequate Repairs: Patches that are poorly welded, not properly sealed, or do not meet the specific MOT requirements will result in a fail.

If you notice bubbling paint, soft spots when pressed, or visible holes on your sills, it's time to consider an inspection and potential repair. Early detection can save you more extensive and costly repairs down the line.

UK MOT Regulations and Sill Welding: The Crucial Details

This is where sill welding becomes particularly complex, as the provided discussion highlights. The MOT manual is very specific about structural repairs, especially concerning "prescribed areas." Understanding these rules is paramount for a successful and compliant repair.

Prescribed Areas Explained

A "prescribed area" refers to a critical load-bearing part of the vehicle structure that is within 30cm of a specific safety-related component. These components include:

• Suspension mounting points
• Steering mounting points
• Braking system mounting points
• Seatbelt anchorage points
• Body mounts (for body-on-chassis vehicles)

For repairs within these prescribed areas, the MOT manual (specifically Appendix C) states that any patch repair must be applied using a continuous seam weld. This means the new metal must be fully welded all the way around its perimeter, creating a solid, sealed joint. Spot welds, while acceptable where they originally existed (provided the defective panel flange is removed), are generally not permitted for patch repairs in prescribed areas.

The key point, as illuminated by the forum discussion, is that if a patch repair *originates* within a prescribed area, even if it extends *beyond* the 30cm boundary, the entire patch must be continuously seam welded. The logic here is that the repair's integrity is dictated by the most stringent requirement of the area it touches. An inadequate weld on any part of such a patch would compromise the entire repair, and therefore the prescribed area it is meant to support.

Structural Integrity Outside Prescribed Areas

What about structural rust or damage *outside* a prescribed area? The MOT manual refers to Section 6.1.1 for general structural integrity. For a defect in a non-prescribed area to be a reason for rejection (RFG), it must "affect steering and braking." This phrase often causes confusion and debate among testers, as it can be subjective to prove. However, it's generally understood that any significant weakening of the vehicle's structure could indirectly affect these systems by altering the vehicle's geometry or stability. While the "affect steering and braking" clause exists, a responsible repair should aim for structural soundness regardless of its proximity to these specific components.

The critical takeaway from the MOT perspective is that any structural repair, particularly on load-bearing components like sills, must be executed to a high standard. While the specific rejection criteria might differ between prescribed and non-prescribed areas, the underlying principle is always to ensure the vehicle remains safe and structurally sound.

Table: MOT Structural Repair Requirements for Sills

It's vital for anyone undertaking or commissioning sill repair to understand these distinctions. Opting for a quick, cheap repair that doesn't meet the continuous seam weld requirement in a prescribed area is a guaranteed MOT failure and a compromise to safety.

Types of Welding for Sills

For most automotive body and chassis repairs, including sills, the following welding methods are most common:

• MIG (Metal Inert Gas) Welding: This is the most popular method for vehicle body repair. It uses a continuous wire electrode fed through a welding gun, creating an arc that melts the wire and the base metal. It's relatively fast, versatile, and produces strong welds. For sills, MIG welding is ideal for creating the required continuous seam welds.
• Spot Welding: This method is used to join two overlapping pieces of metal at specific points, creating a series of individual spot welds rather than a continuous bead. It replicates how many factory panels are joined. While acceptable for replacing original spot-welded sections (e.g., replacing an entire sill panel designed to be spot-welded), it is generally *not* permitted for patch repairs in MOT prescribed areas where a continuous seam weld is specified.
• TIG (Tungsten Inert Gas) Welding: While TIG produces exceptionally clean and strong welds, it is slower and more difficult to master. It's less commonly used for general sill repairs due to its speed and the requirement for very clean metal, but it can be used for highly precise work.

For the typical sill repair involving patching, MIG welding is the go-to method due to its efficiency and ability to produce strong, continuous seam welds.

The Sill Welding Process: A Step-by-Step Overview

A proper sill repair is a meticulous process that goes beyond simply welding a piece of metal over a hole. Here's a general outline of the steps involved:

1. Inspection and Assessment

The first step is a thorough inspection to determine the full extent of the rust. Often, visible rust is just the tip of the iceberg. The area around the visible damage must be carefully examined, often requiring the removal of trim, carpets, or even cutting away sections of the outer sill to expose the inner structure. Identifying any prescribed areas affected is crucial at this stage.

2. Preparation of the Area

Once the full extent of the damage is known, all rusted metal must be completely removed. This involves cutting out the affected sections using an angle grinder or plasma cutter. The surrounding healthy metal must be ground back to bare, clean metal to ensure good weld penetration and prevent further rust. This is a critical step; leaving any rust behind will compromise the repair.

3. Fabricating/Fitting New Metal

New metal patches or repair sections are then fabricated or purchased. These must match the original panel's contour and thickness. For structural repairs, using metal of the same or greater thickness is important. The new panel is then carefully shaped and fitted, ensuring a tight gap for welding. Sometimes, inner sill sections may also need to be replaced if they are severely corroded.

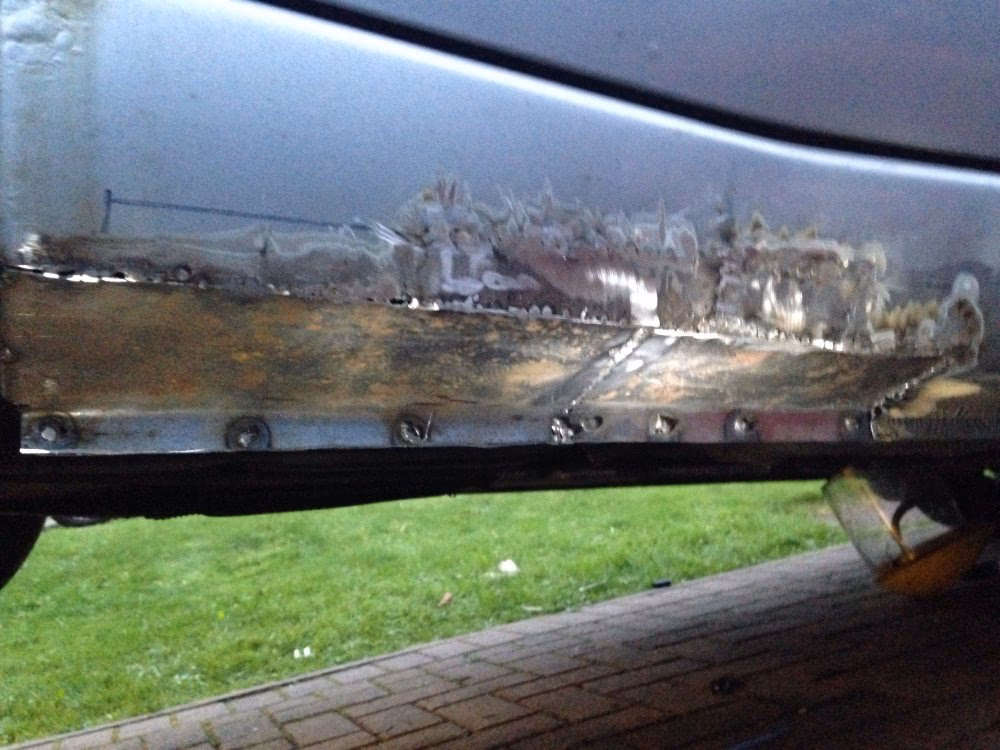

4. Welding the New Panel

With the new metal in place, the welding process begins. For patch repairs, especially in prescribed areas, a continuous seam weld is applied around the entire perimeter of the new panel. This requires a steady hand and proper weld settings to achieve good penetration without burning through the metal. Care must be taken to prevent excessive heat build-up, which can warp panels. Small, controlled welds (stitch welding) are often used, allowing the metal to cool between passes, gradually building up the continuous seam.

5. Grinding and Finishing

Once the welding is complete, the welds are carefully ground down to create a smooth, flush surface. This not only improves the aesthetics but also removes any sharp edges and prepares the surface for protective coatings. Care must be taken not to grind too aggressively, which can weaken the weld or create thin spots.

6. Rust Prevention and Sealing

This is arguably one of the most important steps for the longevity of the repair. The newly welded area must be thoroughly cleaned, degreased, and then treated with rust-inhibiting primers. Following this, a durable automotive paint system is applied, often topped with a stone chip protection coating. Crucially, the internal cavities of the sill must be treated with cavity wax or rust inhibitor, applied through access holes, to protect against future internal corrosion. All seams and joins should be sealed with seam sealer to prevent water ingress.

DIY vs. Professional Repair

While some mechanically inclined individuals might consider DIY sill welding, it's generally recommended to entrust such repairs to a professional body shop or a welder experienced in automotive structural work. Here's why:

• Specialised Skills and Equipment: Proper welding requires specific skills, including metal preparation, welding technique, and an understanding of distortion control. Professional welders have the right equipment (MIG welders, plasma cutters, body tools) and the expertise to use them safely and effectively.
• MOT Compliance: Professionals are well-versed in the intricate MOT regulations regarding structural repairs, especially those concerning prescribed areas and continuous seam welds. They know what it takes to get the repair passed.
• Safety: Welding involves significant hazards, including electric shock, fire, harmful fumes, and intense UV radiation. Professionals have the necessary personal protective equipment (PPE) and safety protocols.
• Structural Integrity: A poorly executed weld can be weaker than the original metal, compromising the vehicle's structural integrity and crashworthiness. A professional ensures the repair restores the original strength.
• Longevity: Proper rust treatment and sealing, as performed by professionals, significantly extends the life of the repair, preventing rust from returning quickly.

Attempting a DIY repair without adequate experience, knowledge, and equipment can be dangerous, costly in the long run, and will almost certainly result in an MOT failure.

Common Pitfalls and Mistakes in Sill Welding

Even for experienced welders, sill repairs can present challenges. Common mistakes that lead to an inadequate repair and potential MOT failure include:

• Insufficient Rust Removal: Welding over existing rust is a recipe for disaster. The weld will not penetrate properly, leading to a weak, porous joint that will quickly fail and allow rust to return.
• Poor Weld Penetration: If the weld does not fully fuse with both pieces of metal, it will be weak and brittle. This often happens with incorrect welder settings or poor technique.
• Ignoring Prescribed Area Rules: Failing to apply a continuous seam weld in a prescribed area, opting for spot welds instead, is a common reason for MOT failure.
• Using Incorrect Metal Thickness: Replacing corroded metal with thinner material compromises the structural strength of the sill.
• Lack of Internal Rust Treatment: Failing to apply cavity wax or rust inhibitor inside the sill after welding means rust will likely return from the inside out within a short period.
• Inadequate Sealing and Painting: Leaving unsealed seams or poorly painted surfaces exposes the repair to moisture, leading to rapid re-corrosion.
• Over-Grinding Welds: Grinding the welds excessively can thin the metal and weaken the repair.

Avoiding these pitfalls requires a meticulous approach, attention to detail, and adherence to best practices in automotive body repair.

Frequently Asked Questions About Sill Welding

How long does sill welding take?

The time required for sill welding varies greatly depending on the extent of the rust, whether it's just the outer sill or if the inner structure is also affected, and the skill of the welder. A straightforward patch on one sill might take a few hours, while extensive rust requiring multiple patches or inner sill repair on both sides could take several days. Preparation is often the most time-consuming part.

Is sill welding expensive?

Costs vary depending on the labour rates in your area, the extent of the damage, and the complexity of the repair. Generally, you can expect to pay anywhere from a few hundred pounds for a small, straightforward patch to over a thousand pounds for extensive sill repairs involving multiple sections and significant fabrication. Always get a detailed quote before proceeding.

Can I use body filler over welded sills?

Yes, body filler (e.g., Bondo, P38) can be used over properly welded sills to smooth out the surface and achieve a factory-like finish. However, filler should only be used for cosmetic purposes to smooth the weld area, not to bridge gaps or provide structural strength. The underlying weld must be solid and complete before any filler is applied.

What happens if I don't repair rusty sills?

Ignoring rusty sills can have severe consequences. Firstly, your vehicle will fail its MOT, making it illegal to drive. Secondly, the rust will continue to spread, weakening the vehicle's structural integrity, compromising its safety in an accident, and potentially leading to more expensive repairs or even rendering the car uneconomical to repair. It can also affect the alignment of doors and other body panels.

How can I prevent sill rust?

Prevention is always better than cure. To minimise sill rust:

• Regularly wash your car, especially the sills and wheel arches, to remove road salt and dirt.
• Ensure sill drain holes are clear of debris.
• Inspect your sills periodically for stone chips or early signs of bubbling paint, and address them promptly.
• Consider applying additional underseal or rust preventative coatings, especially if you live in an area with harsh winters.
• For older vehicles, consider professional rustproofing treatments that include cavity wax injection.

Conclusion

The answer to "can a sill be welded?" is a resounding yes, but with significant caveats. Proper sill welding is a skilled craft, particularly when adhering to the stringent UK MOT regulations. It requires not only proficient welding techniques but also a deep understanding of structural integrity, rust prevention, and the specific requirements for prescribed areas. While it can be a costly repair, it is an essential one for maintaining your vehicle's safety, structural soundness, and legality on the road. Entrusting this work to experienced professionals will ensure a compliant, durable, and safe repair that stands the test of time, keeping your vehicle on the road and passing its MOT with confidence.
