Duratec Engine Rebuild: A Comprehensive Guide

Embarking on an engine rebuild can seem like a daunting task, especially when faced with conflicting information. The Ford Duratec engine, particularly the 2.0L N4JB found in vehicles like the Fiesta ST150, is a popular choice for performance enthusiasts. However, a common misconception, often cited in manuals, is that the Duratec bottom end has 'no serviceable parts' and must be replaced entirely. This article aims to debunk that myth by detailing a comprehensive rebuild process, highlighting which components are indeed serviceable and how to approach their reconditioning.

Understanding the Duratec Bottom End

The term 'bottom end' typically refers to the engine block, crankshaft, connecting rods, pistons, and the main bearing girdle. The Ford Duratec, while a robust engine, does possess components within its bottom end that can be meticulously reconditioned, offering a cost-effective alternative to complete replacement. This guide will walk through the key stages of such a rebuild, using the N4JB engine as a prime example.

Cylinder Head Reconditioning

The cylinder head is a critical component, and its reconditioning involves several key steps. For the N4JB, we're dealing with the 'hi-port' head, known for its improved airflow characteristics. The process begins with a thorough strip-down and cleaning. Using a potent paint stripper like Nitromors is highly effective for removing stubborn carbon build-up, often preferred over abrasive wire brushing for intricate areas. However, for the valve heads themselves, where high temperatures have baked on carbon, a degree of abrasion is necessary. This can be achieved using a pillar drill with oil and emery cloth, taking care not to damage the valve stem where it interfaces with the valve guide.

The laborious yet essential task of lapping in the 16 valves follows. A valve lapper drill attachment significantly eases this process. Inlet valves typically require less attention, often a quick pass with coarse grit paste followed by fine. Exhaust valves, however, demand more time with coarse paste, followed by multiple passes with fine paste to achieve a perfect seal. The satisfaction of seeing all valves perfectly seated is a reward in itself.

Next, new valve stem oil seals are fitted – green for inlets and black for exhausts. The valves are then carefully reinstalled using a trusty valve spring compressor. With the valves in place, the buckets and camshafts are fitted for a trial run to establish valve clearances. This involves tightening the camshaft caps in sequence and stages to the manufacturer's specified torque. Measuring and recording valve clearances requires significant patience and a systematic approach, often aided by a whiteboard to keep track of the numerous measurements. After the initial measurement, the camshafts are removed again. Each bucket is meticulously measured, its size recorded, and compared against the initial clearance readings. Mathematical adjustments, along with the sourcing of appropriate new or shimmed buckets (Cosworth buckets can offer better value than Ford), are then made to ensure all clearances fall within the required tolerances. Once these adjustments are confirmed, the assembly is repeated, and clearances are double-checked.

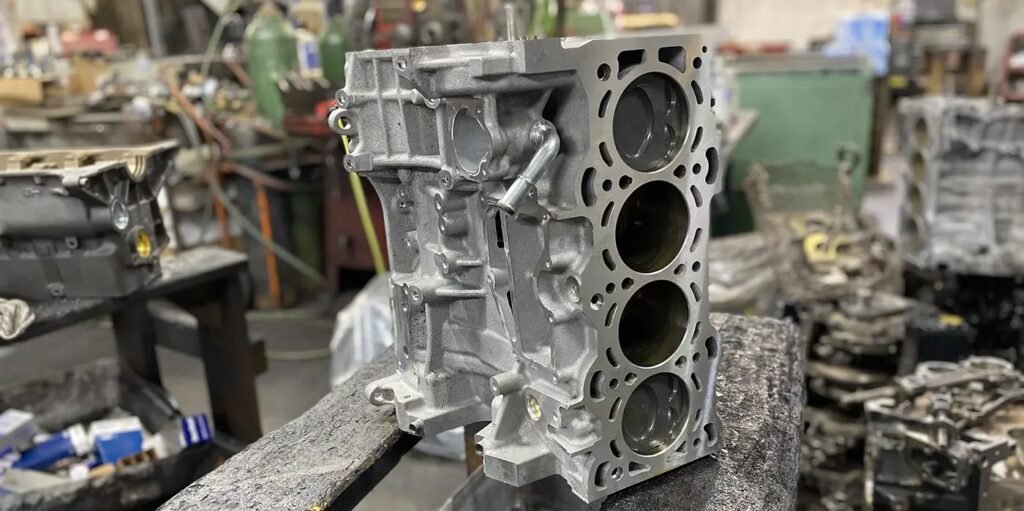

Engine Block and Crankshaft Preparation

The engine block, crankshaft, pistons, and flywheel assembly are typically sent to a professional machine shop for cleaning, de-glazing of cylinders, and balancing. In the case of an accident-damaged block where a drive shaft mount boss was torn off, specialist aluminium welding can be employed to repair the damage, followed by rigorous checking by the machine shop to ensure structural integrity.

Upon return from the machine shop, the block, now clean and with cylinders de-glazed, is mounted onto an engine stand. The assembly begins with the fitting of the main bearings. It's crucial to note that some main bearings, particularly the top halves, lack locating tabs, necessitating the use of vernier callipers for precise alignment of the top and bottom shells. Engine assembly lube should be applied liberally to the bearing surfaces, ensuring none gets onto the outer shell, which could lead to spinning. The crankshaft is then carefully lowered into place, again avoiding disturbance of the upper main bearing shells, and is also liberally lubricated.

The Girdle and Piston Installation

The Duratec's main bearing girdle is a significant piece of engineering, providing all lower main bearings and enhancing bottom-end rigidity. A homemade alignment tool can be bolted to the girdle to ensure it aligns perfectly with the block, creating a square mounting surface for the rear crankshaft oil seal assembly. The girdle is then fitted, taking care not to dislodge the lower main bearing shells. Original Ford main bolts, if within their recommended usage limits (typically three uses), can be reused after visual inspection and measurement. These stretch bolts are torqued to specification and then angle-tightened (often 90 degrees), with the alignment tool proving useful here.

Original pistons can be refitted with new rings. This requires careful attention to the orientation of the rings and the positioning of their gaps around the piston. Big end bearings are also fitted, again requiring precise alignment using vernier callipers due to the absence of locating tabs. A moderate amount of engine assembly lube is used before the pistons are carefully inserted into the bores. A spare piston can be used to gently guide the piston into the cylinder, ensuring the rings seat correctly without damaging the cylinder wall. ARP big end bearing bolts, along with their specific ARP fastener lube, are then torqued to the correct specification.

Oil Pump and Flywheel Assembly

The N4JB oil pump can be serviced by carefully splitting the front cover from the pump body. This is achieved by drifting it off its pegs using a long bolt and nut applied to the tabs on the cover's edge. With the pump held vertically in a vice, a bolt inserted into the pump drive shaft allows for controlled tapping and turning until the cover separates. After cleaning and light oiling, the pump is reassembled, and clearances (outer rotor, inner rotor, and end float) are checked using feeler gauges. The oil pump front cover is then loosely reassembled and fitted to the block, with the four mounting bolts used to evenly pull the cover closed.

The rear crankshaft oil seal assembly is fitted, often with the aid of a white oil seal protector. The Raceline lightweight flywheel and ARP flywheel bolts are then installed. A homemade flywheel holding tool, with teeth designed to engage the flywheel, can be a valuable asset for correctly torquing the flywheel bolts in a diagonal sequence.

Cylinder Head Installation and Timing

Two old cylinder head bolts with their heads removed are excellent for aligning the cylinder head as it's lowered onto the block. A small amount of sealant is applied to the front edges where the timing chain cover meets the head and block to prevent oil tracking. New cylinder head bolts are fitted and torqued in the prescribed sequence. Following this, the buckets, having been sized for correct clearances, are installed with a small amount of assembly lube. The camshafts, also well-lubricated, are then fitted, followed by the bearing caps, which are tightened in sequence and to the specified torque.

Various ancillaries, including the water distribution block, coil pack, coolant temperature sensor, thermostat housing, oil separator, EGR blanking plate, and knock sensor, are fitted. The cam cover is loosely attached to prevent debris ingress.

Intake and Sump Installation

Suzuki GSXR 1000 individual throttle bodies (ITBs) can be mounted directly to the head using a custom aluminium adapter plate and the original Suzuki rubber inlet mounts. The adapter plate is drilled and tapped to accept the runner inlet mount bolts. Masking tape is used to protect the cylinder head from debris. A modified fuel rail is also fitted, along with the standard sump loosely attached to keep the bottom end clean.

Attention then turns to the front of the engine. The oil pump drive components (crank sprocket, oil pump sprocket, chain guide, tensioner, and chain) and camshaft drive components (crank sprocket, camshaft sprockets, chain guide, tensioner, and chain) are installed. The Raceline sump, cleaned and ready, is then fitted. With the engine inverted, mating surfaces are cleaned, and RTV sealant is applied. The timing chain front cover is fitted temporarily to act as an alignment guide for the sump, ensuring it is square as the sealant cures. The sump is then lowered into position, cap head bolts are fitted and torqued, and the Raceline oil filter housing is installed with a new gasket.

Once the sump sealant has cured, the timing chain cover is prepared with RTV sealant and fitted. The front crankshaft seal is installed, and the crankshaft pulley is positioned. An M8 bolt can be used to help align the pulley to the crankshaft, although a keyway is preferable. The crankshaft pulley bolt is then torqued to 150 lbft. A crankshaft position sensor alignment tool is used to ensure correct positioning.

Camshaft Timing and Final Checks

The final stages involve setting the camshaft timing. Although not always pictured, slots in the rear of the camshafts are used with a bar to confirm correct timing. Specialized tools, such as a fuel injector removal socket, can be invaluable for loosening or tightening the larger camshaft sprocket bolts with the timing chain cover in place.

Frequently Asked Questions

Does the Duratec need a dry sump?

While the Duratec can function effectively with a high-quality wet sump, such as the Raceline offering, a dry sump system, particularly one with an integrated oil pump like the Raceline dry sump pan, provides an additional 40mm of ground clearance at the front of the sump. This can be a significant advantage in performance applications where vehicle ride height is low.

Are Duratec bottom end parts serviceable?

Yes, contrary to some manual information, key components of the Duratec bottom end, including the crankshaft, pistons, connecting rods, and the main bearing girdle, are indeed serviceable and can be reconditioned by competent machine shops. This allows for a more economical rebuild.

Why choose a Dunnell Engine?

Dunnell Engines are renowned for their uncompromising quality, backed by over 55 years of experience in designing and producing championship-winning racing engines. They offer comprehensive rebuild facilities, specialise in Ford Zetec and Duratec engines, and boast a full CNC machine shop, dynamic crankshaft balancing, and design/manufacturing capabilities. Their engines are hand-built to exacting standards and undergo extensive dynamometer testing to guarantee top performance and reliability, with each engine supplied with a detailed manual.

In conclusion, the Ford Duratec engine, including the N4JB variant, is highly amenable to a comprehensive rebuild. By understanding which components are serviceable and employing meticulous procedures, a high-quality, reliable engine can be achieved, proving that the bottom end certainly has parts that can be brought back to life.
