The Nodiz Pro Gen-X is a powerful and versatile engine management system, increasingly becoming the control ECU of choice for demanding motorsport applications, including the BRISCA F2 Oval Racing championship. For enthusiasts looking to integrate this unit into their vehicles, understanding its power requirements and fundamental operation is crucial. This guide will delve into the specifics of powering the Nodiz Pro Gen-X, particularly addressing the common question of whether it can be directly powered from an ignition barrel, along with exploring its core functionalities and manufacturer.
Understanding the Nodiz Pro Gen-X

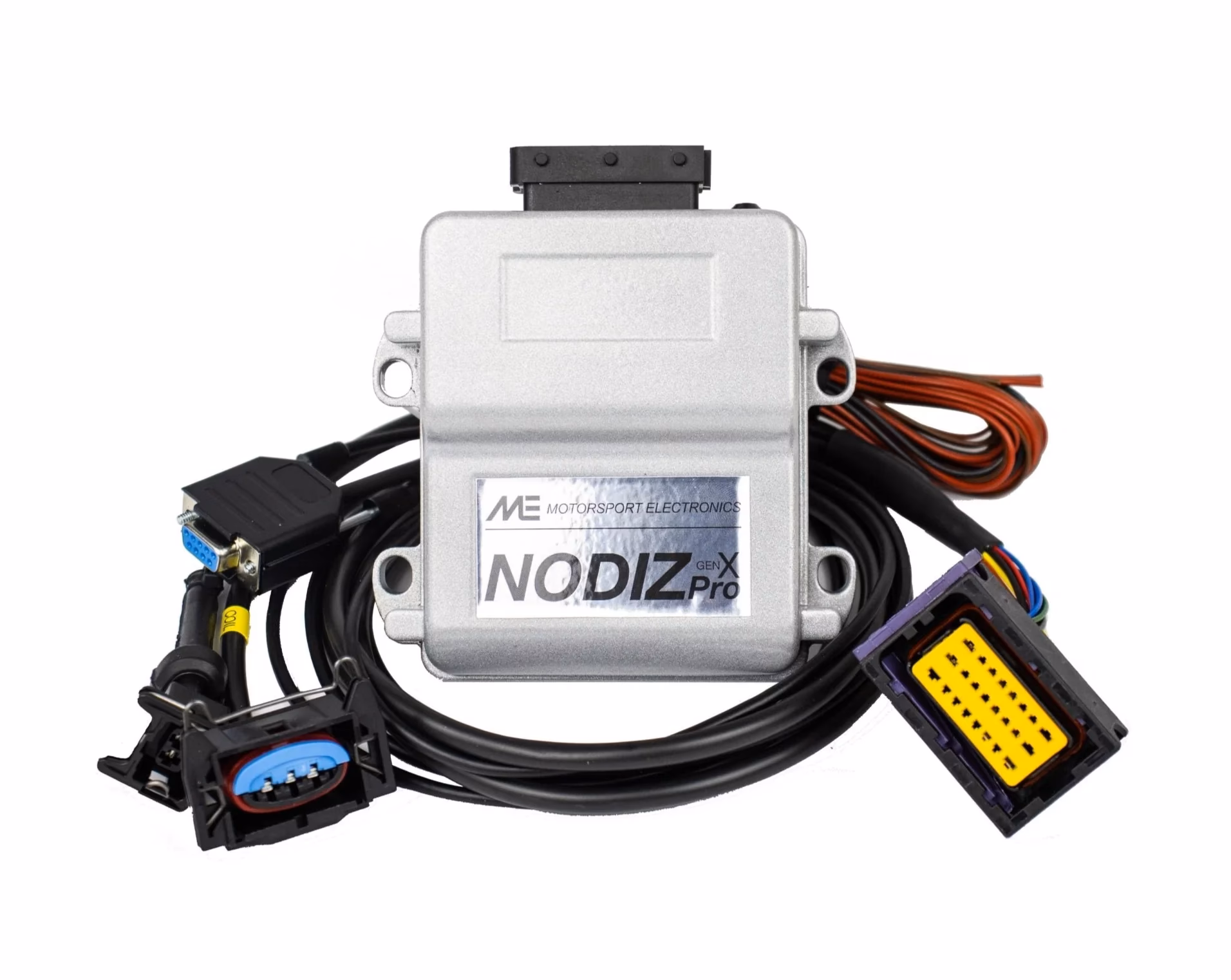

At its heart, the Nodiz Pro Gen-X is an advanced engine control unit (ECU) designed to optimise engine performance. It is available in two primary variants: a 36-1 Zetec version and a 60-2 Vauxhall variant. These designations refer to the specific crank sensor trigger patterns they are designed to work with, offering compatibility with popular engine platforms. Both variants come equipped with a Ford Coil Pack connector and a Ford / Vauxhall crank sensor connector, simplifying installation on many engines. The unit is supplied with a fully terminated harness, and a pre-loaded basemap, which means you can be up and running with minimal delay. The initial setup involves connecting the power and ground, plugging in the crank sensor and coil pack, and then firing up the engine.
Key Features of the Nodiz Pro Gen-X:
- Versatile Engine Compatibility: Available for Zetec and Vauxhall engines with specific trigger patterns.
- Plug-and-Play Harness: Comes with a fully terminated harness, reducing complex wiring.
- Pre-loaded Basemap: Allows for quick initial setup and engine start.
- Inbuilt Diagnostics LED: Provides immediate feedback on crank sensor or coil pack issues without needing a laptop.
- Free MEITE Tuning Software: Enables comprehensive engine management and tuning via a laptop.
- Configurable Outputs: Features three spare outputs for accessories like shift lights, cooling fans, and fuel pumps.
- Advanced Tuning Capabilities: Can be enhanced with a throttle position sensor or MAP sensor for full 3D tuning based on load and engine speed.
Powering the Nodiz Pro Gen-X: Ignition Barrel Considerations
A frequent question among users is whether the Nodiz Pro Gen-X can be powered directly from an ignition barrel. The manufacturer's recommendation is clear: do not power directly from an ignition barrel. While the ignition barrel is often used as a trigger to activate the relay that powers the ECU, it's crucial to ensure this connection is made correctly. The primary concern is that turning the ignition barrel to the 'crank' position (when the starter motor is engaged) can sometimes momentarily disconnect power to accessories. If the Nodiz Pro Gen-X's power supply is interrupted during cranking, the engine may not start or may stall. Therefore, if you are using an ignition barrel to trigger the relay, it must be wired in such a way that power to the Nodiz Pro Gen-X is not disconnected when the ignition barrel is turned to the crank position. A common and reliable method is to use a dedicated fused circuit directly from the battery or a main power distribution point, with the ignition barrel signal used solely to energise the relay that switches this main power feed to the Nodiz Pro Gen-X.
Best Practices for Wiring:
When installing any engine management system, proper wiring is paramount for reliability and performance. For the Nodiz Pro Gen-X, the following practices are highly recommended:
- Solder and Heat-Shrink: Whenever possible, all wire connections should be soldered and then protected with heat-shrink tubing. This creates a robust, vibration-resistant, and environmentally sealed connection, far superior to crimp connectors alone.
- Appropriate Gauge Wire: Use wiring of the correct gauge for the current draw of the unit and any connected accessories. Undersized wiring can lead to voltage drops and overheating.
- Fused Power: Ensure the Nodiz Pro Gen-X has a dedicated fused power supply to protect the unit and the vehicle's wiring loom in case of a short circuit.
- Secure Ground: A clean and secure ground connection is just as important as the power supply. Ensure the ground wire is connected to a clean, unpainted metal surface on the chassis or engine block.
Manufacturer and Support
The Nodiz ECUs, including the Pro Gen-X model, are manufactured by Motorsport Electronics, a leading UK-based company renowned in the automotive performance industry. This UK origin ensures a deep understanding of the demanding conditions and requirements of motorsport. Motorsport Electronics provides resources and support for their products, aiming to make advanced engine management accessible to a wide range of enthusiasts and racers.
Nodiz ECU Installation Example
To illustrate the installation process, consider the highly popular Ford Zetec engine. A typical installation involves connecting the main power and ground wires, the crank sensor, and the coil pack. The pre-loaded basemap gets the engine running, and then the real tuning can begin using the MEITE software. The onboard diagnostics LED is a particularly useful feature, allowing for quick checks of essential components like the crank sensor and coil pack. If the LED indicates an issue with either of these, you can often diagnose and rectify the problem without needing to connect a laptop, saving valuable time during trackside diagnostics.
Advanced Tuning with Sensors
For those seeking to extract the maximum performance from their engine, the Nodiz Pro Gen-X offers the ability to incorporate additional sensors. By adding a throttle position sensor (TPS) or a Manifold Absolute Pressure (MAP) sensor, the ECU can gain crucial data about the engine's load conditions. This allows for full 3D mapping, where fuel and ignition timing are adjusted not only based on engine speed (RPM) but also on the engine's load. This sophisticated approach to tuning results in a smoother power delivery, improved fuel efficiency, and ultimately, higher performance across the entire rev range.
Comparison: Direct Ignition Barrel vs. Relay Trigger
To further clarify the power supply issue, let's consider a comparison:
| Feature | Direct Ignition Barrel Power (Not Recommended) | Ignition Barrel Triggered Relay (Recommended) |
|---|---|---|
| Power Reliability During Crank | High risk of power interruption, potentially preventing startup. | Maintains stable power to the ECU, even during cranking. |
| Wiring Complexity | Simpler direct connection. | Requires an additional relay and appropriate wiring for the relay coil. |
| Component Protection | Potential for ECU damage or malfunction due to voltage fluctuations. | Protects the ECU by providing a stable, dedicated power source. |
| Installation Safety | Less safe; risk of intermittent power issues. | Safer and more robust installation method. |
Frequently Asked Questions
Q1: Can I connect the Nodiz Pro Gen-X directly to the battery?
Yes, connecting the Nodiz Pro Gen-X to a fused circuit directly from the battery is a safe and recommended method for providing a constant, reliable power source. It's crucial to use an appropriately rated fuse to protect the system.
Q2: What is the purpose of the diagnostics LED?
The diagnostics LED on the Nodiz Pro Gen-X provides a quick visual indication of the status of critical components, primarily the crank sensor and coil pack. It helps in initial troubleshooting without the need for a laptop, making basic diagnostics much faster.
Q3: What is the MEITE tuning software?
MEITE is the free tuning software provided by Motorsport Electronics for the Nodiz ECU range. It allows users to connect a laptop to the Nodiz Pro Gen-X for advanced engine tuning, including fuel and ignition mapping, setting up outputs, and monitoring engine parameters.
Q4: How do I ensure correct wiring when using an ignition barrel as a trigger?
When using the ignition barrel to trigger a relay, ensure the trigger wire is connected to a circuit that remains powered when the ignition is in the 'run' and 'crank' positions. The relay then switches the main, fused power feed directly from the battery to the Nodiz Pro Gen-X. This prevents any power interruption to the ECU during engine cranking.
Q5: What engine types is the Nodiz Pro Gen-X designed for?
The Nodiz Pro Gen-X is available in variants specifically designed for Ford Zetec engines (36-1 trigger) and Vauxhall engines (60-2 trigger), simplifying integration with these popular powerplants.
In conclusion, while the Nodiz Pro Gen-X offers advanced engine control, proper installation and power management are key to its reliable operation. By adhering to the manufacturer's guidelines, particularly regarding power supply and wiring best practices, users can ensure their Nodiz Pro Gen-X system performs optimally, providing enhanced engine management for their performance vehicle.
