Seized Brake Caliper: Causes, Symptoms & Fixes

Few things are as critical to your vehicle's safety as a fully functioning braking system. When you press the brake pedal, you expect a swift and reliable response, bringing your car to a controlled stop. However, a common yet often misunderstood issue that can severely compromise this vital function is a seized brake caliper. This condition occurs when a component of your braking system, designed to apply and release pressure on the brake pads, becomes stuck. The immediate consequence? Your brakes might apply, but they won't release quickly or efficiently, leading to a cascade of problems from rapid brake pad and rotor wear to decreased braking ability and alarming noises. Understanding the underlying causes and recognising the early warning signs of a seized caliper is paramount for any responsible motorist.

In this comprehensive guide, we'll delve into the intricacies of brake calipers, uncover the most common culprits behind seizing – particularly corrosion of slide pins and brake pad binding due to rust – and equip you with the knowledge to spot problems early and prevent them from escalating. Your safety on the road depends on it.

Understanding How Brake Calipers Work

Before we can fully grasp what goes wrong, it’s essential to understand how a typical brake caliper operates. Most modern vehicles are equipped with what’s known as a floating brake caliper. This design is highly effective and relatively simple, allowing for efficient braking.

A floating brake caliper usually features one or two pistons located on one side of the caliper body. When you engage the brakes, hydraulic pressure from the brake fluid pushes these piston(s) outwards. This force then presses the inboard brake pad directly against the brake rotor. Simultaneously, the hydraulic pressure, acting on the caliper assembly itself, causes the entire caliper to slide away from the rotor on its guide pins. This sliding motion then pulls the opposite side of the caliper into the outboard brake pad, forcing it against the other side of the rotor. The result is a clamping action that squeezes the rotor between both brake pads, creating the friction necessary to slow or stop your vehicle.

The ability of the floating caliper to slide freely is crucial. It relies on two brake caliper slide pins (also known as guide pins), which are designed to allow smooth, unimpeded movement. These pins are typically protected from the harsh elements of the road by rubber boots and are lubricated with a special high-temperature grease. When all these components are in good order and properly maintained, the braking system functions precisely as intended. However, as with any mechanical system exposed to wear and tear, things can and do go wrong, leading to the dreaded seized caliper.

The Most Common Causes of a Seized Brake Caliper

Several factors can lead to a brake caliper seizing, but two stand out as particularly prevalent. Understanding these will help in both diagnosis and prevention.

1. Corroded Slide Pins

As mentioned, the brake caliper slide pins are critical for the caliper's ability to float and release properly. These pins are meant to glide smoothly within their bores, allowing the caliper to move in and out. Their protection comes from small, flexible rubber boots, which act as a barrier against moisture, dirt, and road grime. Inside these boots, the pins are coated with a high-temperature lubricant to ensure smooth operation.

The problem arises when these protective rubber boots fail. Over time, due to age, exposure to extreme temperatures, or damage from road debris, these boots can crack, tear, or become dislodged. Once compromised, water, road salt, and dirt can easily ingress into the slide pin area. This moisture then leads to corrosion of the metal slide pins and their corresponding bores within the caliper bracket. As rust forms, it expands, creating friction and binding the pins. Instead of gliding freely, the corroded pins become stiff or completely stuck. The caliper can still apply pressure when you brake, but it loses its ability to retract quickly or fully. Consequently, the brake pads remain in constant, light contact with the rotor even after you’ve released the brake pedal, causing continuous friction and heat build-up.

This issue is largely preventable. During every brake service, the caliper pin boots should be inspected and, ideally, replaced. They are an inexpensive component, typically costing around £5-£10 a set, and are straightforward to fit. Furthermore, the caliper pins themselves should be thoroughly cleaned of any old grease and rust, then re-lubricated with a fresh application of suitable high-temperature grease. Neglecting these simple steps significantly increases the risk of slide pin corrosion and subsequent caliper seizure.

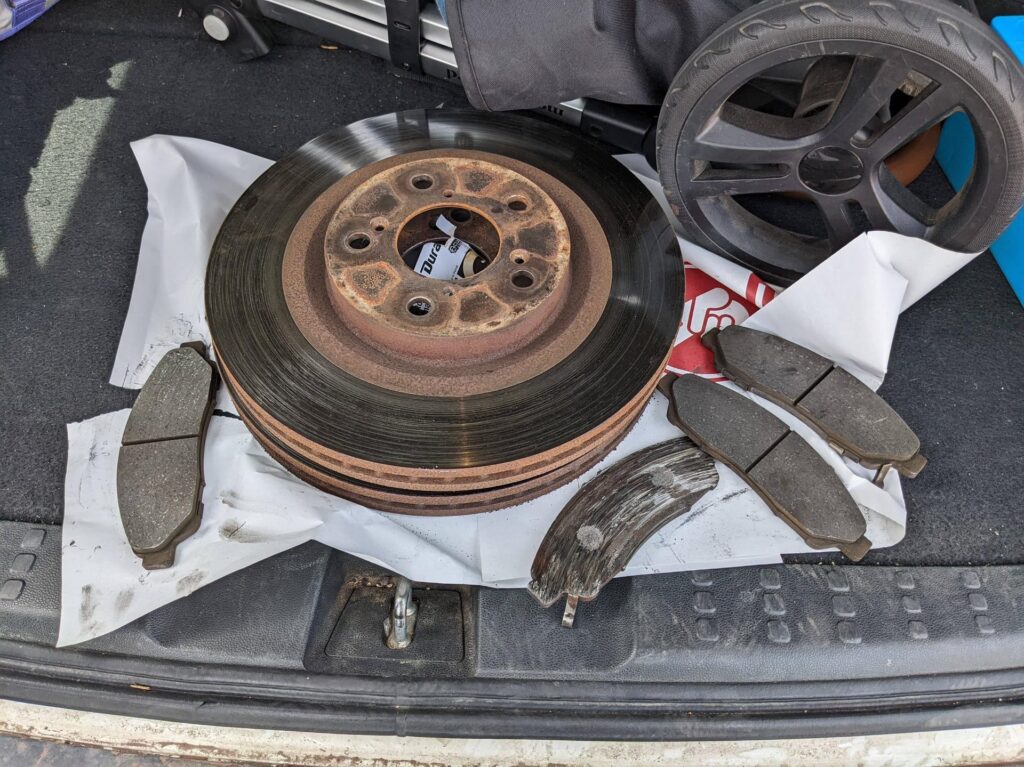

2. Rust Jacking and Brake Pad Binding

Another prevalent cause of a seized brake caliper, or rather, brake pads that refuse to release, is a phenomenon known as rust jacking. This occurs on the caliper bracket abutment areas – the points where the edges of the brake pads rest and slide. These areas are often fitted with anti-rattle clips, which are thin metal shims designed to ensure the pads fit snugly and quietly.

Over time, especially in damp climates or areas where road salt is used, rust can accumulate and build up on the metal surfaces beneath these anti-rattle clips or directly on the caliper bracket itself. Rust is expansive; as it forms, it takes up more volume than the original metal. This expansion, known as 'rust jacking', effectively narrows the space available for the brake pads to move freely. When this happens, the brake pads can become tightly bound within the caliper bracket, preventing them from relaxing and fully releasing from the brake rotor after the brake pedal is lifted.

Like corroded slide pins, this issue leads to the pads dragging against the rotor, generating excessive heat and wear. The solution, again, lies in meticulous maintenance. During any brake pad replacement, it is crucial to thoroughly clean these abutment areas. This involves removing any rust using a wire brush or abrasive pad, ensuring the surface is smooth and free of debris. Applying a thin coat of dielectric brake grease or high-temperature anti-seize compound to these cleaned areas and under the new anti-rattle clips can significantly reduce future rust formation, allowing the pads to move freely and prevent binding.

3. Hardened O-Ring Seals

While less common than the first two, issues with the caliper's internal O-ring seals can also lead to a sticking brake caliper. Inside the caliper bore, surrounding the piston, is a square-cut rubber O-ring seal. This seal has a dual purpose: it contains the brake fluid, preventing leaks, and it plays a vital role in retracting the piston after braking.

When you apply the brakes, the hydraulic pressure pushes the piston out, and as it moves, it slightly twists this O-ring towards the rotor. When you release the brake pedal, the hydraulic pressure drops, and the resilient rubber O-ring attempts to return to its original untwisted shape. This untwisting action gently pulls the piston back a minuscule amount into the caliper bore, creating a slight gap between the brake pad and the rotor.

However, heat and age are the enemies of rubber. Over years of service, especially with repeated exposure to high braking temperatures, this O-ring can harden and lose its natural elasticity and resilience. When it can no longer return to its original shape quickly or effectively, the piston may not retract sufficiently, or at all. This leaves the brake pads in continuous contact with the rotor, leading to what is often referred to as a sticking caliper or, in more severe cases, a seized caliper. Furthermore, a hardened or cracked O-ring can also lead to brake fluid leaks, which is a serious safety concern.

Symptoms of a Sticking or Seized Brake Caliper

Recognising the symptoms of a sticking or seized brake caliper is crucial for timely intervention and preventing more serious damage or safety hazards. Here's what to look out for:

• Noisy Brakes

  One of the most common and immediate indicators is unusual brake noise. Because the pads remain in contact with the rotor and overheat, you might hear a persistent squeal, a grinding sound, or even a chattering noise. This isn't just annoying; it's a clear sign of excessive friction and uneven wear. The noise may intensify as you drive, especially after prolonged use, as the components heat up further.

• Burning Smell

  The continuous friction between the brake pads and rotor generates significant heat. This excessive heat can cause the friction material on the brake pads to literally burn, emitting a distinct, pungent burning smell, often described as a chemical or acrid odour. This smell is typically more noticeable after you've been driving for a while or after coming to a stop.

• Vehicle Pulls to One Side During Braking

  If one brake caliper is seized while the others are functioning correctly, it creates an imbalanced braking force. When you apply the brakes, the working calipers will slow down their respective wheels effectively, but the wheel with the seized caliper will experience constant, or at least stronger, braking. This disparity causes the vehicle to pull noticeably to the side of the seized caliper. In severe cases, this pull can be so strong that it causes the steering wheel to violently jerk or move, making the vehicle difficult to control, particularly during emergency braking.

• Brake Fluid Leaks

  As mentioned, a hardened or cracked O-ring seal within the caliper can lead to brake fluid escaping. You might notice visible puddles or dampness around the affected wheel or caliper. This will also manifest as a noticeable drop in the brake fluid level in your brake fluid reservoir. A low fluid level is a serious issue that can lead to a complete loss of braking pressure.

• Excessive Heat from the Wheel

  A sticking caliper generates a tremendous amount of heat because the pads are constantly scrubbing against the rotor. After a drive, if you carefully approach your wheels (without touching them directly), you might feel significantly more heat radiating from the wheel with the seized caliper compared to the others. A more precise way to check this is using a non-contact infrared thermometer. Aim it at the centre of each brake rotor after a drive; healthy rotors should be relatively close in temperature. A large temperature difference (e.g., one rotor is significantly hotter than the others) is a strong indicator of a sticking or seized caliper.

• Loss of Braking Power (Brake Fade)

  The excessive heat generated by a seized caliper causes the brake pads to overheat beyond their normal operating range. When this happens, the friction material can start to 'fade' – it loses its ability to generate effective friction. This is often due to the material burning and off-gassing, creating a thin layer of gas between the pad and the rotor, dramatically reducing braking ability. This phenomenon is known as brake fade and can be extremely dangerous, as your vehicle will require a much longer distance to stop, even with the brake pedal fully depressed.

Prevention and Maintenance: Keeping Your Calipers Free

Preventing a seized brake caliper is far more cost-effective and safer than dealing with the aftermath. Regular maintenance and attention to detail during brake services are key:

• Routine Brake Inspections: Have your braking system inspected annually, or more frequently if you drive in harsh conditions. A mechanic can spot early signs of wear on boots, pins, and pads.
• Replace Slide Pin Boots: These inexpensive rubber components are your first line of defence against corrosion. Always replace them during a brake job, especially if they show any signs of cracking or tearing.
• Clean and Lubricate Slide Pins: During every brake service, the slide pins should be removed, thoroughly cleaned of old grease and any minor surface rust, and then re-lubricated with a high-temperature, silicone-based brake grease specifically designed for caliper pins. Never use petroleum-based greases, as these can swell and damage rubber components.
• Clean Caliper Bracket Abutments: When replacing brake pads, always take the time to clean the abutment surfaces on the caliper bracket. Remove all rust and debris, and apply a thin layer of dielectric brake grease or anti-seize compound before installing new anti-rattle clips and pads. This ensures the pads can move freely.
• Check Brake Fluid Condition: While not a direct cause of external caliper seizing, old or contaminated brake fluid can contribute to internal O-ring hardening over time. Brake fluid is hygroscopic, meaning it absorbs moisture, which lowers its boiling point and can lead to internal corrosion. Follow your manufacturer's recommendations for brake fluid flush intervals.

Consequences of Ignoring a Seized Caliper

Ignoring the symptoms of a seized brake caliper is not just inconvenient; it's a serious safety hazard with potentially costly consequences:

• Rapid Pad and Rotor Wear: Constant friction quickly wears down brake pads and causes rotors to overheat, warp, or develop deep grooves, necessitating premature replacement of both components.
• Compromised Safety: Reduced braking efficiency, vehicle pulling, and the risk of brake fade significantly increase your stopping distance and the likelihood of an accident.
• Increased Fuel Consumption: The constant drag from a seized caliper means your engine has to work harder to overcome the resistance, leading to poorer fuel economy.
• Damage to Other Components: Excessive heat can transfer to wheel bearings, causing them to fail prematurely, and can even affect tyre wear.

Comparative Table: Healthy vs. Seized Brake Caliper

To help you quickly differentiate, here's a comparative overview:

Frequently Asked Questions (FAQs)

Can I drive with a seized caliper?

While it might be possible to drive short distances, it is highly inadvisable and dangerous. A seized caliper severely compromises your vehicle's braking ability, increases stopping distances, and can cause the vehicle to pull unexpectedly, leading to a significant risk of an accident. It also causes rapid wear and potential damage to other components. It should be addressed immediately.

How much does it cost to fix a seized caliper?

The cost can vary significantly depending on the extent of the damage, your vehicle's make and model, and whether you opt for repair or replacement. If only the slide pins are corroded, cleaning and re-greasing them, along with new boots, might be relatively inexpensive. However, if the caliper itself is seized internally or extensively corroded, it will likely need to be replaced, along with potentially new brake pads and rotors due to damage. Expect costs to range from £150 to £400+ per wheel, including parts and labour, for a full caliper replacement, pads, and rotor.

Can a seized caliper be repaired or does it need replacing?

It depends on the cause and severity. If the issue is confined to corroded slide pins, these can often be cleaned, re-lubricated, and fitted with new boots, effectively repairing the caliper's function. If the piston is seized due to a hardened O-ring or internal corrosion, a caliper repair kit (containing new seals and sometimes a piston) might be an option for experienced mechanics. However, often, for reliability and safety, especially if the caliper body itself is heavily corroded or damaged, replacement with a new or reconditioned caliper is the recommended course of action.

How often should I check my brake calipers?

It's generally recommended to have your brake system, including calipers, inspected at least once a year or every 12,000 miles, whichever comes first. During any brake pad replacement, a thorough inspection and maintenance of the calipers, slide pins, and abutment areas should always be performed. If you notice any of the symptoms mentioned above, have them checked immediately.

What kind of grease should I use for brake pins?

You should always use a high-temperature, silicone-based brake grease specifically designed for brake caliper slide pins. Never use petroleum-based greases (like general-purpose automotive grease or anti-seize), as these can swell and degrade the rubber boots, leading to premature failure and allowing moisture ingress. Ceramic-based brake lubricants are also suitable for abutment areas and the backs of brake pads, but silicone is best for the pins.

In conclusion, a seized brake caliper is more than just an inconvenience; it's a serious safety concern that demands prompt attention. By understanding how your brake system works, recognising the common causes like corroded slide pins and rust jacking, and being vigilant for the tell-tale symptoms, you can ensure your vehicle's braking performance remains uncompromised. Regular maintenance is your best defence, extending the life of your components and, most importantly, keeping you and your passengers safe on the road.
