Blown Head Gasket: The Ultimate UK Guide

In the intricate world of automotive engineering, the head gasket stands as a silent sentinel, playing an absolutely crucial role in maintaining the efficient and smooth operation of your vehicle's engine. It acts as a vital seal between the engine block and the cylinder head, containing the immense pressures of combustion, preventing coolant from mixing with engine oil, and keeping vital fluids where they belong. However, despite its robust design, the head gasket is susceptible to failure, leading to what is commonly known as a 'blown head gasket'. This can be a car owner's worst nightmare, often leading to significant repair costs and potential engine damage if left unaddressed. Understanding the underlying causes and, more importantly, recognising the early warning signs of this critical issue is paramount for any diligent motorist. This comprehensive guide will delve into the most common reasons why head gaskets fail and equip you with the knowledge to identify and prevent this costly problem from plaguing your cherished vehicle.

Recognising Early Warning Signs of Head Gasket Issues

Before delving into the myriad causes, it's vital to be attuned to the subtle, and sometimes not-so-subtle, indicators that your head gasket might be compromised. Catching these signs early can significantly reduce the extent of damage and the eventual repair bill. Ignoring them, however, can lead to catastrophic engine failure.

Loss of Coolant

One of the most insidious early indicators of a head gasket issue is a mysterious and unexplained loss of coolant. You might top up your coolant reservoir only to find it consistently low a few days later, despite there being no visible external leaks on your driveway or under the bonnet. This often suggests that the coolant is escaping internally, seeping into the combustion chamber where it's burned off, or mixing with the engine oil, both of which are tell-tale signs of a failing head gasket. Regular monitoring of your coolant level is a simple yet effective preventative measure.

Unexplained Engine Overheating

Frequent engine overheating, particularly if it's a recurring problem that seemingly has no other obvious cause, can be a serious early warning sign of a head gasket problem. While many factors can cause overheating – a faulty thermostat, a clogged radiator, or a failing water pump – a compromised head gasket can also lead to increased engine temperatures. When the gasket fails, it can allow hot combustion gases to enter the cooling system, overwhelming its ability to dissipate heat and leading to a vicious cycle of rising temperatures and further gasket degradation.

White Smoke from the Exhaust

If you notice excessive white smoke billowing from your exhaust pipe, especially if it appears thicker than usual and persists even after the engine has warmed up, it could be a clear indication of a head gasket issue. This isn't just regular condensation; it's a direct result of coolant leaking into the combustion chamber. When the engine burns this coolant along with the fuel, it produces steam, which exits as dense white smoke. This smoke often has a distinctively sweet smell, which can help differentiate it from other types of exhaust smoke, such as blue (oil) or black (fuel) smoke.

Bubbles in the Radiator or Coolant Reservoir

Observing bubbles in the radiator or coolant reservoir when the engine is running is another concerning sign. This phenomenon occurs when hot combustion gases, escaping through a damaged head gasket, are forced into the cooling system. These gases create bubbles, which can lead to an erratic coolant flow. This aeration significantly reduces the cooling system’s efficiency, making it less effective at transferring heat away from the engine, and thereby increasing the risk of engine overheating.

Poor Engine Performance

A compromised head gasket can manifest as a noticeable decline in overall engine performance. You might experience reduced power output, a rough or uneven idle, or hesitation and sluggishness during acceleration. This happens because a failing gasket can lead to a loss of compression in one or more cylinders, meaning the engine can't generate the power it should. Furthermore, the introduction of coolant or combustion gases into the engine oil can lead to inadequate lubrication, increasing wear on engine components and further degrading performance.

Engine Misfires

Engine misfires, where one or more cylinders fail to ignite properly, can also be an early warning sign of head gasket issues. A damaged head gasket can allow coolant to seep into the combustion chamber, contaminating the fuel-air mixture. This contamination prevents proper ignition, leading to an uneven burn and causing the engine to misfire. If you experience persistent misfires, it’s crucial to address the issue promptly to prevent further engine damage and potential head gasket failure.

What Causes a Blown Head Gasket?

Understanding the root causes of a blown head gasket is crucial for both diagnosis and prevention. While the symptoms are the visible outcome, the underlying reasons are often a combination of mechanical stress, poor maintenance, and sometimes, manufacturing defects. Here are the 15 most common culprits:

1. Causes of Overheating

Overheating is arguably the single biggest cause of head gasket failure. When an engine overheats, the extreme temperatures cause the metal components, particularly the cylinder head, to expand and warp. This warping creates an uneven mating surface between the cylinder head and engine block, preventing the head gasket from sealing properly. As a result, coolant and oil can mix or leak into the combustion chamber, leading to a blown head gasket. Several factors can lead to engine overheating:

• Low Coolant Level: Insufficient coolant directly reduces the cooling system’s ability to dissipate heat, causing the engine to run hotter than it should.
• Blocked Radiator: A radiator clogged with debris or internal corrosion hinders coolant flow, severely reducing its capacity to transfer heat away from the engine.
• Malfunctioning Thermostat: A thermostat stuck in the closed position will impede coolant flow to the radiator, trapping hot coolant in the engine and causing it to overheat.
• Failed Water Pump: A damaged or broken water pump cannot circulate coolant effectively throughout the engine, leading to a rapid rise in engine temperature.
• Inoperative Cooling Fan: A faulty cooling fan, especially critical in slow-moving or stationary traffic, cannot provide adequate airflow across the radiator, causing the engine temperature to rise sharply.

2. Pre-ignition or Detonation

Pre-ignition refers to the premature ignition of the air-fuel mixture before the spark plug fires, while detonation is the simultaneous ignition of multiple points in the combustion chamber, causing a characteristic knocking sound. Both conditions generate immense and abnormal pressure and temperature spikes within the combustion chamber. This excessive stress can repeatedly hammer the head gasket, gradually weakening its structure. Over time, this intense stress can cause the gasket to fail, allowing coolant and oil to mix or leak into the combustion chamber, ultimately leading to a blown head gasket.

3. Poor Installation

Even a brand-new, high-quality head gasket can fail prematurely if installed incorrectly. Precision is key in this delicate operation:

• Improper Cleaning of the Mating Surfaces: Failing to thoroughly clean the cylinder head and engine block surfaces of old gasket material, carbon, or debris can lead to an uneven seal, significantly increasing the risk of leaks and head gasket failure.
• Not Following the Manufacturer’s Torque Specifications and Sequence: Ignoring the specified torque values and the precise tightening sequence for cylinder head bolts can result in uneven pressure distribution across the gasket. This compromises the head gasket’s sealing ability, creating weak spots prone to failure.
• Using the Wrong Gasket Material or Thickness: Choosing an incorrect gasket material (e.g., composite instead of multi-layer steel) or an inappropriate thickness can affect the gasket’s ability to seal correctly and withstand the engine’s specific temperature and pressure variations, leading to premature failure.
• Reusing Old or Damaged Fasteners: Utilising worn, stretched, or corroded cylinder head bolts or fasteners can cause improper torque application, as they won't hold tension correctly. This reduces the effectiveness and longevity of the head gasket seal.

A poorly installed head gasket is a ticking time bomb, almost certainly leading to premature failure. Leaks will develop due to uneven pressure distribution or an inadequate seal, causing the gasket to blow. Additionally, a poorly installed gasket can cause the engine to overheat, further increasing the risk of failure.

4. Defective Head Gasket

While less common with reputable manufacturers, a head gasket can sometimes be defective from the factory. Manufacturing flaws can severely compromise its integrity:

• Uneven Thickness: Inconsistent thickness across the gasket can result in uneven pressure distribution when installed, potentially leading to immediate or delayed leaks.
• Inaccurate Cuts or Holes: Misaligned or improperly sized holes for bolt passages or fluid channels can compromise the gasket’s ability to seal and channel fluids correctly, leading to internal or external leaks.
• Inferior Gasket Material: Substandard materials may not withstand the engine’s extreme temperature and pressure variations, leading to premature breakdown and failure.

Identifying a defective head gasket before installation requires a careful visual inspection for visible flaws. After installation, any immediate signs of engine trouble, such as overheating, coolant loss, or poor performance, may indicate a defective gasket rather than an installation error.

5. Insufficient Torque

The importance of applying the correct torque to the cylinder head bolts cannot be overstated. It is absolutely essential for ensuring an even and secure seal between the cylinder head and engine block. Proper torque ensures that the head gasket is compressed uniformly, allowing it to withstand the immense pressure and temperature variations within the combustion chamber without leaking. Insufficient torque can result in uneven pressure distribution across the head gasket, preventing it from sealing effectively. This leads to leaks, allowing coolant and oil to mix or enter the combustion chamber. Over time, these leaks will inevitably cause the head gasket to fail, resulting in a blown head gasket.

6. Corrosion

Corrosion within the cooling system can significantly weaken the head gasket material, compromising its ability to maintain a proper seal. As the gasket material breaks down due to chemical attack, coolant and oil can mix or leak into the combustion chamber, resulting in a blown head gasket. Causes of corrosion include:

• Incompatible Coolant: Using the wrong type of coolant can lead to chemical reactions that promote corrosion within the cooling system, eating away at metal components and gasket materials.
• Electrolysis: Electrical imbalances within the cooling system can cause electrolysis, an electrochemical process that corrodes metal components, including the head gasket itself.
• Contaminated Coolant: Coolant contaminated with dirt, rust, or debris can promote corrosion by introducing abrasive particles and impurities into the system, accelerating wear and chemical degradation.

7. Warped Cylinder Head

A warped cylinder head is a common consequence of severe engine overheating. Excessive heat causes the metal components of the cylinder head to expand unevenly and deform, affecting its critical mating surface. Other causes can include uneven torque application during installation, which creates localised stress, or improper handling during installation or removal, leading to mechanical stress and warping. A warped cylinder head creates an uneven mating surface, preventing the head gasket from sealing properly. This leads to leaks and allows coolant and oil to mix or enter the combustion chamber, eventually resulting in a blown head gasket.

8. Incompatible Coolant

As mentioned in relation to corrosion, using the correct coolant is essential for maintaining the engine’s optimal operating temperature and preventing corrosion. The right coolant contains specific additives designed to protect the head gasket and other engine components from damage and degradation. Using an incompatible coolant can lead to detrimental chemical reactions and accelerated corrosion within the cooling system. This corrosion specifically weakens the head gasket material, compromising its ability to maintain a proper seal. As the gasket material breaks down, coolant and oil can mix or leak into the combustion chamber, resulting in a blown head gasket.

9. Excessive Engine Load

Placing excessive strain on your engine can generate increased heat and pressure within the combustion chamber, stressing the head gasket beyond its design limits. Over time, this repeated stress can lead to the gasket’s failure, allowing coolant and oil to mix or leak into the combustion chamber and ultimately causing a blown head gasket. Common culprits include:

• Towing Heavy Loads: Towing weight beyond the vehicle’s specified capacity places immense stress on the engine, significantly increasing the risk of head gasket failure.
• Over-revving the Engine: Consistently pushing the engine to excessively high RPMs generates extreme heat and pressure, subjecting the head gasket to undue strain.
• Aggressive Driving: Frequent sudden acceleration, hard braking, and aggressive driving styles place additional, rapid strain on the engine, increasing the likelihood of head gasket failure.

10. Old Age

Like any component, head gaskets degrade over time. The materials used in head gaskets are constantly subjected to extreme heat cycles, fluctuating pressures, and chemical exposure from engine fluids. Over many years and miles, the head gasket material can degrade, losing its elasticity and sealing capabilities. As the material weakens, the head gasket becomes more susceptible to leaks and eventual failure. Signs of an aging head gasket include subtle coolant or oil leaks (initially external), and a gradual loss of engine performance due to minor internal leaks or reduced compression.

11. Poor Maintenance

Regular maintenance is not just a recommendation; it's a vital necessity for the longevity of your engine and its components, including the head gasket. Neglecting routine care can directly contribute to head gasket failure:

• Neglecting Coolant Flushes: Skipping regular coolant flushes allows for the buildup of contaminants, rust, and sludge within the cooling system. This buildup can lead to corrosion and reduce cooling efficiency, weakening the head gasket over time.
• Failing to Change Oil: Not changing the engine oil regularly results in dirty, contaminated oil. This contaminated oil can cause increased wear on the head gasket and other engine components due to abrasive particles and reduced lubrication properties.
• Ignoring Warning Signs: Disregarding early symptoms of head gasket issues, such as persistent overheating, unexplained coolant loss, or unusual exhaust smoke, allows minor problems to escalate into major damage and eventual failure.

12. Contaminated Oil

Oil contamination can occur due to infrequent oil changes, allowing dirt and debris to build up, or more seriously, due to coolant leaks into the oil. Contaminated oil can cause increased wear on the head gasket, as well as other engine components, due to the presence of abrasive particles and reduced lubrication properties. Over time, this abrasive action and chemical degradation can lead to the head gasket’s failure, allowing coolant and oil to mix or leak into the combustion chamber and ultimately resulting in a blown head gasket.

13. Engine Misfires

While often a symptom of a blown head gasket, frequent engine misfires can also contribute to its demise. Engine misfires result in an uneven burning process within the combustion chambers, leading to significant fluctuations in pressure and temperature. This erratic and uneven distribution of forces can stress the head gasket, particularly in the affected cylinders. Over time, this repeated stress can lead to the gasket’s failure, allowing coolant and oil to mix or leak into the combustion chamber, resulting in a blown head gasket.

14. Incorrectly Machined Cylinder Head or Engine Block

The precision of the mating surfaces between the cylinder head and engine block is absolutely critical. Proper machining ensures a perfectly flat and even surface, allowing the head gasket to seal effectively and prevent any leaks. If either the cylinder head or the engine block has been incorrectly machined (e.g., not perfectly flat, or with surface imperfections), it will create an uneven or warped mating surface. This prevents the head gasket from being compressed uniformly and sealing properly, leading to leaks, allowing coolant and oil to mix or enter the combustion chamber, and ultimately causing a blown head gasket.

15. Turbocharger Issues

Turbochargers significantly increase the pressure and temperature within the combustion chamber to boost engine power. While engines are designed to handle this, a malfunctioning or poorly maintained turbocharger can exacerbate these conditions, placing additional, unforeseen stress on the head gasket. If the turbocharger is over-boosting, overheating, or suffering from bearing failure, it can generate excessive heat and pressure spikes that the head gasket may not be able to withstand, increasing the likelihood of failure. Signs of turbocharger-related issues include a loss of power, excessive exhaust smoke (often blue or grey), or unusual whining or rattling noises from the turbo area.

Diagnosing a Blown Head Gasket

Once you suspect a blown head gasket based on the warning signs, several diagnostic tests can confirm your suspicions and pinpoint the exact nature of the failure.

Visual Inspection

A thorough visual inspection is often the first step in diagnosing a blown head gasket. Look for:

• Coolant and Oil Leaks: Check for visible coolant or oil leaks around the mating surface between the cylinder head and engine block. These indicate the head gasket is no longer able to maintain a proper seal.
• Damaged or Corroded Gasket Surfaces: If you can gain access, inspecting the gasket surfaces (e.g., upon removal of other components) might reveal signs of damage like cracks, tears, or severe corrosion.
• Signs of Engine Overheating: Look for discolouration on the engine block or cylinder head, or steam coming from under the bonnet, which are clear indicators of overheating that often precedes or accompanies a blown gasket.

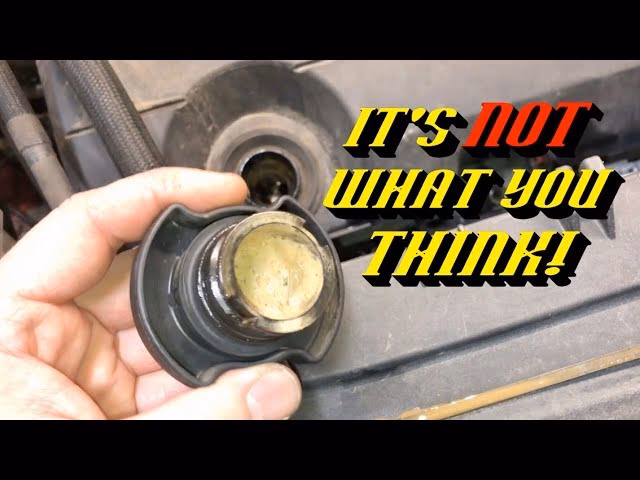

• Contaminated Fluids: Check the oil dipstick for a milky, frothy, or chocolate-milk-like appearance (oil mixed with coolant). Conversely, look into the coolant reservoir or radiator for an oily film or sludge (coolant mixed with oil), often described as looking like 'mayonnaise'.

Compression Test

The purpose of a compression test is to measure the pressure generated within each cylinder as the engine cranks. This test helps determine whether the head gasket is leaking or damaged by assessing the sealing integrity of the combustion chambers. A cylinder with consistently low compression, especially compared to adjacent cylinders, can strongly indicate a head gasket leak, as the gasket is failing to seal the combustion gases within the cylinder. Consistently low compression across all cylinders, however, could imply a more severe issue, like worn piston rings or valves, or even a warped cylinder head or a cracked engine block.

Leak-Down Test

A leak-down test is a more precise diagnostic tool than a compression test. It determines the amount of leakage in an engine’s cylinders by pressurising each cylinder with compressed air (usually 100 psi) and measuring the rate of pressure decrease. A high leak-down percentage (e.g., above 10-15%) in adjacent cylinders can indicate a head gasket leak between them. Additionally, listening for escaping air can pinpoint the leak: air escaping into the cooling system (bubbles in the radiator) or into an adjacent cylinder (hearing air from the spark plug hole of another cylinder) signifies a head gasket leak that lets combustion gases enter the cooling system. Comparing leak-down percentages between cylinders allows assessment of the severity and location of head gasket leaks.

Cooling System Pressure Test

A cooling system pressure test checks for leaks within the entire cooling system, including the head gasket. A pressure tester is attached to the radiator or coolant reservoir, and the system is pumped to its specified pressure rating (e.g., 15 psi). Any noticeable drop in pressure over a period (e.g., 15-30 minutes) or visible coolant leaks during the test can indicate a problem. If the pressure drops rapidly or coolant is seen leaking from the mating surface between the cylinder head and engine block, this is a strong sign of a blown head gasket. If bubbles appear in the coolant reservoir during this test while the engine is running, it further confirms combustion gases are entering the cooling system via the head gasket.

Checking for Contaminated Oil and Coolant

As mentioned in the visual inspection, the presence of oil in the coolant or coolant in the oil is one of the most definitive signs of a blown head gasket. Oil contamination in the coolant typically appears as a milky, sludgy substance in the coolant reservoir or radiator. Conversely, coolant in the oil can manifest as a milky or chocolate-milk-like substance on the oil dipstick or inside the oil filler cap (often referred to as 'mayonnaise' consistency). Head gasket failure allows these two vital fluids to mix, leading to reduced cooling efficiency, engine overheating, and critically, increased wear on engine components due to the reduced lubrication properties of the contaminated oil. Therefore, contaminated oil and coolant are strong indicators of a blown head gasket.

Comparative Table: Diagnostic Tests for Blown Head Gaskets

Frequently Asked Questions About Blown Head Gaskets

Can I drive with a blown head gasket?

While it might be technically possible to drive a very short distance with a minor head gasket leak, it is absolutely not recommended. Driving with a blown head gasket will inevitably lead to further, more severe engine damage. Coolant mixing with oil can destroy engine bearings, while persistent overheating can warp the cylinder head or even crack the engine block beyond repair. The cost of repair will escalate dramatically, and you risk completely writing off your engine. It's always best to stop driving and seek professional assistance immediately.

How much does it cost to fix a blown head gasket in the UK?

The cost of fixing a blown head gasket in the UK can vary significantly depending on the make and model of your vehicle, the extent of the damage (e.g., if the cylinder head needs skimming or replacement), and the labour rates of the garage. Generally, you can expect costs to range from a few hundred pounds for simpler, older vehicles to well over a thousand pounds for more complex engines or those requiring additional repairs. Always get a detailed quote from a reputable mechanic.

Is a blown head gasket always fatal for an engine?

No, a blown head gasket is not always fatal for an engine, especially if detected and addressed early. If the issue is caught before extensive overheating or fluid mixing occurs, the chances of a successful and lasting repair are high. However, if ignored, the consequential damage to vital engine components like bearings, pistons, and cylinder walls can indeed render the engine irreparable or make the repair economically unviable, meaning a replacement engine might be the only option.

Can additives fix a blown head gasket?

There are various 'head gasket repair' additives on the market that claim to fix blown head gaskets without replacement. While these products might offer a temporary, very short-term seal for extremely minor leaks, they are generally not a permanent or reliable solution for a truly blown head gasket. They work by sealing small cracks or pores, but they cannot repair warped metal, severe tears, or significant breaches. Relying on an additive can often delay the inevitable and potentially lead to more severe damage down the line. A proper mechanical repair is almost always the only reliable solution.

Conclusion

A blown head gasket is a significant automotive problem that, if left unaddressed, can cause catastrophic and expensive damage to your engine. However, armed with the knowledge of its common causes and, more importantly, the early warning signs, you are far better equipped to protect your investment. From the insidious effects of overheating and poor installation to the gradual degradation caused by old age or contaminated fluids, understanding these factors empowers you to take proactive steps.

Regular maintenance, including diligent coolant level checks, timely fluid changes, and prompt attention to any unusual engine behaviour, are your best defences. Should you suspect a problem, utilising diagnostic tools such as compression tests, leak-down tests, and visual inspections can provide the definitive answers needed. Remember, prevention is always better, and far cheaper, than cure when it comes to your engine's health. By following the comprehensive guidance provided in this article, you’ll be well-equipped to identify and prevent the most common causes of a blown head gasket, ensuring your vehicle remains reliable on the UK roads for years to come.
