Campbell Hausfeld Air Compressor: A User's Guide

Operating a Campbell Hausfeld air compressor, like any piece of machinery, requires a good understanding of its components and a commitment to safe practices. Campbell Hausfeld, a name synonymous with robust air compression technology for decades, offers a wide array of models, each with its own nuances but generally following a similar operational framework. This guide aims to demystify the process, ensuring you can harness the power of your compressor effectively and safely.

The journey from unboxing your new Campbell Hausfeld air compressor to its first operational use involves several key stages. While the brand has been a pioneer since the 1880s, their foray into air compressors and related tool compression technology gained momentum in the 1940s. Despite not typically including integrated inflators, their compressors remain highly sought after for their reliability and performance across various applications.

Unpacking and Initial Inspection

The first step, naturally, is unpacking. While seemingly straightforward, a thorough inspection is crucial. Upon removing the compressor from its packaging, meticulously check for any signs of damage incurred during transit. Pay close attention to screws, fittings, and any external components. Ensure all parts are present and securely fastened. A loose fitting or a damaged housing can lead to inefficiencies or safety hazards down the line.

Assembly and Lubrication

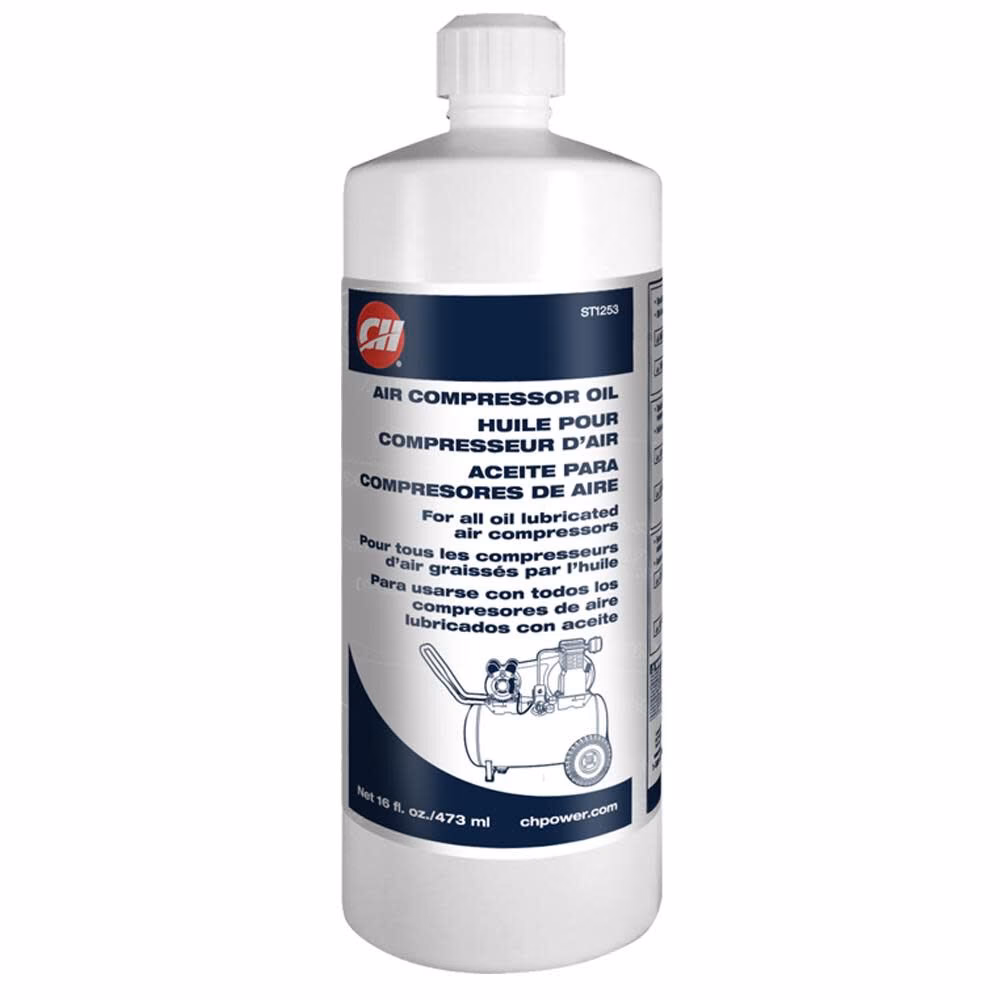

Most Campbell Hausfeld air compressors are designed for minimal assembly. Often, the unit arrives largely intact. However, it's essential to verify that all screws and fittings are tight. The most critical aspect of pre-operation preparation is lubrication. Your compressor will likely come with a specific lubricating oil. Crucially, never use standard engine oil in an air compressor, as the additives can degrade the compressor's internal valves. Refer to your model's specific user manual for the correct type and amount of oil. Fill the reservoir to the indicated 'Max' level, avoiding overfilling. Regular oil changes, especially after the initial few hours of operation, are vital for extending the lifespan of your compressor.

Installation and Setup

Proper installation ensures optimal performance and longevity. While complex assembly is usually not required, you'll need to install accessories like the air filter, which is vital for preventing dust and debris from entering the compressor. Ensure the surrounding area is clean and well-ventilated. A common recommendation is to maintain at least a 2-foot (24-inch) gap between the compressor and any walls or obstructions to allow for adequate airflow and heat dissipation. This prevents overheating and ensures efficient operation.

Electrical Wiring Considerations

The electrical setup is paramount for safe and effective operation. Campbell Hausfeld compressors are designed to connect to standard electrical outlets, but always ensure your connection adheres to local electrical codes. The power cord should be securely connected to a grounded outlet, as most compressors feature a grounded facility to protect against short circuits. Select appropriate plugs, wires, and fuses that match the compressor's electrical rating. If you are unsure about electrical connections, it is always advisable to consult a qualified electrician.

Understanding Compressor Components

Familiarising yourself with the key components of your Campbell Hausfeld air compressor will greatly aid in its operation and maintenance:

• On/Off Switch: The primary control for starting and stopping the compressor. Ensure the unit is plugged in before operating the switch.
• ASME Safety Valve: This crucial safety feature automatically releases excess air pressure from the tank if it exceeds a predetermined safe limit, preventing tank rupture.
• Air Pressure Regulator: Typically controlled by knobs, these regulators allow you to adjust and set the output air pressure to suit the specific tool or application you are using.
• Exhaust Pipe: Air is expelled from the pump through the exhaust pipe. Be aware that this pipe can become very hot during operation due to the hot air passing through it.
• Drain Valve: Located at the bottom of the tank, this valve is used to release condensed moisture. Regular draining is essential to prevent corrosion and damage to the internal components.

Operating Your Campbell Hausfeld Air Compressor

Safety First: Pre-Operation Checks

Safety cannot be overstated when working with compressed air. Before powering on your compressor, conduct a thorough visual inspection. Check the body, pipes, and hoses for any signs of damage, leaks, or wear. Re-examine all electrical connections. If any wiring appears frayed, damaged, or improperly connected, do not operate the compressor. Always wear appropriate personal protective equipment (PPE), including safety glasses or goggles and sturdy gloves, as compressed air can be powerful and potentially hazardous.

Connecting Tools and Fittings

To use your compressor for various tasks, you'll need to connect air hoses and tools. Ensure you use the correct fittings and connect them securely to the compressor's air outlets. Refer to your user manual for specific instructions on connecting different types of hoses and tools. The male and female ends of couplings should click firmly into place. It's advisable to disconnect the air supply before making or breaking connections to avoid sudden bursts of air.

Setting and Monitoring Air Pressure

Before initiating operation, set the air pressure regulator to the desired level for your task. Most air tools have specific pressure requirements, so consult their manuals. Once set, turn on the compressor. Allow the tank to fill. Periodically check the pressure gauge to ensure it remains within the recommended range. It's good practice to disengage the air regulator or release pressure from the line before making any adjustments or repairs to connected tools. When detaching hoses, slowly release the pressure by operating the quick-release coupling. Never point a nozzle or hose directly at yourself or others, as the expelled air is under high pressure and can cause injury.

Managing Moisture and Condensation

Moisture is the enemy of air compressors. Condensation inevitably forms inside the tank as air cools. This water can lead to rust and damage internal components. Regularly draining the tank is crucial. Locate the drain valve (usually a small knob or lever at the bottom of the tank) and turn it counter-clockwise to release the accumulated water. Continue draining until only dry air emerges, then close the valve by turning it clockwise. For frequent users, draining the tank every 3-4 days is a good maintenance schedule. Some models may have an automatic drain valve.

Relieving Tank Pressure

For long-term storage or to minimise wear, it's often recommended to relieve the pressure in the tank when the compressor is not in use. After shutting down the unit, you can release the stored air by gently pulling the brass ring on the air outlet or by opening the drain valve slightly until the desired pressure is reached. This reduces stress on the tank seals and minimises further condensation.

Oil vs. Oil-Free Compressors

Campbell Hausfeld offers both oil-lubricated and oil-free compressor models. Newer oil-free designs are becoming increasingly popular due to their lower maintenance requirements. However, if your compressor is an oil-lubricated type, using the correct, manufacturer-recommended oil is paramount. Overfilling or using the wrong type of oil can lead to performance issues and damage. Always follow the manual's guidance regarding oil type and levels.

Maintenance for Longevity

Regular maintenance is key to ensuring your Campbell Hausfeld air compressor performs reliably for years to come. Beyond regular oil changes (for lubricated models) and moisture draining, keep the compressor clean and free from dust and debris. Periodically inspect air filters and replace them as needed. Check hoses and fittings for wear and tear. A well-maintained compressor is a safe and efficient compressor.

Frequently Asked Questions

Q1: What type of oil should I use in my Campbell Hausfeld air compressor?

A1: Always consult your specific model's user manual. Campbell Hausfeld typically recommends a specific grade of compressor oil. Never use engine oil.

Q2: How often should I drain the moisture from the tank?

A2: It's recommended to drain the tank at least every 3-4 days of use, or more frequently in humid conditions, to prevent corrosion.

Q3: Can I use my Campbell Hausfeld air compressor indoors?

A3: While many electric models can be used indoors in well-ventilated areas, it's crucial to check your manual. Ensure adequate airflow and that the area is dry and free from flammable materials. Gas-powered compressors should never be used indoors due to exhaust fumes.

Q4: What does the safety valve do?

A4: The safety valve is a critical safety device that automatically releases excess air pressure from the tank if it exceeds a safe operating limit, preventing potential explosions.

Q5: My compressor is making a strange noise. What could be the problem?

A5: Unusual noises can indicate various issues, from loose fittings to internal pump problems. Check for loose parts, ensure proper lubrication, and if the noise persists, consult the user manual or contact customer support.

Conclusion

Operating a Campbell Hausfeld air compressor is a rewarding experience when done correctly. By understanding its components, adhering to safety protocols, performing regular maintenance, and following the operational steps outlined above, you can ensure efficient performance and a long service life from your investment. Always prioritise safety, keep your manual handy, and enjoy the power and versatility your air compressor provides for all your projects.
