Nissan 200SX CA18DET Conrods & Timing Belt Guide

Understanding the Nissan 200SX CA18DET Performance Package

The Nissan 200SX, particularly models equipped with the venerable CA18DET engine, has long been a favourite amongst automotive enthusiasts and tuners worldwide. Its potent combination of a compact chassis and a turbocharged inline-four engine provided a fantastic platform for performance modifications. Central to unlocking the full potential of this engine, especially when pushing power levels beyond its stock capabilities, are crucial internal components. This article delves into the specifics of a performance-oriented upgrade kit: the FCP H-beam steel connecting rods, and complements this with essential information regarding the engine's timing belt, specifically highlighting the benefits of a Gates timing belt.

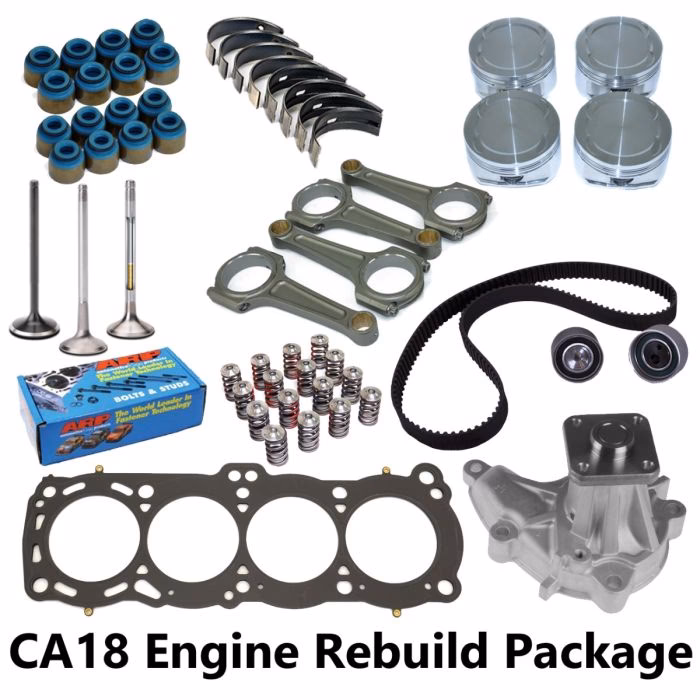

FCP H-Beam Steel Connecting Rods for the CA18DET

Connecting rods are arguably one of the most critical components within an internal combustion engine. They are tasked with the demanding job of transferring the explosive force generated by the combustion of fuel and air in the cylinder, through the piston, to the crankshaft, ultimately driving the vehicle. In high-performance applications, particularly with turbocharged engines like the CA18DET which are prone to significant increases in cylinder pressures and rotational speeds, stock connecting rods can become a weak link, leading to catastrophic engine failure. This is where upgraded components like FCP H-beam steel connecting rods come into play.

What are H-Beam Connecting Rods?

Connecting rods come in various designs, with the 'H-beam' profile being a popular choice for performance builds. This name derives from the cross-sectional shape of the rod, which resembles the letter 'H' when viewed from the end. This design is favoured for its excellent strength-to-weight ratio. The two flanges (the horizontal bars of the 'H') provide rigidity and strength, while the web (the vertical bar) connects them, allowing for efficient material distribution. Compared to other designs like I-beam rods, H-beam rods generally offer superior torsional rigidity and are better equipped to handle the immense side loading and bending forces experienced under high RPM and boost conditions.

Why Steel?

The material used in connecting rods is paramount. While some factory rods might be made from cast iron or lighter alloys, performance applications almost universally demand forged steel. Forging is a manufacturing process where metal is heated and then shaped under pressure, creating a stronger, more durable component with a refined grain structure. This process eliminates internal voids and weaknesses often found in cast components. Steel, with its inherent strength and toughness, is an ideal material for connecting rods that need to withstand extreme stress. FCP (which we will assume stands for a performance parts manufacturer) H-beam steel connecting rods are engineered from high-grade forged steel, ensuring they can reliably handle significantly higher horsepower and torque outputs than their OEM counterparts.

Key Specifications and Benefits

While the provided specifications (Length: 1208mm, Width: 19mm, Number of tooth: 151) seem to relate more to a timing belt than connecting rods, it's important to understand the typical specifications for performance connecting rods. These would include:

The primary benefit of fitting FCP H-beam steel connecting rods to your CA18DET is enhanced reliability under stress. These rods are designed to prevent failure when the engine is subjected to increased boost pressure, aggressive tuning, or frequent high-revving. They allow for a significant increase in horsepower and torque without the fear of the connecting rods bending or breaking. This is crucial for any tuner aiming to push their CA18DET beyond the 300-400bhp mark, where OEM components often struggle.

The Crucial Role of the Timing Belt: Gates Timing Belts

While upgraded connecting rods are vital for handling increased power, the engine's timing system must also be in perfect working order. The timing belt synchronises the rotation of the crankshaft and camshaft(s), ensuring the engine's valves open and close at the correct moments relative to the piston's position. A broken or slipped timing belt can lead to severe engine damage, often referred to as an 'interference engine' scenario, where pistons collide with valves. The Nissan CA18DET is an interference engine, making a reliable timing belt absolutely critical.

Why Choose Gates Timing Belts?

Gates is a globally recognised leader in timing belt technology. Their products are often specified as original equipment (OE) by many vehicle manufacturers, a testament to their quality and reliability. For the Nissan 200SX CA18DET, a Gates timing belt offers several advantages:

• Precision Fit and Easy Installation: Engineered to exact OE specifications, ensuring straightforward installation and proper alignment.
• No Interference Engine Damage: Designed to maintain precise timing, preventing piston-to-valve contact even under demanding conditions.
• Superior Construction:
• Tensile Cord Reinforced: Utilises premium, high-strength glass cords for exceptional tensile strength, resisting stretching under load.
• Gripping Teeth: Features aramid fibre technology and high-saturation HNBR (Hydrogenated Nitrile Butadiene Rubber) elastomeric composites. This combination provides outstanding durability, excellent heat resistance, and superior grip, preventing slippage.
• Wear-Resistant Tooth Jacket: A reinforced nylon fabric supports the teeth, offering enhanced wear resistance and contributing to 'double-tooth stability' for consistent performance.
• Enhanced Strength and Heat Resistance: Gates belts are often cited as being up to 300% stronger and offering three times the heat resistance of standard aftermarket belts. This is vital for high-performance engines that generate more heat and experience higher operating stresses.

Timing Belt Specifications Explained

The specifications provided for the Gates timing belt are:

• Length: 1208mm - This is the overall circumference of the belt, crucial for matching the pulley system accurately.
• Width: 19mm - This refers to the width of the belt itself. It's important to match this to the original belt and pulley groove dimensions to ensure proper engagement and load distribution.
• Number of Teeth: 151 - This indicates the number of teeth on the belt that engage with the timing pulleys. Accurate tooth count is essential for maintaining the correct timing ratio between the crankshaft and camshafts.

Using a Gates timing belt ensures that the critical synchronisation of your CA18DET engine is maintained with the highest degree of accuracy. This is not an area where compromises should be made, especially when upgrading other engine components that increase stress and power output.

Complementary Upgrades and Considerations

When upgrading to performance connecting rods and ensuring your timing belt is top-notch, it's wise to consider other related components:

• Pistons: Forged pistons are typically recommended to complement forged connecting rods, creating a robust rotating assembly.
• Crankshaft: Ensure the crankshaft is in good condition and balanced.
• Rod Bearings: Always use new, high-quality rod bearings when installing new connecting rods.
• Head Gasket: A stronger head gasket may be necessary to cope with increased cylinder pressures.
• ARP Main & Head Studs: These provide superior clamping force compared to stock bolts, essential for high-boost applications.
• Oil Pump & Cooler: Increased performance demands better lubrication and cooling.

Frequently Asked Questions (FAQ)

Q1: Are FCP H-beam connecting rods suitable for a stock CA18DET?
While they will undoubtedly be stronger than stock, they are typically overkill for a completely stock engine. They are most beneficial when you plan to increase boost pressure or significantly modify the engine for higher power output.

Q2: What is the advantage of H-beam over I-beam connecting rods?
H-beam rods generally offer greater torsional rigidity and are better suited for extreme stress applications due to their stronger cross-section, making them less prone to flexing or bending under high loads.

Q3: How often should I replace the timing belt on my CA18DET?
It's crucial to follow the manufacturer's recommended replacement interval, typically around 60,000 to 90,000 miles or 5-7 years, whichever comes first. However, for modified or high-performance engines, more frequent inspection and replacement are highly advisable.

Q4: Can I reuse my old connecting rod bolts?
Absolutely not. Connecting rod bolts are torque-to-yield or stretch bolts and are designed for single use. Always use new, high-quality fasteners, preferably from reputable brands like ARP, when installing new or reconditioned connecting rods.

Q5: What kind of power can the CA18DET handle with these upgrades?
With forged H-beam rods, forged pistons, and other supporting modifications, the CA18DET bottom end can reliably handle upwards of 450-500bhp. The limiting factors then become the cylinder head, turbocharger, and fuel system.

Conclusion

For any Nissan 200SX owner looking to enhance the performance and reliability of their CA18DET engine, investing in robust internal components is paramount. The FCP H-beam steel connecting rods offer a significant upgrade in strength and durability, providing the foundation for a high-output engine build. Complementing this with a premium Gates timing belt ensures the critical synchronisation of the engine is maintained with unwavering precision, safeguarding against catastrophic failure. Together, these components represent a smart investment for enthusiasts seeking to extract the full potential from their beloved CA18DET powerplant.
