Car Bulkhead: Removal, Repair & Costs Explained

The bulkhead in your vehicle is far more than just a piece of metal separating the engine bay from the passenger compartment; it's a critical structural component that plays a pivotal role in both safety and functionality. Often hidden from plain sight, its integrity is paramount. However, like many parts of an older car, the bulkhead is susceptible to corrosion, which can compromise its strength and lead to significant issues. This comprehensive guide will delve into what a bulkhead is, why it corrodes, the intricate process of its removal and repair, and what you need to consider regarding costs and parts.

What is a Car Bulkhead and Why is it So Important?

At its core, the bulkhead serves as a firewall, separating the engine bay from the cabin. This crucial panel acts as a mounting point for numerous vital components, including much of the car's wiring loom, the steering column, brake master cylinder, and various control systems. More importantly, it forms a major part of the vehicle's structural framework, offering vital protection to the occupants' legs in the unfortunate event of a front-end impact. Its strength and stability are non-negotiable for occupant safety and overall vehicle rigidity. Without a sound bulkhead, the vehicle's structural performance and safety features are severely compromised.

Understanding Bulkhead Corrosion: The Hidden Threat

While often out of sight, bulkhead corrosion is a common and serious issue, particularly in older vehicles. What makes it particularly insidious is that much of the panel visible from under the bonnet might appear sound, masking significant hidden rot. The areas most prone to severe deterioration are typically concealed by the chassis and inner front wings, and become apparent only when interior trim is removed from the footwells. This is because moisture and dirt can accumulate in these unseen crevices, creating the perfect environment for rust to thrive, often unnoticed until it becomes extensive. Historically, some manufacturers, like Morgan, faced significant issues with bulkhead corrosion, leading to advancements such as powder-coated or galvanised chassis and, more recently, stainless steel bulkheads to mitigate this problem. If you're considering purchasing an older vehicle, it's highly advisable to inspect behind the interior trim in the footwells to ascertain the true condition of the bulkhead.

Is Bulkhead Removal a DIY Job?

Removing a car's bulkhead is not a task for the faint-hearted or inexperienced. It typically involves stripping most of the front end of the car, including body panels, electrical systems, and mechanical components. While it might technically be possible to remove the bulkhead with the front wings still in place, it's rarely advisable or worthwhile. If the bulkhead is corroded, it's highly probable that the inner wings will also be suffering from similar rust issues. A comprehensive approach, involving the removal of surrounding panels, allows for a thorough assessment and effective repair of all affected areas, ensuring the longevity and safety of the vehicle.

Preparing for Bulkhead Removal: A Detailed Checklist

Before you can even begin to unbolt the bulkhead, a significant amount of preparatory work is required. This phase involves systematically disconnecting and removing a multitude of components that are either mounted on the bulkhead or obstruct its removal. Patience and meticulous organisation are key here, as you'll be dealing with electrical wiring, fluid lines, and mechanical linkages. Below is a comprehensive list of components that typically require removal:

• Front wings and bonnet
• Inner wings, cowl, and cowl box
• Wiring loom: Disconnect and carefully withdraw the entire loom, noting its routing.
• Steering column: This needs to be completely removed from its mounting points.
• Fuse box: Disconnect all connections and remove the unit.
• Starter solenoid: Ensure all electrical connections are safely removed.
• Screenwash bottle and motor: Detach and drain if necessary.
• Brake switch and master cylinder: Exercise extreme caution with brake fluid, and ensure the system is depressurised.
• Windscreen wiper motor and linkage.
• Heater unit and its associated hoses.
• One Shot lubrication valve (if applicable to your vehicle).
• Throttle and choke cables: Disconnect these from the carburettor or throttle body.
• Speedometer cable: Unscrew and disconnect from the rear of the speedometer.
• Alternator lead and temperature gauge wire: Ensure these are safely disconnected.
• Fuel line: Undo 'P' clips and carefully withdraw the line through the bulkhead.
• Throttle pedal: Remove the small bolts securing it from inside the footwell.
• Main loom securing bolts: Release any bolts securing the main wiring loom to the inner upper side of the bulkhead.
• Toolbox (and potentially battery): Undo bolts securing the toolbox to the upper bulkhead.

Each of these steps requires careful documentation, perhaps with photographs, to ensure a smooth reassembly process.

The Bulkhead Removal Process

Once all the aforementioned components have been carefully removed, the bulkhead itself can be unbolted from the chassis and body structure. This is a critical stage where precision is important to avoid damaging surrounding panels or components. The process typically involves:

1. Locating and undoing numerous screws (e.g., 27 screws in some older models) that fix the bulkhead to the scuttle frame.
2. Unbolting the bulkhead from the main chassis.
3. Removing the bolts (e.g., 4 bolts) that secure the bulkhead to the transmission tunnel.
4. Performing a final check to ensure nothing else is bolted to or obstructing the bulkhead's path.

It's crucial to understand that heavily corroded areas of the bulkhead may disintegrate during removal. Therefore, before lifting the bulkhead clear, it is highly recommended to make detailed templates of any rusty parts. These templates will be invaluable for fabricating new repair panels later.

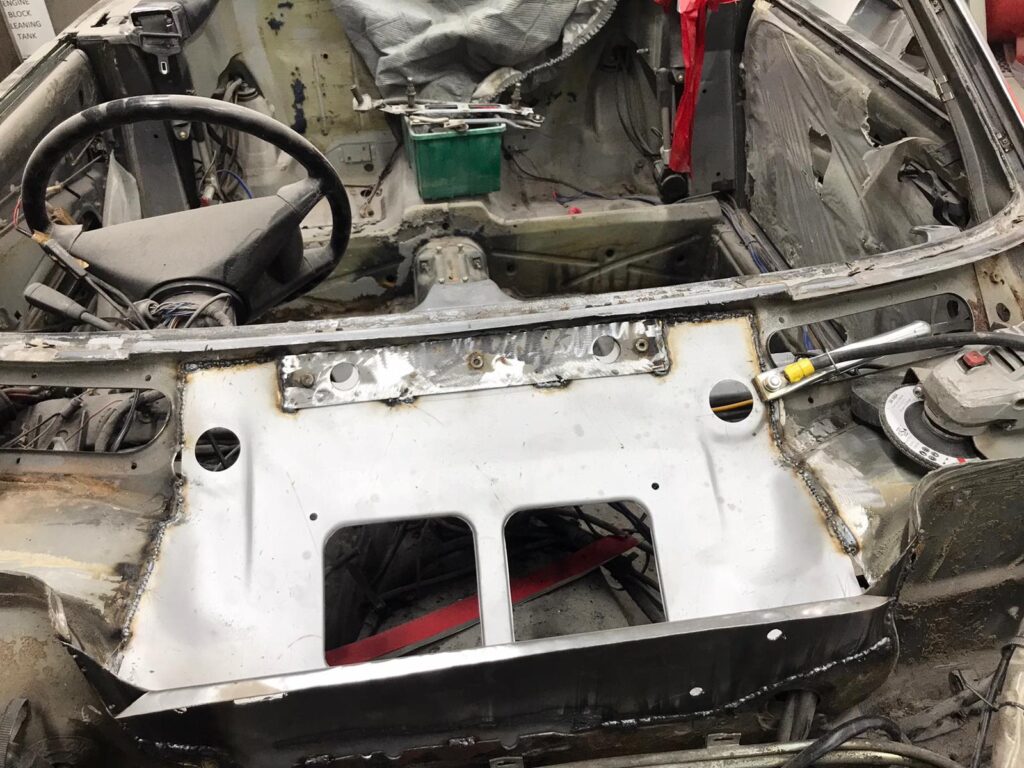

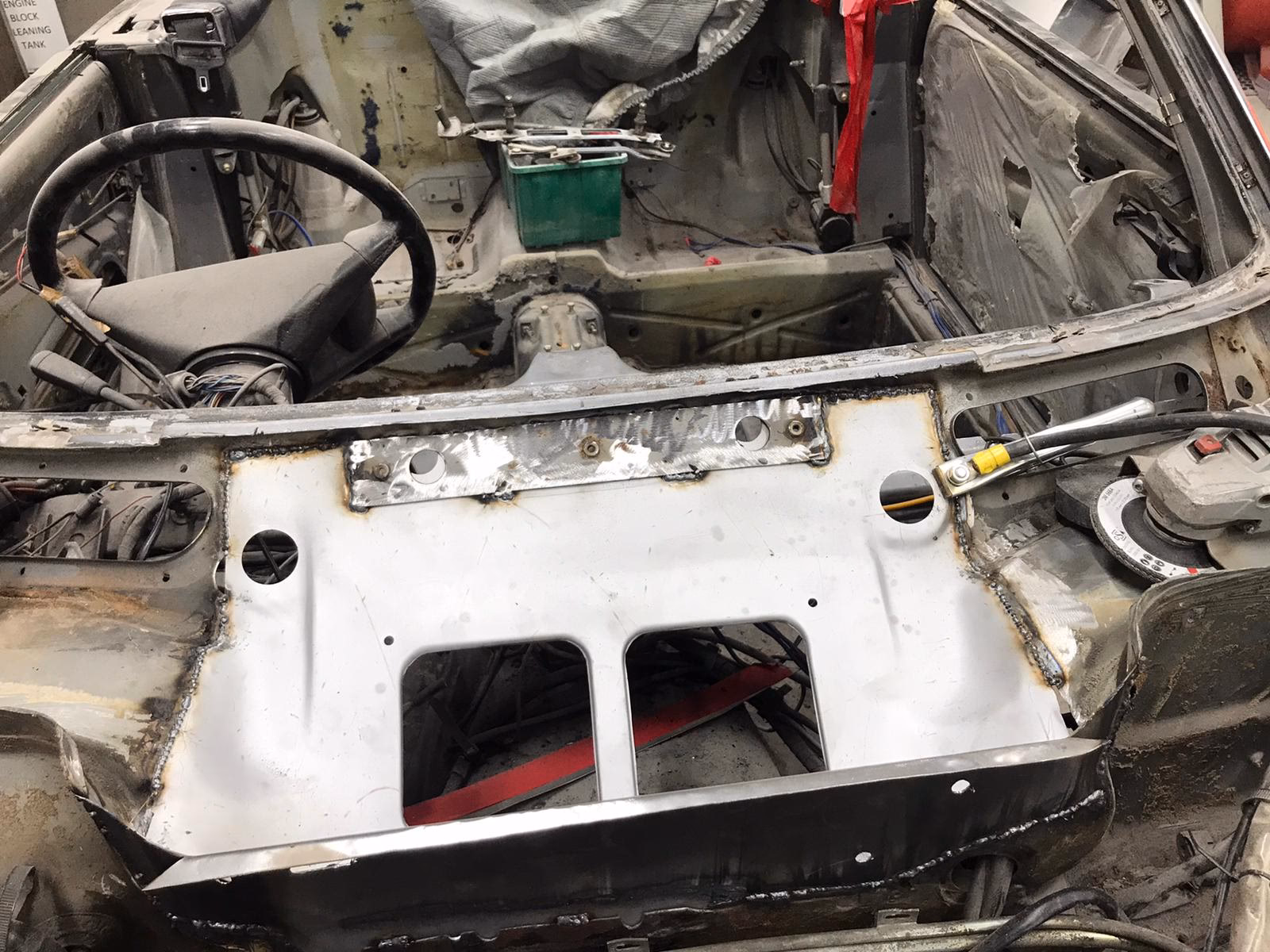

Repairing a Corroded Bulkhead: Welding Techniques

Repairing a corroded bulkhead often involves cutting away the rusted sections and welding in new steel panels. This is where welding skills, particularly with a MIG welder, become essential. For those new to welding, it’s advisable to practice on scrap pieces of steel first to gain proficiency. Always read the instruction manual for your welding equipment and adhere strictly to all safety precautions, especially regarding eye protection.

Traditional Flush Welding

The conventional method involves cutting away the rusty parts using your templates, then fabricating identical new steel panels. These new panels are then welded flush with the sound, clean steel of the bulkhead. When expertly ground and polished, this method can result in an almost invisible repair that is as strong as the original panel. However, for an inexperienced amateur working with thin steel, there's a risk of panel buckling due to heat distortion. This can be mitigated by employing stitch welding or tack welding the joint first, allowing the metal to cool between welds.

Overlap Welding with Swaged Edges

An alternative method, particularly effective for amateur welders, involves producing swaged edges on the new repair panels. This creates an overlap where the new panel sits over the old steel. For example, if you add margins (like 'A' and 'B' in a diagram) to your templates, you can use a joddler tool to form a swaged edge on margin 'A' and a simple 90-degree fold on margin 'B'. The new piece of steel is then welded with these flanges overlapping on the inside of the bulkhead. Welding the seams on both sides of the bulkhead, especially on the overlapped margins, creates incredibly strong double welds. Any remaining holes in these double-welded seams must be sealed to prevent future water ingress and corrosion. The inside seams can be protected with sealant (as they will be hidden by trim), while the outside seams are ground flush with an angle grinder. For a perfect finish, any minor imperfections can be filled using body solder, which is more durable and less prone to cracking than epoxy body fillers, especially when panels flex.

Reassembly and Finishing Touches

Reassembly is essentially the reverse of the removal process. However, it's an opportunity to implement improvements that enhance durability and ease of future maintenance. For example, replacing standard screws with stainless steel button head bolts (recessed for Allen keys) when reattaching the bulkhead to the scuttle frame can provide extra strength and make future work significantly easier. These stainless bolts, while more expensive, are less likely to seize and are easier to remove years down the line.

When bolting the bulkhead back onto the chassis, use large washers to help spread the load around the bolts, further increasing the assembly's strength. Crucially, apply a good quality mastic sealant between the chassis and the bulkhead. Avoid silicone sealant, as it is notoriously difficult to paint over and remove from surrounding panels, potentially causing issues with future repairs or repainting.

Once fitted and secured, the bulkhead can be painted. Applying a high-quality finish not only improves aesthetics but also makes future cleaning much easier. Consider painting the bulkhead after it's fitted to the chassis and inner wings, as this ensures complete coverage of all surfaces and seams, preventing the missed areas that often lead to early corrosion in factory finishes.

Cost Considerations for Bulkhead Work

The cost of dealing with a corroded bulkhead can vary significantly depending on whether you opt for a DIY repair or professional services, and the extent of the damage. Here's a general overview, based on common scenarios and some specific examples:

While the initial outlay for a MIG welder and materials for a DIY repair might seem significant, it can lead to substantial savings compared to professional services, especially if you plan on undertaking other welding projects in the future. However, the complexity and safety implications of bulkhead work often make professional assistance a worthwhile investment for those without the necessary skills or equipment.

Frequently Asked Questions (FAQs)

Q: Can I remove the bulkhead without removing the front wings?

A: While technically possible in some cases, it's generally not recommended. If the bulkhead is corroded, the inner wings are likely also affected, and removing them allows for a more thorough assessment and repair of all corroded areas.

Q: What causes bulkhead rust, especially in older cars?

A: Bulkheads often rust due to moisture and dirt accumulating in hidden crevices, particularly where they meet the chassis and inner wings. Older manufacturing processes, less effective rust proofing, and the use of non-galvanised steel contributed to this problem in vintage vehicles.

Q: Is it safe to weld a bulkhead myself if I'm not experienced?

A: Welding requires practice and strict adherence to safety protocols, especially eye protection. While a MIG welder can be relatively easy for beginners to learn, it's crucial to practice on scrap metal extensively before attempting structural welds on your vehicle's bulkhead. If in doubt, consult a professional.

Q: How can I prevent future bulkhead corrosion after repair?

A: Use good quality mastic sealant between the bulkhead and chassis during reassembly. Ensure all seams are properly sealed and painted. Consider applying additional rust-preventative coatings or waxes to hidden areas for long-term protection. Using galvanised or stainless steel replacement panels is also a significant improvement.

Q: How long does a bulkhead replacement typically take?

A: This is a highly involved process. For a DIY enthusiast, it could take weeks or even months of dedicated effort, depending on skill level and time availability. A professional garage, with all the right tools and experience, might complete the job in a matter of days to a week, assuming no unforeseen complications.

Conclusion

Addressing bulkhead corrosion is a significant undertaking, but a necessary one for the safety and longevity of your vehicle. Whether you choose to tackle it yourself with a MIG welder and careful planning, or enlist the expertise of professionals, understanding the intricate steps and considerations involved is crucial. By prioritising thoroughness in repair and reassembly, you can restore your vehicle's structural integrity and ensure many more years of safe motoring on the UK's roads.
