Shimano Ice Tech Rotors: A Cool Braking Solution?

In the world of cycling, particularly for those who tackle challenging descents or engage in intense riding, brake performance is paramount. Heat, the relentless byproduct of friction braking, is the ultimate enemy of consistent stopping power. As brake rotors heat up, they can lead to brake fade, reduced modulation, increased noise, and premature wear of both rotors and pads. This is precisely where Shimano's innovative Ice Technologies come into play, promising a cooler, more consistent braking experience. But are these technologically advanced rotors truly a good idea, or are their benefits merely theoretical?

Shimano's Ice Technologies are a design philosophy aimed at managing and dissipating heat more effectively within a bicycle's braking system. At the heart of this system, particularly with the rotors, is a multi-layered construction. Unlike traditional single-piece steel rotors, Ice Tech rotors feature a unique 'sandwich' structure: a core of aluminium alloy nestled between two layers of stainless steel. This design is not just a clever gimmick; it’s a calculated engineering solution to a fundamental problem.

Understanding the Ice Tech Design: The Heat Dissipation Strategy

The primary concept behind Ice Tech rotors is to leverage the superior thermal conductivity of aluminium. Steel, while excellent for a braking surface due to its hardness and wear resistance, isn't the best conductor of heat. Aluminium, on the other hand, excels at drawing heat away. By integrating an aluminium core, the heat generated on the stainless steel braking surfaces is rapidly transferred inwards to this more conductive material. This effectively draws heat away from the critical braking track, where pads make contact, preventing temperatures from soaring to extreme levels.

Some might correctly point out that once heat has been transferred to the aluminium core, it still needs somewhere to go. This observation is astute. The aluminium core acts as a thermal buffer and a conduit, spreading the heat over a larger volume and then facilitating its transfer to the air. Furthermore, many Ice Tech rotors incorporate an additional design feature: aluminium cooling fins. These fins, often visible around the rotor's spider, increase the surface area exposed to the airflow, allowing the heat that has migrated to the aluminium core to dissipate more efficiently into the surrounding air as you ride. While the heat doesn't 'vanish', its management is significantly improved. For short, repeated braking efforts, the aluminium core acts as an effective heat sink, keeping the braking surface cooler. For prolonged descents, the combination of the core and cooling fins helps to manage the overall temperature build-up, delaying the onset of fade compared to conventional rotors.

The Core Benefits of Ice Tech Rotors

The sophisticated design of Shimano Ice Tech rotors translates into several tangible benefits for the rider:

• Reduced Brake Fade: The most significant advantage. By keeping the rotor temperature lower, Ice Tech minimises the chances of brake fade, where braking power diminishes due to excessive heat. This means more consistent and reliable stopping power, especially on long descents or during spirited riding.
• Improved Braking Performance: Lower temperatures also lead to more consistent friction between the pads and rotor, resulting in better modulation and a more predictable braking feel. You get the power you expect, when you expect it.
• Extended Pad Life: When rotors overheat, they transfer that excessive heat to the brake pads, causing them to degrade faster. By keeping rotor temperatures in check, Ice Tech rotors help to prolong the lifespan of your brake pads, saving you money in the long run.
• Reduced Noise and Vibration: Overheating can cause rotors to warp or glaze, leading to annoying squealing or juddering. The improved heat management of Ice Tech rotors helps to maintain their structural integrity and surface quality, contributing to quieter and smoother braking.
• Weight Savings: While not their primary goal, the aluminium core can contribute to a slightly lighter rotor compared to an equivalent full-steel rotor, offering a minor weight advantage without compromising strength.

Addressing Common Concerns and Misconceptions

The idea of a multi-material rotor inevitably raises questions, particularly regarding the bonding between the steel and aluminium layers. A common concern is that any adhesive or poor coupling could create a thermal barrier, negating the benefits. Shimano employs a proprietary bonding process, often described as a form of brazing or a high-pressure, high-temperature bond, designed specifically to minimise thermal resistance between the layers. This ensures that heat transfer to the aluminium core is as efficient as possible, maintaining the integrity of the 'sandwich' structure even under extreme conditions. While no bond is perfect, Shimano's engineering is designed to overcome this challenge effectively.

Some may also ponder alternative materials, like a single-piece aluminium rotor with a steel outer contact area or even copper rotors. While interesting from a theoretical standpoint, these often face practical limitations. Aluminium, while thermally conductive, lacks the necessary hardness and wear resistance for a durable braking surface. Copper, too, presents its own challenges in terms of cost, weight, and long-term durability in a braking application. Shimano's Ice Tech design offers a practical, proven solution that combines the best properties of both steel (for the braking surface) and aluminium (for heat dissipation) in a commercially viable and highly effective package.

Are Ice Tech Rotors a Good Idea? The Verdict

Based on their innovative design and the real-world performance benefits, Shimano Ice Tech rotors are unequivocally a good idea for most cyclists. They offer a tangible improvement in braking performance, especially for riders who frequently encounter long descents, engage in aggressive trail riding, or simply desire more consistent and reliable stopping power. The technology addresses a critical aspect of braking – heat management – in a sophisticated and effective manner.

What Temperature Should a Shimano SM-RT70 Ice Tech Disc Rotor Be Used With?

This is a slightly nuanced question. Brake rotors, unlike an engine, don't have a specific 'operating temperature range' that you need to adhere to for their use. Instead, they are designed to *cope with* and *manage* the incredibly high temperatures generated during braking. A conventional steel rotor can easily reach temperatures well over 300°C (572°F) during heavy braking, and in extreme cases, even higher. The purpose of the Ice Tech design, including the SM-RT70, is not to specify a temperature range for use, but rather to *reduce* the peak temperatures that the braking surface and pads experience. By transferring heat away quickly, Ice Tech rotors aim to keep the braking surface significantly cooler than a standard rotor would under the same conditions. This means less fade and more consistent performance, even when temperatures would typically soar. Therefore, you should use your SM-RT70 rotors in any condition where you would normally brake; their design simply ensures they perform better and more consistently under the heat generated.

Real-World Rider Experiences: What Users Say

The true test of any cycling component lies in its real-world performance. User feedback on Shimano Ice Tech rotors consistently highlights their effectiveness:

• "Excellent quality brake discs, as you would expect from Shimano." – A recurring theme is the high standard of manufacturing and reliability, typical of Shimano products.
• "Superb service and simple to fit." – Installation is straightforward, especially with the correct lockring tool, making them accessible even for those new to disc brakes.
• "Braking power is improved in both the wet and dry. Also lighter that the cheaper rotor it replaced." – Many riders report a noticeable increase in stopping power and consistency across various conditions, along with a pleasant weight reduction.
• "Not sure why people buy super expensive rotors when these do the job fine. Learn how to descend and your rotors won't heat up that much. Descended Mt. Diablo and Mt. Hamilton without these warping at all." – This sentiment underscores the excellent value for money. Even on demanding descents like Mt. Diablo and Mt. Hamilton, these rotors demonstrate impressive resistance to warping and fade, proving their effectiveness in high-stress scenarios.
• "The old disc is still ok after over 16000km." – Durability is another strong point, with some users reporting extensive mileage without issues, indicating a long lifespan.
• "Worked perfectly with my disc pad set up, so my wheels roll without any rub - perfect!" – Good manufacturing tolerances and effective heat management contribute to a rotor that runs true and minimises annoying brake rub.

These testimonials collectively paint a picture of Ice Tech rotors as a high-quality, reliable, and performance-enhancing upgrade that delivers on its promises.

Maintenance and Care for Your Ice Tech Rotors

Like all brake components, Ice Tech rotors benefit from proper care. Keep them clean from dirt, oil, and brake fluid. Use specific disc brake cleaner, not general degreasers, to avoid contamination of pads and rotor surface. Regularly check for any signs of wear, such as thinning of the braking track or excessive scoring. While Ice Tech rotors are designed for durability, eventually they will wear out and require replacement. Always ensure your brake pads are compatible with your rotors (resin/organic or metallic/sintered pads can be used with Ice Tech, but always check your pad manufacturer's recommendations for specific rotor compatibility).

Frequently Asked Questions About Ice Tech Rotors

Are Ice Tech rotors worth the extra cost?

For most riders, yes. The improved braking consistency, reduced fade, and extended pad life often outweigh the slightly higher initial cost compared to basic steel rotors, especially if you ride in challenging terrain or frequently use your brakes.

Do Ice Tech rotors wear out faster?

No. Despite their multi-material construction, the stainless steel braking surface is highly durable. In fact, by running cooler, they can contribute to longer pad life and potentially extend their own lifespan by reducing thermal stress that can cause warping or premature wear in conventional rotors.

Can I use any brake pads with Ice Tech rotors?

Ice Tech rotors are compatible with both resin (organic) and metallic (sintered) brake pads. The choice often depends on your riding style and conditions. Metallic pads offer more bite and durability, especially in wet conditions, but can be noisier. Resin pads are generally quieter and offer better initial bite but wear faster.

How do I know if my rotors are Ice Tech?

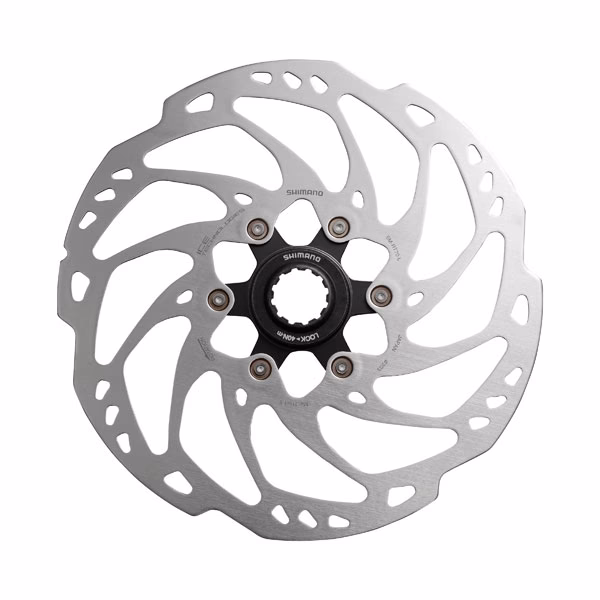

Shimano Ice Tech rotors are easily identifiable by their distinctive multi-layer appearance (you can often see the aluminium core edge) and, more importantly, by the 'Ice Technologies' logo printed on the rotor itself, along with cooling fins on many models.

Do they really make a difference?

Absolutely. While a casual urban rider might not notice a dramatic change, anyone who experiences long descents, heavy braking, or races will appreciate the significant improvement in fade resistance, consistent power, and overall braking confidence that Ice Tech rotors provide.

Conclusion: A Cooler Ride Awaits

Shimano Ice Tech rotors represent a significant leap forward in bicycle braking technology. By ingeniously combining the strengths of steel and aluminium, they effectively tackle the persistent challenge of heat management. The result is a braking system that offers superior consistency, reduced fade, quieter operation, and extended component life. For anyone seeking to upgrade their bike's braking performance and gain greater confidence on the road or trail, investing in Ice Tech rotors is not just a good idea; it's a smart one. They are a testament to how intelligent engineering can profoundly enhance the safety and enjoyment of cycling.
