The Making of Solid Brake Pads

Brake pads are a cornerstone of any vehicle's braking system, responsible for converting kinetic energy into thermal energy through friction. While we often think of them as simple components, their production is a complex and precise process designed to ensure durability, performance, and safety. This article delves into how brake pads, particularly those considered 'solid' in their construction, are manufactured, shedding light on the science and engineering that goes into creating these vital automotive parts.

Understanding Brake Pad Construction

Before diving into the manufacturing process, it's essential to understand the typical structure of a brake pad. Most modern brake pads consist of several layers, each serving a specific purpose:

• Friction Material: This is the outermost layer, making direct contact with the brake rotor. It's a carefully formulated composite designed for optimal friction coefficient, heat resistance, and wear characteristics.
• Bonding Agent: This layer adheres the friction material to the backing plate. It's typically a high-temperature adhesive.
• Backing Plate (Shim): This is a sturdy metal plate, usually steel, that provides structural support for the friction material and helps to dissipate heat. It's also what attaches the pad to the brake caliper.
• Shims (Optional but common): Some pads have additional layers of metal or composite material on the backing plate to further reduce noise and vibration.

The term "solid" in the context of brake pads often refers to the composition of the friction material itself. Unlike some older or specialized types, modern performance and everyday brake pads typically utilize a homogeneous mixture of various compounds, pressed and heated into a solid, dense form. This contrasts with older or less refined methods that might have involved different layering or binding techniques.

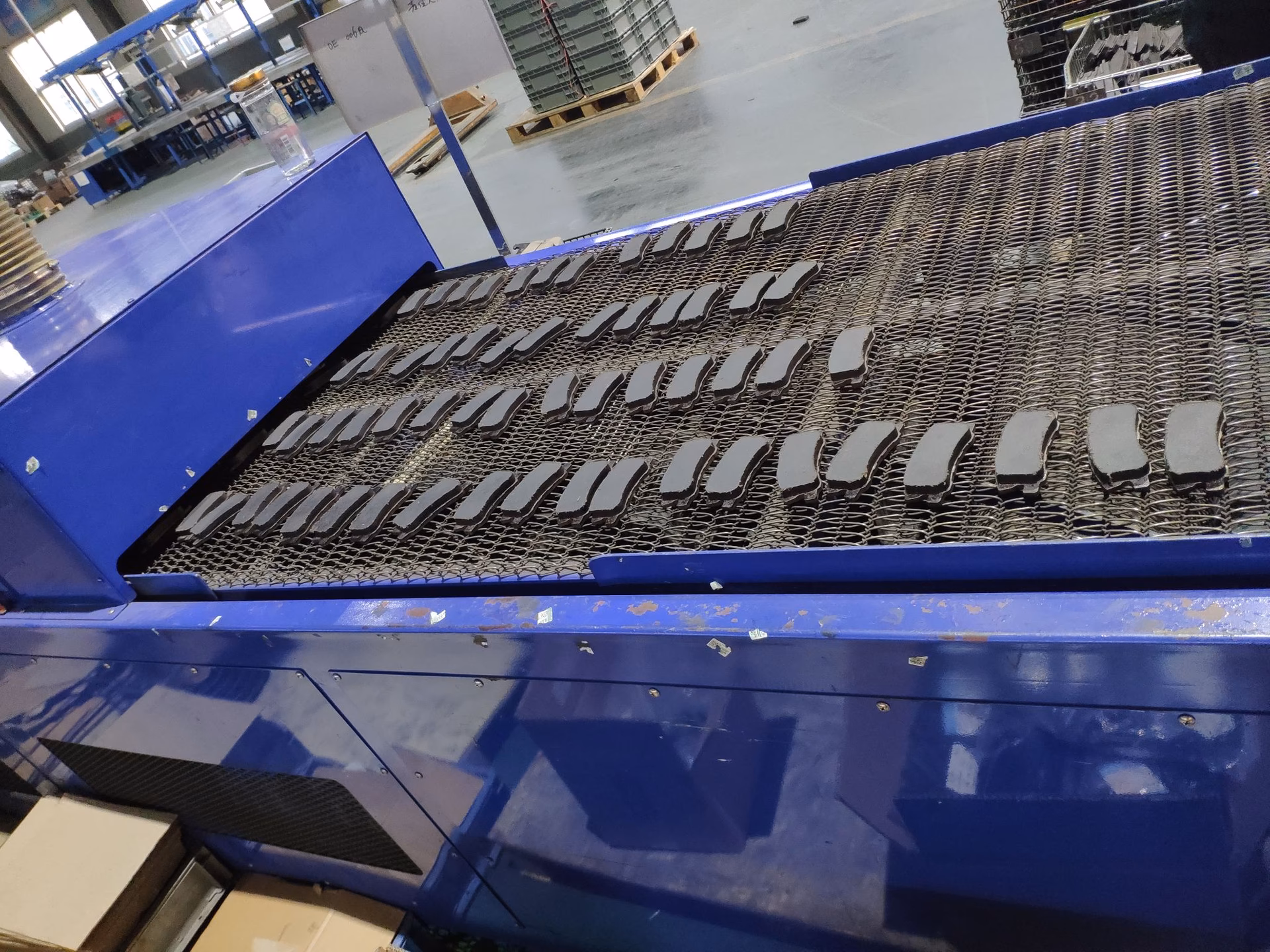

The Manufacturing Journey: From Raw Materials to Finished Product

The journey of a brake pad from raw materials to a finished, solid component is a testament to precision engineering and material science. The process can be broadly divided into several key stages:

1. Raw Material Selection and Preparation

The foundation of a high-quality brake pad lies in its raw materials. The friction material is not a single substance but a complex blend of dozens of different components, each contributing specific properties. These typically include:

• Fibers: Such as aramid fibers (like Kevlar), mineral fibers, or glass fibers, which provide structural integrity and reinforcement.
• Fillers: Like barite, kaolin, or talc, which add bulk and can influence friction properties and cost.
• Reinforcing Agents: Such as metal powders (copper, iron, steel), carbon, or graphite, which enhance thermal conductivity, wear resistance, and friction stability.
• Friction Modifiers: Various organic and inorganic compounds that help to maintain a consistent friction coefficient across a wide range of temperatures and operating conditions.
• Binders: Typically thermosetting resins (like phenolic resins) that hold all the other ingredients together when subjected to heat and pressure.

The exact formulation is proprietary to each manufacturer and is crucial for achieving the desired performance characteristics (e.g., stopping power, noise reduction, dust, wear rate). These raw materials are carefully weighed and mixed in precise proportions to create a homogeneous blend.

2. Compounding and Pre-forming

Once the raw materials are mixed, they are typically processed into a form suitable for pressing. This can involve:

• Powder Compounding: The mixed powder is often granulated or pelleted to ensure consistent density and flow during the pressing stage.
• Pre-heating: The mixture might be pre-heated to initiate the curing process of the binder and improve its flow characteristics.

3. Compression Moulding (The "Solidification" Stage)

This is arguably the most critical step in creating a "solid" brake pad. The prepared friction material mixture is placed into a mould that has the desired shape of the brake pad. The mould is then subjected to immense heat and pressure. This process, known as compression moulding or hot pressing, is where the magic happens:

• Pressure: High hydraulic pressure is applied to compact the material, forcing the particles to interlock and fill the mould cavity completely. This pressure is typically in the range of several tons per square inch.
• Heat: Simultaneously, the mould is heated to high temperatures (often exceeding 200°C or 400°F). This heat activates the thermosetting resin binders. As the resin heats up, it melts and flows, encasing the other particles and then undergoes a chemical reaction (curing or cross-linking).
• Curing: During the curing phase, the resin transforms from a pliable state into a hard, rigid, and incredibly durable solid matrix. This process fuses all the disparate raw materials into a single, cohesive, and dense block of friction material. The heat also drives off any volatile components and contributes to the final density and porosity of the pad.

The duration of this pressing and curing cycle is carefully controlled to ensure complete curing of the binder without degrading the other components of the friction material. This high-pressure, high-temperature process is what results in the solid, dense nature of modern brake pads.

4. Bonding to the Backing Plate

After the friction material has been moulded and cured into its solid form, it needs to be attached to the metal backing plate. This is typically achieved using a high-temperature adhesive:

• The backing plate is prepared, often with a surface treatment to ensure good adhesion.
• The adhesive is applied to either the friction material or the backing plate.
• The friction material and backing plate are brought together under pressure and then subjected to another heating cycle. This second heating cycle cures the adhesive, creating a permanent and strong bond between the two components.

The quality of this bond is critical for the safety and longevity of the brake pad. A failure in this bond would lead to the friction material separating from the backing plate, rendering the brakes ineffective.

5. Machining and Finishing

Once the friction material is bonded to the backing plate, the pad is not yet ready for use. Several finishing steps are necessary:

• Grinding: The surface of the friction material is ground to achieve a precise thickness and a specific surface finish. This ensures that the pad makes even contact with the brake rotor from the very first application.
• Skiving/Chamfering: The edges of the friction material are often chamfered (angled) and slots are cut into the surface. These features help to reduce noise and vibration (NVH - Noise, Vibration, Harshness) by allowing brake dust and gases to escape and by breaking up harmonic resonance.
• Drilling (for some applications): Some pads may have holes drilled for mounting or for additional cooling.
• Coating: The backing plate may be coated with a protective layer (e.g., zinc plating, paint) to prevent corrosion.

6. Quality Control and Testing

Throughout the manufacturing process, and especially at the end, rigorous quality control checks are performed. This includes:

• Dimensional Checks: Ensuring the pad meets exact specifications for fitment.
• Bond Strength Testing: Verifying the adhesive bond between the friction material and backing plate.
• Material Hardness and Density Tests: Confirming the correct properties of the friction material.
• Dynamometer Testing: A sample of pads from each batch may be tested on a brake dynamometer to simulate real-world braking conditions and verify performance metrics like stopping distance, fade resistance, and wear rates.

Why the "Solid" Composition Matters

The "solid" nature of modern brake pads, achieved through compression moulding, is essential for several reasons:

• Consistent Friction: A homogeneous, dense material provides a more stable and predictable friction coefficient across varying temperatures and pressures.
• Durability and Wear Resistance: The tightly packed structure and cured binder make the pad resistant to crumbling and wear, leading to a longer service life.
• Heat Dissipation: While the friction material itself generates heat, a dense composition can help in transferring that heat more efficiently to the backing plate and eventually to the atmosphere.
• Structural Integrity: The solid block is less prone to delamination or cracking under the extreme forces experienced during braking.

Frequently Asked Questions

Q1: What is the main material in a brake pad?

The main component is the friction material, which is a composite blend of various organic and inorganic materials including fibers, fillers, reinforcing agents, friction modifiers, and binders. There isn't one single 'main' material, but rather a carefully balanced mixture.

Q2: How long does it take to produce a brake pad?

The entire process from raw material mixing to finished product can take several hours, with the critical compression moulding stage often taking a significant portion of this time, depending on the specific curing cycles required.

Q3: Is the friction material brittle?

While the cured friction material is hard, it is designed to be resilient rather than brittle. The inclusion of fibers and specific chemical formulations helps to absorb shock and prevent cracking under normal operating conditions.

Q4: What makes some brake pads noisy?

Noise in brake pads can be caused by several factors, including material composition, improper bedding-in, uneven wear, or issues with the brake system itself. Chamfers, slots, and shims are incorporated into pad design to mitigate noise.

Q5: Can I tell if a brake pad is "solid" just by looking at it?

Visually, most modern brake pads will appear as a solid block of friction material bonded to a metal backing plate. The "solid" aspect refers more to the internal structure and manufacturing process of the friction material itself, rather than an external characteristic that easily differentiates it from other types.

In conclusion, the transformation of raw chemical compounds into the dense, solid brake pads that ensure our safety on the road is a sophisticated manufacturing feat. Through precise mixing, high-pressure moulding, and careful bonding, manufacturers create components that can withstand extreme temperatures and forces, providing reliable stopping power for millions of vehicles worldwide. Understanding this process highlights the importance of quality in automotive components and the advanced engineering that underpins even the most seemingly simple parts.
