GPZ500S: Disc Brake Evolution

The Kawasaki GPZ500S, a popular mid-range sports motorcycle produced between 1987 and 2004, is a familiar sight on UK roads. Known for its reliability, decent handling, and a rev-happy parallel-twin engine, it offered an accessible entry into 'big bike' ownership. For many, the question of its braking capabilities, specifically whether it features disc brakes, is a common one. The answer, as with many long-running models, is that it depends on the specific year and variant of the GPZ500S you're looking at.

Understanding the GPZ500S Braking System

The braking system is a crucial element of any motorcycle, directly impacting rider safety and confidence. The GPZ500S, in its various iterations, underwent changes to its braking hardware. To understand if a GPZ500S has disc brakes, we need to look at the model's history and the specifications of its different generations.

Early Models: Drum Brake Rear

The earliest models of the Kawasaki GPZ500S, specifically those designated as the 'A' series (from 1987 up to January 1994), featured a single disc brake on the front wheel. This front brake was equipped with a two-piston caliper and a 280mm disc, providing adequate stopping power for the era. However, the rear braking system on these early 'A' models relied on a drum brake. While drum brakes were common and functional for their time, they generally offer less progressive feel and stopping power compared to disc brakes, especially under demanding conditions.

The Evolution: Rear Disc Brakes Introduced

A significant upgrade to the GPZ500S braking system occurred with the introduction of the 'D' series models, starting from February 1994. These models, including the popular D1 variant, saw the implementation of a rear disc brake. This meant that from 1994 onwards, the GPZ500S was equipped with disc brakes on both the front and rear wheels. The rear disc brake was a single 230mm unit, typically paired with a single-piston caliper. This upgrade brought the GPZ500S more in line with contemporary sports bike braking standards, offering improved stopping performance and a more consistent feel.

Model Year Breakdown of Braking Systems

To provide clarity, here's a breakdown of the braking systems based on the model years:

It's important to note that the 'A' series and 'D' series share the same model code 'EX500', but the 'D' series represents a significant update. The 'GPZ500S' designation was primarily used in Europe and the UK, while other markets saw names like 'EX500' and later 'Ninja 500'/'Ninja 500R'. Regardless of the name, the braking hardware changes remained consistent for the corresponding model updates.

Why the Change?

The introduction of a rear disc brake was likely driven by several factors:

• Improved Performance: Disc brakes generally offer superior stopping power and better heat dissipation compared to drum brakes, especially under repeated braking.
• Modernisation: As the motorcycle market evolved, disc brakes became the standard for most performance-oriented bikes.
• Rider Feedback: The desire for a more consistent and confidence-inspiring braking experience, particularly for a sports-styled machine.

Maintenance and Parts Considerations

For owners of the GPZ500S, understanding the specific braking system fitted to their bike is essential for maintenance and parts sourcing. Brake pads, discs, and fluid all require regular checks and replacement to ensure optimal performance and safety.

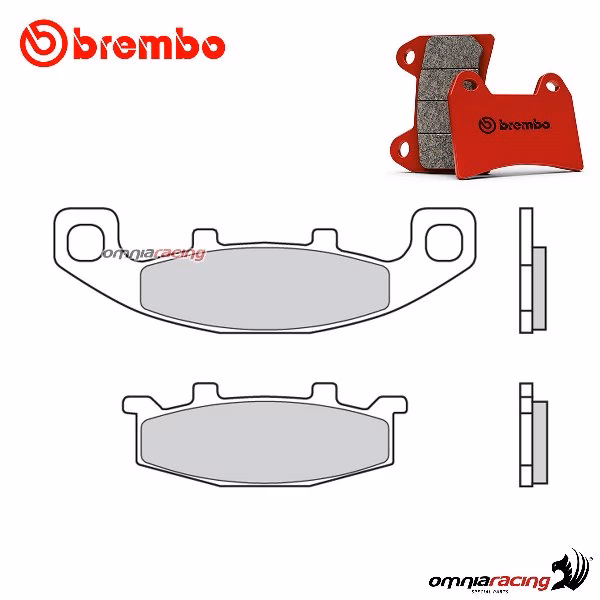

Front Brake Pads: For all GPZ500S models, the front brake pads are typically EBC FA129. These are designed to work with the 280mm single disc and the two-piston caliper.

Rear Brake Pads:

• Drum Brake Models (Pre-1994): For the 'A' series models with drum rear brakes, the relevant part would be a rear drum brake shoe, such as the EBC K706.
• Disc Brake Models (1994 onwards): For the 'D' series models with the rear disc brake, the rear brake pads are typically EBC FA067/3, designed for the 230mm disc and single-piston caliper.

Brake Fluid: All GPZ500S models, regardless of the brake type, use DOT 4 brake fluid. It's crucial to change this fluid every two years to maintain its effectiveness, as it can absorb moisture over time, reducing its boiling point and potentially causing corrosion.

Discs: While the front disc (280mm) remained consistent, the rear disc changed from a drum to a 230mm disc in 1994. Ensuring you have the correct size and type for your model year is vital.

Frequently Asked Questions (FAQs)

Q1: Does the 1998 Kawasaki GPZ500S have disc brakes?

Yes, the 1998 Kawasaki GPZ500S (a 'D5' model) is equipped with disc brakes on both the front and rear wheels. The 'D' series, which began in February 1994, features a rear disc brake.

Q2: What is the difference between the 'A' and 'D' series GPZ500S models regarding brakes?

The primary difference is that the 'A' series models (up to January 1994) have a drum brake on the rear, while the 'D' series models (February 1994 onwards) feature a disc brake on the rear.

Q3: Can I upgrade my older GPZ500S to have a rear disc brake?

While technically possible, upgrading an 'A' series GPZ500S to have a rear disc brake would involve a significant conversion, requiring the rear swingarm, wheel, caliper, master cylinder, brake line, and disc from a 'D' series model. This is a complex modification and would need careful consideration regarding legality and safety.

Q4: What type of brake fluid does the GPZ500S use?

The Kawasaki GPZ500S uses DOT 4 brake fluid for both the front and rear brake systems.

Q5: How often should I check my GPZ500S brakes?

It is recommended to visually inspect your brake pads and discs at least every service, and to flush and replace the brake fluid every two years.

Conclusion

In summary, the Kawasaki GPZ500S has a dual-disc braking system on models manufactured from February 1994 onwards (the 'D' series). Earlier models ('A' series, up to January 1994) featured a front disc brake and a rear drum brake. This evolution reflects the changing standards in motorcycle design and safety. For owners, understanding these differences is key to proper maintenance, ensuring a safe and enjoyable riding experience on this enduringly popular motorcycle.
