F1 Brakes: The Ultimate Stopping Power

Unveiling the Masters of Stopping: Who Makes F1 Brakes?

The sheer velocity of a Formula 1 car is a spectacle of human engineering and driving prowess. These machines, capable of exceeding 200 mph, must be brought to a standstill in mere seconds, a feat that requires a braking system of unparalleled sophistication. The immense forces exerted on drivers during these deceleration phases, often reaching up to 5 Gs, highlight the critical importance of these components. But who is behind this life-saving technology? The answer is surprisingly singular, yet with a nuanced approach to customisation for each team.

The Singular Supplier: Brembo's Dominance

In the highly specialised world of Formula 1, there's a remarkable degree of reliance on a single manufacturer for a crucial component: the brakes. Every single Formula 1 car on the grid relies on braking systems produced by Brembo. This Italian powerhouse has established itself as the undisputed leader in high-performance braking technology, supplying its cutting-edge systems to all ten teams. This concentration of expertise ensures a consistent baseline of quality and innovation across the sport, but it doesn't mean all F1 brakes are created equal.

Bespoke Engineering for Every Team

While Brembo supplies the core braking systems, their relationship with each Formula 1 team is far from a one-size-fits-all arrangement. Andrea Algeri, an engineer at Brembo, explains the intricate process of designing, testing, and producing bespoke brakes tailored to the specific needs and philosophies of each constructor. This involves a deep understanding of each team's car design, aerodynamic package, weight distribution, and driver preferences. Factors such as track characteristics, expected ambient temperatures, and even the driver's personal feedback are meticulously considered. This collaborative approach ensures that each team receives braking systems that are optimised for their unique performance envelope, pushing the boundaries of what's possible.

The Science of F1 Braking: How It Works

The braking system in a Formula 1 car is a marvel of engineering, designed to dissipate an enormous amount of kinetic energy. At speeds exceeding 200 mph, the car possesses a tremendous amount of momentum. When a driver applies the brakes, typically using their left foot to avoid accidental throttle application, a series of hydraulic processes are initiated. The brake pedal activates the master cylinder, which then forces brake fluid through lines to the brake calipers. These calipers house pistons that, when pressurised, clamp down on the brake discs, creating friction.

Materials and Heat Management

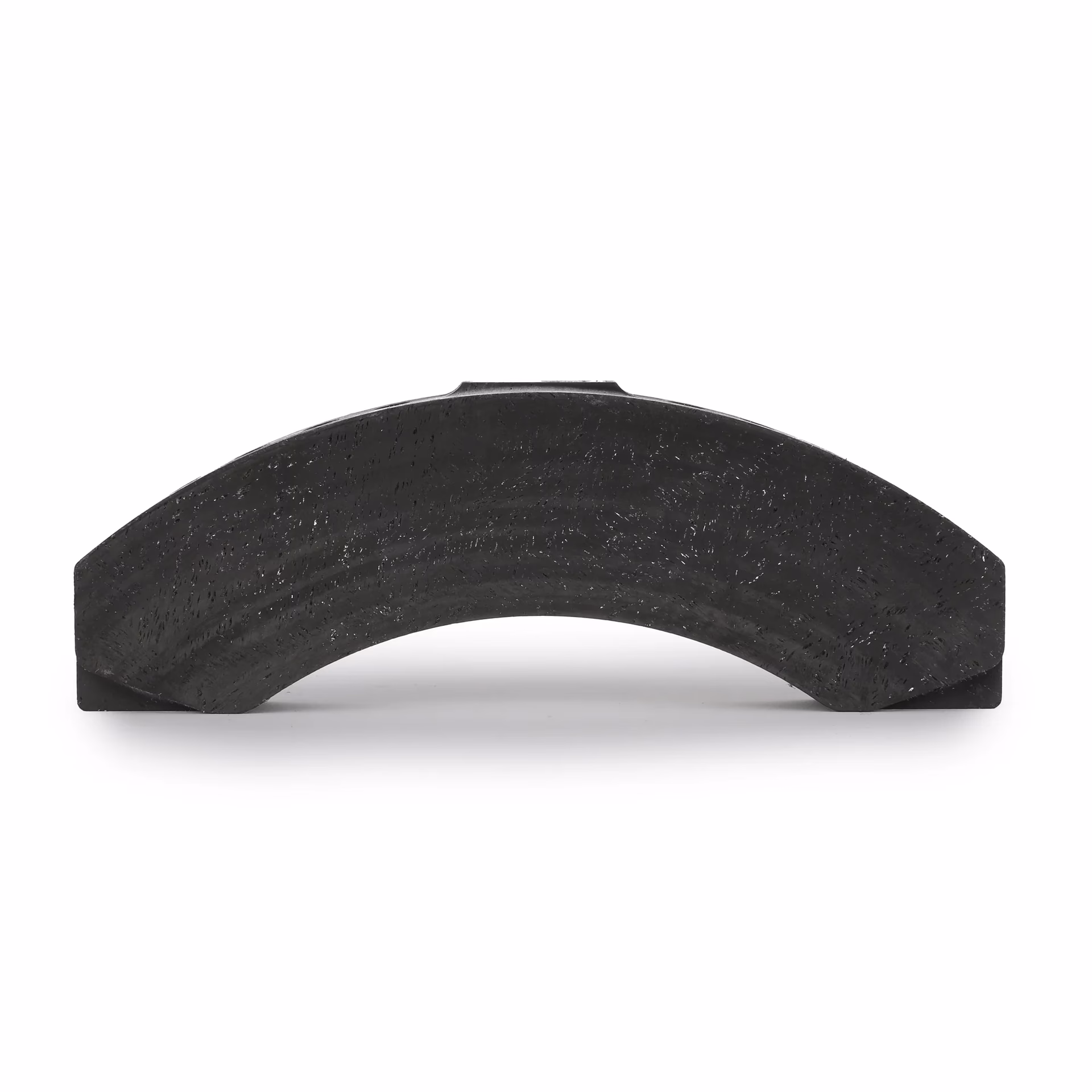

The materials used in F1 braking systems are crucial to their performance and durability. The brake discs and pads are predominantly made from carbon-carbon composite materials. This advanced composite is chosen for its exceptional performance at high temperatures and its lightweight properties. Unlike traditional cast iron brakes found in road cars, carbon-carbon brakes can operate effectively at temperatures exceeding 1000°C, often glowing a vivid red during heavy braking zones. This extreme heat is a byproduct of converting the car's kinetic energy into thermal energy. Effective heat management is paramount, as overheating can lead to brake fade, a dangerous reduction in braking performance. The intricate design of the brake ducts plays a vital role in directing airflow to cool the discs and calipers, ensuring consistent stopping power lap after lap.

Regenerative Braking: A Dual Purpose

Modern Formula 1 cars also incorporate regenerative braking, a key component of their hybrid power units. When the driver lifts off the throttle or applies the brakes, the electric motor/generator unit (MGU-K) acts as a generator, converting the car's kinetic energy back into electrical energy. This electrical energy is then stored in the Energy Store (battery) and can be deployed later to provide a power boost. This not only enhances efficiency but also contributes to the overall braking force, reducing the reliance solely on the friction brakes. The interplay between the conventional friction brakes and the regenerative braking system is a complex dance, managed by sophisticated control systems to ensure optimal performance and driver feel.

Driver Input and G-Forces

The physical demands on an F1 driver are immense, and braking is one of the most taxing aspects. Drivers can experience deceleration forces of up to 5 Gs, meaning their bodies are subjected to five times the force of gravity. To put this into perspective, during a 5 G deceleration, a driver weighing 75 kg would feel as if they weigh 375 kg. This puts incredible strain on their neck, core, and cardiovascular system. The precision required to modulate brake pressure is also extraordinary. Drivers must apply the brakes with immense force initially and then progressively release pressure as they enter the corner to avoid locking up the wheels. This delicate balance is crucial for maintaining traction and achieving the fastest possible lap times.

Jack Doohan, an Alpine Reserve Driver with extensive testing experience at circuits like Monza and Abu Dhabi, which feature several heavy braking zones, can attest to the intensity of these forces. His insights into how drivers manage these extreme conditions provide a valuable perspective on the human element of F1 braking.

Testing and Development: The Brembo Process

Brembo's commitment to innovation involves rigorous testing and development. This includes extensive use of simulation, dyno testing, and on-track validation. Components are subjected to extreme conditions to measure their performance, durability, and reliability. Data gathered from these tests is then used to refine designs and ensure that the brakes meet the demanding requirements of Formula 1. The constant pursuit of marginal gains means that Brembo is always looking for ways to improve the performance, weight, and thermal management of their braking systems, working closely with teams to implement these advancements.

A Comparison of Braking Systems (Hypothetical)

While all teams use Brembo, the specific configurations can vary. Here's a hypothetical comparison to illustrate potential differences:

Frequently Asked Questions

Q1: Do all Formula 1 cars use the same brake manufacturer?
Yes, all Formula 1 cars currently use braking systems supplied by Brembo.

Q2: What are F1 brake discs made of?
F1 brake discs are typically made from a carbon-carbon composite material, which can withstand extremely high temperatures.

Q3: How hot do F1 brakes get?
F1 brakes can reach temperatures exceeding 1000°C, often glowing red hot during heavy braking.

Q4: What is regenerative braking in F1?
Regenerative braking uses the electric motor to slow the car down, converting kinetic energy into electrical energy that is stored and can be used later for a power boost.

Q5: How much force do drivers experience during braking?
Drivers can experience deceleration forces of up to 5 Gs, which is five times the force of gravity.

Conclusion: The Unseen Heroes of Speed

The braking systems in Formula 1 are a testament to the relentless pursuit of performance and safety. Brembo's singular role in supplying these vital components underscores their expertise and innovation. However, it is the intricate, bespoke engineering tailored to each team, combined with the incredible skill of the drivers, that truly tames the insane speeds of these magnificent machines. The next time you witness an F1 car braking late into a corner, remember the advanced technology and the immense forces at play – a true marvel of modern engineering.
