The symphony of a well-tuned bicycle is a joy to many cyclists, but a persistent, irritating squeal from disc brakes can quickly turn that pleasure into a source of frustration. This high-pitched screech, often most noticeable during gentle braking or at low speeds, can be a real nuisance. Fortunately, the market offers specialised solutions to combat this common problem. One such innovative product is the SwissStop Disc Brake Silencer, a high-performance metallic-based release agent designed to tackle the root causes of brake noise.
Understanding the Cause of Disc Brake Squeal
Before delving into solutions, it's essential to understand why disc brakes squeal. Brake noise, particularly the high-frequency squeal, is typically caused by vibrations within the braking system. These vibrations occur when the brake pad material, the brake rotor, and the caliper assembly resonate at specific frequencies. Factors contributing to this resonance include:
- Contamination: Oils, grease, lubricants, or even residue from trailside repairs can contaminate the brake pads and rotors. This contamination alters the friction characteristics and can lead to uneven contact, promoting vibrations.
- Glazed Pads/Rotors: Overheating or excessive wear can cause the surface of the brake pads and rotors to become smooth and hardened, a process known as glazing. Glazed surfaces can no longer grip effectively, leading to slip and vibration.
- Improper Bedding-In: Disc brake pads and rotors need to be properly 'bedded-in' – a process of controlled heating and cooling to ensure an even transfer of pad material onto the rotor surface. Skipping or rushing this process can result in uneven contact and noise.
- Pad/Rotor Material Compatibility: Not all brake pad and rotor materials are created equal. Sometimes, a mismatch in materials can lead to inherent compatibility issues that manifest as noise.
- Moisture and Debris: Water, mud, and grit can get trapped between the pad and rotor, causing a temporary squeal, especially after riding in wet conditions.
- Worn Components: Worn brake pads, rotors, or even loose caliper mounting bolts can introduce instability and vibration.

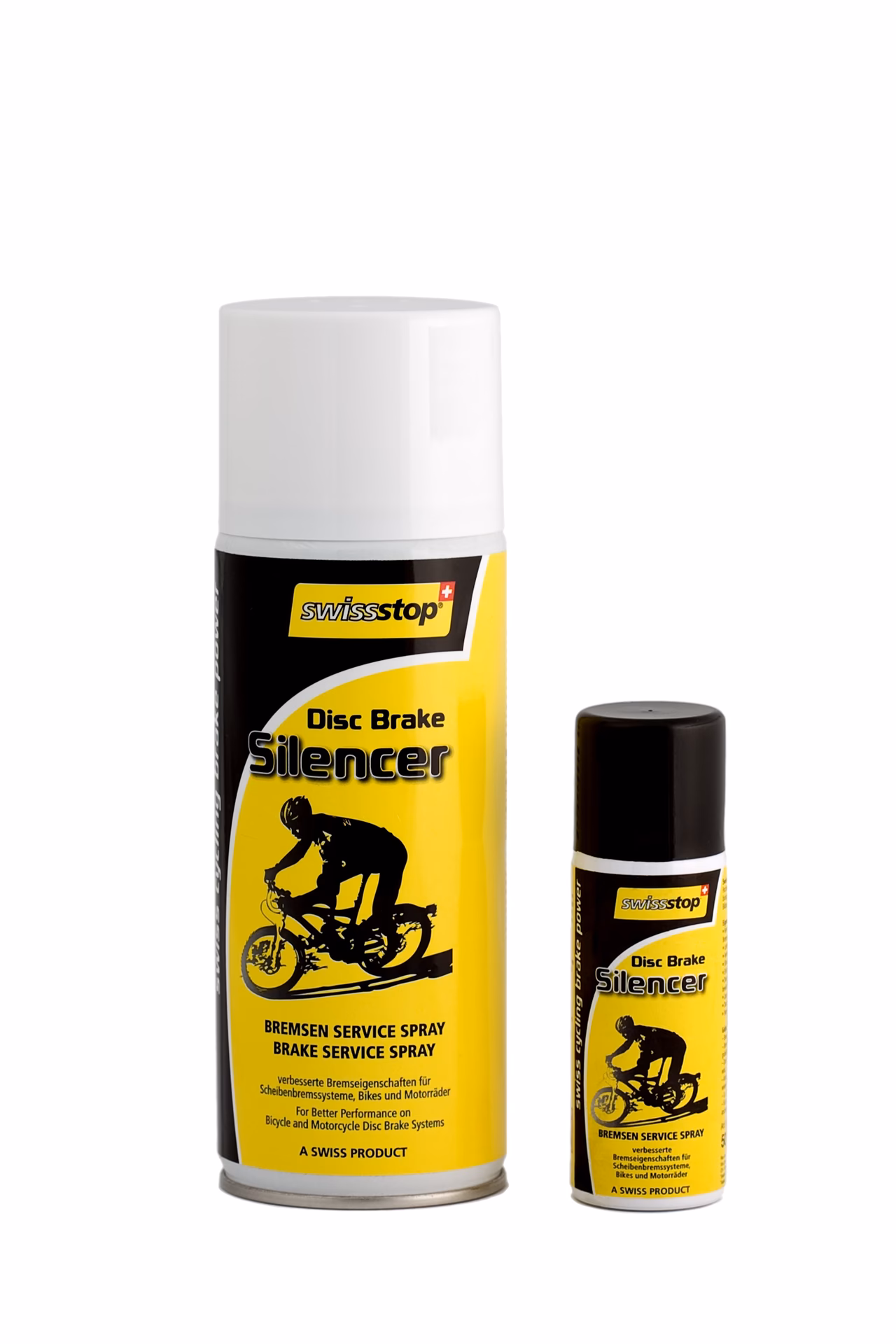

The SwissStop Disc Brake Silencer: A Targeted Solution
The SwissStop Disc Brake Silencer is engineered to address the vibration issue directly. It is described as a high-performance metallic-based release agent with a biologically degradable carrier fluid. Let's break down what this means:
- Metallic-Based: The metallic component likely refers to fine metallic particles that, when applied, create a thin, uniform layer. This layer can help to dampen vibrations by altering the surface contact between the pad and rotor. It might also assist in creating a more consistent friction surface.
- Release Agent: In this context, a release agent doesn't mean it makes the brakes release, but rather it acts as a barrier or lubricant between surfaces to prevent sticking or unwanted friction-induced vibrations. It aims to smooth out the microscopic interactions that cause the squeal.
- Biologically Degradable Carrier Fluid: This is a positive environmental aspect. The fluid acts as a medium to deliver the metallic particles to the brake surfaces. Its biodegradable nature means it breaks down naturally, reducing environmental impact.
The application of such a product typically involves cleaning the rotor and pads thoroughly and then applying a thin, even layer of the silencer. The goal is to create a microscopic interface that prevents the high-frequency vibrations that cause squealing.
How to Apply Disc Brake Silencer
While specific instructions may vary by manufacturer, a general approach to applying disc brake silencers includes:
- Clean the Braking Surfaces: This is the most crucial step. Use a dedicated brake cleaner or isopropyl alcohol to thoroughly clean both the brake rotor and the pad surfaces. Remove all dirt, grease, and old residue.
- Dry Thoroughly: Ensure the pads and rotor are completely dry before application.
- Apply the Silencer: Apply a thin, even coat of the disc brake silencer to the friction surface of the brake pads, or as directed by the product's instructions. Some products might be applied to the rotor, but pad application is more common for vibration dampening.
- Allow to Dry/Cure: Let the applied silencer dry completely according to the manufacturer's recommendations. This might involve a few minutes to several hours.
- Bed-In the Brakes: After application and drying, it is essential to re-bed the brakes. This involves a series of moderate to firm braking applications from a moderate speed, followed by cooling periods. This process ensures the silencer is properly integrated with the pad and rotor surfaces and helps to re-establish optimal braking performance.
Other Solutions for Noisy Disc Brakes
While specialised silencers like the SwissStop product are effective, other methods can also help to alleviate disc brake squeal:
1. Thorough Cleaning
Often, simple contamination is the culprit. Regular cleaning of your rotors with a dedicated brake cleaner or isopropyl alcohol can prevent and resolve many squealing issues.
2. Pad Scuffing/Sanding
If your pads appear glazed, you can try lightly scuffing the surface with fine-grit sandpaper (around 200-400 grit). This removes the glazed layer and can restore grip.
3. Rotor Truing
A bent or warped rotor can cause uneven braking and noise. A bike shop can often true a rotor, or you can attempt it carefully with a rotor truing tool.
4. Pad Replacement
If pads are worn out or heavily contaminated and cannot be cleaned, replacing them is often the best solution. Ensure you choose pads compatible with your braking system and rotor type (e.g., organic, metallic, semi-metallic).
5. Pad Chamfering
Some manufacturers pre-chamfer their brake pads, which means the edges are angled. This chamfer helps to reduce the likelihood of vibration by altering the initial contact point between the pad and rotor. If your pads aren't chamfered, a bike mechanic can sometimes do this.
6. Anti-Squeal Compounds
Similar to the SwissStop silencer, various anti-squeal compounds or pastes are available. These are typically applied to the back of the brake pads (the side that interfaces with the caliper piston), not the friction surface. They act as a barrier between the pad backing and the caliper, dampening vibrations transmitted through the pad itself.
7. Check for Loose Components
Ensure that your brake calipers are securely mounted and that the rotor bolts are tight. Any looseness can introduce vibrations.
Comparison of Noise Reduction Methods
| Method | Pros | Cons | Best For |
|---|---|---|---|
| Disc Brake Silencer (e.g., SwissStop) | Targeted vibration dampening, often effective for persistent squeal. | Requires careful application, might need reapplication over time. | Stubborn squeals not resolved by cleaning. |
| Thorough Cleaning | Simple, inexpensive, preventative. | May not solve underlying issues like glazing or contamination deep within pads. | Routine maintenance, minor contamination. |
| Pad Scuffing/Sanding | Removes glazing, can restore pad performance. | Can reduce pad life if done too aggressively, doesn't fix contamination. | Slightly glazed pads. |
| Pad Replacement | Guaranteed to fix issues with worn or damaged pads. | Cost of new pads, requires proper bedding-in. | Worn-out pads, heavily contaminated pads. |
| Anti-Squeal Paste (on pad backing) | Easy to apply, dampens vibration at the pad-caliper interface. | Doesn't address rotor contamination or glazing directly. | Vibrations felt through the caliper. |
Frequently Asked Questions
Q1: Will applying a disc brake silencer affect my braking power?
A: When applied correctly to the friction surface or as per manufacturer instructions, a thin layer of a quality silencer should not significantly reduce braking power. Its purpose is to dampen vibrations, not to reduce friction. However, over-application or using the wrong type of product could potentially affect performance.
Q2: How often do I need to apply a disc brake silencer?
A: The frequency depends on the product and riding conditions. Some may last for several months, while others might require reapplication after a few hundred miles or when the squeal returns. It's best to follow the manufacturer's guidelines.
Q3: Can I use automotive brake cleaner on my bicycle disc brakes?
A: While automotive brake cleaners are designed for brakes, they can sometimes be too aggressive for bicycle brake components, potentially damaging seals or pads. It's generally safer to use cleaners specifically designed for bicycle disc brakes or high-purity isopropyl alcohol (90% or higher).
Q4: My brakes squeal after washing my bike. What should I do?
A: This is common. Water and soap residue can temporarily affect the pads and rotor. After washing, ensure you dry your bike thoroughly, especially the wheels and brakes. A few firm braking applications while riding should help clear any residue and restore normal performance. If the squeal persists, a more thorough cleaning of the rotors might be necessary.
Conclusion
Disc brake squeal can be a persistent annoyance, but it's usually a solvable problem. Understanding the causes, from simple contamination to more complex vibrational issues, is key. Products like the SwissStop Disc Brake Silencer offer a targeted approach by dampening vibrations at the source. However, don't underestimate the power of good maintenance practices, including regular cleaning, proper bedding-in procedures, and timely replacement of worn components. By combining these methods, you can ensure your disc brakes remain quiet, powerful, and reliable, allowing you to enjoy every ride without the irritating soundtrack of brake squeal.
