Mercedes Brake Wear Warning: DIY Sensor Fix

A sudden brake wear warning light illuminating on your Mercedes-Benz dashboard can be an alarming sight for any driver. While it instantly signals a potential issue with your vehicle's braking system, understanding its precise meaning and knowing how to address it is crucial. This guide is designed to empower Mercedes-Benz owners, providing detailed insights into the brake pad wear sensor and step-by-step instructions for its replacement, ensuring you can confidently maintain your vehicle's safety.

Understanding Your Mercedes-Benz Brake Wear Warning

The brake wear warning system in your Mercedes-Benz is a vital safety feature, designed to alert you when your brake pads are nearing the end of their service life. This system typically relies on small, inexpensive components known as brake pad wear sensors. These sensors are strategically placed on at least one brake pad on each axle, often the inner pad, which tends to wear faster.

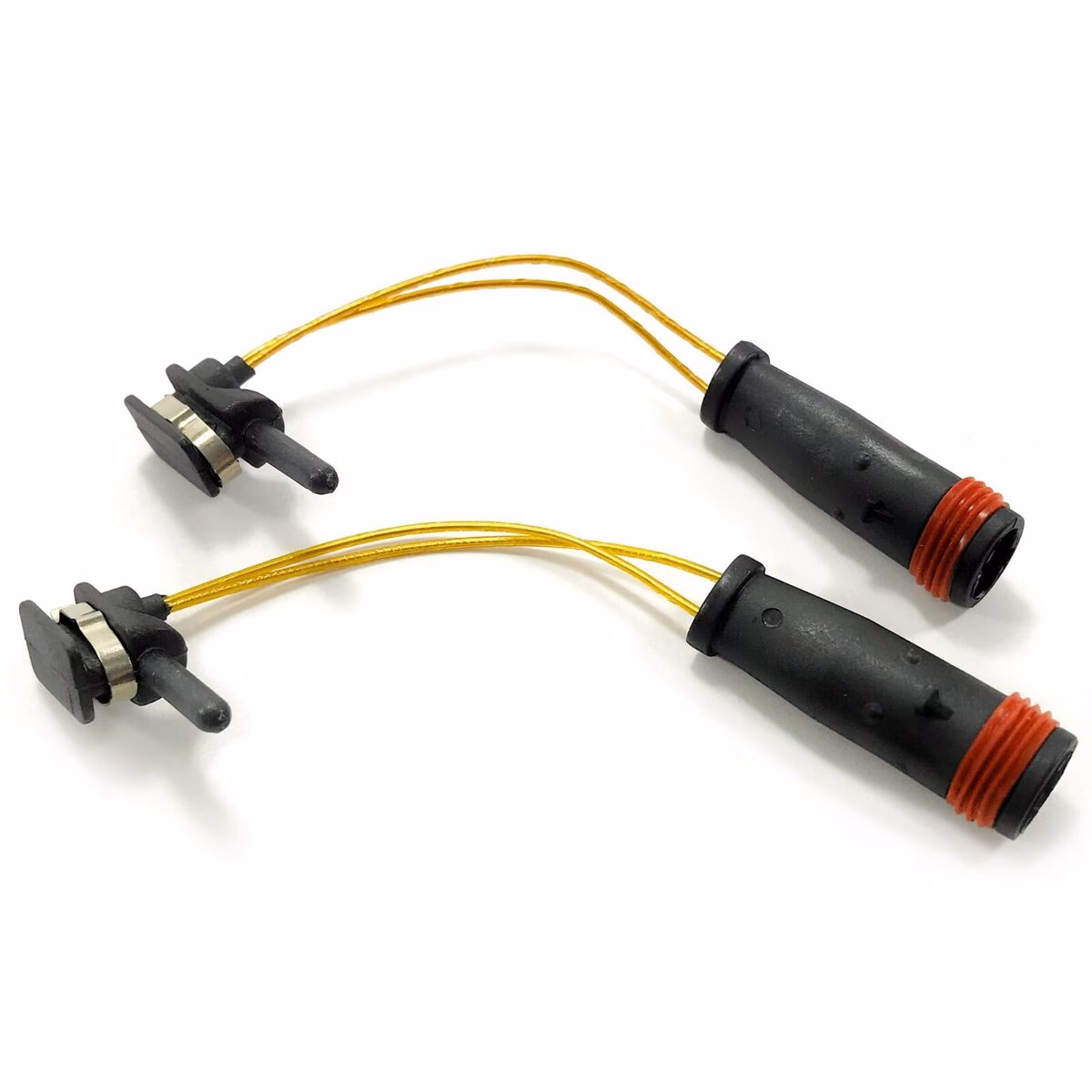

How Brake Wear Sensors Work

Each brake wear sensor contains a small electrical circuit. As the brake pad wears down, the sensor eventually comes into contact with the brake rotor. This contact typically breaks the electrical circuit (in some designs, it completes a circuit), triggering the warning light on your dashboard. It's a simple yet effective system, designed to give you ample warning before your brake pads are dangerously thin or cause damage to your brake rotors.

Common Reasons for a Brake Warning Light

While the most common and intended reason for the brake warning light is genuinely worn brake pads, there are other scenarios that can trigger it:

• Worn Brake Pads: This is the primary reason. When the pads reach their minimum thickness, the sensor activates.
• Faulty Brake Wear Sensor: The sensor itself can fail prematurely due to age, damage, or improper installation. It might be cracked, corroded, or have a broken wire, leading to a false warning.
• Damaged Wiring: The wiring connecting the sensor to the vehicle's electrical system can get chafed, cut, or corroded, causing an erroneous signal.
• Improper Installation: If brake pads were replaced but the sensor wasn't properly reconnected or a new sensor wasn't installed, the light might persist.

It's important to differentiate between a genuine warning due to worn pads and a false alarm caused by a sensor or wiring issue. A visual inspection of your brake pads is always recommended when the light appears.

When to Replace the Sensor vs. Pads and Rotors

This is a critical distinction. The brake wear warning indicates that the sensor has been activated. This usually means your brake pads have reached their wear limit and require immediate replacement. In almost all cases, if the warning light is on, you should plan to replace both your brake pads and, if necessary, your brake rotors.

The brake pad wear sensor should only be replaced when you are replacing the brake pads. It's a 'one-time use' item in the sense that once it triggers, it's typically compromised and cannot be reused. Attempting to reuse an activated sensor or simply replacing a faulty sensor without addressing worn pads is a significant safety risk and will not resolve the underlying issue of worn brakes.

Table: Deciding Your Next Step

What You Will Need for the Replacement

Before you begin, gather all necessary tools and parts. Having everything ready will make the process smoother and more efficient.

Essential Parts:

• New Mercedes-Benz Brake Pad Wear Sensor(s): Ensure you purchase the correct sensor for your specific Mercedes-Benz model and axle (front or rear). They are often different.
• New Brake Pads: (Highly recommended, as explained above).
• New Brake Rotors: (If necessary, depending on wear).

Essential Tools:

• Vehicle Jack: A sturdy hydraulic jack capable of safely lifting your Mercedes-Benz.
• Jack Stands: Absolutely crucial for safety. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Lug Wrench: For removing wheel nuts.
• Torque Wrench: Essential for tightening wheel nuts and caliper bolts to factory specifications.
• Socket Set & Ratchet: For various bolts on the brake caliper and bracket.
• Brake Caliper Piston Compressor/Retractor Tool: Necessary to push the caliper piston back when installing new, thicker pads.
• Wire Brush & Brake Cleaner: For cleaning brake components.
• Gloves & Safety Glasses: For personal protection.
• Flathead Screwdriver or Trim Removal Tool: For gently prying off old sensor clips.

Step-by-Step Guide: Replacing Your Mercedes-Benz Brake Pad Wear Sensor

This guide covers the general procedure for various Mercedes-Benz models, including C, E, S, CLK, CLS, ML, GL, GLE, GLS, and GLA. Always consult your vehicle's specific service manual for precise torque specifications and any model-specific nuances.

Phase 1: Preparation and Safety

1. Park on a Level Surface: Ensure your Mercedes-Benz is on a flat, stable surface.
2. Engage Parking Brake: Apply the parking brake firmly.
3. Chock Wheels: Place wheel chocks behind the wheels that will remain on the ground to prevent any movement.
4. Loosen Lug Nuts: Using your lug wrench, slightly loosen the lug nuts on the wheel you'll be working on while the car is still on the ground. Do not remove them completely yet.

Phase 2: Lifting the Vehicle and Wheel Removal

5. Jack Up the Vehicle: Place your jack under the designated jacking point for your Mercedes-Benz (refer to your owner's manual). Slowly and carefully raise the vehicle until the wheel is off the ground.
6. Secure with Jack Stands: Immediately place jack stands under the vehicle's designated support points. Lower the vehicle gently onto the jack stands, ensuring it is stable and secure. Never rely solely on the jack.
7. Remove Wheel: Fully remove the loosened lug nuts and carefully take off the wheel, setting it aside safely.

Phase 3: Brake Pad and Sensor Access

8. Inspect Current Brakes: Now is the time to visually inspect your brake pads and rotors. Check the thickness of the pads. If they are thin, cracked, or show uneven wear, they need replacing. Check rotors for deep grooves, warping, or excessive rust.
9. Locate the Old Brake Wear Sensor: The sensor is typically clipped onto one of the brake pads (usually the inner pad) and connected to a wiring harness. It will be a small plastic housing with a wire leading from it.
10. Disconnect the Old Sensor: Carefully unclip the sensor's wiring connector. This often involves squeezing a tab or pressing a button. Do not pull on the wire itself. Follow the wire back to where it's secured along the suspension or frame, unclipping any retaining clips.
11. Remove Old Brake Pads (If Replacing): If you are replacing the pads, now is the time to remove the caliper bolts (typically two) and carefully slide out the old pads. You will need to compress the caliper piston(s) using your brake caliper tool to make space for the new, thicker pads.

Phase 4: Installing the New Sensor and Reassembly

12. Install New Brake Pads (If Replacing): Insert the new brake pads into the caliper bracket. Ensure they are correctly seated and move freely.
13. Install the New Brake Pad Wear Sensor: This is the crucial step. The new sensor will have a small plastic 'tongue' or projection. Carefully insert this projection into the designated small hole or slot on the new brake pad. Ensure it clicks securely into place and is flush with the pad.
14. Connect the New Brake Pad Wear Sensor: Route the sensor wire along the same path as the old one, securing it with any clips. Connect the sensor's electrical connector firmly until you hear a click. Ensure the wire isn't pinched or in contact with any moving parts or hot components.
15. Reinstall Brake Caliper and Bracket (If Removed): Reattach the brake caliper and/or bracket, tightening all bolts to the manufacturer's specified torque settings using your torque wrench. This is critical for safety.
16. Reinstall the Wheel: Carefully place the wheel back onto the hub, aligning the lug bolt holes. Hand-tighten the lug nuts.
17. Lower the Vehicle: Raise the vehicle slightly with the jack to remove the jack stands. Then, slowly lower the vehicle completely to the ground.
18. Torque Lug Nuts: With the vehicle on the ground, use your torque wrench to tighten the lug nuts to the manufacturer's specified torque. Tighten them in a star pattern to ensure even pressure.

Phase 5: Post-Installation and Warning Light Reset

19. Pump the Brake Pedal: Before starting the car, pump the brake pedal several times until it feels firm. This will push the caliper pistons out and seat the new pads against the rotors. Do not skip this step!
20. Start the Car: Start your Mercedes-Benz.
21. Check Warning Light: The brake wear warning light should now be off. If it remains on, turn the car off, wait a few moments, and restart. If it persists, double-check all connections, ensuring the new sensor is fully seated in the pad and the electrical connector is secure. Sometimes, driving a short distance at low speed can also help the system recognise the new sensor.
22. Test Drive: Perform a careful test drive in a safe area. Listen for any unusual noises and feel for proper braking. Avoid hard braking initially to allow the new pads to bed in.

Troubleshooting After Sensor Replacement

If the brake wear warning light remains on after following all the steps, consider these possibilities:

• Incorrect Sensor: Ensure you purchased the correct sensor for your specific Mercedes model and axle.
• Poor Connection: Double-check that the sensor's electrical connector is fully seated and locked.
• Damaged Wiring Harness: Inspect the vehicle's wiring harness that connects to the sensor for any cuts, corrosion, or damage.
• Multiple Sensors: Remember, some Mercedes-Benz models have sensors on both front and rear axles, and sometimes on both sides of an axle. If only one was replaced, another might be triggered.
• Underlying Brake Issue: While less common for a persistent sensor light, a more complex brake system fault could be present, requiring professional diagnosis.

Maintaining Your Mercedes-Benz Brake System

Regular inspection and timely maintenance are key to prolonging the life of your brake components and ensuring your safety. Consider these tips:

• Regular Inspections: Have your brakes inspected at least annually, or every time you get your tyres rotated.
• Listen for Noises: Pay attention to any squealing, grinding, or clicking sounds from your brakes.
• Feel for Pulsation: A pulsating brake pedal often indicates warped rotors.
• Brake Fluid: Check your brake fluid level regularly. A low level could indicate worn pads or a leak.
• Drive Smart: Avoid aggressive braking when possible. Smooth, progressive braking reduces wear.

Frequently Asked Questions (FAQs)

Can I drive with the brake wear warning light on?

While you technically can, it is not recommended for long periods. The light indicates that your brake pads are at or near their minimum safe thickness. Continued driving risks rotor damage and, more critically, compromises your braking ability, leading to a dangerous situation. Address it as soon as possible.

How long do brake pads typically last on a Mercedes-Benz?

Brake pad life varies significantly based on driving style, road conditions, and vehicle model. On average, Mercedes-Benz brake pads might last anywhere from 20,000 to 70,000 miles. Aggressive city driving will wear them out much faster than gentle motorway driving.

Are Mercedes-Benz brake wear sensors universal?

No, brake wear sensors are typically specific to the vehicle model, year, and often whether they are for the front or rear axle. Always ensure you purchase the correct part number for your specific Mercedes-Benz.

What's the difference between a brake wear sensor and an ABS sensor?

A brake wear sensor's sole purpose is to indicate when brake pads are worn. An ABS (Anti-lock Braking System) sensor, also known as a wheel speed sensor, measures the rotational speed of each wheel. This data is crucial for the ABS system to prevent wheel lock-up during hard braking and is also used by other systems like traction control and stability control. They are distinct components with different functions.

Do I need to bleed the brakes after replacing pads and a sensor?

Typically, no. Replacing brake pads and a wear sensor does not introduce air into the hydraulic system, so bleeding the brakes is usually unnecessary. However, if you open any brake lines or replace the caliper, then bleeding would be required.

How much does it cost to replace a brake wear sensor (DIY vs. Professional)?

The sensor itself is relatively inexpensive, often costing between £10-£30 for a genuine Mercedes part or quality aftermarket equivalent. The significant cost difference comes from labour. If you DIY, the cost is just the part. A professional garage will charge for labour, which can add £50-£150 or more, especially if part of a full brake service.

Addressing a brake wear warning promptly is paramount for your safety and the longevity of your Mercedes-Benz's braking system. By understanding the role of the brake wear sensor and confidently performing its replacement alongside new brake pads, you not only save on garage costs but also gain a deeper understanding and appreciation for your vehicle's mechanics. Drive safely!
