Ford EcoSport Brake Pads: Your Essential Guide

When it comes to your Ford EcoSport, few components are as critical to your safety and peace of mind as the braking system. It’s the unsung hero that brings your vehicle to a halt, preventing potential accidents and ensuring controlled stops in all conditions. Understanding how your brakes work, what to look out for, and when to seek professional attention is not just good practice, it’s absolutely essential for every EcoSport owner. This guide delves into the world of Ford EcoSport brake pads, exploring their function, the tell-tale signs of wear, and crucial safety considerations, ensuring you're well-equipped to keep your compact SUV stopping safely on UK roads.

The Science of Stopping: How Ford EcoSport Brake Pads Work

At the heart of your EcoSport’s braking system are the brake pads. These vital components are engineered with a specific purpose: to create the necessary friction to slow and stop your vehicle. Each brake pad consists of a robust friction material, carefully bonded to a sturdy steel backing plate. When you engage the brake pedal, a complex hydraulic system is activated. This system converts the force from your foot into hydraulic pressure, which is then amplified and directed towards the brake calipers. The calipers, in turn, clamp the brake pads against the inner and outer surfaces of the steel brake rotor with tremendous force. This immense pressure generates friction, which converts the kinetic energy of your moving vehicle into heat, rapidly slowing the wheels and allowing for a swift, safe, and controlled stop.

Over thousands of miles, this constant friction inevitably takes its toll. Both the friction material on the brake pads and, to a lesser extent, the steel brake rotor itself, gradually wear away. This natural process necessitates eventual replacement to maintain optimal braking performance and safety.

Ford EcoSport's Braking System: A Closer Look

The Ford EcoSport, designed as a versatile 5-seater SUV, employs a combination of braking technologies to ensure effective stopping power. Typically, your EcoSport will feature disc brakes at the front and drum brakes at the rear. This configuration is common in many modern vehicles, balancing performance with cost-effectiveness.

• Front Disc Brakes: These are generally found on the front wheels due to their superior heat dissipation and stopping power. Disc brakes consist of a rotor (a metal disc) that spins with the wheel, and a caliper that houses the brake pads. When the brakes are applied, the caliper squeezes the pads against the rotor, creating friction.

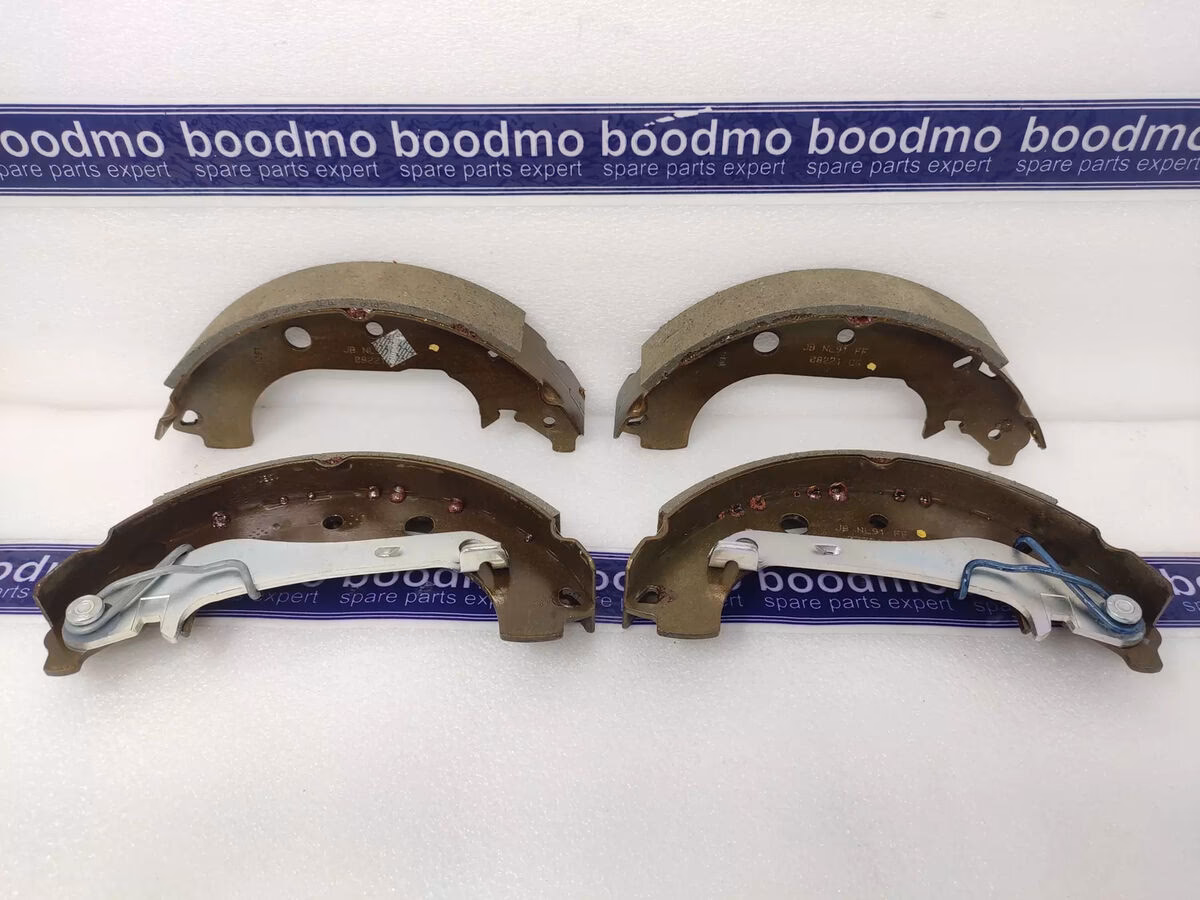

• Rear Drum Brakes: On the rear wheels, the EcoSport often utilises drum brakes. Here, a drum-shaped component rotates with the wheel, and curved brake shoes press outwards against the inside surface of the drum to create friction when the brakes are applied. While not as powerful as disc brakes, drum brakes are effective for the rear wheels and also serve as the mechanism for the handbrake.

Beyond the fundamental mechanical components, the Ford EcoSport is also equipped with advanced safety features that enhance its braking capabilities. These include:

• ABS (Anti-lock Braking System): This system prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control, especially on slippery surfaces.
• EBD (Electronic Brake-force Distribution): EBD works in conjunction with ABS to intelligently distribute braking force to each wheel based on road conditions and vehicle load, ensuring more balanced and effective stopping.
• ASR / Traction Control: While primarily focused on preventing wheel spin during acceleration, traction control systems often integrate with the braking system to help maintain stability.

Is It Safe to Drive with a Brake Pad Problem? The Critical Answer

Let’s be unequivocal: driving any vehicle with a known deficiency in its braking system is profoundly unsafe and, consequently, is never recommended. Your brakes are your primary safety mechanism, and compromising their effectiveness puts yourself, your passengers, and other road users at significant risk. Worn out brake pads directly increase your vehicle's stopping distances, meaning it will take longer and travel further to come to a complete stop. For your safety, it is always advised that worn out brake pads be replaced promptly at the earliest convenience.

Further driving is strongly discouraged if you experience any of the following circumstances, and you should request service immediately:

• Significantly Increased Stopping Distances: If your EcoSport takes much longer to stop than you are accustomed to, this is a clear warning sign.
• Soft or Low Brake Pedal: A brake pedal that feels spongy, goes too far down, or doesn't feel firm underfoot indicates a serious issue.
• Loss of Braking Power Assist: If you find you need to exert excessive force on the brake pedal to achieve braking, the power assist system may be failing.
• Vehicle Pulls Severely to One Side: If your EcoSport veers sharply to one side when you apply the brakes, it suggests uneven braking force, possibly due to a seized caliper or unevenly worn pads.
• Brake System Warning Light is On: This light on your dashboard is a direct indication of a problem within the braking system and should never be ignored.

However, if you detect unusual noises, such as a squealing or light grinding sound, but your stopping distances remain close to normal, the brake pedal feels firm, and there are no warning lights illuminated, it may be safe to proceed cautiously to your immediate destination. Nevertheless, you must schedule service at your earliest convenience. When it comes to the brakes on your vehicle, always err on the side of caution and have a qualified mechanic check your brake pads and the entire braking system at the very first indication of a problem. Delaying service can lead to more extensive and costly repairs, not to mention a heightened risk of an accident.

Deciphering Brake Noises: Why Your EcoSport's Brakes Squeal or Grind

Brake noises can be unsettling, but understanding their potential causes can help you determine the urgency of the situation. Here are the most common reasons your Ford EcoSport's brakes might be making a racket:

• Worn Brake Pads Have Worn Down: This is by far the most common cause of squeaky brakes. Modern disc brake pads are equipped with a small metal tab known as a 'squealer' or 'wear indicator'. When the friction material wears down to a critical level, this metal tab comes into contact with the brake rotor, producing a high-pitched squealing sound. This is a deliberate warning sound, indicating that your brake pads are nearing the end of their lifespan and should be replaced soon. At this stage, the vehicle is typically still safe to drive for a short period, but replacement is imminent. If ignored, the pads will eventually wear down completely, leading to a horrifying metal-on-metal grinding sound. This grinding means the backing plate of the pad is now directly contacting the rotor, which will cause significant damage to the rotor and severely compromise braking effectiveness.
• Worn Brake Shoes (Rear Drum Brakes): For EcoSport models with rear drum brakes, the 'shoes' apply pressure to the inside of the drum. Similar to pads, once the friction material on the shoe wears off, it will begin to produce a metallic or grinding sound. Detecting worn shoes before they are completely worn down can be tougher than with disc pads.
• Anti-Rattle Clips: Most modern braking systems utilise anti-rattle clips. These small metal clips are designed to keep the brake pads securely in place within the caliper, preventing them from vibrating or rattling when the brakes are not being applied. If these clips are damaged, incorrectly installed, or entirely missing, the brake pads can move around, leading to squealing noises or even a 'thunk' sound as they shift. Proper installation and integrity of these clips are crucial for quiet and effective braking.
• Glazing: Glazing is a condition that occurs when the brake pads, shoes, rotors, or drums get excessively hot for a prolonged period. This overheating can cause the friction material on the pads or shoes to harden, forming a shiny, glassy surface. Glazing significantly diminishes the overall braking performance and is a common culprit behind persistent squeaking noises. If your Ford EcoSport has glazed brake pads, they will need to be replaced.
• Pad Insulation/Shims: Between the brake pad and the caliper, there is often a small backing shim or insulation layer. This component helps to dampen vibrations and reduce noise. If this shim becomes lost, damaged, or is not correctly reinstalled after a brake service, it can lead to squealing. Problems related to shims or pad insulation typically manifest right after a brake job.
• Rotors: The brake rotors themselves can be a source of noise. If a rotor develops an uneven surface, becomes warped, suffers from glazing, or is worn too far below its minimum thickness specification, it can cause a squeaking or pulsating sound. In some cases, a mechanic can 'turn' the rotors, which involves machining a new, even surface onto them. However, if they are severely worn or damaged, new rotors will need to be installed.

The Elusive Cost of Ford EcoSport Brake Pads

One of the most common questions EcoSport owners have is about the cost of brake pad replacement. Unfortunately, providing a single, definitive cost for Ford EcoSport brake pads is impossible, as the price can vary significantly based on several factors. The information provided to us does not include specific pricing data, and any figures would be speculative.

Factors that influence the overall cost include:

• Type of Brake Pads: There are various types of brake pads available, including Original Equipment Manufacturer (OEM) parts, aftermarket options, and different material compositions like semi-metallic or ceramic. OEM pads are typically more expensive but offer guaranteed compatibility and performance. Aftermarket options can be more budget-friendly but vary in quality.
• Labour Costs: The cost of labour will depend on the garage or dealership you choose, as well as your geographical location within the UK. Independent garages often charge less per hour than main dealerships.
• Additional Components: Often, when brake pads are replaced, it's also necessary to replace or machine the brake rotors (discs). If the rotors are worn beyond specification or severely grooved, simply replacing the pads without addressing the rotors can lead to poor braking performance and premature pad wear. This adds significantly to the overall cost.
• Vehicle Year and Model Variant: While generally consistent across the EcoSport range, slight variations in brake system components between different model years or engine variants could marginally affect part prices.
• Regional Price Differences: Prices for parts and labour can vary between different regions and cities across the United Kingdom.

Given these variables, it is always recommended to obtain a detailed quote from a reputable mechanic or Ford dealership in your area. They will be able to assess your specific EcoSport model and provide an accurate estimate for parts and labour.

Maintaining Your Ford EcoSport's Braking System

Regular maintenance is key to ensuring the longevity and effectiveness of your EcoSport's braking system. While brake pads are designed to wear out, proactively monitoring their condition can prevent more serious and costly issues down the line. It's advisable to have your brakes inspected at least once a year, or during routine servicing, to check the thickness of the brake pads and the condition of the rotors and calipers. Pay attention to the symptoms discussed above, and act promptly if you notice any changes in your vehicle's braking performance or hear unusual noises.

Frequently Asked Questions About Ford EcoSport Brakes

Here are some common questions EcoSport owners have regarding their braking system:

Q: How often should I replace my Ford EcoSport brake pads?
A: There's no fixed interval, as it heavily depends on your driving style, mileage, and the type of driving you do (e.g., city driving with frequent stops will wear pads faster than motorway driving). Generally, brake pads can last anywhere from 20,000 to 70,000 miles. Always refer to your EcoSport's service schedule and have them inspected regularly.

Q: What are the absolute critical signs I need new brake pads immediately?
A: The most critical signs are a significant increase in stopping distance, a soft or low brake pedal, your vehicle pulling severely to one side when braking, or the illumination of the brake system warning light on your dashboard. These indicate a serious safety concern.

Q: Can I replace my Ford EcoSport brake pads myself?
A: While technically possible for individuals with mechanical experience and the right tools, brake replacement is a safety-critical job. Incorrect installation can lead to brake failure. If you're not fully confident, it's always best to entrust this task to a qualified mechanic.

Q: What's the difference between disc and drum brakes on my EcoSport?
A: Disc brakes use pads that clamp onto a rotating disc (rotor) to create friction. Drum brakes use shoes that push outwards against the inside of a rotating drum. Disc brakes typically offer better performance and heat dissipation, which is why they are usually found on the front wheels.

Q: What is the handbrake on my Ford EcoSport and how is it adjusted?
A: The handbrake, also known as the parking brake, is a secondary braking system that mechanically holds the vehicle stationary, typically by engaging the rear drum brakes (or a separate mechanism within disc brakes). If your EcoSport's handbrake feels loose or doesn't hold the car effectively, it may need adjustment. This usually involves adjusting tension on the handbrake cable, often via screws or nuts near the lever or at the brake components themselves. However, it's crucial that any adjustment ensures the rear wheels are not blocked. Given the complexity and safety implications, adjusting the handbrake is best performed by a professional mechanic who can ensure proper function and avoid unintended wheel binding.

Q: What does it mean if my EcoSport's brakes are 'glazing'?
A: Glazing occurs when brake components (pads, shoes, rotors, drums) get too hot, causing the friction material to harden and become shiny. This reduces braking effectiveness and often leads to squealing noises. Glazed pads usually need to be replaced.

Conclusion: Prioritising Brake Health for Your Ford EcoSport

The braking system on your Ford EcoSport is a complex and vital assembly, designed to keep you safe and in control. Understanding the role of brake pads, recognising the signs of wear, and acting promptly when problems arise are fundamental responsibilities for any vehicle owner. While the exact cost of brake pad replacement can vary, the investment in maintaining your brakes is an investment in your safety and the longevity of your vehicle. Don't ignore those squeals, grinds, or changes in pedal feel. Instead, embrace proactive maintenance and consult a trusted mechanic at the first sign of trouble. Your peace of mind, and the safety of everyone on the road, depends on it.
