In the world of cycling, reliable braking is paramount for both safety and performance. Shimano's BR-R785 and BR-R805 components represent a significant leap in road bike braking technology, offering powerful, consistent, and modulated stopping power. Understanding how these sophisticated systems operate and how to properly maintain them is crucial for any cyclist. This comprehensive guide will delve into the inner workings of the BR-R785 hydraulic disc brake caliper and provide a detailed, step-by-step walkthrough for replacing brake pads on the BR-R805, ensuring your bike remains in top condition for every ride.
Hydraulic disc brakes, like the Shimano BR-R785, operate on the principle of Pascal's Law, which states that pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of its container. This fundamental concept is what allows a small force at the brake lever to generate a significant clamping force at the caliper, providing superior stopping power compared to traditional rim brakes or mechanical disc brakes. The BR-R785 caliper is a testament to precision engineering, designed to deliver consistent performance across a wide range of conditions.
How the Shimano BR-R785 Brake Caliper Works
The operation of the BR-R785 begins at the brake lever, which integrates a master cylinder. When you pull the brake lever, a piston within this master cylinder moves, pressurising the hydraulic mineral oil contained within the system. This pressurised fluid travels through a reinforced hydraulic hose down to the brake caliper itself. The BR-R785 caliper is typically a dual-piston design, meaning it has two opposing pistons that push the brake pads simultaneously onto the rotor.
Upon reaching the caliper, the pressurised fluid acts on these pistons, forcing them outwards. Each piston is connected to a brake pad, and as the pistons extend, they push the pads firmly against the brake rotor, which is securely attached to the wheel hub. The friction generated between the brake pads and the spinning rotor converts the kinetic energy of the moving bicycle into heat, thereby slowing down or stopping the wheel. The beauty of a hydraulic system like the BR-R785 lies in its incredible efficiency and the precise control, or modulation, it offers. A slight pull on the lever can result in gentle braking, while a firmer squeeze delivers powerful stopping force, all with excellent feedback to the rider.
The BR-R785 is specifically designed for road and gravel applications, often paired with Shimano's Di2 electronic shifting systems. Its compact, low-profile design ensures it integrates seamlessly with modern bike frames. Key features include its robust construction, excellent heat management capabilities (crucial for long descents to prevent brake fade), and its ability to maintain consistent performance even in wet or muddy conditions, where rim brakes might struggle. The use of mineral oil, rather than DOT fluid, is a common characteristic of Shimano hydraulic systems, offering a stable and less corrosive medium for the braking forces.
Why Regular Brake Maintenance is Crucial
Regular maintenance of your braking system is not just about performance; it's fundamentally about safety. Worn brake pads can significantly reduce stopping power, increase stopping distances, and put undue stress on other components of your braking system. Over time, brake pads naturally wear down due to friction. Ignoring worn pads can lead to metal-on-metal contact between the caliper pistons and the rotor, causing irreversible damage to your expensive brake components and potentially leading to catastrophic brake failure.
Signs that your brake pads may need replacing include a noticeable reduction in braking power, a spongy or soft feel at the lever, increased lever travel before engagement, or an audible squealing or grinding noise when braking. Many pads also have wear indicators, allowing for a visual inspection. Proactive replacement ensures consistent braking performance, extends the lifespan of your rotors, and most importantly, keeps you safe on the roads and trails.
Step-by-Step: Removing Brake Pads from a Shimano BR-R805 Caliper
Replacing brake pads on your Shimano BR-R805 caliper is a straightforward task that most home mechanics can accomplish with the right tools and a little patience. The BR-R805 is part of Shimano's Ultegra R8000 series, offering similar performance characteristics to the BR-R785 with updated aesthetics and integration. The process for pad removal is largely consistent across Shimano's hydraulic road disc calipers.
Tools You'll Need:
- Allen keys (typically 3mm or 4mm for the retention pin)
- Flat-bladed tool (a plastic tyre lever or a dedicated piston press tool is ideal)
- Clean rags or paper towels
- Brake cleaner (optional, but recommended for cleaning the caliper)
- Nitrile gloves (to keep oil and dirt off your hands and new pads)
Safety First:
Before you begin, ensure your bike is stable, ideally in a work stand. Always wear appropriate personal protective equipment, such as gloves and eye protection. Avoid touching the braking surface of your new pads, as oils from your skin can contaminate them and lead to reduced performance or squealing.
The Process:
- Remove the Wheel: Begin by removing the wheel from the frame. This provides clear access to the brake caliper and rotor. Place the wheel aside carefully to avoid damaging the rotor.

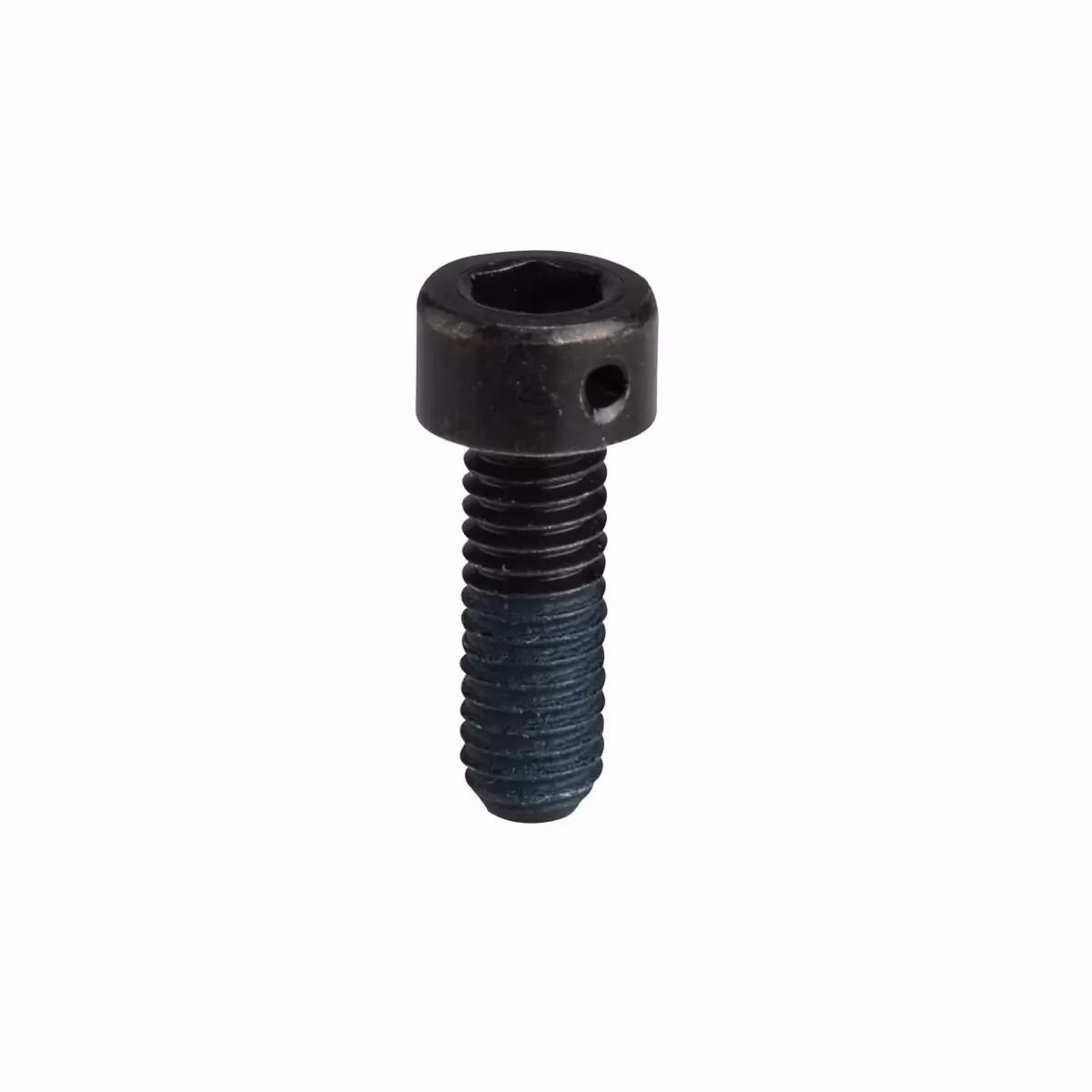

- Locate the Pad Retention Pin: Inside the caliper, you'll see the brake pads held in place by a small pin that passes through them. This is typically an Allen bolt or a split pin with a circlip. For the BR-R805, it's usually an Allen bolt.
- Remove the Retention Pin: Using the appropriate Allen key, unscrew and remove the pad retention pin. If it's a split pin, use a small set of pliers to open the circlip and pull the pin out. Keep this pin in a safe place, as you'll need it for reassembly.
- Extract the Old Brake Pads: Once the pin is removed, the brake pads should slide out easily from the top or bottom of the caliper. You might need to gently wiggle them or use a small, flat tool to pry them out if they're a bit stuck. Note their orientation; they are usually spring-loaded with a small spring between them. Keep the spring if you're reusing it, though new pads often come with one.
- Reset the Pistons: This is a critical step. Before installing new, thicker pads, you must push the caliper pistons back into their bores. Use a flat-bladed tool (like a tyre lever) to gently but firmly push the pistons straight back into the caliper body as far as they will go. Be careful not to damage the piston faces or the rubber seals around them. If the pistons are stiff, a small amount of brake fluid might seep out – this is normal. Ensure both pistons are fully retracted. This step is essential because new pads are thicker than worn ones, and if the pistons aren't reset, the new pads won't fit, or the wheel won't spin freely.
- Clean the Caliper (Optional but Recommended): With the pads removed and pistons reset, this is an excellent opportunity to clean out any accumulated dirt or brake dust from inside the caliper. A clean rag and some brake cleaner can be used, ensuring no residue remains on the piston faces.
- Insert New Brake Pads: Take your new brake pads. If they came with a new spring, place the spring between the pads with the angled ends facing into the pads. Carefully slide the new pads, with the spring, into the caliper from the top. Ensure they are correctly seated and aligned with the retention pin holes.
- Reinsert the Retention Pin: Guide the pad retention pin back through the caliper and the holes in the new brake pads. Screw it in securely but do not overtighten it. If it’s a split pin, re-secure the circlip.
- Reinstall the Wheel: Carefully remount the wheel onto the bike frame. Ensure the brake rotor slots cleanly between the new brake pads without rubbing.
- Test and Bed-In the Brakes: Before riding, pump the brake lever several times until it feels firm and consistent. This pushes the pistons out and seats the pads against the rotor. New brake pads require a 'bedding-in' process to achieve full braking power and prevent squealing. This involves performing several moderate to firm stops from a good speed (e.g., 20-30 km/h) without coming to a complete stop. Gradually increase braking force. This transfers a thin layer of pad material onto the rotor, optimising friction. Avoid hard, emergency stops during this initial phase.
Hydraulic vs. Mechanical Disc Brakes: A Brief Comparison
While this article focuses on hydraulic systems, it's useful to understand their advantages over mechanical disc brakes.
| Feature | Hydraulic Disc Brakes (e.g., BR-R785/BR-R805) | Mechanical Disc Brakes |
|---|---|---|
| Power | Superior, consistent stopping power. | Good, but often less powerful than hydraulic. |
| Modulation | Excellent, precise control over braking force. | Good, but can feel less refined and 'on-off'. |
| Consistency | Very consistent performance in all weather conditions. | Can be affected by cable stretch and friction, less consistent. |
| Maintenance | Requires occasional bleeding; pad replacement is simple. | Requires cable tension adjustments; pad replacement is simple. |
| Feel | Smooth, light lever feel. | Heavier lever feel, can be less smooth. |
| Complexity | More complex system (fluid, seals). | Simpler, cable-actuated system. |
| Cost | Generally more expensive. | Generally more affordable. |
Frequently Asked Questions (FAQs)
How often should I replace my brake pads?
There's no fixed schedule, as it depends heavily on your riding style, terrain, and weather conditions. However, generally, check your pads every few months. Replace them when the pad material is worn down to approximately 0.5mm or less, or if you notice a significant drop in braking performance or hear a grinding noise.
Do I need to bleed the brakes when replacing pads?
Typically, no. Replacing pads does not introduce air into the system or require a fluid change. You only need to bleed your brakes if the lever feels spongy, if you've opened the system (e.g., to shorten a hose), or if the fluid is old and contaminated.
What type of brake fluid does Shimano use?
Shimano hydraulic disc brakes exclusively use Shimano-specific mineral oil. Do NOT use DOT fluid, as it is corrosive and will damage the seals in Shimano's system.
What causes brake squeal?
Brake squeal can be caused by various factors, including contaminated pads or rotors (oil, grease), improper bedding-in of new pads, misaligned calipers, loose bolts, or worn-out pads. Cleaning the rotor and pads with brake cleaner (if they are not too contaminated), ensuring proper alignment, and correctly bedding in new pads often resolves squealing.
Can I use different brand brake pads in my Shimano caliper?
Yes, you can often use aftermarket brake pads from other brands, as long as they are designed to be compatible with your specific Shimano caliper model (e.g., BR-R805). Ensure they are of good quality and from a reputable manufacturer.
By understanding the sophisticated mechanics of your Shimano BR-R785 caliper and mastering the simple yet crucial task of replacing pads on your BR-R805, you'll not only enhance your cycling experience but also significantly contribute to your own safety on every ride. Regular inspection and timely maintenance are the hallmarks of a responsible cyclist, ensuring your bike's stopping power remains as reliable as the day you bought it.
