When it comes to cycling, especially for road bikes and gravel grinders, the performance of your braking system is paramount. It’s not just about stopping; it’s about control, confidence, and safety. Shimano, a titan in the cycling component industry, consistently delivers high-quality parts that meet the demands of riders worldwide. Among their impressive line-up, the Shimano L05A disc brake pads have emerged as a popular choice, known for their balanced performance characteristics. But what exactly are these pads made of, what makes them so effective, and crucially, are they compatible with your current setup? This comprehensive guide delves deep into the specifics of the Shimano L05A pads, ensuring you have all the knowledge needed to make informed decisions about your bike's braking system.
- The Anatomy of Shimano L05A Brake Pads: Materials and Technology
- Key Performance Characteristics of L05A Pads
- Compatibility: Rotors and Calipers
- Maintaining Your Shimano L05A Brake Pads
- Frequently Asked Questions About Shimano L05A Brake Pads
- Q1: Are Shimano L05A pads metallic or resin?
- Q2: What is the benefit of Ice-Tech cooling fins on L05A pads?
- Q3: Can I use L05A pads with any Shimano disc rotor?
- Q4: How do L05A pads compare to L03A pads?
- Q5: How often should I replace my brake pads?
- Q6: Will L05A pads make my brakes quieter?
- Q7: Do I need to 'bed in' new L05A brake pads?
- Conclusion

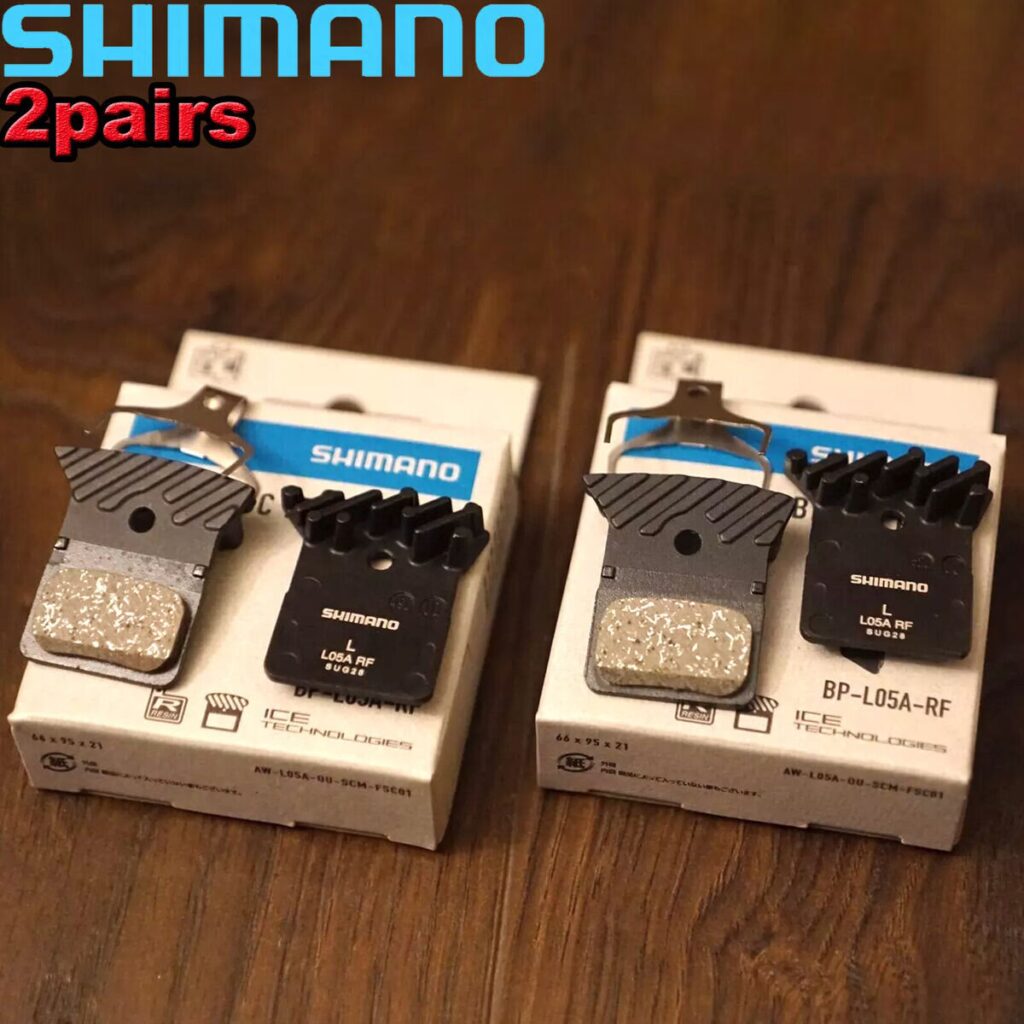

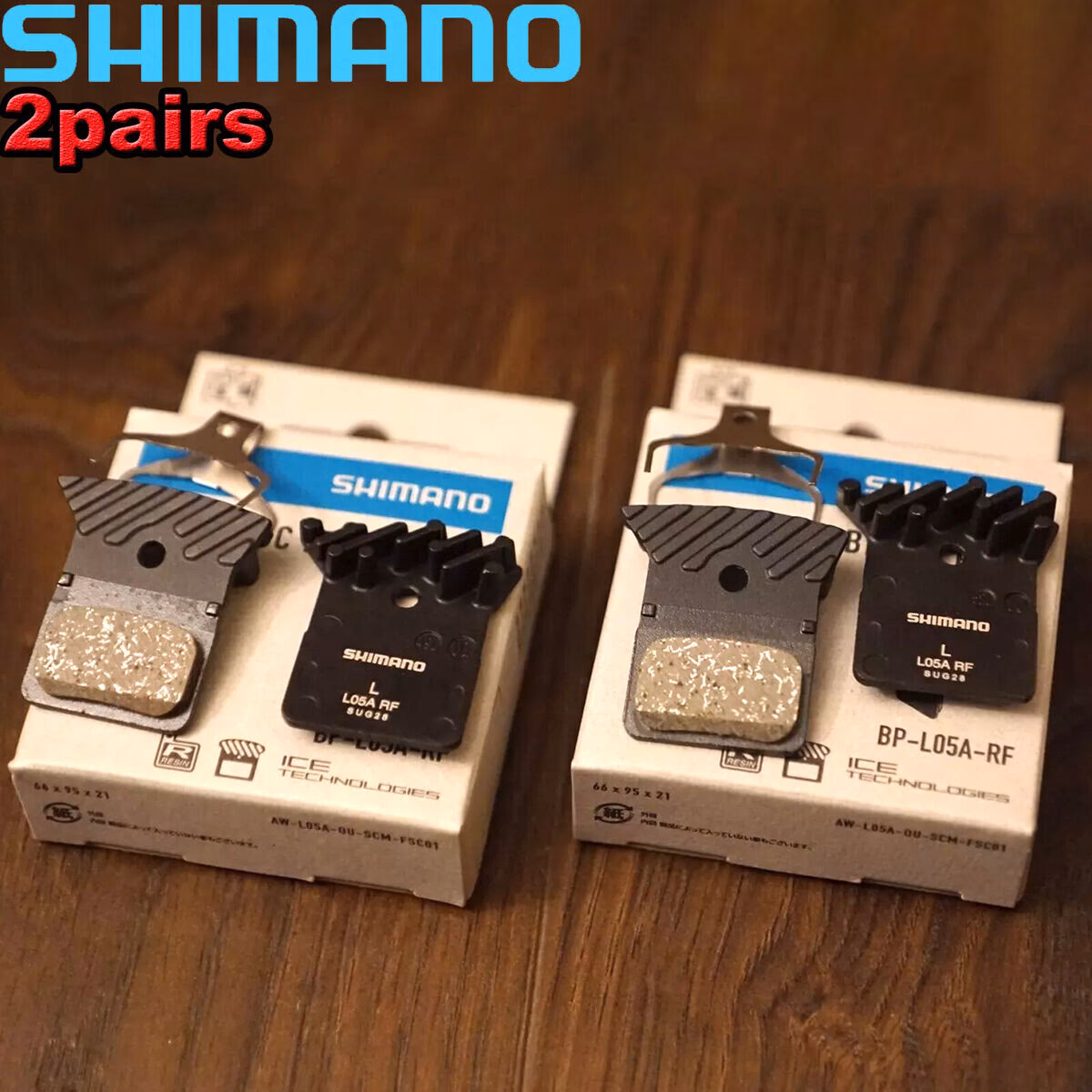

The Anatomy of Shimano L05A Brake Pads: Materials and Technology
The core performance of any brake pad stems directly from its material composition. The Shimano L05A disc brake pads are a prime example of a meticulously engineered component designed to deliver a superior braking experience. At their heart, these pads feature a resin (often referred to as organic) compound. This resin material is formulated to offer a specific set of characteristics that many riders value, particularly for road and light off-road applications.
Resin pads are celebrated for their ability to provide a strong initial bite, meaning they engage quickly and effectively as soon as the lever is pulled. This responsiveness translates into a feeling of immediate control, which can be particularly reassuring in fast-paced scenarios or when navigating technical descents. Furthermore, resin pads are renowned for their quieter operation compared to metallic pads. This reduction in noise, especially in wet conditions, significantly enhances the riding experience, eliminating the irritating squeal that can sometimes accompany metallic compounds.
Beyond the friction material itself, the L05A pads are constructed with a robust foundation. The resin pad sits on an alloy and steel backing plate. This multi-material backing plate serves several critical functions. The alloy component helps to dissipate heat, while the steel provides the necessary structural integrity and rigidity to withstand the immense forces generated during braking. This combination ensures durability and consistent performance over time.
Ice-Tech Cooling Fins: Battling Brake Fade
Perhaps one of the most distinctive features of the Shimano L05A pads, and a testament to Shimano's commitment to innovation, is the inclusion of Ice-Tech cooling fins. These fins are an integral part of the backing plate, designed to extend outwards, increasing the surface area exposed to airflow. The primary purpose of these cooling fins is to manage and dissipate heat generated during braking.
Braking, by its very nature, generates significant heat due to the friction between the pad and the rotor. Excessive heat can lead to a phenomenon known as 'brake fade,' where the braking performance diminishes over prolonged or intense use. This can result in a spongy lever feel, reduced stopping power, and an overall compromise in safety. The Ice-Tech fins actively work to reduce pad and rotor temperatures, ensuring that the L05A pads maintain consistent performance even during long descents or repeated hard braking. This advanced cooling technology is a key factor in the L05A's ability to offer reliable and powerful braking performance without compromise.
Key Performance Characteristics of L05A Pads
The combination of resin compound, robust backing plate, and Ice-Tech cooling fins endows the Shimano L05A pads with a suite of desirable performance attributes:
- Good Power: Riders can expect ample stopping power, suitable for a wide range of riding conditions, from urban commutes to challenging road descents.
- Excellent Wear Resistance: Despite being resin-based, the L05A pads are noted for their impressive durability and longevity, offering a good lifespan before needing replacement.
- Smooth, Silent Braking: A significant advantage, especially for road cyclists, is the quiet operation, providing a more pleasant and less distracting ride. The smooth engagement contributes to a refined braking feel.
- Reduced Fade: Thanks to the Ice-Tech fins, the pads are highly effective at managing heat, ensuring consistent performance and preventing brake fade even under demanding conditions.
These characteristics make the L05A pads an ideal replacement for their predecessors, the L03A pads, offering an upgrade in overall performance and longevity.
Resin vs. Metallic Pads: A Quick Comparison
Understanding the properties of resin pads like the L05A often benefits from a brief comparison with their metallic counterparts. While L05A is a resin pad, the broader context helps in appreciating its design choices.
| Feature | Resin (Organic) Pads (e.g., L05A) | Metallic (Sintered) Pads |
|---|---|---|
| Initial Bite | Strong, immediate engagement | Gradual, requires more heat to perform optimally |
| Noise Level | Generally quieter, especially in wet conditions | Can be noisy, especially when cold or wet |
| Modulation | Excellent, easy to control braking power | Good, but can feel more 'on/off' |
| Wear Rate | Good, but can wear faster in extreme conditions | Very durable, long-lasting |
| Heat Resistance | Good, but can fade under extreme heat (L05A mitigates with Ice-Tech) | Excellent, highly resistant to fade |
| Rotor Wear | Less abrasive on rotors, extending rotor life | More abrasive, can wear rotors faster |
| Performance in Wet/Mud | Can diminish slightly, but still effective | Can be inconsistent until warmed up, but powerful once engaged |
The Shimano L05A pads, with their resin compound and Ice-Tech fins, aim to capture the best aspects of resin pads (quietness, modulation, initial bite) while significantly mitigating their traditional weakness (heat fade) through advanced cooling technology. This makes them a highly versatile and appealing option for a wide range of riders.
Compatibility: Rotors and Calipers
One of the most critical aspects of selecting brake pads is ensuring their compatibility with your existing braking system. Using incompatible components can lead to poor performance, accelerated wear, and even safety hazards. Shimano provides clear guidelines for the L05A-RF brake pads.
Brake Rotor Compatibility: What to Avoid
While the L05A pads are designed for high performance, there are specific brake rotors with which they are not recommended for use. This is primarily due to the width of the friction ring on certain rotors, which may not perfectly align with the pad's surface, leading to uneven wear or suboptimal braking.
The Shimano L05A brake pads are not recommended for use with the following 180mm and 203mm brake rotors:
- SM-RT56
- SM-RT54
- SM-RT30
- SM-RT26
- SM-RT10
It is absolutely crucial to verify the model number of your existing rotors before installing L05A pads. Using these pads with the listed incompatible rotors could result in reduced braking efficiency, premature pad wear, or even damage to the rotor itself. Always ensure a perfect match for optimal safety and performance.
Shimano L05A Brake Pads Caliper Compatibility
Fortunately, the Shimano L05A-RF brake pads boast broad compatibility with a wide range of Shimano disc brake calipers, particularly those found on road, gravel, and some mountain bike setups. This extensive list makes them a versatile replacement option for many Shimano hydraulic disc brake systems.
The following calipers can be seamlessly paired with the Shimano L05A-RF brake pads:
- BR-R9170 (Dura-Ace)
- BR-R8070 (Ultegra)
- BR-R7070 (105)
- BR-4770 (Tiagra)
- BR-RS805
- BR-RS505
- BR-RS405
- BR-RS305
- BR-U5000
- BR-RX810 (GRX)
- BR-RX400 (GRX)
- BR-M9100 (XTR)
This extensive list covers a significant portion of Shimano's modern hydraulic road and gravel disc brake calipers, as well as some high-end mountain bike calipers, indicating the L05A's broad applicability. If your caliper is on this list, you can be confident that the L05A pads will be a direct and effective replacement, providing the intended performance benefits.
Maintaining Your Shimano L05A Brake Pads
Even the best brake pads require proper maintenance to ensure their longevity and consistent performance. Regularly inspecting your L05A pads is a simple yet crucial step in bicycle upkeep. Look for signs of wear – if the friction material is getting thin (typically less than 0.5mm), or if you start hearing unusual noises, it's likely time for a replacement. Always replace both pads in a caliper at the same time to ensure even braking.
Keeping your rotors clean is also vital. Contaminants like oil, grease, or even some cleaning agents can significantly degrade braking performance and cause irritating squealing. Use a dedicated disc brake cleaner to keep your rotors spotless. When handling new pads, avoid touching the friction material with your bare hands, as oils from your skin can transfer to the pad surface.
Frequently Asked Questions About Shimano L05A Brake Pads
Q1: Are Shimano L05A pads metallic or resin?
Shimano L05A disc brake pads are resin (also known as organic) compound pads. They are designed to offer quiet operation, good modulation, and a strong initial bite, complemented by Ice-Tech cooling fins to manage heat.
Q2: What is the benefit of Ice-Tech cooling fins on L05A pads?
The Ice-Tech cooling fins are designed to dissipate heat more effectively from the brake pads and rotors. This significantly reduces brake fade, which is the loss of braking power due to excessive heat build-up during prolonged or intense braking. This ensures consistent and reliable performance, even on long descents.
Q3: Can I use L05A pads with any Shimano disc rotor?
No, while L05A pads are compatible with many Shimano rotors, they are not recommended for use with specific 180mm and 203mm rotors, including SM-RT56, SM-RT54, SM-RT30, SM-RT26, and SM-RT10. This is due to the friction ring width of these particular rotors. Always check your rotor model for compatibility to ensure optimal braking and prevent premature wear.
Q4: How do L05A pads compare to L03A pads?
The Shimano L05A pads are the ideal replacement for the older L03A pads. They offer improved performance, particularly in terms of wear resistance and consistent power delivery, largely due to advancements in the resin compound and the effective heat management provided by the Ice-Tech fins. Essentially, they are an upgraded version of the L03A, providing enhanced durability and braking reliability.
Q5: How often should I replace my brake pads?
The lifespan of brake pads varies greatly depending on riding style, terrain, weather conditions, and rider weight. As a general rule, you should inspect your pads regularly. Replace them when the friction material is worn down to approximately 0.5mm thickness, or if you notice a significant decrease in braking performance, increased noise, or a spongy lever feel. It's always advisable to replace both pads in a caliper at the same time.
Q6: Will L05A pads make my brakes quieter?
Compared to metallic pads, resin pads like the L05A are generally much quieter, especially in wet conditions. If you've been experiencing squealing brakes with metallic pads, switching to L05A could significantly reduce noise, provided your rotors are clean and properly bedded in.
Q7: Do I need to 'bed in' new L05A brake pads?
Yes, bedding in new brake pads is a crucial step to achieve optimal performance and longevity. The bedding-in process involves gradually heating up the pads and rotors to transfer a thin layer of pad material onto the rotor surface. This creates a more consistent friction surface. To bed in, perform several moderate stops from a reasonable speed (e.g., 20-30 km/h) without coming to a complete stop, followed by a few harder stops. Allow the brakes to cool between efforts. Avoid sudden, hard stops until the bedding-in process is complete.
Conclusion
The Shimano L05A disc brake pads represent a finely tuned component designed to enhance the braking performance of a wide array of road and gravel bikes. Their resin compound delivers quiet, smooth, and powerful braking, while the innovative Ice-Tech cooling fins effectively combat brake fade, ensuring consistent performance even under the most demanding conditions. With excellent wear resistance and broad caliper compatibility, these pads are a fantastic choice for riders seeking a reliable and high-performing upgrade or replacement. Remember to always verify rotor compatibility to maximise the benefits of these exceptional pads and ensure your safety on every ride. With the right setup and proper maintenance, your Shimano L05A pads will provide you with the confidence and control you need to enjoy your cycling to the fullest.
