Boxster S Transmission Fluid Guide

The Porsche Boxster S, a beloved sports car known for its engaging driving dynamics, relies heavily on its transaxle to deliver power to the wheels. Ensuring the gearbox is filled with the correct lubricant is paramount for smooth operation, longevity, and preventing costly repairs. This article delves into the intricacies of choosing the right transmission oil for your Boxster S, exploring the nuances of gear oil specifications, popular aftermarket options, and essential DIY maintenance tips.

Understanding Gear Oil Specifications: GL-4 vs. GL-5

The world of gear oils is often categorised by the American Petroleum Institute (API) GL ratings. For manual transmissions and transaxles, the two most commonly discussed are GL-4 and GL-5. Understanding the difference is crucial for selecting the appropriate fluid for your Boxster S.

What is GL-4?

GL-4 rated gear oils are designed for manual transmissions that may contain yellow metals, such as brass or bronze, in their synchroniser rings. These oils typically contain extreme pressure (EP) additives, but in lower concentrations compared to GL-5. The EP additives in GL-4 are generally less aggressive towards yellow metals, making them a safer choice for transmissions with these components.

What is GL-5?

GL-5 rated gear oils are formulated for hypoid gears, commonly found in differentials. Hypoid gears experience significant sliding contact, requiring a higher concentration of aggressive EP additives to prevent wear. While GL-5 offers superior protection under extreme pressure, these sulfur-phosphorus additives can be corrosive to yellow metals over time. If a transmission contains brass synchronisers or other yellow metal components, using a GL-5 oil could potentially lead to premature wear and damage.

The Boxster S Transaxle: A Closer Look

The critical question for Boxster S owners is whether their transaxle contains yellow metal components that could be adversely affected by GL-5 lubricants. Based on forum discussions and technical insights, there's a strong indication that the synchronisers in the Boxster S 5-speed and 6-speed gearboxes are indeed made of brass.

This is why many enthusiasts and specialists recommend using a GL-4 rated gear oil or a GL-4/GL-5 compatible fluid that specifically states it is safe for yellow metals. The potential for premature wear caused by GL-5 oils is a significant concern, especially given the cost of a Boxster S transaxle.

Recommended Gear Oils for the Boxster S

Several reputable brands offer gear oils that are frequently recommended by Boxster S owners and mechanics. Here's a breakdown of some popular choices:

Red Line MT-90

Red Line MT-90 is a 75W90 synthetic GL-4 gear oil that has garnered significant praise within the Boxster community. Users often report smoother shifting and improved gearbox feel after switching to MT-90. Its GL-4 rating makes it a safe and effective choice for transmissions with yellow metal components.

Royal Purple Max-Gear

Royal Purple's Max-Gear is a synthetic gear lubricant that is often rated as GL-4/GL-5. While it offers robust protection, it's essential to verify its compatibility with yellow metals if you opt for this product. Some users have had positive experiences, while others express caution due to the GL-5 rating.

OEM Porsche Gear Oil

Porsche specifies a unique, fully synthetic gear oil for its transmissions. While some aftermarket manufacturers admit they don't have a direct equivalent, Porsche's own product is often the benchmark. Despite the cost, many owners who have switched back to the OEM fluid after using aftermarket options report a noticeable improvement in shifting quality. For those prioritizing guaranteed compatibility and optimal performance, the genuine Porsche lubricant is a strong contender.

Other Considerations:

• Mobil 1: While Mobil 1 is a highly respected brand, their standard gear oils are typically GL-5. Mobil has explicitly stated that they do not currently produce a gear lubricant suitable for Porsche applications.
• Castrol SAF-XO: Recommended by Castrol Germany, this is a high-quality synthetic 75W-90 GL-5 fluid. While it's a premium product, the GL-5 rating warrants careful consideration regarding yellow metal compatibility.

DIY Transmission Fluid Change: A Step-by-Step Guide

Changing the transmission fluid in a Boxster S is a manageable DIY project for a novice with the right tools and knowledge. It's a crucial maintenance task that can help extend the life of your gearbox.

Tools and Parts Required:

• 17mm Allen Drive (for the fill plug)
• 16mm Triple Square socket (or equivalent bit, for the drain plug)
• 2.25 Litres (approx. 2.4 US Quarts) of the chosen 75W90 gear oil
• A stiff piece of mechanics wire or a coat hanger with a 1-inch end bent to a 90-degree angle (for checking the oil level)
• A drain pan
• A hand pump with tubing (highly recommended for filling)
• Torque wrench
• Jack and jack stands
• Possibly a pry bar (for splash shields and braces)

Procedure:

1. Secure the Vehicle: Safely raise the car on proper jack stands. Ensure the vehicle is level.

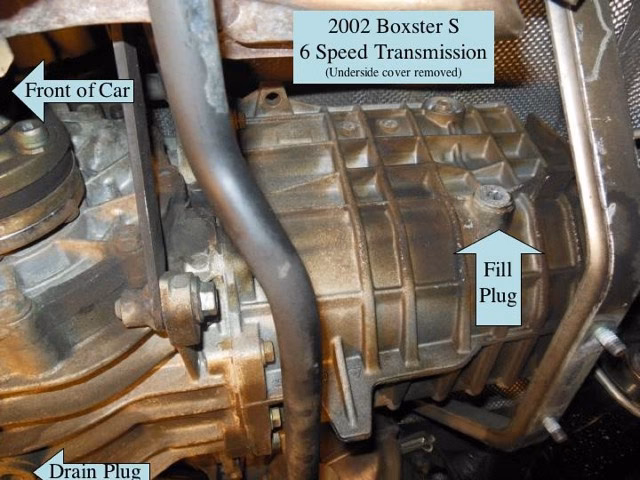

2. Access the Plugs: Remove the plastic splash shield and any alloy diagonal braces located beneath the transmission to access the drain and fill plugs. This may require a pry bar to dislodge the braces.
3. Remove the Fill Plug: Using the 17mm Allen drive, carefully remove the fill plug. It's wise to remove the fill plug first to ensure you can add new fluid before draining the old.
4. Drain the Old Fluid: Position a drain pan under the drain plug. Use the 16mm triple square socket to remove the drain plug. Allow the old fluid to drain completely.
5. Clean the Plugs: Clean both the fill and drain plugs, ensuring any metal debris is removed. Inspect the drain plug for excessive metal shavings, which could indicate internal wear.
6. Replace the Drain Plug: Once drained, reinstall the drain plug and torque it to the manufacturer's specification (typically around 25 Nm or 18 Ft./Lbs.).
7. Fill with New Fluid: Using a hand pump and tubing, carefully fill the transmission with the new gear oil through the fill plug opening. Add approximately 2 litres (or 2.1 quarts) initially.
8. Check the Fluid Level: Insert the bent wire into the fill hole. The oil level should be approximately 11mm (7/16 inch) below the fill opening. Continue adding fluid until this level is reached. This method ensures the correct amount of fluid is present, as the differential shares the transmission oil supply.
9. Replace the Fill Plug: Once the correct level is achieved, reinstall the fill plug and torque it to the manufacturer's specification (again, around 25 Nm or 18 Ft./Lbs.).
10. Reinstall Shields: Reattach the plastic splash shield and alloy diagonal braces. This might require some persuasion with your palms or a gentle nudge with a pry bar to align the holes correctly.

Frequently Asked Questions

Q1: How much transmission fluid does a Boxster S take?

A: The Boxster S typically requires approximately 2.25 litres (or 2.4 US Quarts) of gear oil. It's crucial to check the level using the method described above, as overfilling or underfilling can be detrimental.

Q2: Can I use a GL-5 oil in my Boxster S?

A: While GL-5 offers high-pressure protection, it's generally not recommended for the Boxster S transaxle due to the potential for the aggressive additives to corrode the yellow metal components (like brass synchronisers) within the gearbox. A GL-4 rated oil or a GL-4/GL-5 compatible fluid safe for yellow metals is the preferred choice.

Q3: Will synthetic gear oil make my transmission noisier?

A: Some synthetic gear oils, due to their lower viscosity at operating temperatures, can sometimes lead to a slight increase in transmission noise. However, many users report that the benefits of smoother shifting and better protection outweigh any minor increase in noise. Red Line MT-90, for instance, is often praised for improving shift feel and can even quiet down a gearbox.

Q4: How often should I change the transmission fluid?

A: Porsche recommends changing the transmission fluid at specific intervals, often around 90,000 miles (or 160,000 kms). However, given the sealed nature of the gearbox and the potential for metal shavings to accumulate, changing the fluid every 3 years, regardless of mileage, is a prudent practice to maintain optimal gearbox health.

Q5: What is the Redline "cocktail" for Boxster S transmissions?

A: Some owners, particularly those with aftermarket short-shifters like B+M shifters, prefer a mixture of Red Line 75W90NS (non-slip) and Red Line Light Gear Oil. This "cocktail" is believed to offer a unique balance of lubrication and shifting performance. However, always consult with a specialist or Red Line directly for their specific recommendations.

Conclusion

Choosing the correct transmission fluid for your Porsche Boxster S is a critical aspect of its maintenance. Prioritising GL-4 rated oils or those specifically formulated to be safe for yellow metals, such as Red Line MT-90, is generally the most recommended approach to ensure the longevity and smooth operation of your gearbox. While the OEM fluid is a reliable option, understanding the alternatives and performing regular fluid changes can save you from significant future expenses and keep your Boxster S performing at its best.
