Peugeot & Citroën Bosch ECU: Cloning & Immo Off

Modern vehicles are marvels of engineering, but their intricate electronic control units (ECUs) can sometimes be the source of perplexing and costly problems. For owners of Peugeot and Citroën models, particularly those fitted with Bosch ECUs, issues like immobiliser faults or a damaged engine control unit can grind your motoring to a halt. Fortunately, specialised services such as ECU cloning and 'Immo Off' solutions offer a vital lifeline, providing a reliable and often more affordable alternative to main dealer replacements.

Understanding these services is key to making an informed decision when your beloved French motor encounters an electronic hiccup. This article delves into how these advanced techniques work, which Bosch ECUs are supported for Peugeot and Citroën vehicles, and why they could be the perfect solution for your automotive woes.

The Heart of the System: Understanding Your ECU

The Engine Control Unit (ECU) is often referred to as the 'brain' of your car. It manages a vast array of functions, from fuel injection and ignition timing to emissions control and, crucially, the immobiliser system. When an ECU fails, it can manifest in numerous ways, including non-start conditions, erratic engine behaviour, or persistent fault codes that prevent the vehicle from running correctly.

Replacing a faulty ECU isn't as simple as swapping out a component. Modern ECUs are meticulously coded to a specific vehicle, often linked to the immobiliser system and other modules like the Body Control Module (BCM) or instrument cluster. This intricate pairing prevents vehicle theft and ensures all electronic systems communicate harmoniously. This is where the complexities of replacement often arise.

Immobiliser Systems: Your Car's Security Guardian

An immobiliser is a sophisticated electronic security device fitted to cars to prevent the engine from running unless the correct key or transponder is present and recognised. While an essential anti-theft measure, it can become a major headache if it malfunctions. Common immobiliser issues include:

• Key Not Recognised: The car refuses to start because it doesn't detect the correct key code.
• ECU Malfunction: The ECU itself develops a fault that prevents it from correctly communicating with the immobiliser.
• Wiring Issues: Damage to the wiring between the immobiliser unit and the ECU.
• Lost or Damaged Keys: Requiring new keys to be coded, a process that can be costly and complex.

When an immobiliser fault occurs, your car essentially becomes a very expensive paperweight. Traditional solutions often involve expensive diagnostic work at a main dealer, followed by the purchase and coding of a brand-new ECU, which can run into thousands of pounds.

ECU Cloning: A Seamless Solution

ECU cloning is a highly effective process where the data from your original, faulty ECU is meticulously extracted and transferred to a donor (replacement) ECU. This includes all critical information such as the vehicle's VIN (Vehicle Identification Number), immobiliser data, mileage information, and specific software settings unique to your car. Essentially, the donor ECU becomes an identical twin of your original.

Why Opt for ECU Cloning?

• Cost-Effective: Significantly cheaper than purchasing a brand-new, pre-coded ECU from a main dealer. Donor ECUs are readily available and more affordable.
• Plug & Play: Once cloned, the replacement ECU is truly 'plug and play'. There's no need for complex recoding or adaptation to the vehicle, saving time and labour costs.
• Retains Vehicle Data: All your car's specific configurations, including immobiliser data, are perfectly preserved, preventing conflicts with other modules.
• Faster Turnaround: Specialist services can often perform cloning within a few days, getting your car back on the road much quicker than waiting for dealer parts and appointments.
• Environmentally Friendly: Utilises existing parts (donor ECUs) rather than manufacturing new ones, contributing to less waste.

This service is particularly beneficial when your original ECU is physically damaged, water-damaged, or has suffered an internal electronic failure that renders it unrepairable. As long as the data can be successfully read from the original unit, cloning is a viable path.

Immo Off: Bypassing the Immobiliser

'Immo Off' refers to the process of modifying the ECU's software to permanently disable or bypass the immobiliser function. This means the engine will start regardless of whether the immobiliser key signal is present. While this might sound like a security risk, it's often used in specific, controlled scenarios.

When is 'Immo Off' Considered?

• Persistent Immobiliser Faults: When an immobiliser system is irreparable or causes chronic starting issues, an Immo Off solution can provide a permanent fix.
• Engine Swaps: If an engine and ECU are swapped from a different vehicle, an Immo Off modification can eliminate the need for complex key and immobiliser matching.
• Track or Off-Road Vehicles: For vehicles not used on public roads where security concerns are different, simplifying the starting procedure can be desirable.

Important Disclaimer: It is crucial to understand that 'Immo Off' services are typically supplied for vehicles that are not intended for road use or are experiencing irreparable immobiliser faults where other options have been exhausted. Reputable providers will often state that this service is intended for vehicles that are 'not moving cars' or for testing purposes. It is the user's responsibility to ensure compliance with all local laws and regulations regarding vehicle security and roadworthiness. The service provider is not responsible for any direct or indirect damages resulting from the use of the modified file.

Supported Peugeot & Citroën Bosch ECUs

Specialist services cater to a wide range of Bosch ECUs found in Peugeot and Citroën vehicles. The ability to perform Immo Off and cloning often depends on the specific ECU model and its internal architecture, particularly the EEPROM (Electrically Erasable Programmable Read-Only Memory) where crucial immobiliser data is stored.

For Peugeot and Citroën (PSA Group) vehicles, commonly supported Bosch ECU models include:

• EDC17C10
• EDC17C60
• MEV17.4

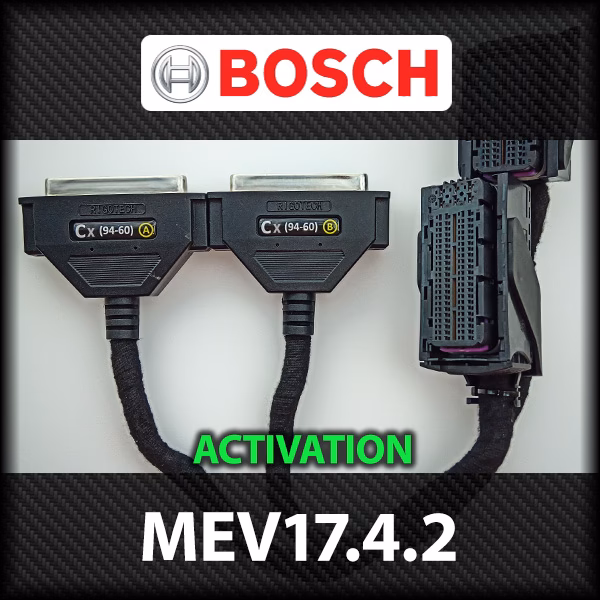

• MEV17.4.2

These ECUs often utilise specific EEPROM file sizes (e.g., 32kB, 64kB, 192kB) and may incorporate advanced tuning protection (TPROT) technologies. Expert services have the specialised tools and algorithms to work with these complex units, ensuring accurate data transfer and checksum correction.

The Role of EEPROM and Checksum Correction

The EEPROM within the ECU holds vital, non-volatile data, including the immobiliser's PIN (Personal Identification Number) code. When performing cloning or Immo Off, this EEPROM data is manipulated. Any change to the ECU's software or data requires a corresponding update to its checksum. A checksum is a small value derived from all the data in the ECU's memory; if it doesn't match, the ECU will detect corruption and prevent the engine from starting. Professional services include automatic checksum correction to ensure the modified ECU functions flawlessly.

The Process: What to Expect

Typically, the process for ECU cloning or Immo Off involves a few straightforward steps:

1. Initial Contact & Diagnosis: You contact the specialist service, explain your car's symptoms, and provide details of your vehicle and ECU. They will advise on the best course of action.
2. ECU Removal: You carefully remove your faulty ECU from the vehicle. Many services provide guidance or videos to assist with this.
3. Shipping: You send your faulty ECU (and often a donor ECU if you're opting for cloning) to the specialist. Secure, tracked shipping is always recommended.
4. Service & Testing: Upon receipt, the technicians will perform the requested service (cloning or Immo Off). They will then conduct thorough testing to ensure the ECU is functioning correctly and the modifications have been successfully implemented.
5. Return Shipping: The serviced ECU is returned to you, typically with a quick turnaround time.
6. Reinstallation: You reinstall the ECU into your vehicle, and in the case of cloning, it should be a straightforward plug-and-play operation.

Comparison: ECU Cloning vs. Dealer Replacement

To highlight the advantages, here's a quick comparison:

Frequently Asked Questions (FAQs)

Q1: Is ECU cloning legal?

Yes, ECU cloning is entirely legal and a common practice for repairing vehicles. It essentially creates a functional replacement for a faulty part. The legality of 'Immo Off' services depends on their intended use. For road-going vehicles, immobiliser systems are a legal requirement for security. 'Immo Off' is generally offered for non-road-going vehicles, engine swaps, or in situations where the immobiliser system is beyond repair and the vehicle's use case permits its deactivation.

Q2: How long does the service take?

Most reputable specialists aim for a very quick turnaround. Once they receive your ECU, the cloning or Immo Off process often takes 1-2 working days, plus shipping time back to you. This means you could have your car back on the road within a week.

Q3: What if my specific Peugeot or Citroën ECU isn't listed as supported?

The list of supported ECUs (EDC17C10, EDC17C60, MEV17.4, MEV17.4.2) covers many common Bosch units in Peugeot and Citroën. However, technology evolves, and new support is constantly being added. It's always best to contact the specialist directly with your vehicle's make, model, year, and specific ECU part number. They can confirm if your unit is supported or if they have alternative solutions.

Q4: Do I need to send my car's keys along with the ECU?

For ECU cloning, typically no. The immobiliser data is contained within the ECU's EEPROM, which is transferred. For 'Immo Off' services, keys are also not required as the immobiliser function is being bypassed. However, always confirm this with the service provider, as specific circumstances might vary.

Q5: What is TPROT (Tuning Protection)?

TPROT, or Tuning Protection, is a security feature implemented by Bosch in newer ECUs (like some EDC17/MED17/MEV17 units) to prevent unauthorised reading or writing of the ECU's internal memory. This protection makes it harder for tuners or even repair specialists to modify the ECU. However, advanced tools and techniques can bypass certain TPROT versions, allowing for legitimate services like cloning or Immo Off to be performed.

Q6: Can this service fix all non-start issues?

This service specifically addresses ECU faults and immobiliser-related non-start issues. If your car has a non-start issue due to a faulty fuel pump, starter motor, wiring harness, or another mechanical/electrical component not directly related to the ECU or immobiliser, then this service will not resolve those problems. It's crucial to have a proper diagnosis of your car's fault before sending your ECU for service.

Conclusion

For Peugeot and Citroën owners facing the daunting prospect of ECU or immobiliser problems, specialist cloning and 'Immo Off' services offer a powerful and cost-effective alternative to expensive dealer repairs. With the ability to accurately transfer critical data to a donor ECU or permanently deactivate a problematic immobiliser, these solutions can save you significant time, money, and hassle. By entrusting your Bosch EDC17 or MEV17 ECU to experienced professionals, you can confidently get your vehicle back on the road, running perfectly and reliably, without breaking the bank.

Always ensure you choose a reputable service provider with proven expertise and a strong track record, as the quality of the work directly impacts your vehicle's long-term performance and reliability. Their ability to handle complex units, perform checksum corrections, and understand the nuances of various Bosch ECUs is paramount.
